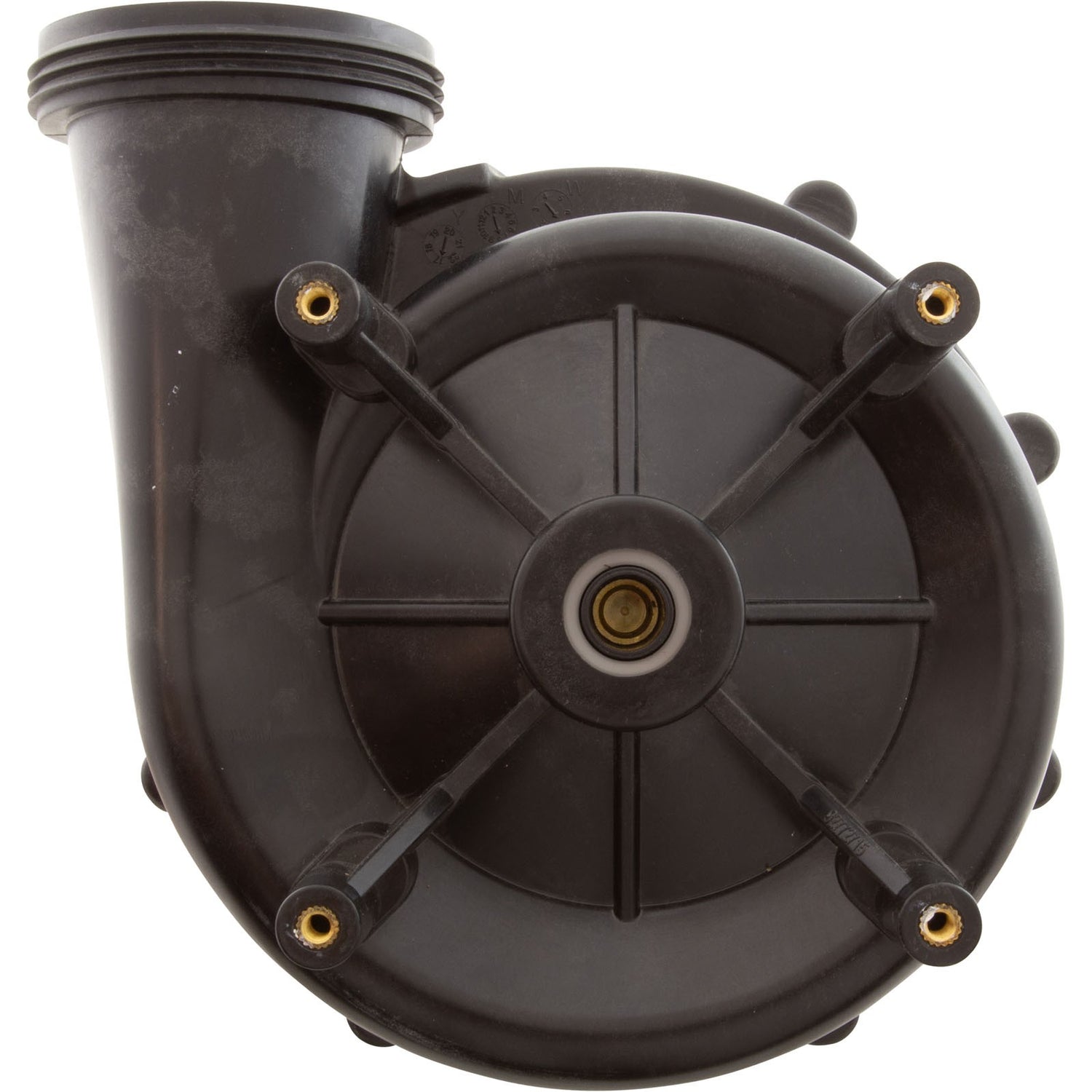

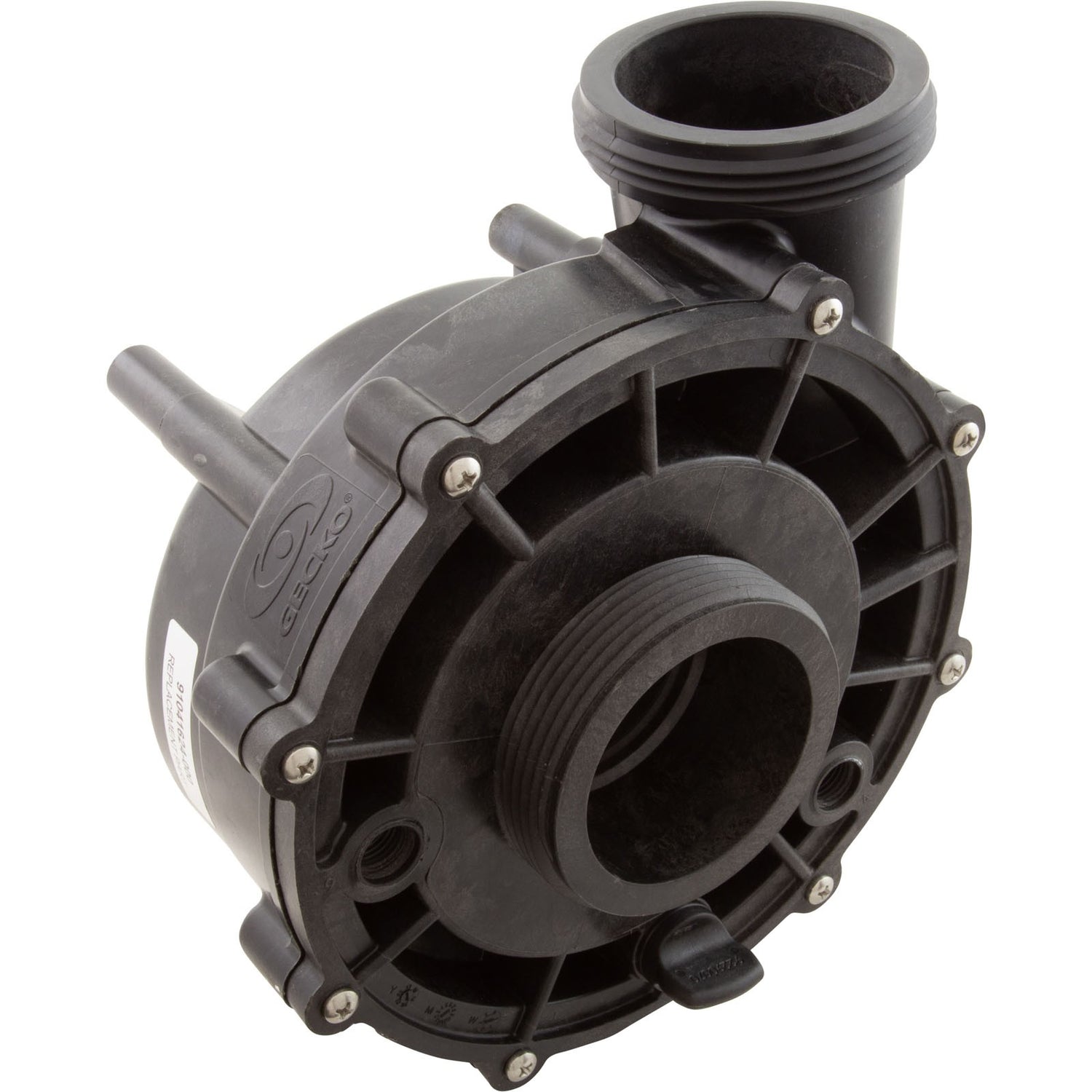

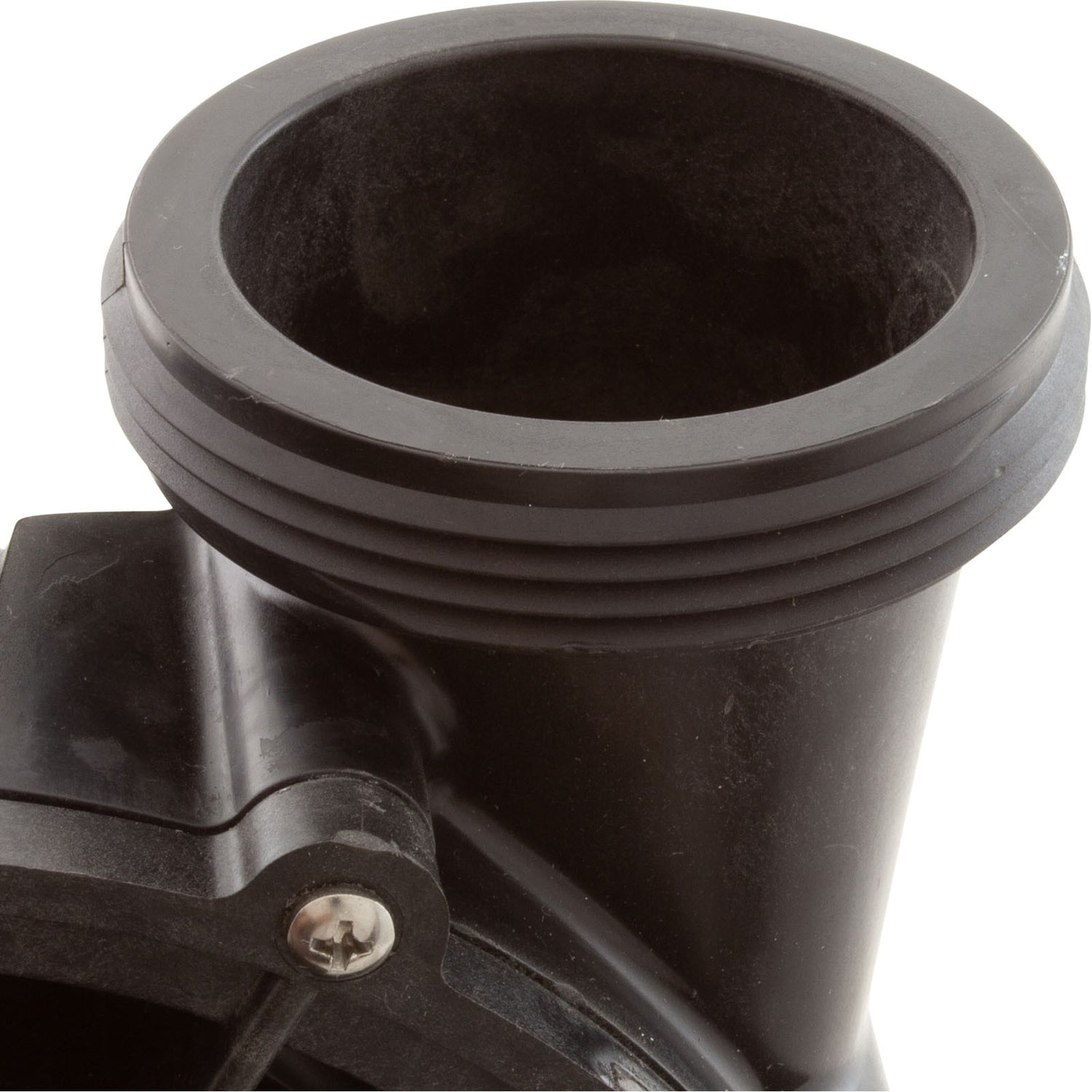

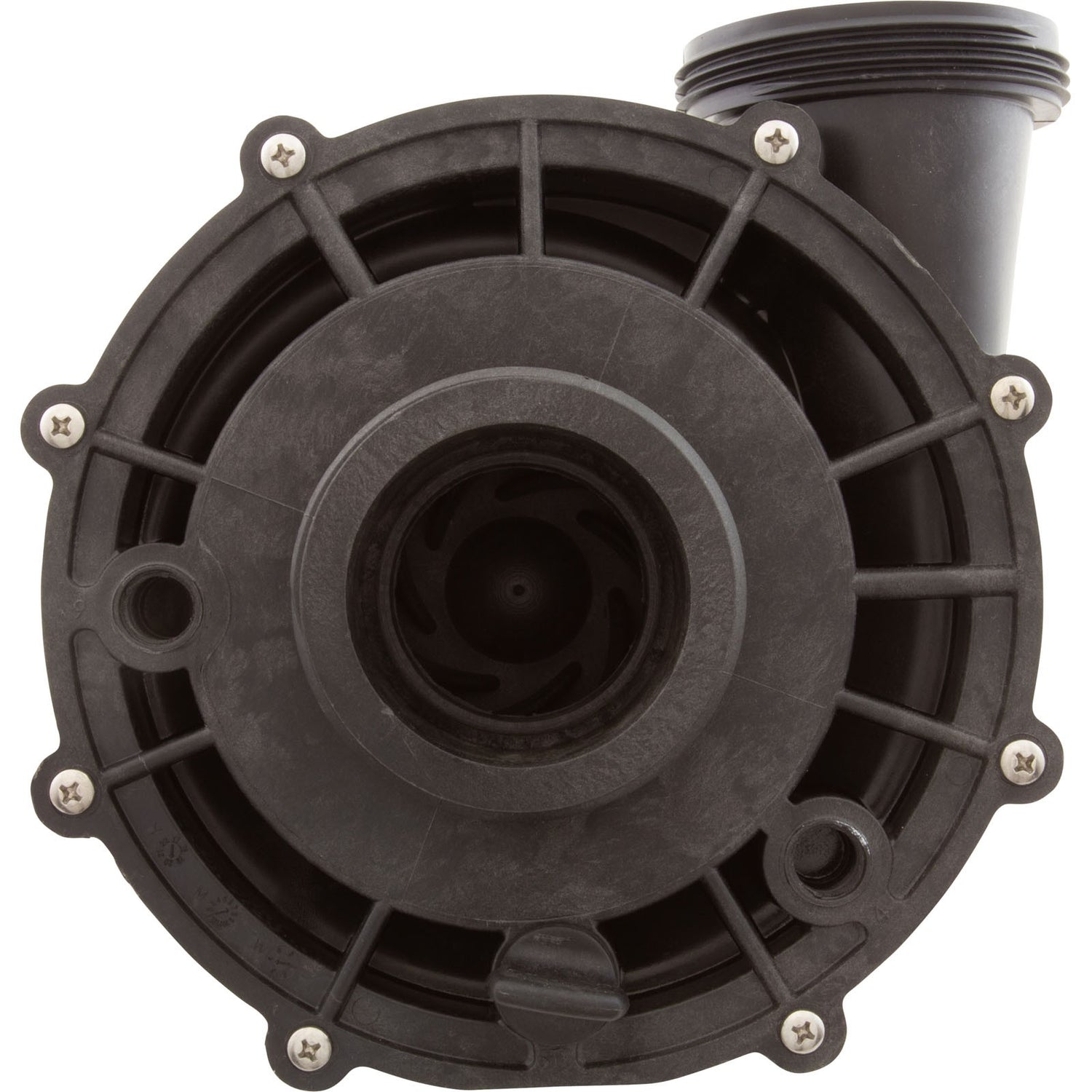

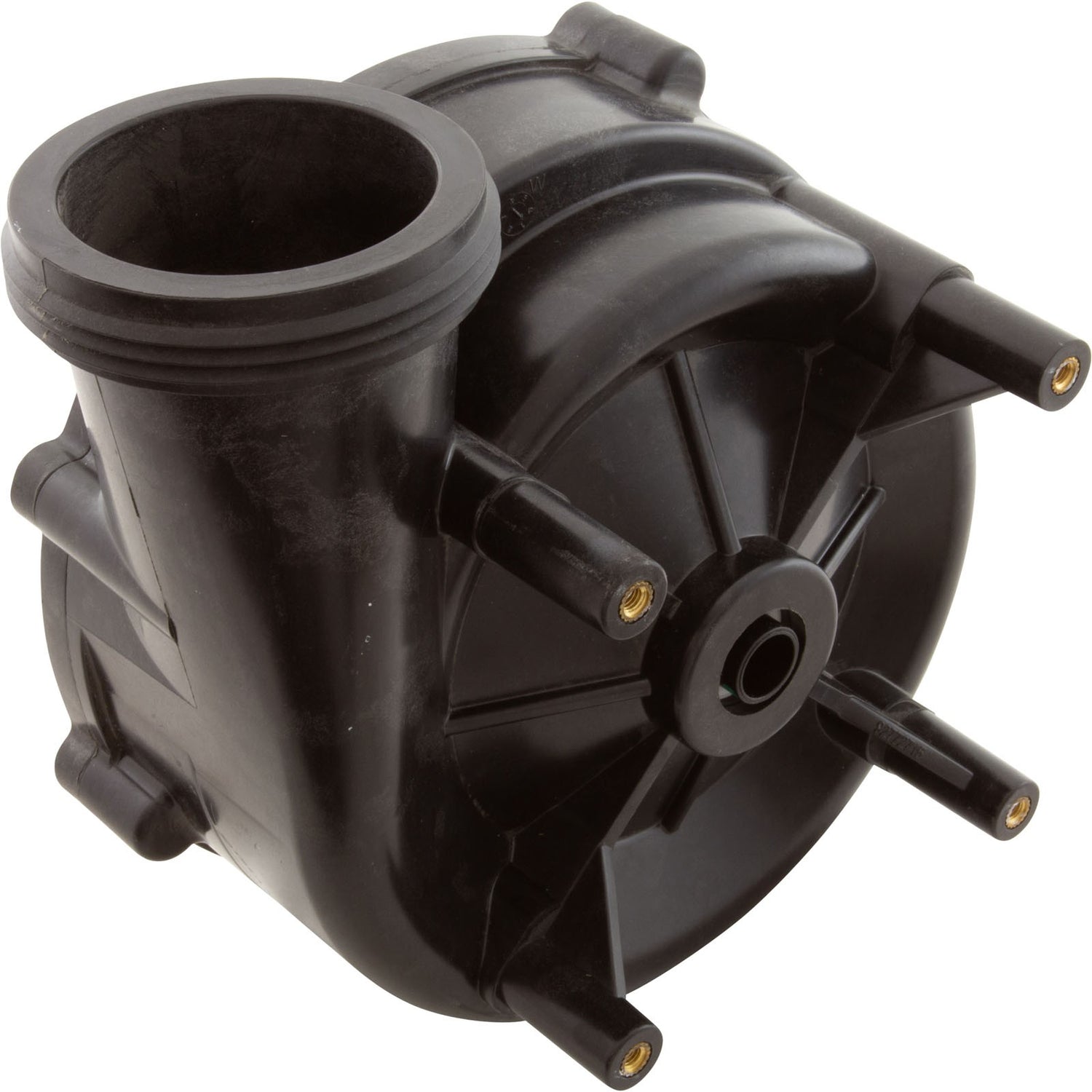

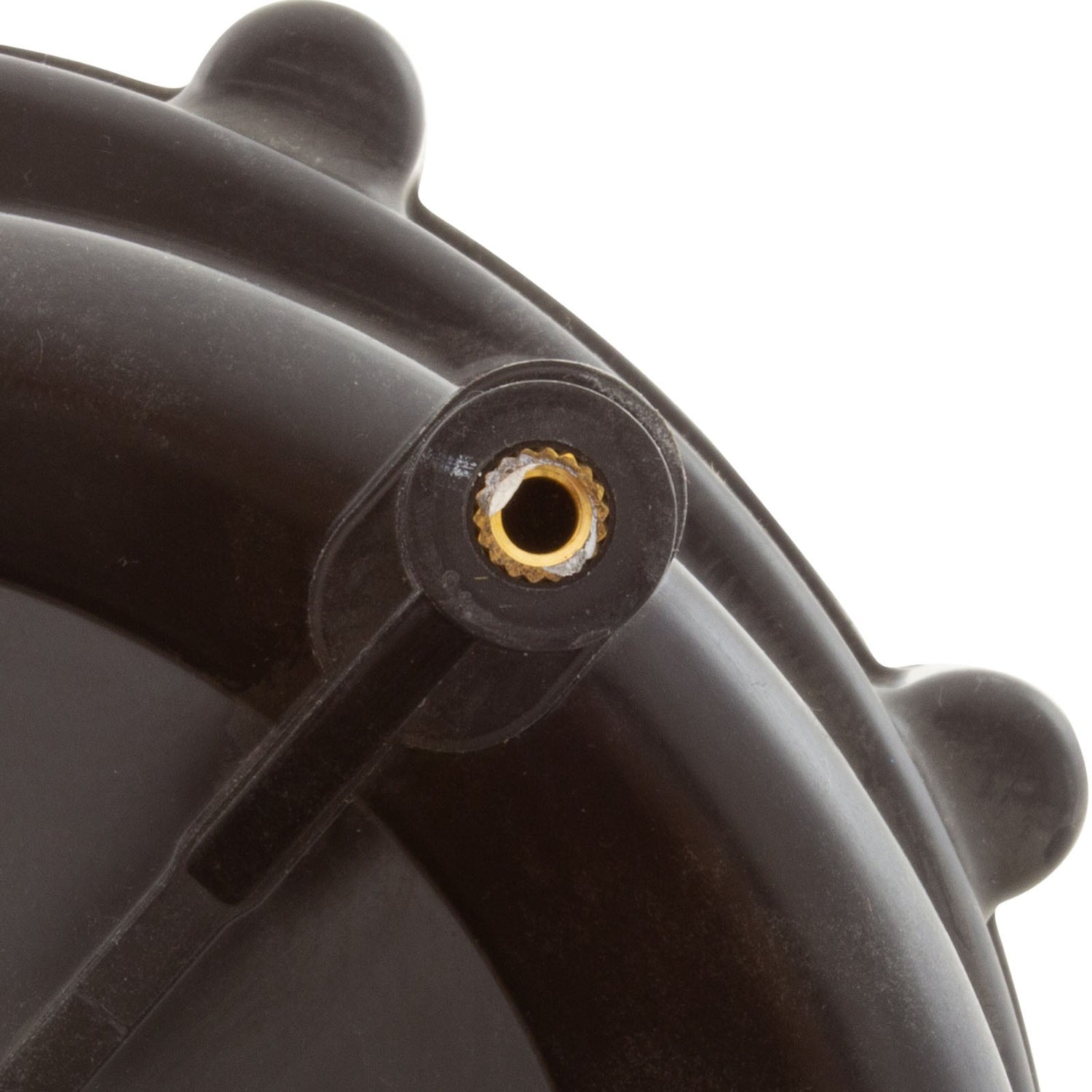

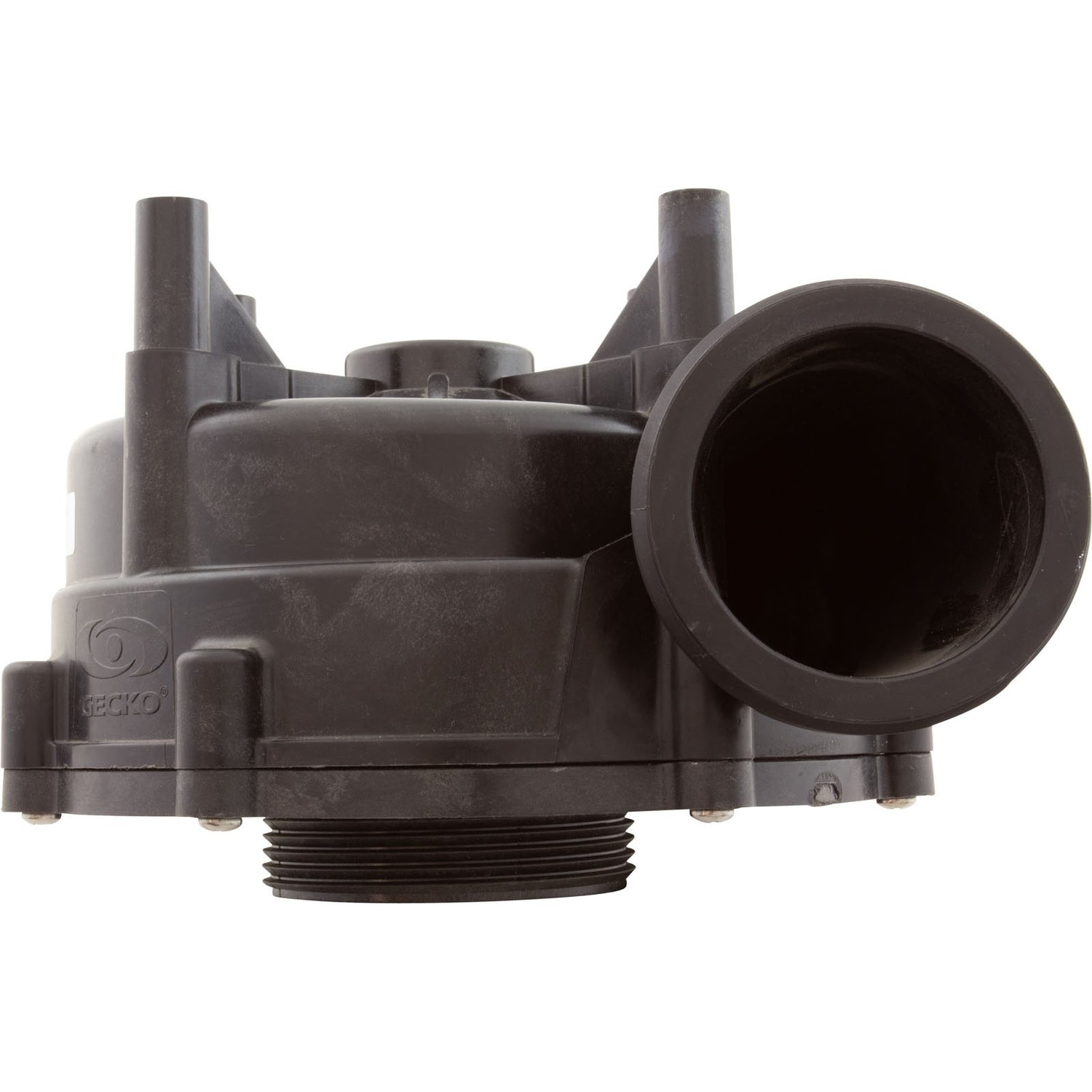

Wet End, Gecko AquaFlo FMXP2 3.0hp 2"mbt 6.1"dia 56fr : 91041624-000

Wet End, Gecko AquaFlo FMXP2 3.0hp 2"mbt 6.1"dia 56fr Note: This is a 6.1 wet end. If you need a 6.3 wet end see 34-402-1256 - Wet End, Gecko AquaFlo XP2/XPE, 1.5ohp/2.0thp, 2", 6.3" dia, 56fr.56 frame spa wet ends can have one of two designations - 6.1 or 6.3. The difference is the measurement between the top two thru-bolts. 6.1 wet ends measure 4" and 6.3 wet ends measure 4-1/8". See diagram below. Manufacturer: AquaFlo/Gecko Pump Model: Flo-Master XP2 Motor Frame: 56 Frame Thru-Bolt- 4" Spacing Drain Plug Location: 4,6,9 o`clock Suction Style: Center Suction Connection Type: Male Buttress Thread (mbt) Suction Pipe Size: 2"Discharge Style: SideDischarge Connection Type: Male Buttress Thread (mbt)Discharge Pipe Size: 2"Horsepower: 3.0hpVolute Fastening Type: 8 Screws Replaces 389567,91041624,
