Time Clock, Diehl, 24HR, 230V, 16A, SPDT, Orange : TA4065

Product Details

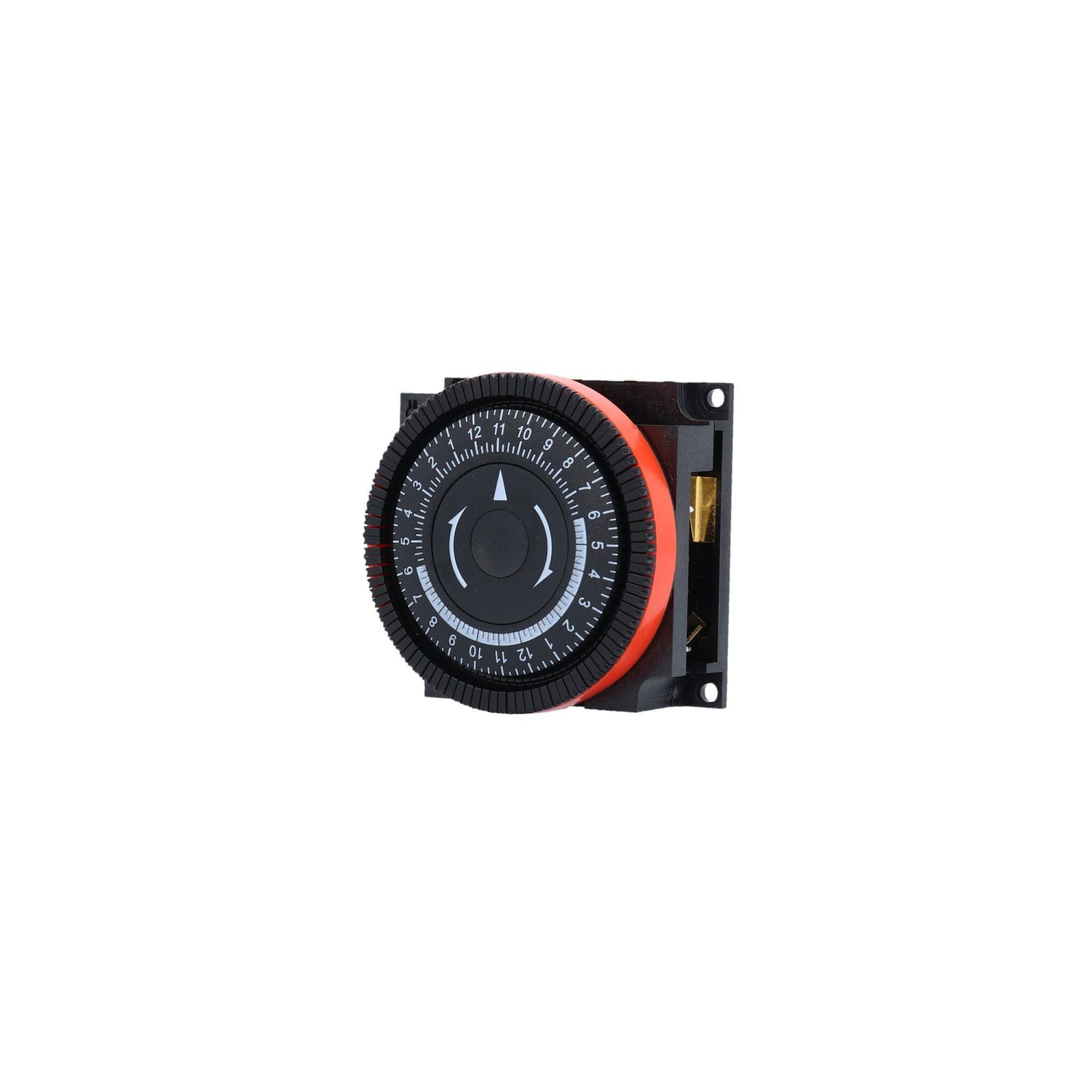

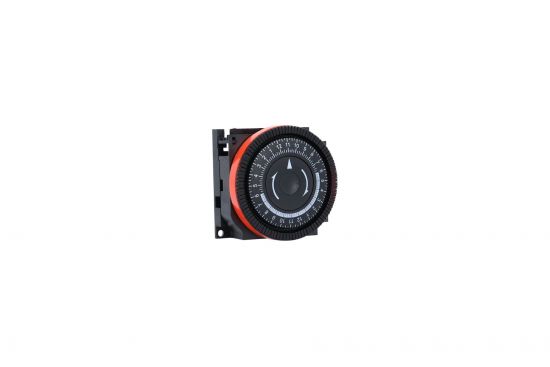

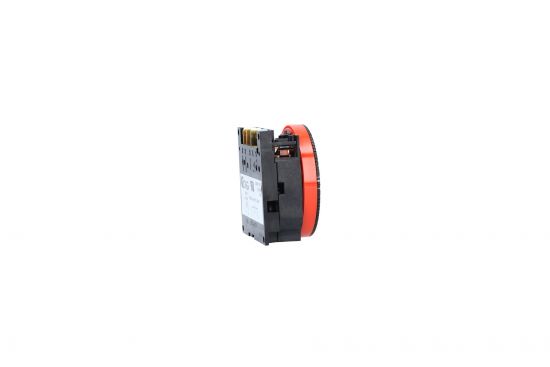

The Diehl TA4065 is a 24-hour electromechanical time clock designed for panel mounting. It operates at 230 volts and supports a 16 amp load, making it suitable for controlling baths, whirlpools, spas, hot tubs, and similar applications.

• Type: Electromechanical 24-hour spa time clock
• Model: Diehl 800 series, TA4065
• Voltage: 230 V
• Current Rating: 16 A
• Contact Action: SPST (Single Pole Single Throw)
• Mounting: Panel mount

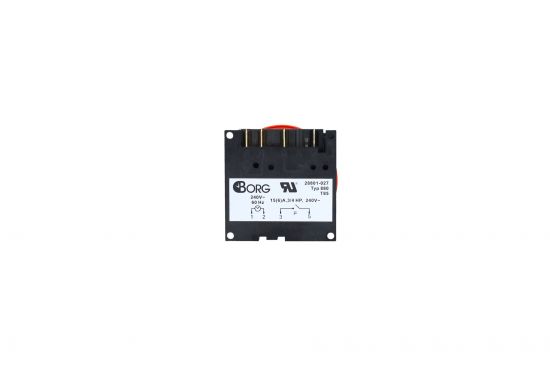

• Terminals: 4 terminal tabs located on the bottom
• Color: Orange bezel behind the timer dial
• Applications: Bath, whirlpool, spa, hot tub controls, and other uses
• Alternate Part Numbers: 3-40-0016, TA 4065 (Diehl), 80-1012, 59-581-1022
• Note: A 120 V version is available under part number TA4071

This time clock provides reliable timing control for spa and similar equipment, featuring a durable orange bezel for easy identification.
