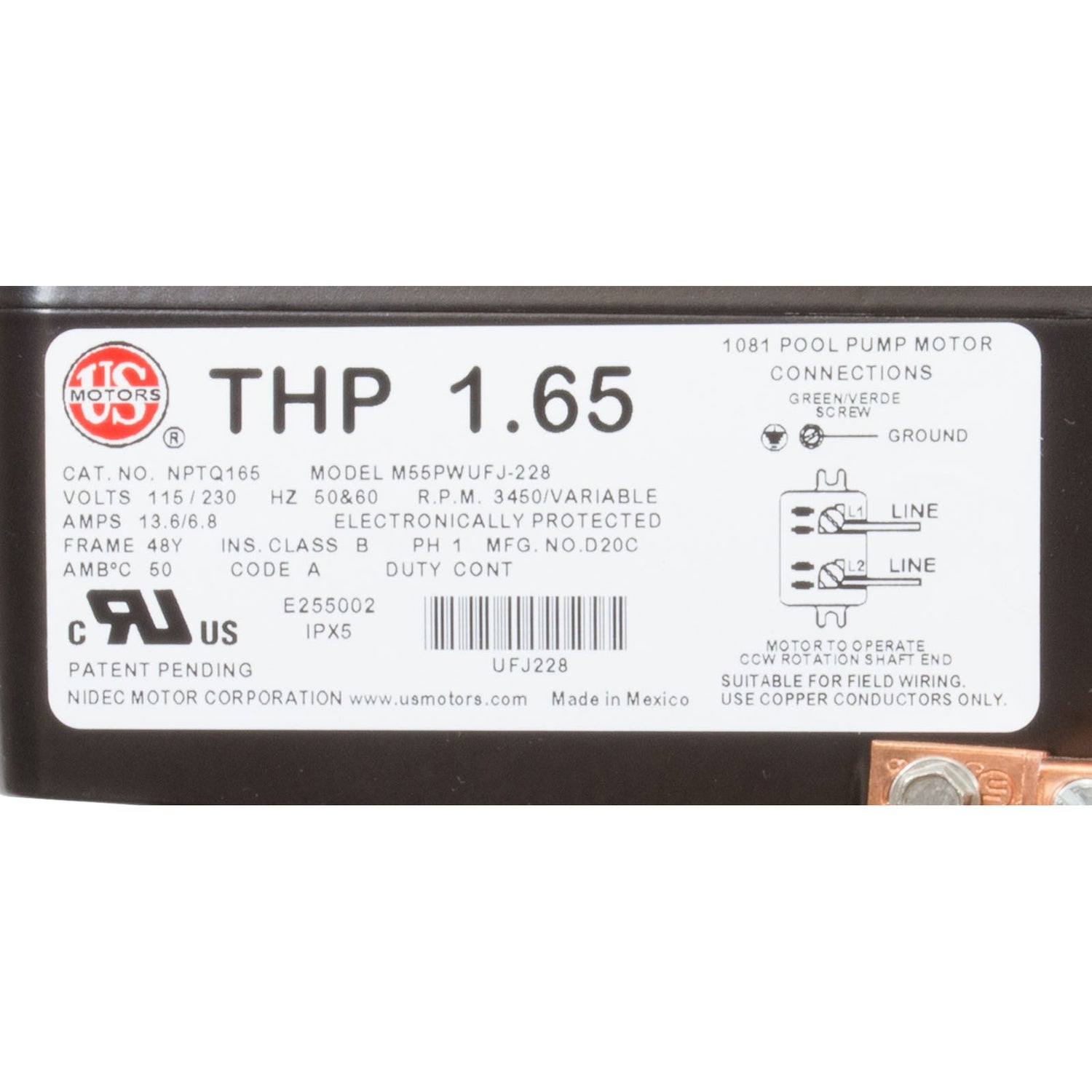

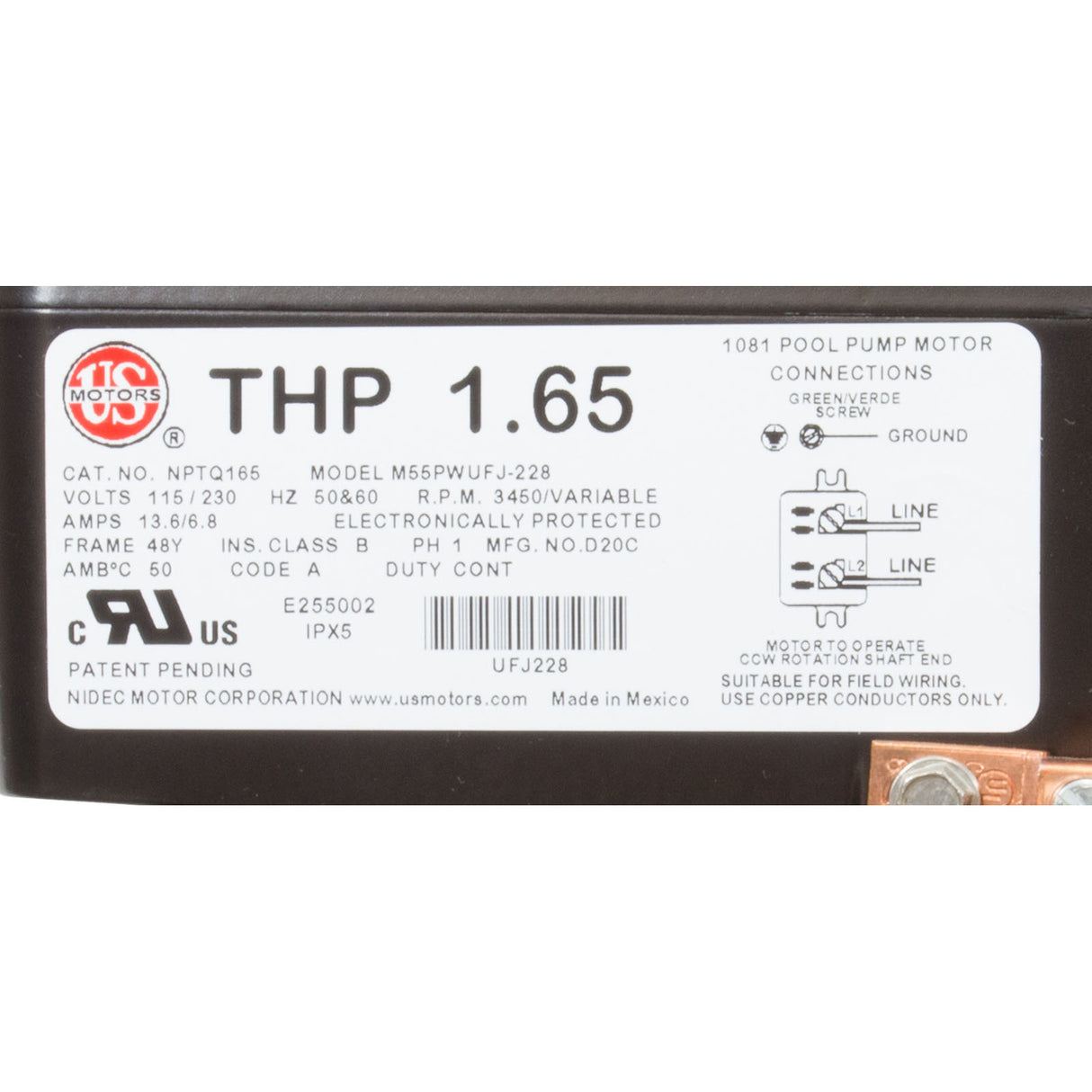

Motor, US Motor Neptune, 1.65thp, SQFL, Var-Spd, 115/230v, 48Y : NPTQ165

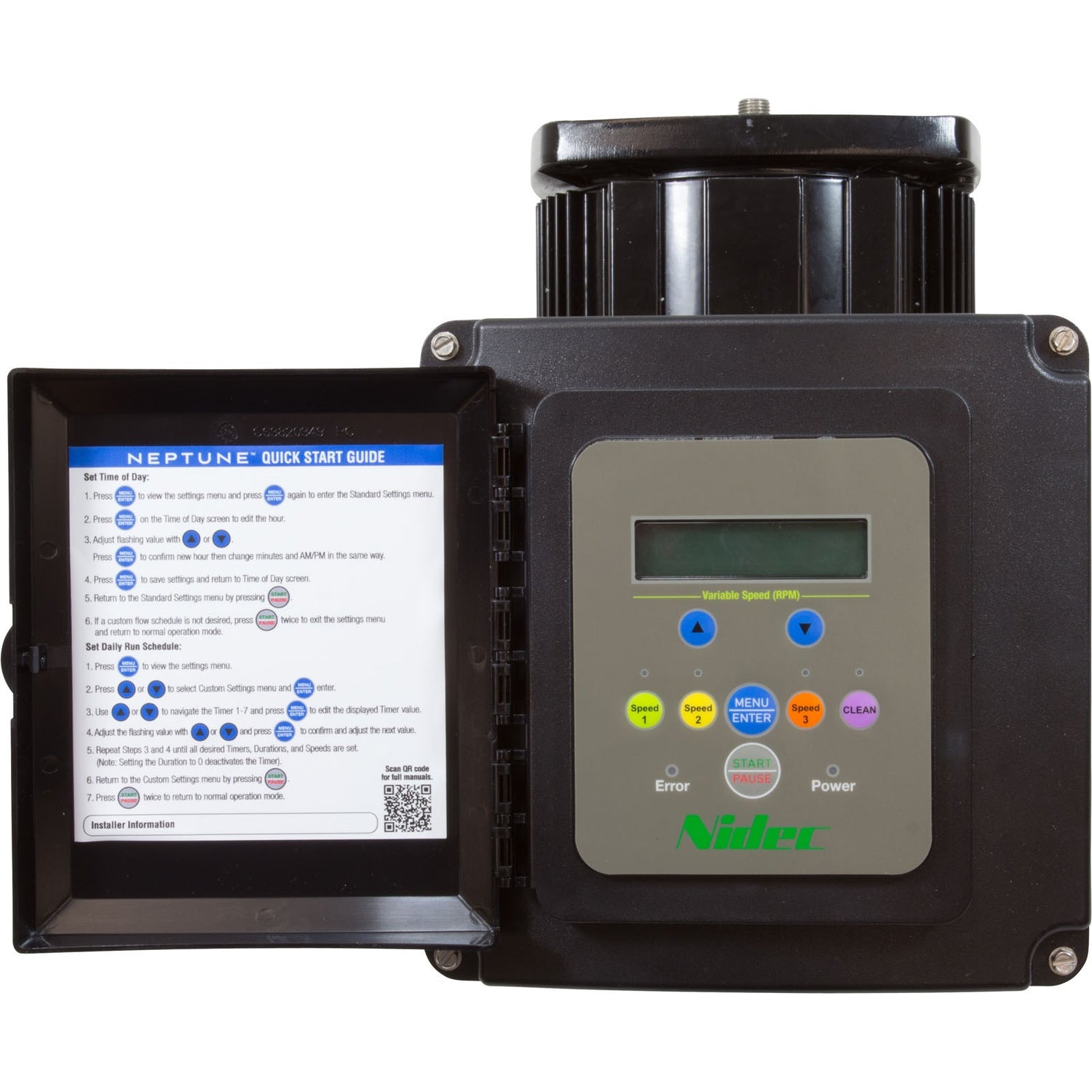

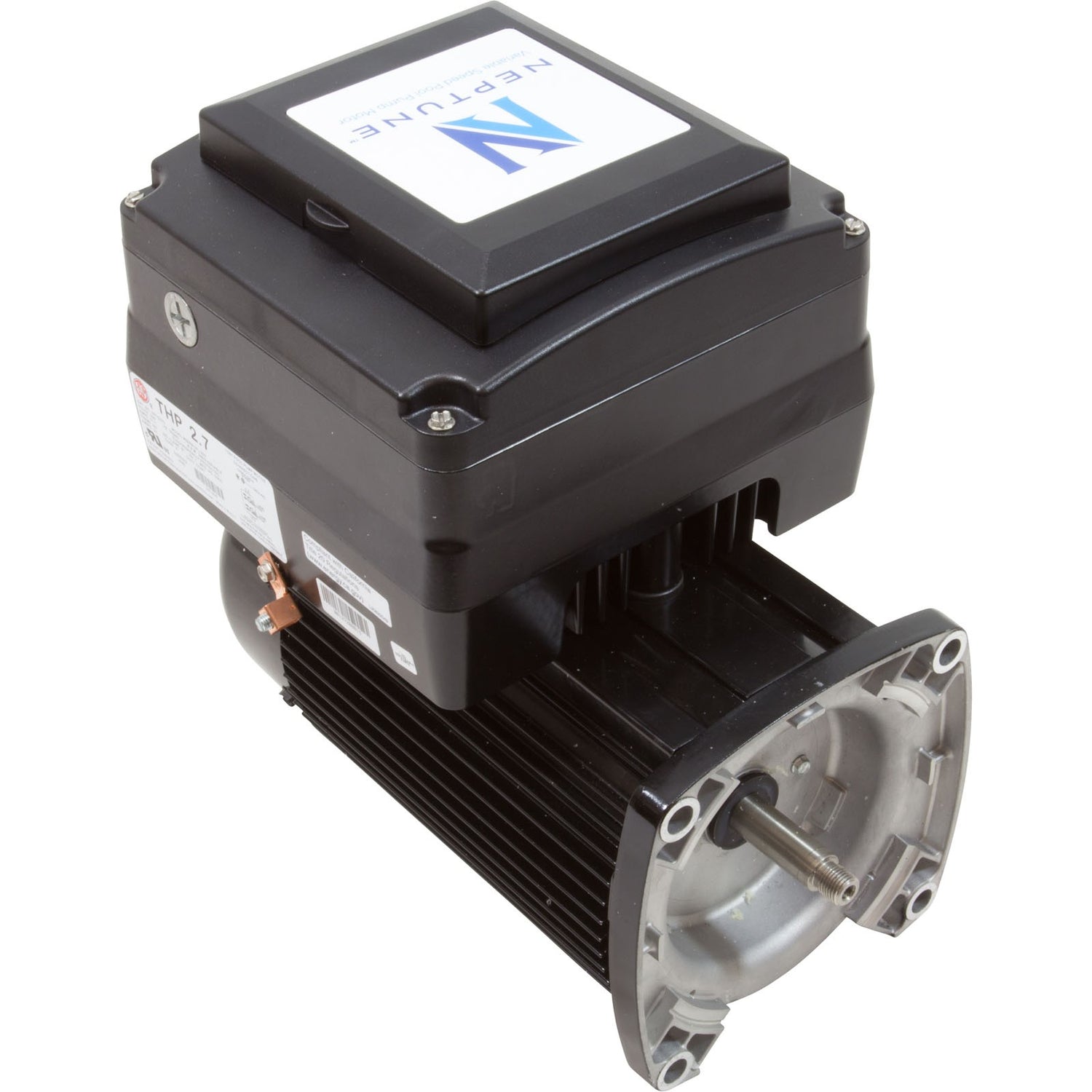

Motor, US Motor Neptune, 1.65thp, SQFL, Var-Spd, 115/230v, 48Y The Neptune™ 1.65 Total Horsepower (THP) variable speed pool pump motor is a premium efficiency product that includes a fully integrated motor, control, and user interface (UI). The product gives you programming flexibility and exceptional speed range capability. It is also designed to communicate and operate with a variety of external system controls, in addition to the on-board User Interface. FEATURES: Efficiency: 1.65THP 81% at 3450 RPM Enclosure: Finned Aluminum enclosure providing a Water Ingress Protection level of IPX5 for long field life in outdoor environmental conditions User Interface: Fully functional, easy to operate, capable of 90°, 180°, or 270° rotation Rotation: Counter-clockwise (viewing motor shaft) Low Temperature Monitor: Threshold temperature configurable in the UI Fully Integrated: Designed for simple “Drop-In” installation with no complex wiring Auxiliary Load Relay Capable of communicating with specific pool control systems via MODBUS RTU Capable of setting up to seven daily schedules Adjustable priming time & speed Menu keypad lockout Designed for quiet operation UL 1081 approved Motor Type: Pool Motor Amperage: 13.6A/6.8A Voltage: 115v/230v Frame Type: 48Y Speed: Variable Speed (Var-Spd) Total Horsepower: 1.65thp Motor Shaft Type: ThreadedMotor Style: Square FlangeCapacitor On Top: NoManufacturer: Nidec-Motor-Corp/US-Motors Replaces 38671,
