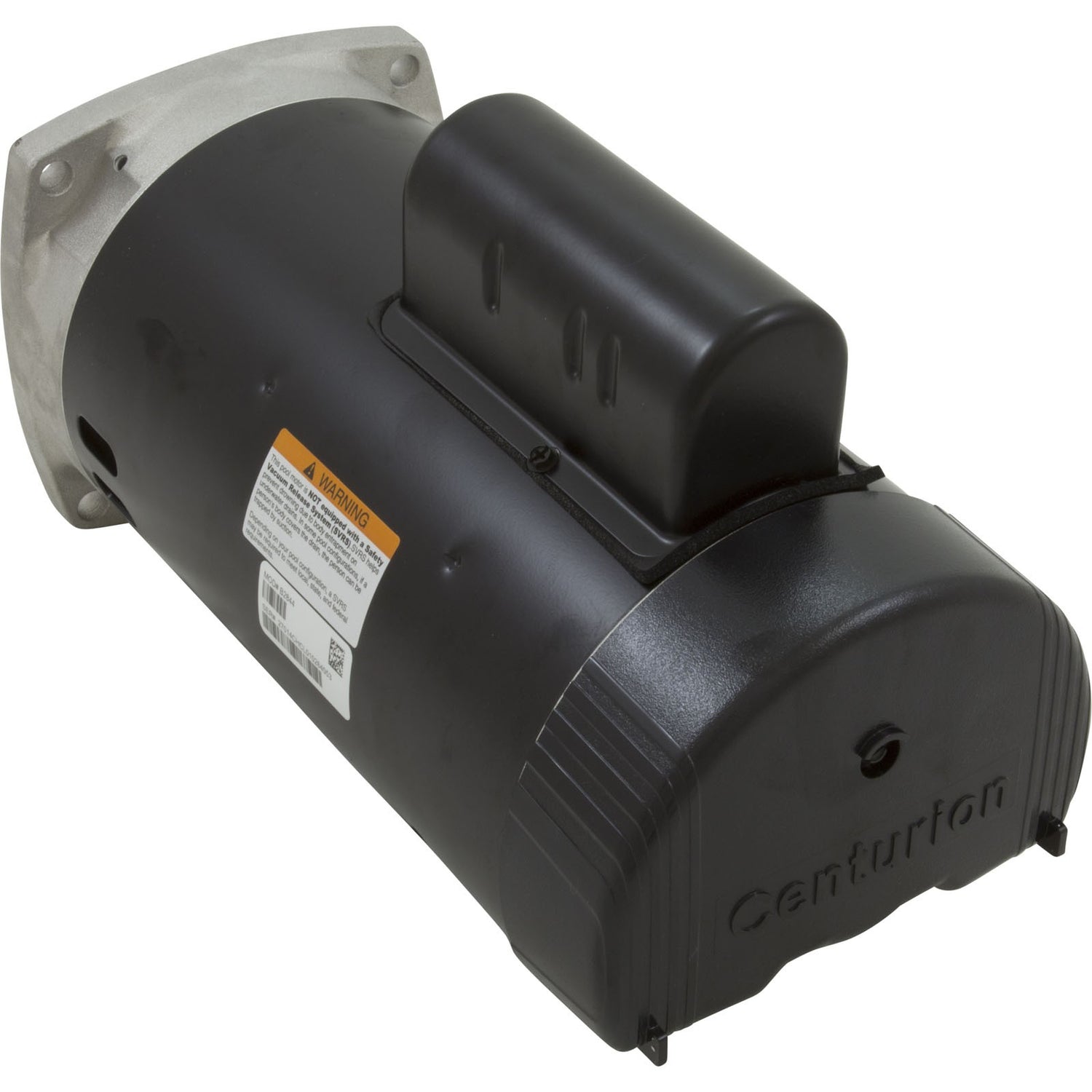

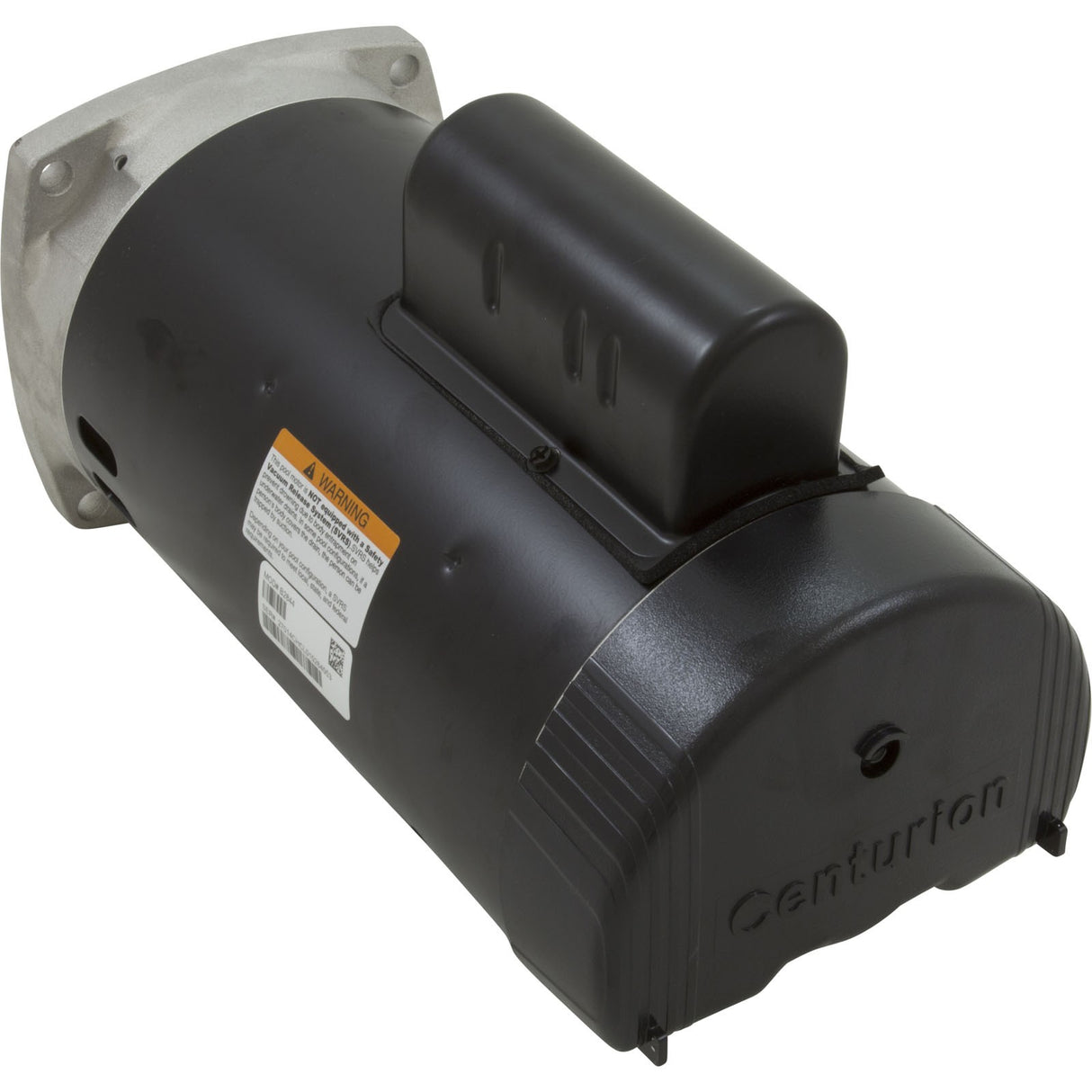

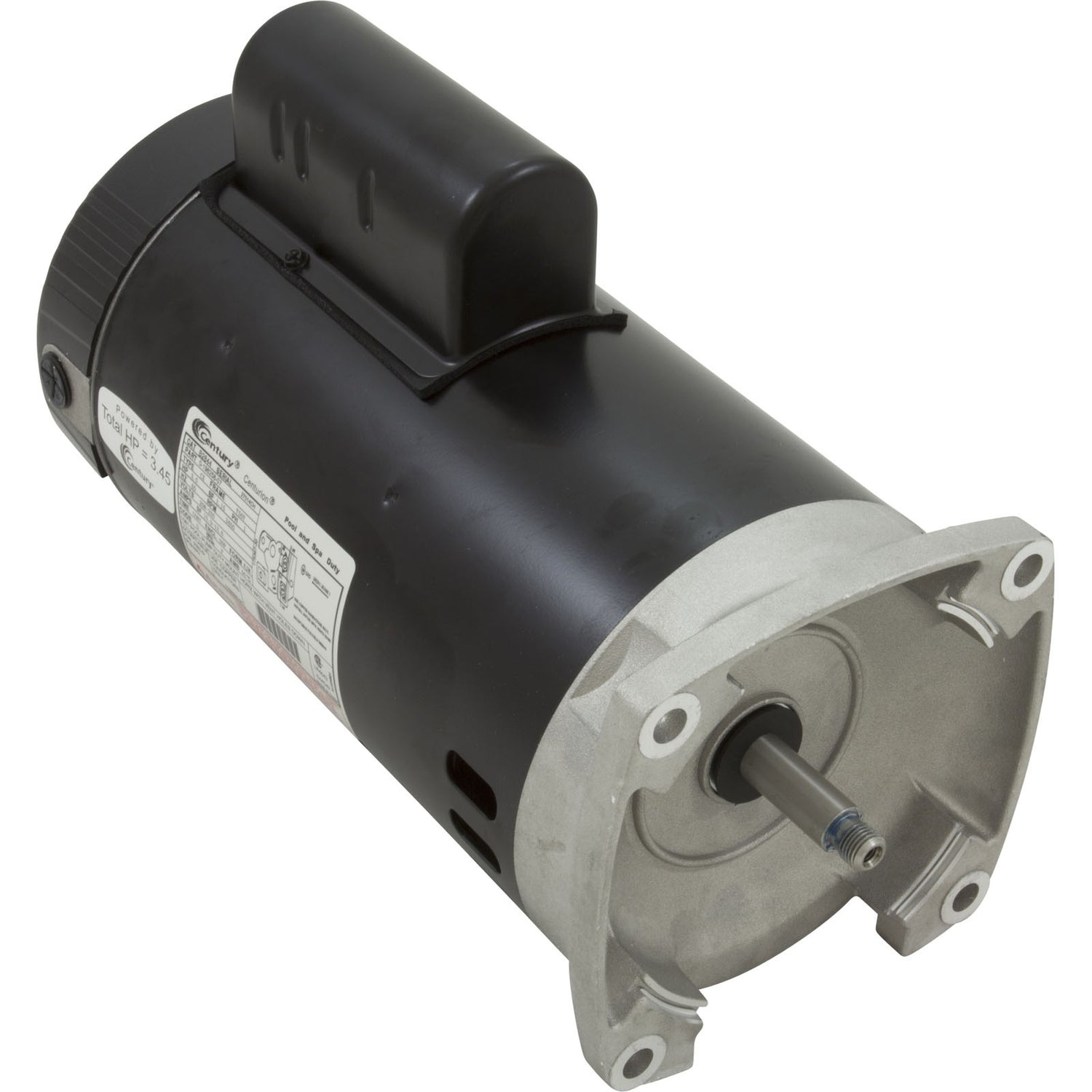

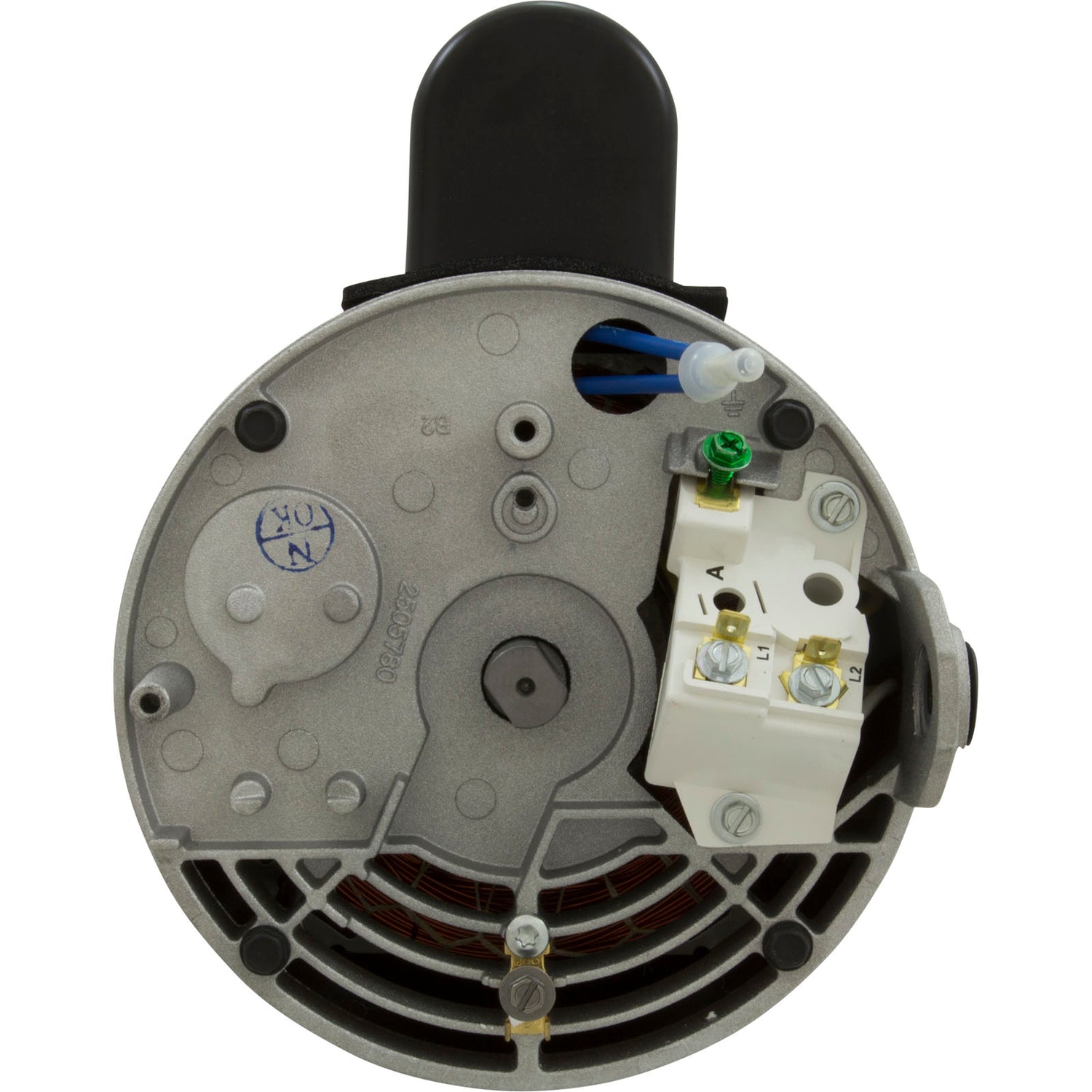

Motor, Century, 3.0hp, 208v-230v, 1-Spd, 56Yfr, SQFL, EE : B2844

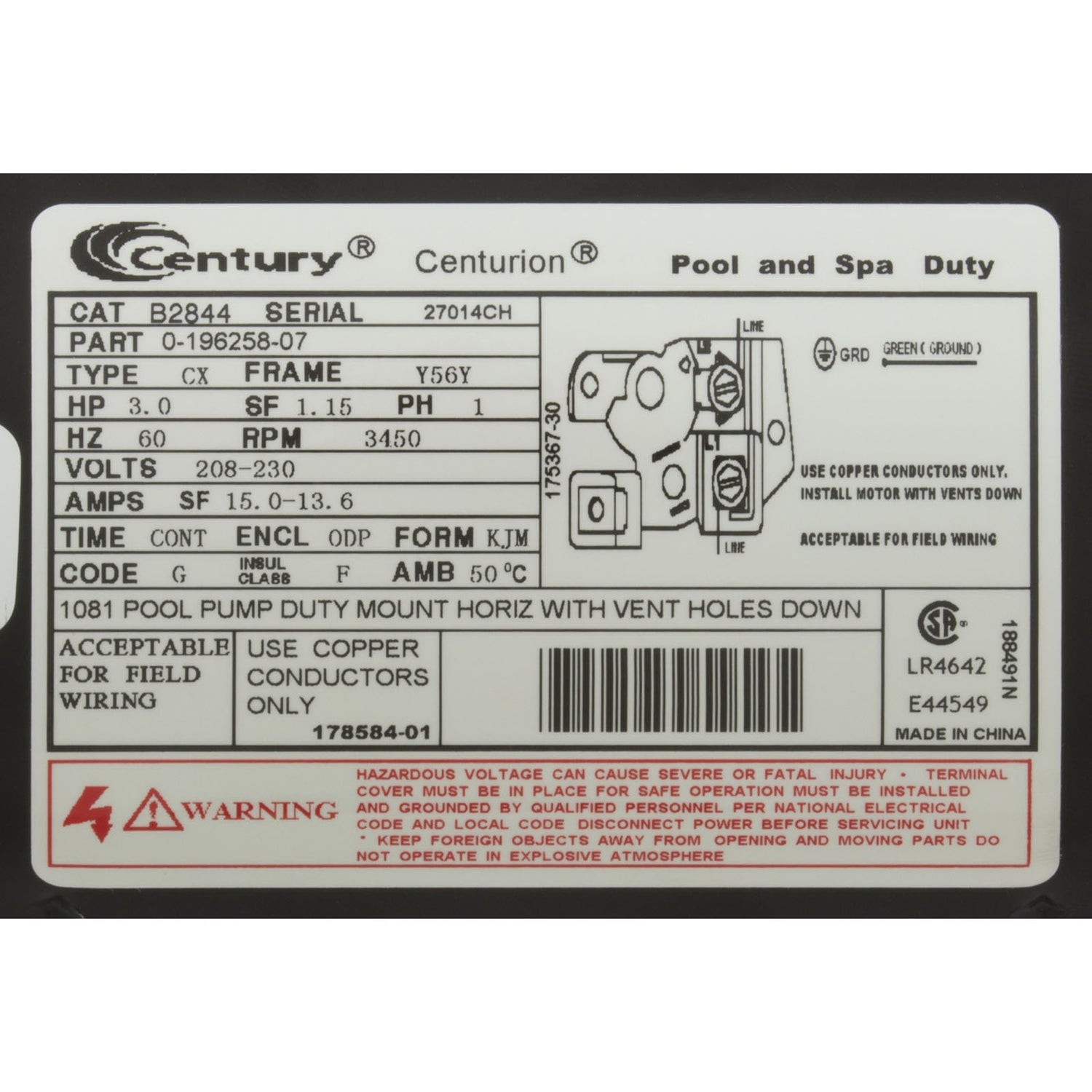

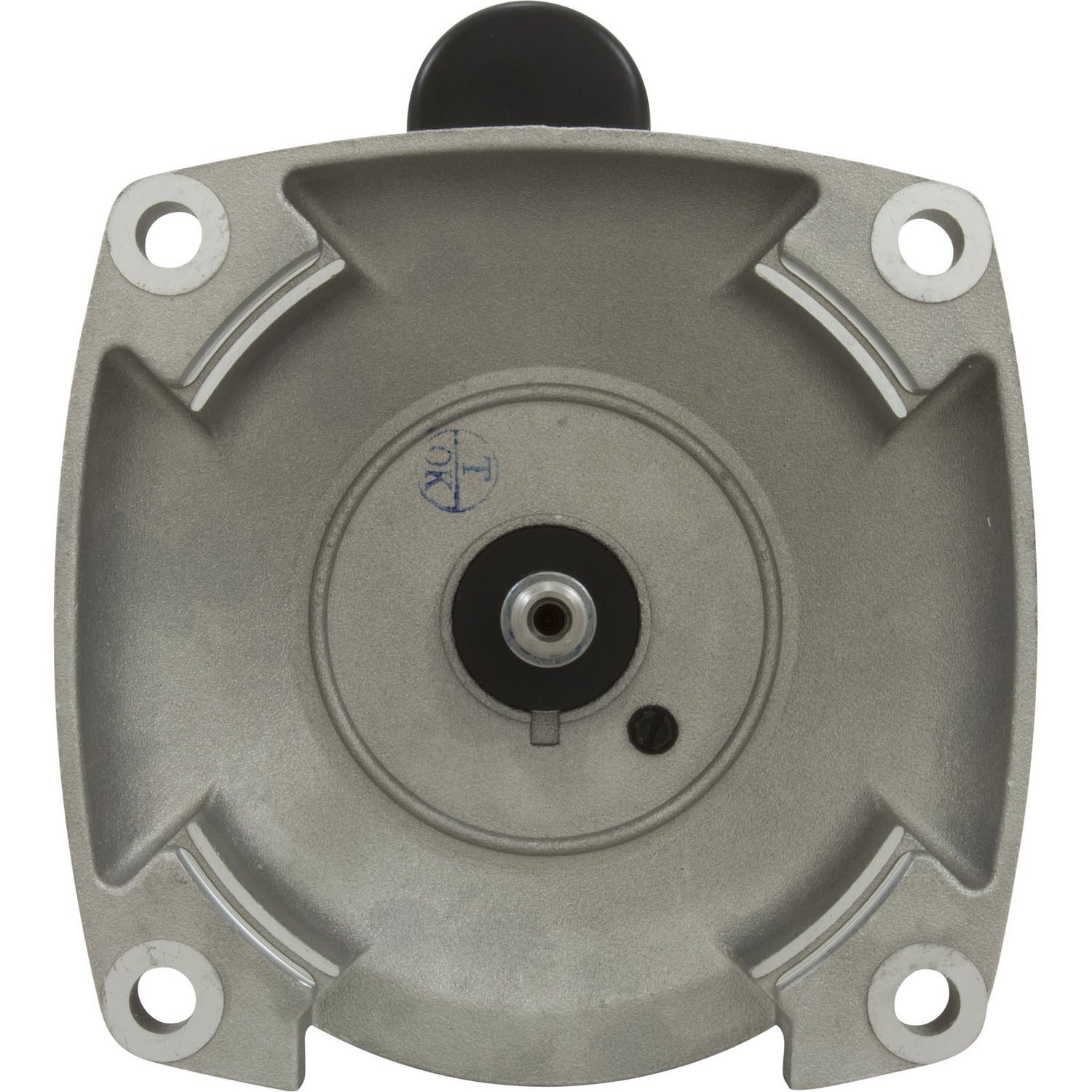

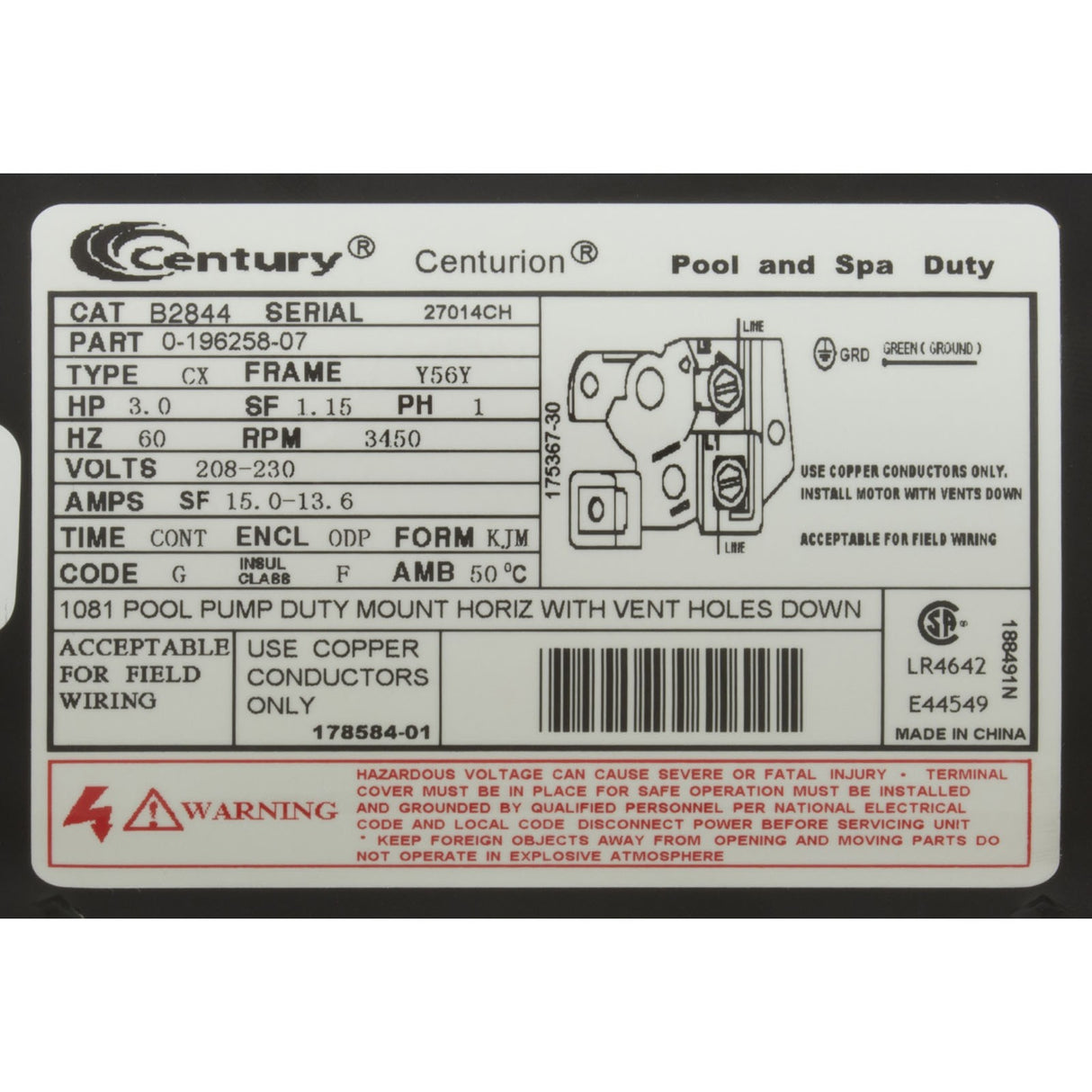

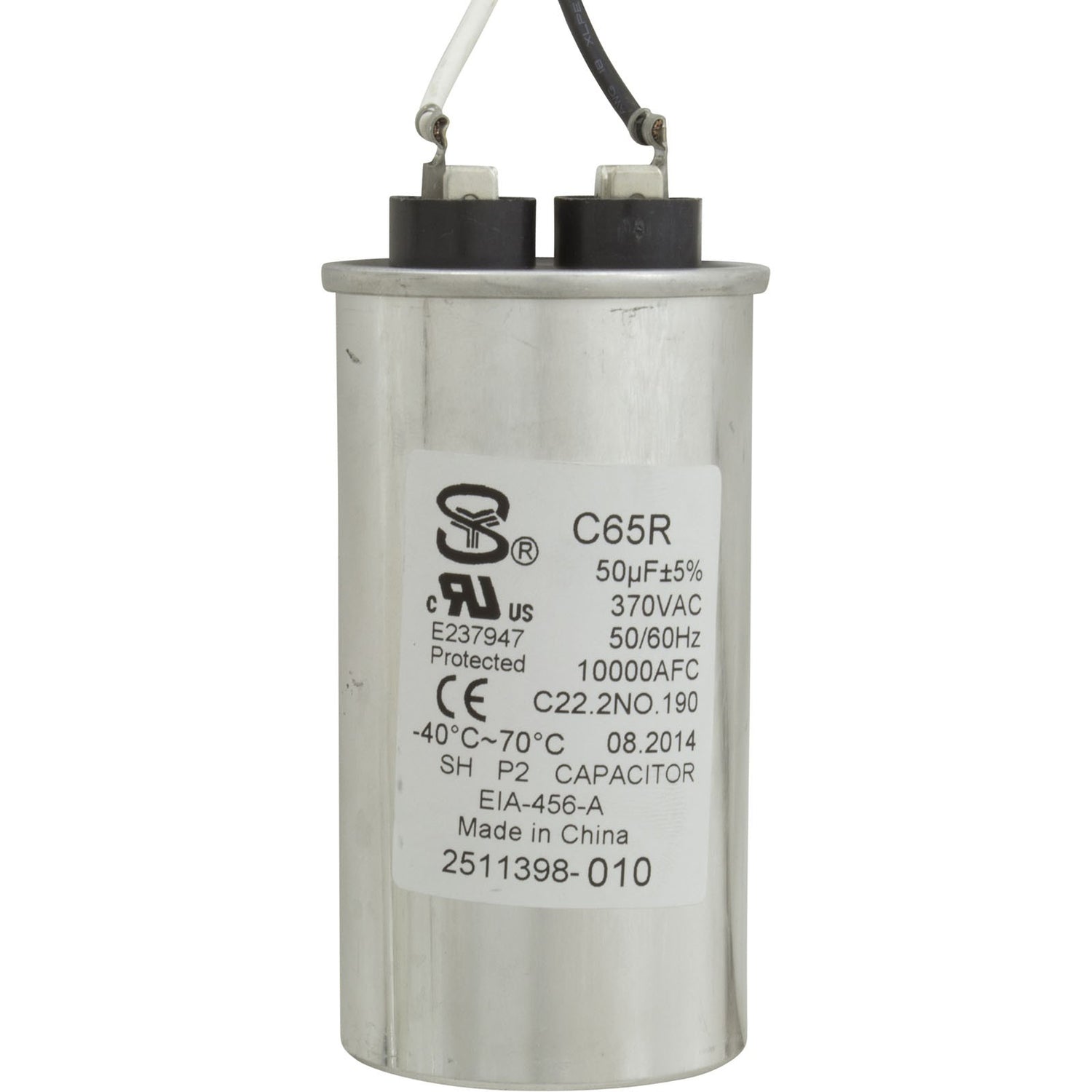

Motor, Century, 3.0hp, 208v-230v, 1-Spd, 56Yfr, SQFL, EE CAT: B2844 MODEL: 196258 TYPE: CX FR: Y56Y HP: SF: PH: 1 HZ: 60 RPM: 3450 ROT: CCWPE VOLTS: 208-230 AMPS: 15.0-13.6 MAX AMPS: SF AMPS: TIME: CONT ENCL: ODP THERMALLY PROTECTED FORM: CODE: G INSUL CLASS: F AMB.: 50°C Ball Bearings 50°C Ambient Rotation: CCW Pump End Class B Insulation Stainless Steel Shafts Pumps and replacement motors that are single speed and one (1) TOTAL HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609. Motor Type: Pool Motor Amperage: 15.0A-13.6A Voltage: 208v-230v Phase: 1 Phase (1ph) Frame Type: 56Y Speed: 1 Speed (1-Spd) Horsepower: 3.0hpTotal Horsepower: 3.5thpMotor Shaft Type: ThreadedMotor Style: Square FlangeCapacitor On Top: YesManufacturer: Century Replaces 16362,222418,3511450,5325-0,663001726128,AOSB844,B844,C1449,EB844,MGT-60-5121,SQ1302
