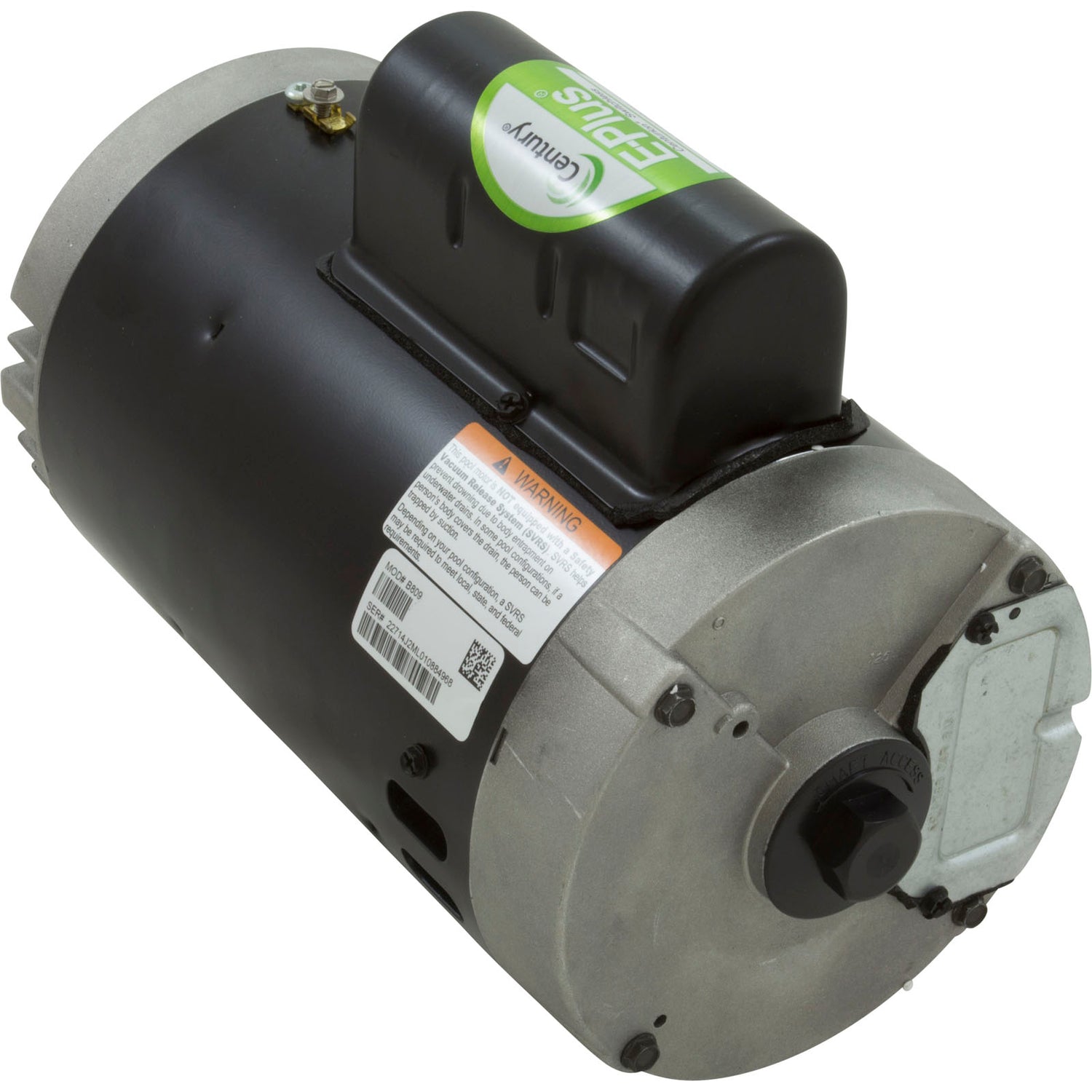

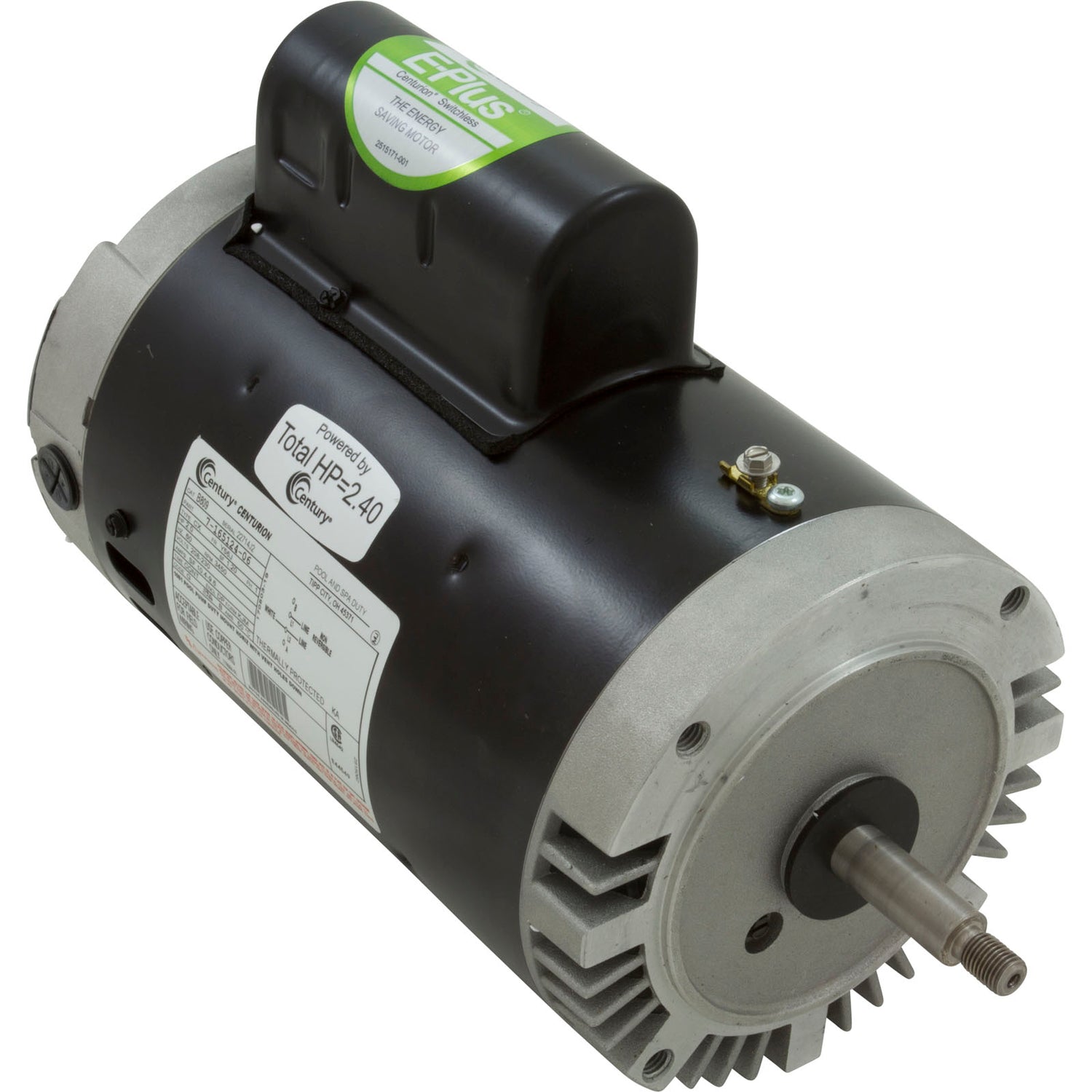

Motor, Century, 2.0hp, 208v-230v, 1-Spd, 56Jfr, C-Face Thd, EE : B809

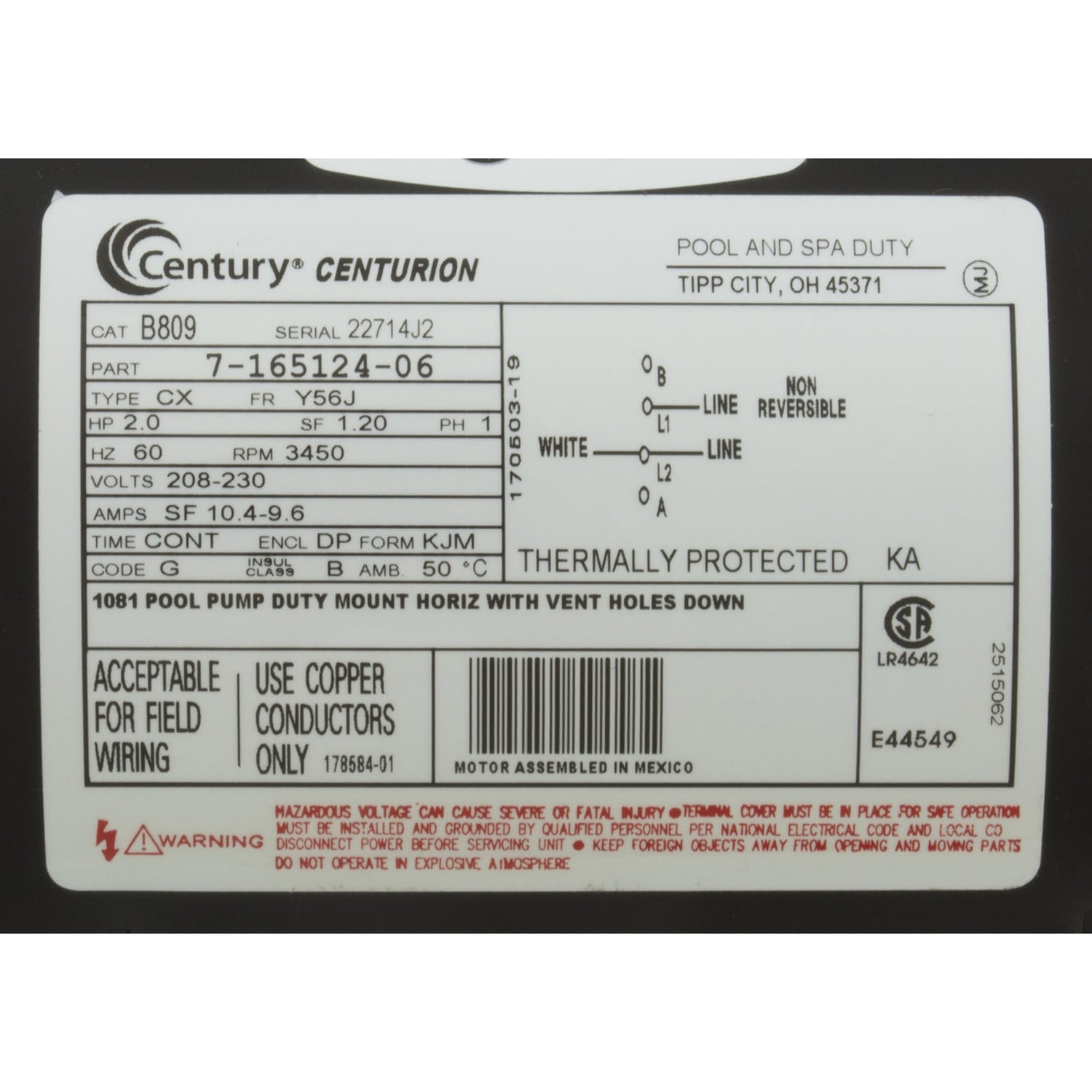

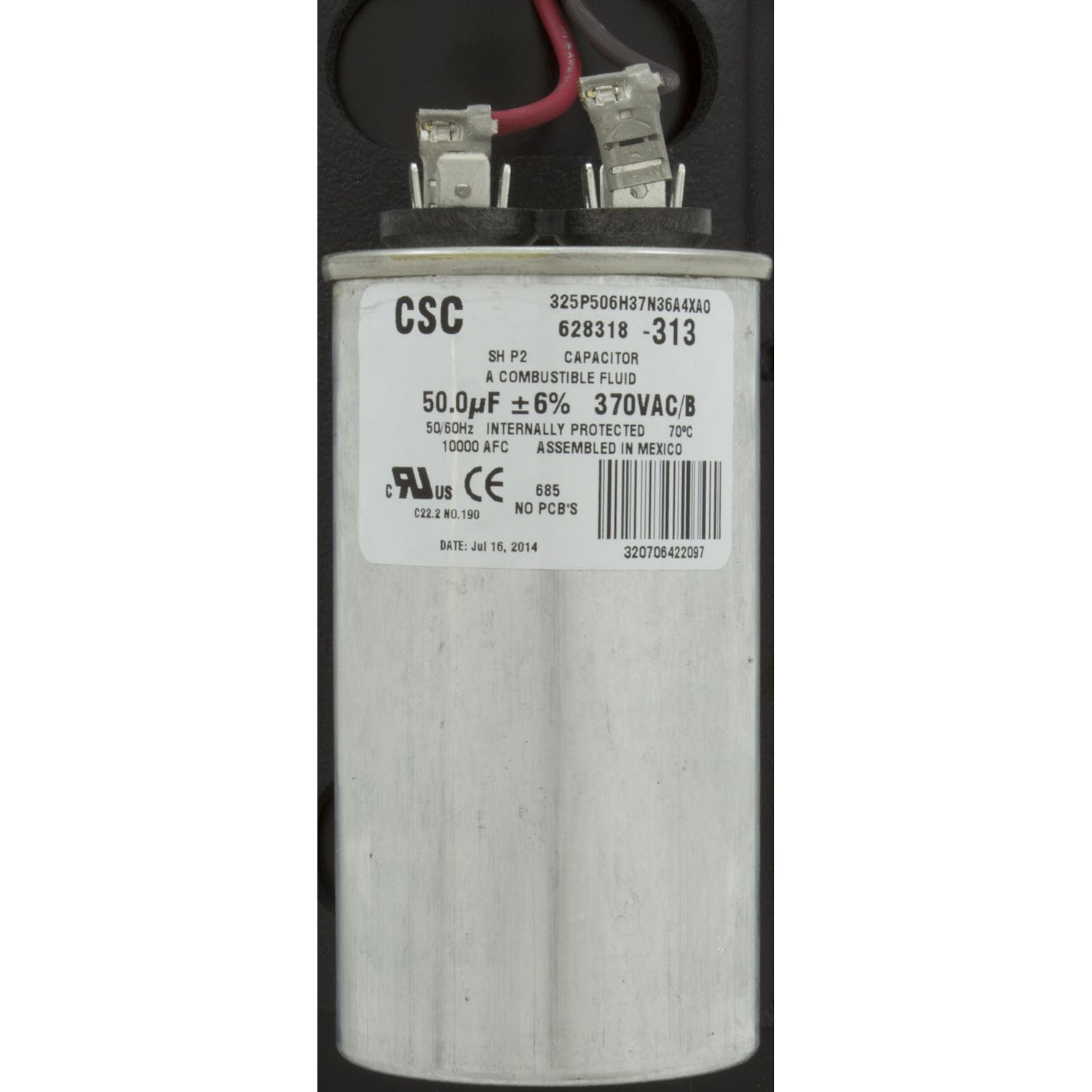

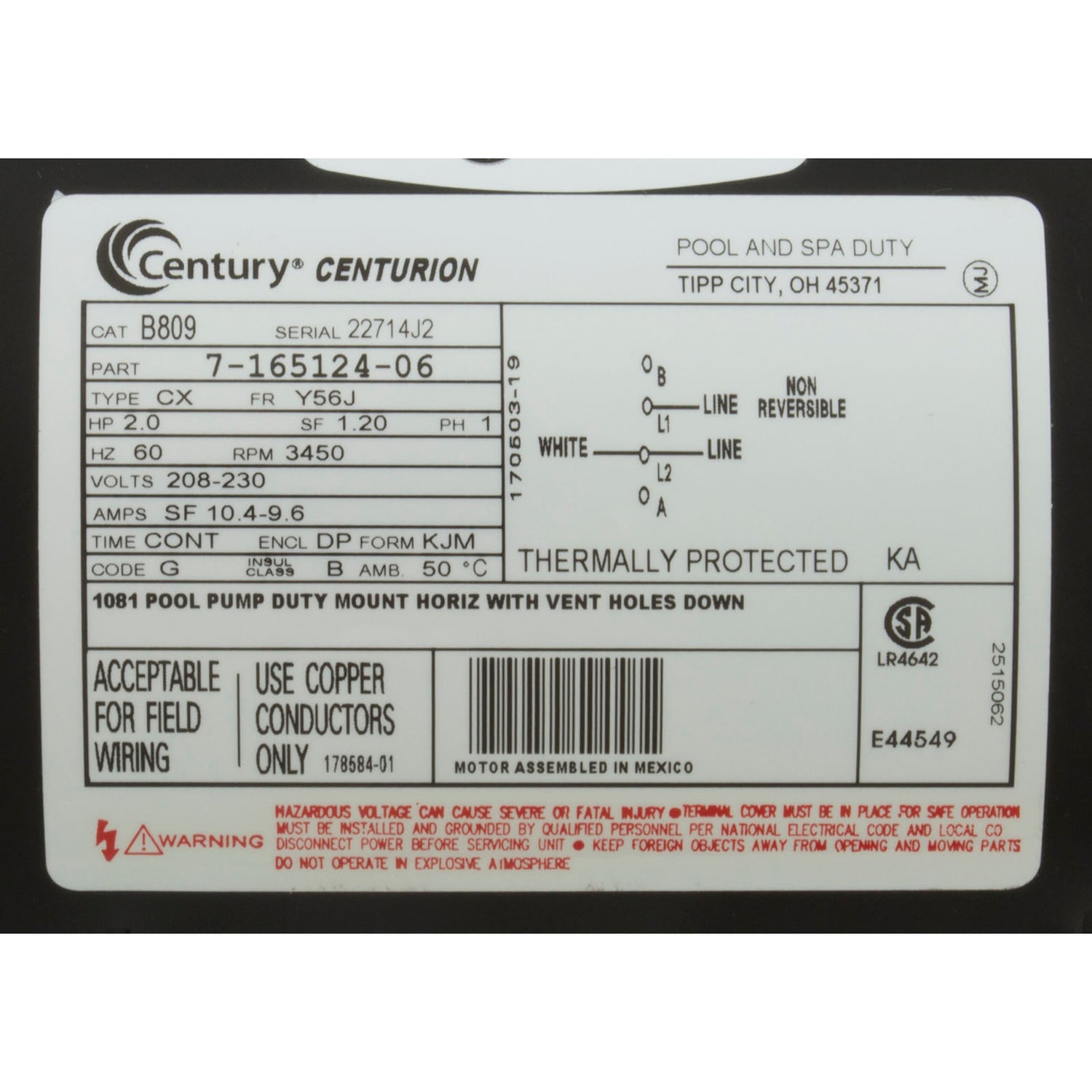

Motor, Century, 2.0hp, 208v-230v, 1-Spd, 56Jfr, C-Face Thd, EE CAT: B809 MODEL: 165124 TYPE: CX FR: Y 56 J HP: 2.0 SF: 1.20 PH: 1 HZ: 60 RPM: 3450 ROT: CW VOLTS: 208-230 AMPS: MAX AMPS: SF AMPS: 15.0-13.6 TIME: CONT ENCL: ODP THERMALLY PROTECTED FORM: CODE: G INSUL CLASS: B AMB.: 50°C Pumps and replacement motors that are single speed and one (1) TOTAL HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609. Motor Type: Pool Motor Amperage: 10.4A-9.6A Voltage: 208v-230v Phase: 1 Phase (1ph) Frame Type: 56J Speed: 1 Speed (1-Spd) Horsepower: 2.0hpTotal Horsepower: 2.3thpMotor Shaft Type: ThreadedMotor Style: C-FaceCapacitor On Top: YesManufacturer: Century Replaces 222468,38569,52012,5224A,AOS-60-5066,C1102,EB809,ST1202,
