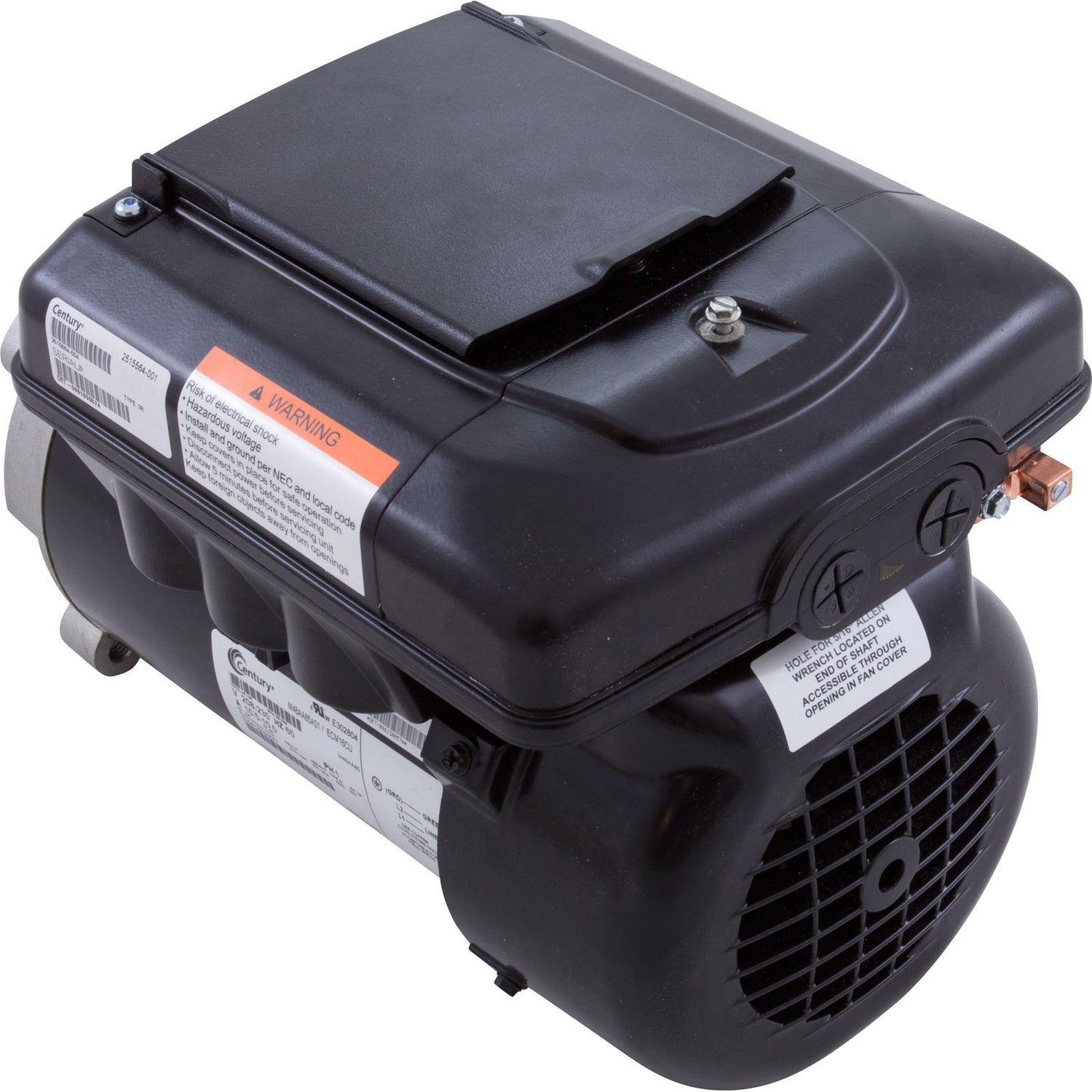

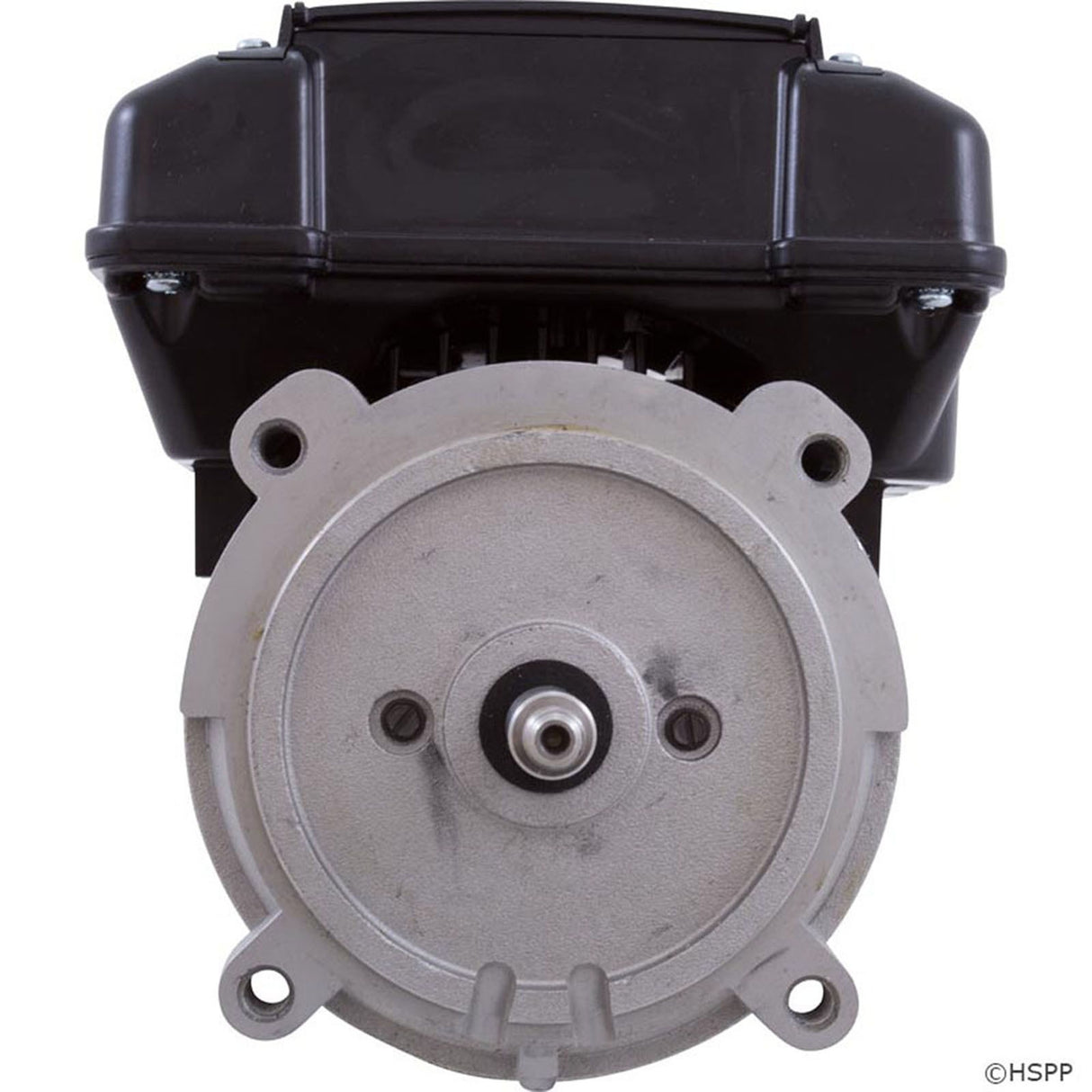

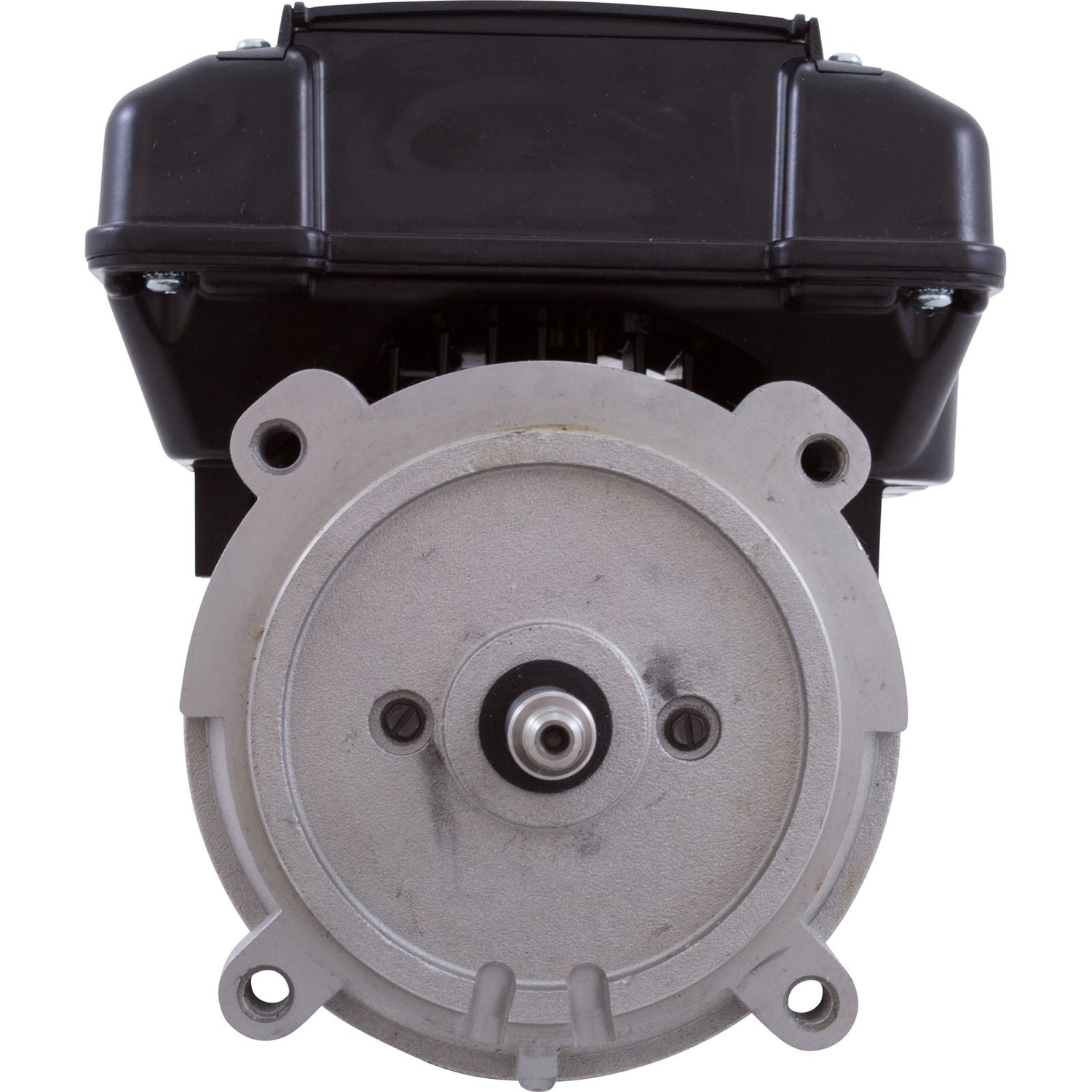

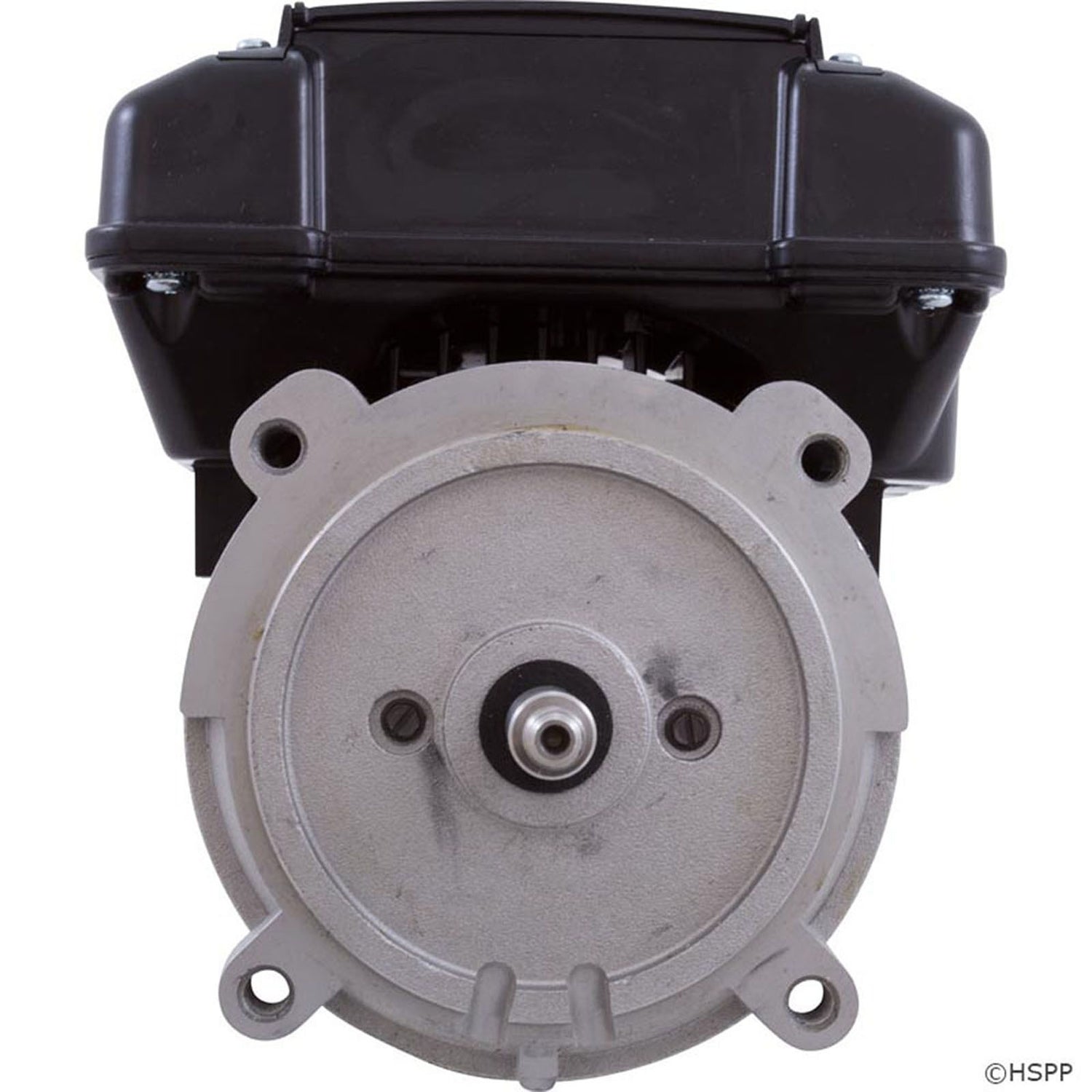

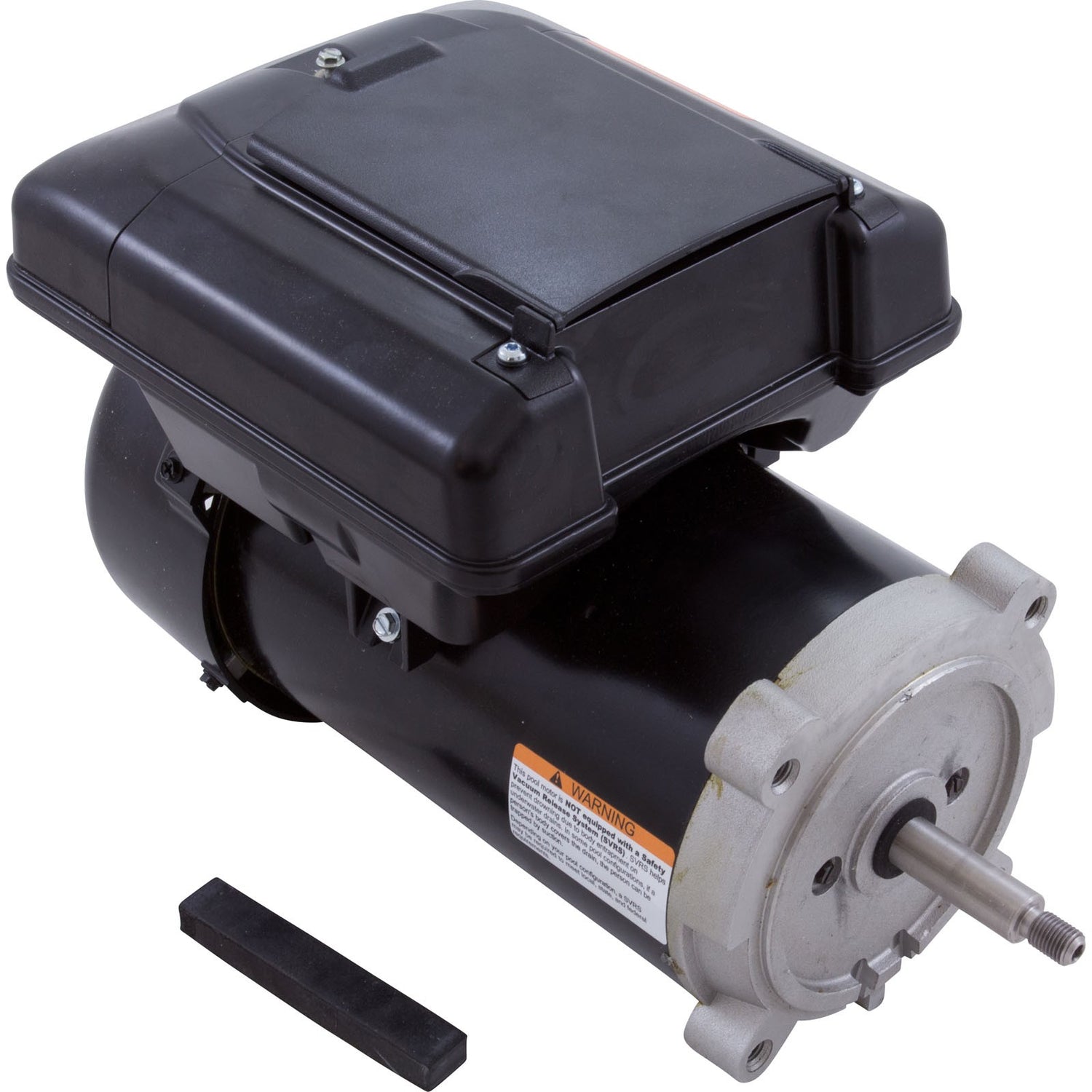

Motor, Century, 208v-230v, Var-Spd, 48fr, C-Face Thd, V-Grn : ECM16CU

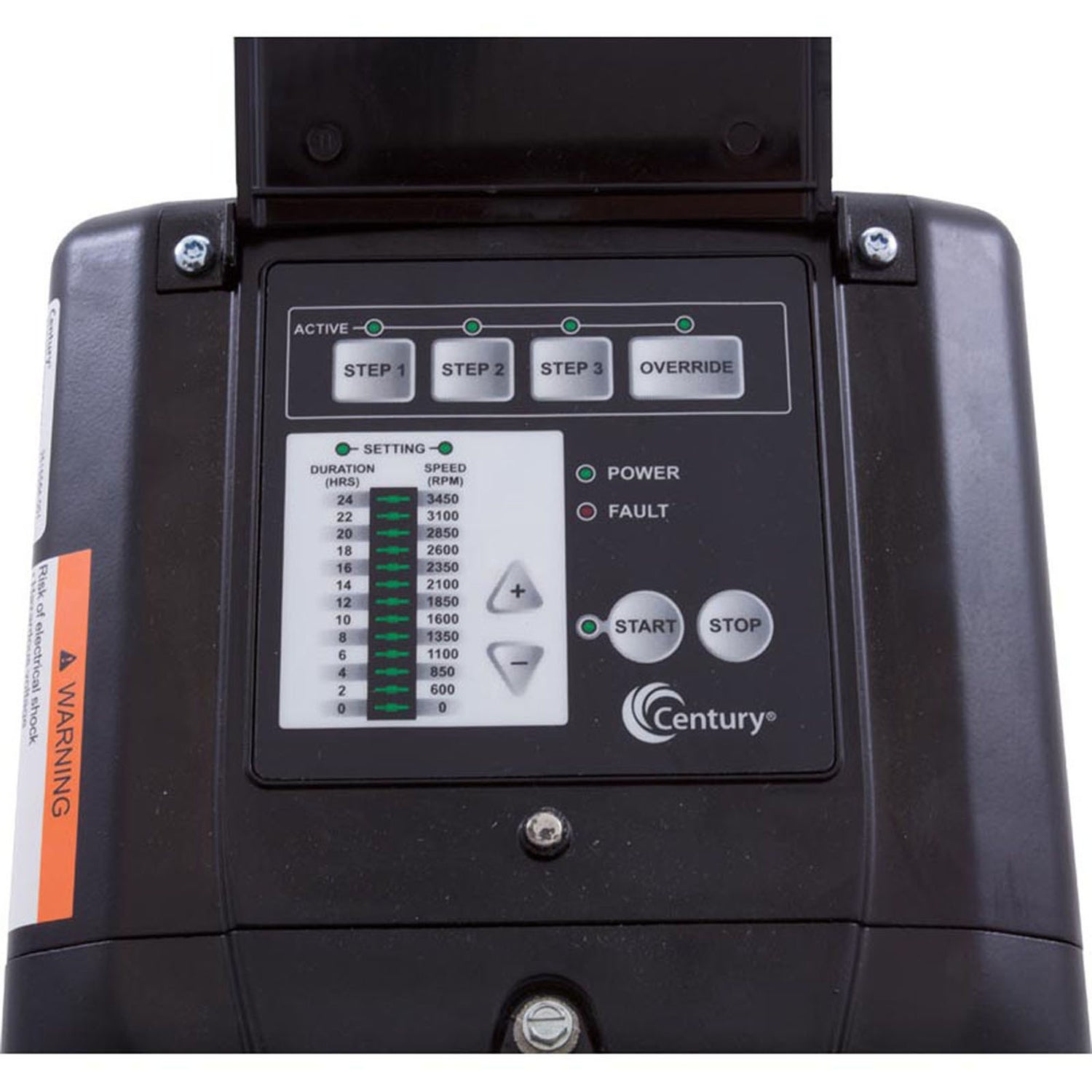

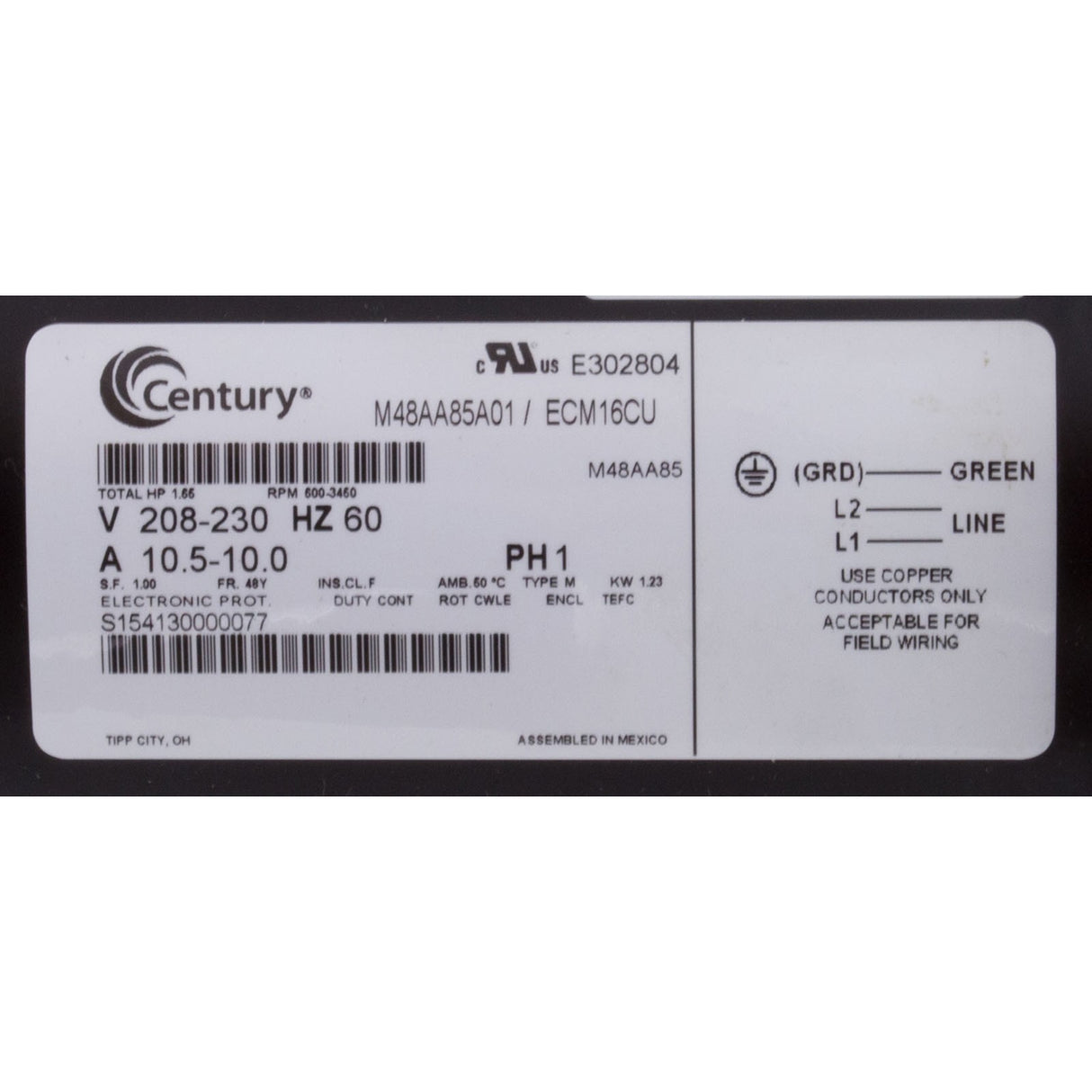

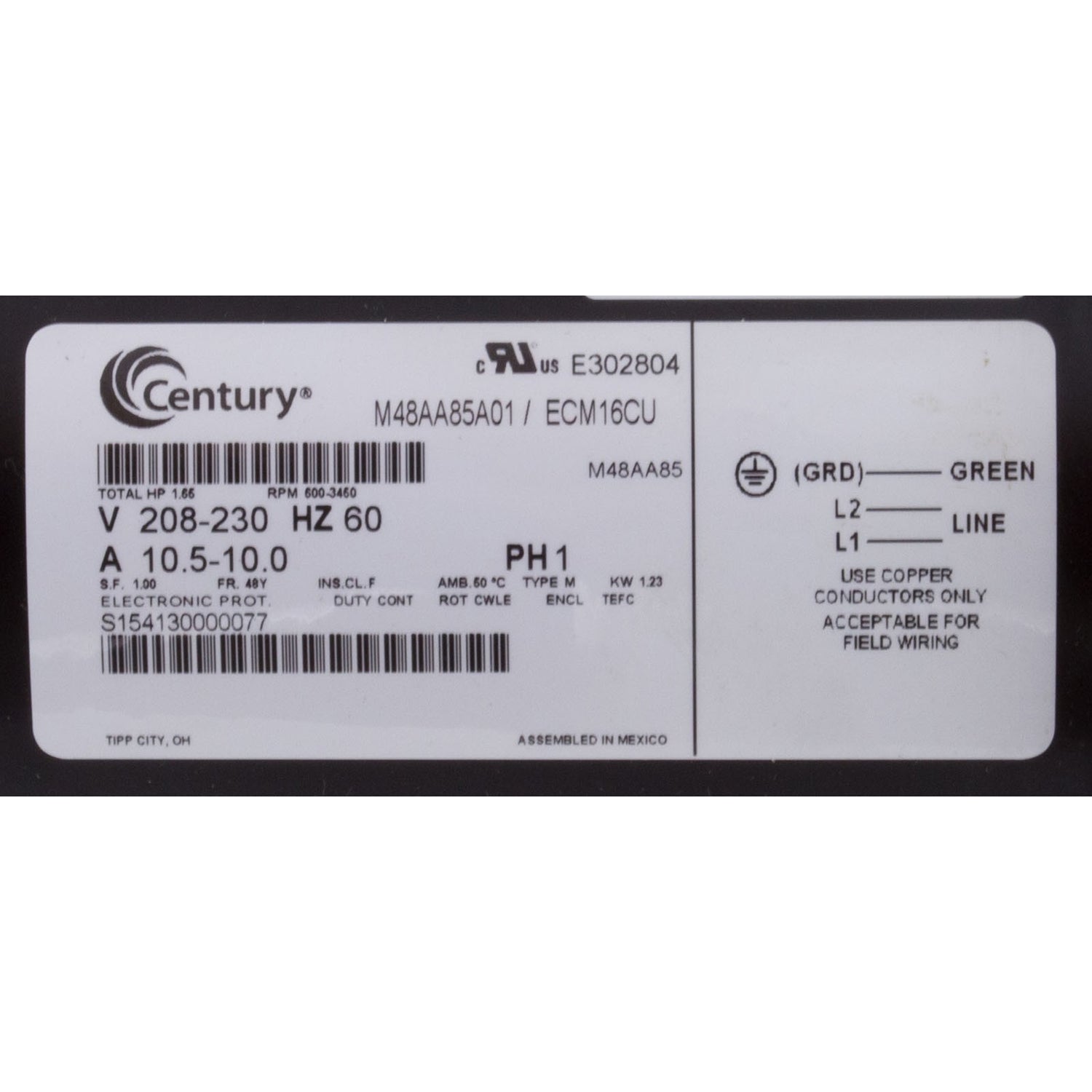

Motor, Century, 208v-230v, Var-Spd, 48fr, C-Face Thd, V-Grn Fully featured, the V-Green 165 incorporates durable TEFC construction with ECM technology to deliver premium energy efficiency from 40 percent to 80 percent versus a standard single speed motor.Installation on most pumps regardless of manufacturer is as simple as replacing a standard single speed motor, with no additional wiring or plumbing required thanks to the V-Green motor’s integrated user interface. Equipped with digital inputs, the V-Green 165 motor is even compatible with third party pool automation systems.Features:Integrated User InterfaceTimer ModeManual ModeFreeze ProtectionNoise Reducing DesignFactory Default Settings ResetTEFCSingle PhaseSchedule AdvanceFull Variable Speed (600-3450 RPM)ECM DesignProgram Memory Back-Up303 Stainless Steel ShaftClass F Insulation50° C AmbientUV and Rain-Proof EnclosureKeypad LockoutDigital Inputs for Third Party Automation Motor Type: Pool Motor Amperage: 10.5A-10.0A Voltage: 208v-230v Phase: 1 Phase (1ph) Frame Type: 48Y Speed: Variable Speed (Var-Spd) Horsepower: 0.5hp-1.65hpTotal Horsepower: 1.7thpMotor Shaft Type: ThreadedMotor Style: C-FaceManufacturer: Century Replaces 446582,5239-090,
