Motor, Century, 1.5hp, 115v/208-230v, 1Spd, 56Jfr, C-Face Thd, EE : B796

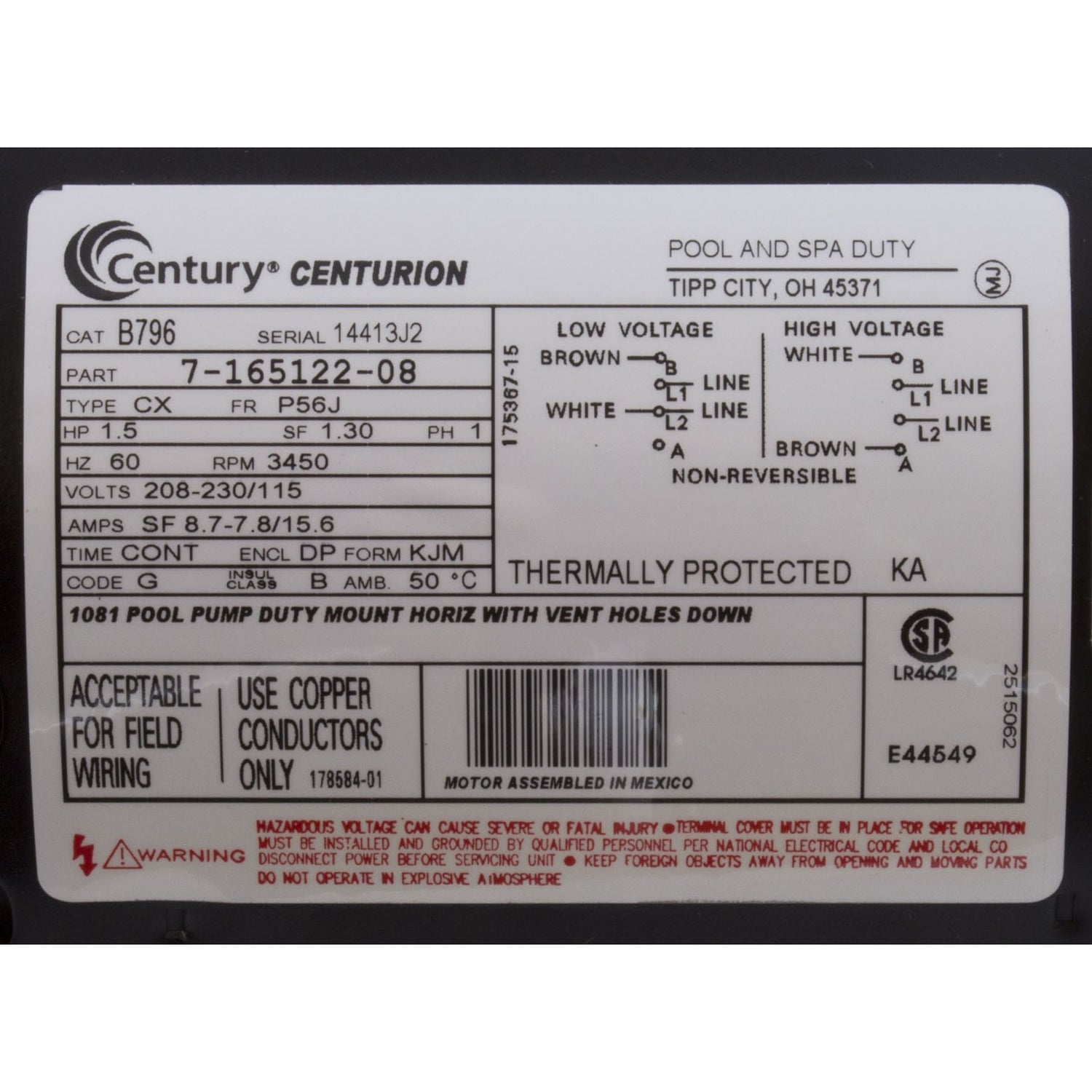

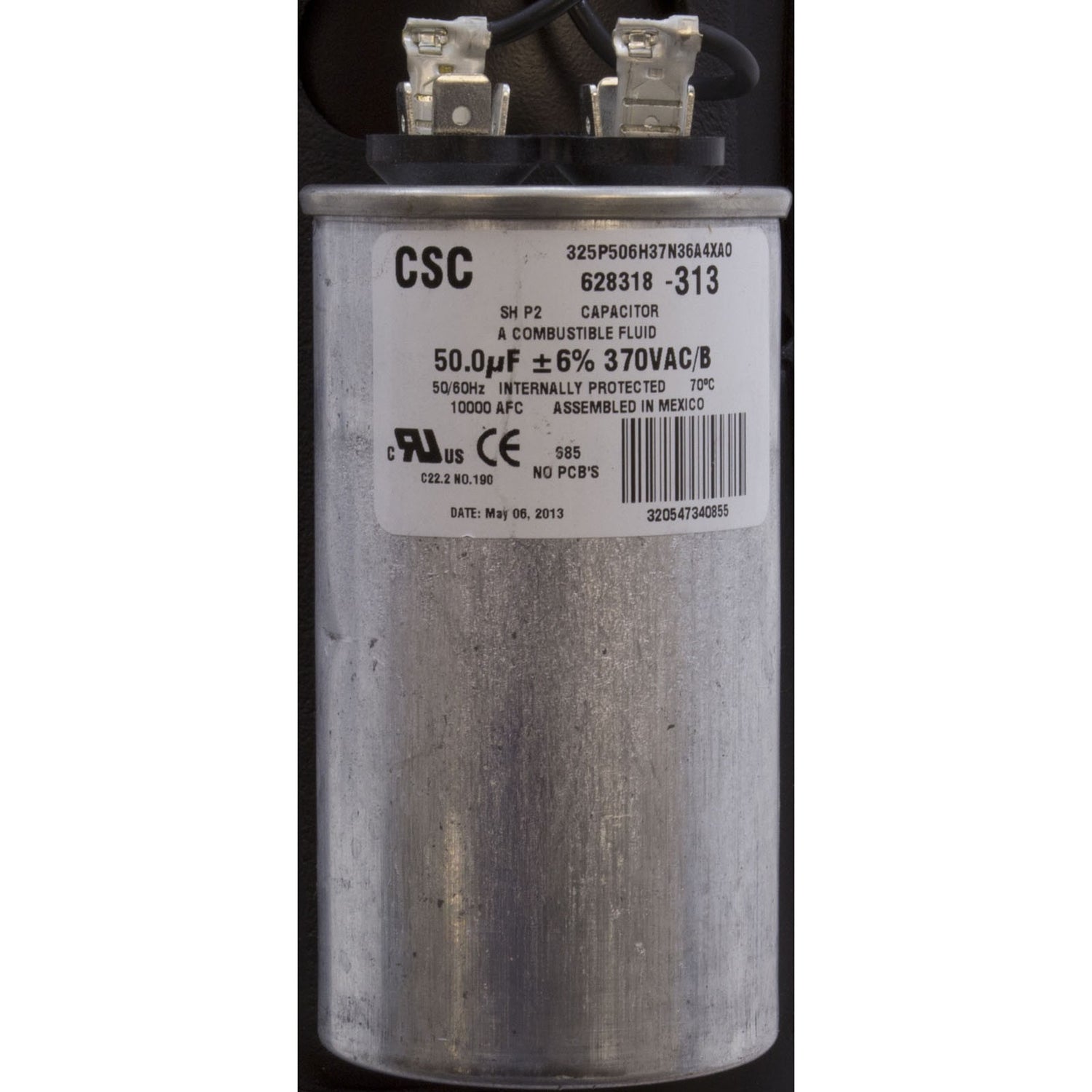

Motor, Century, 1.5hp, 115v/208-230v, 1Spd, 56Jfr, C-Face Thd, EE CAT: B796 MODEL: 165122 TYPE: CX FR: P 56 J HP: 1.5 SF: 1.30 PH: 1 HZ: 60 RPM: 3450 ROT: CW VOLTS: 208-230/115 AMPS: MAX AMPS: SF AMPS: 8.7-7.8/15.6 TIME: CONT ENCL: ODP THERMALLY PROTECTED FORM: CODE: G INSUL CLASS: B AMB.: 50°C Pumps and replacement motors that are single speed and one (1) TOTAL HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609. Motor Type: Pool Motor Amperage: 19.6A/10.4-9.8A Voltage: 115v/208v-230v Phase: 1 Phase (1ph) Frame Type: 56J Speed: 1 Speed (1-Spd) Horsepower: 1.5hpTotal Horsepower: 2.3thpMotor Shaft Type: ThreadedMotor Style: C-FaceCapacitor On Top: YesManufacturer: Century Replaces 38566,52011,5223A,620090,786674013071,8129,C1101,E8129,EB796,EST1152,ST1152
