Motor, Century, 1.0hp, 115v/230v, 1-Spd, 56Jfr, C-Face Thd, EE : B654

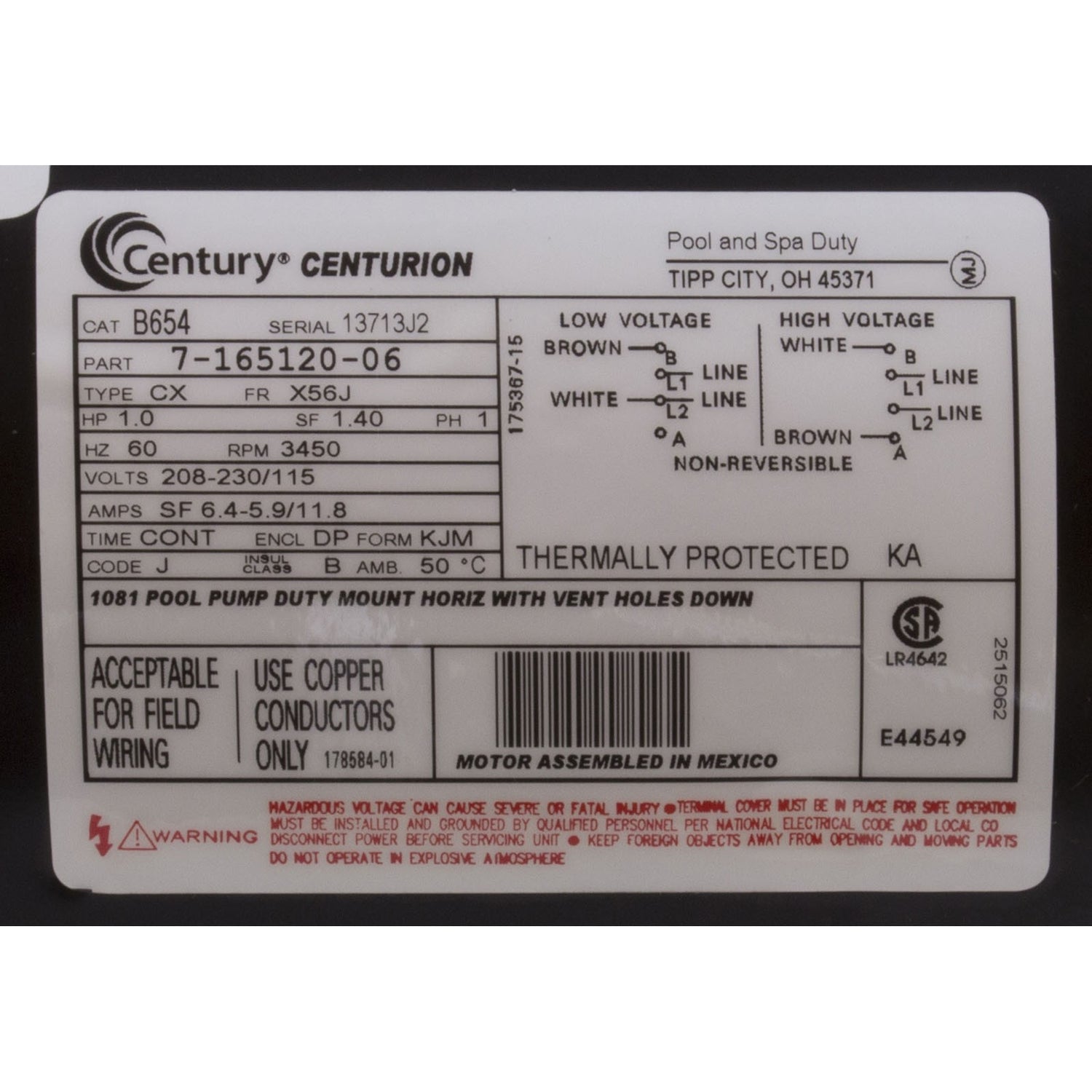

Motor, Century, 1.0hp, 115v/230v, 1-Spd, 56Jfr, C-Face Thd, EE CAT: B654 MODEL: 165120 TYPE: CX FR: X 56 J HP: 1.0 SF: 1.40 PH: 1 HZ: 60 RPM: 3450 ROT: CW VOLTS: 208-230/115 AMPS: MAX AMPS: SF AMPS: 6.4-5.9/11.8 TIME: CONT ENCL: ODP THERMALLY PROTECTED FORM: CODE: J INSUL CLASS: B AMB.: 50°C Pumps and replacement motors that are single speed and one (1) TOTAL HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609. Motor Type: Pool Motor Amperage: 11.8A/6.4A-5.9A Voltage: 115v/208v-230v Phase: 1 Phase (1ph) Frame Type: 56J Speed: 1 Speed (1-Spd) Horsepower: 1.0hpTotal Horsepower: 1.4thpMotor Shaft Type: ThreadedMotor Style: C-FaceCapacitor On Top: YesManufacturer: Century Replaces 360509,38560,52010,5222AX,786674012760,C1488,CT1102,EB654,ECT1102,EMR-60-6023,
