Impeller, Waterway SVL56/Champion, 3/4HP FULL, 1.0HP UP Rate : 310-7410

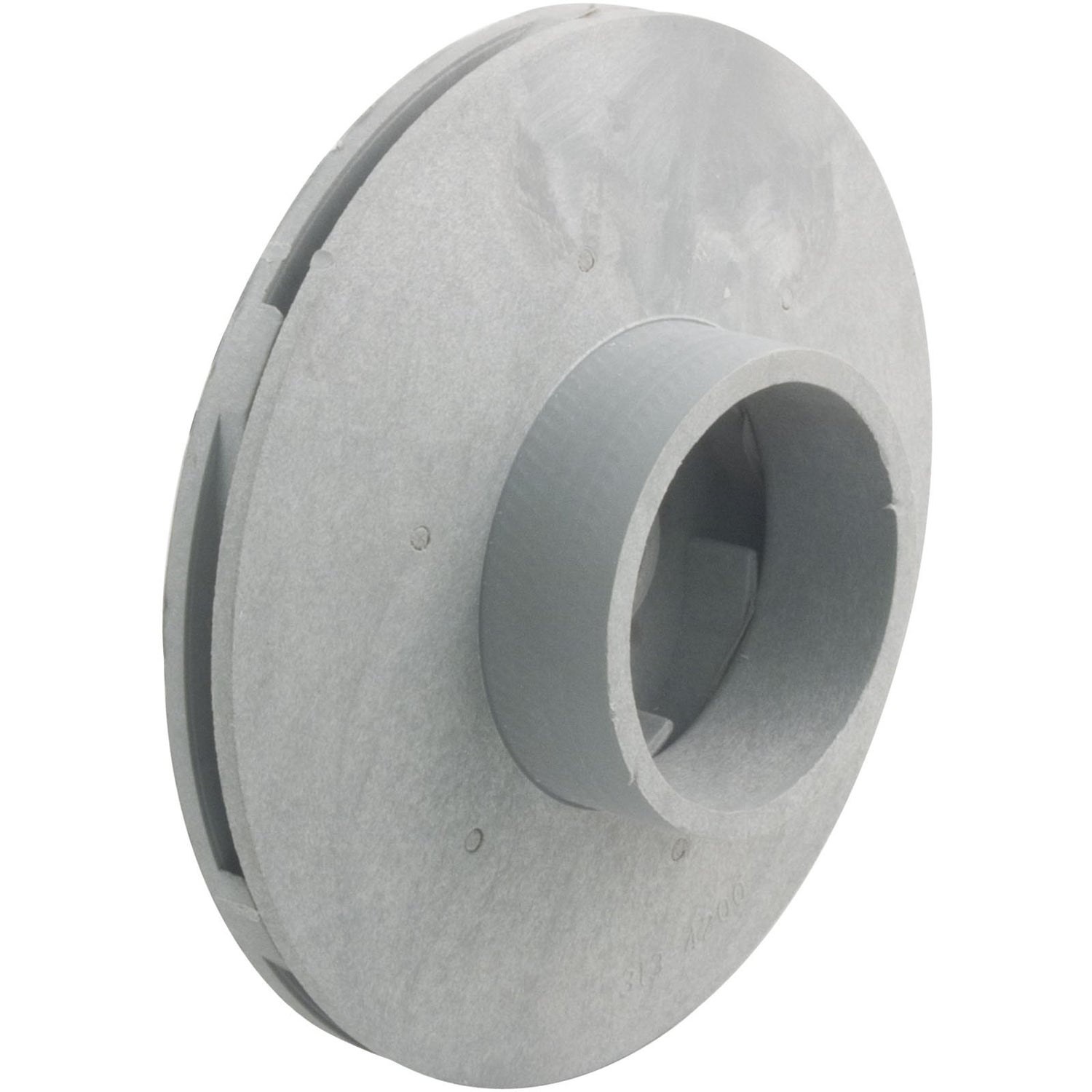

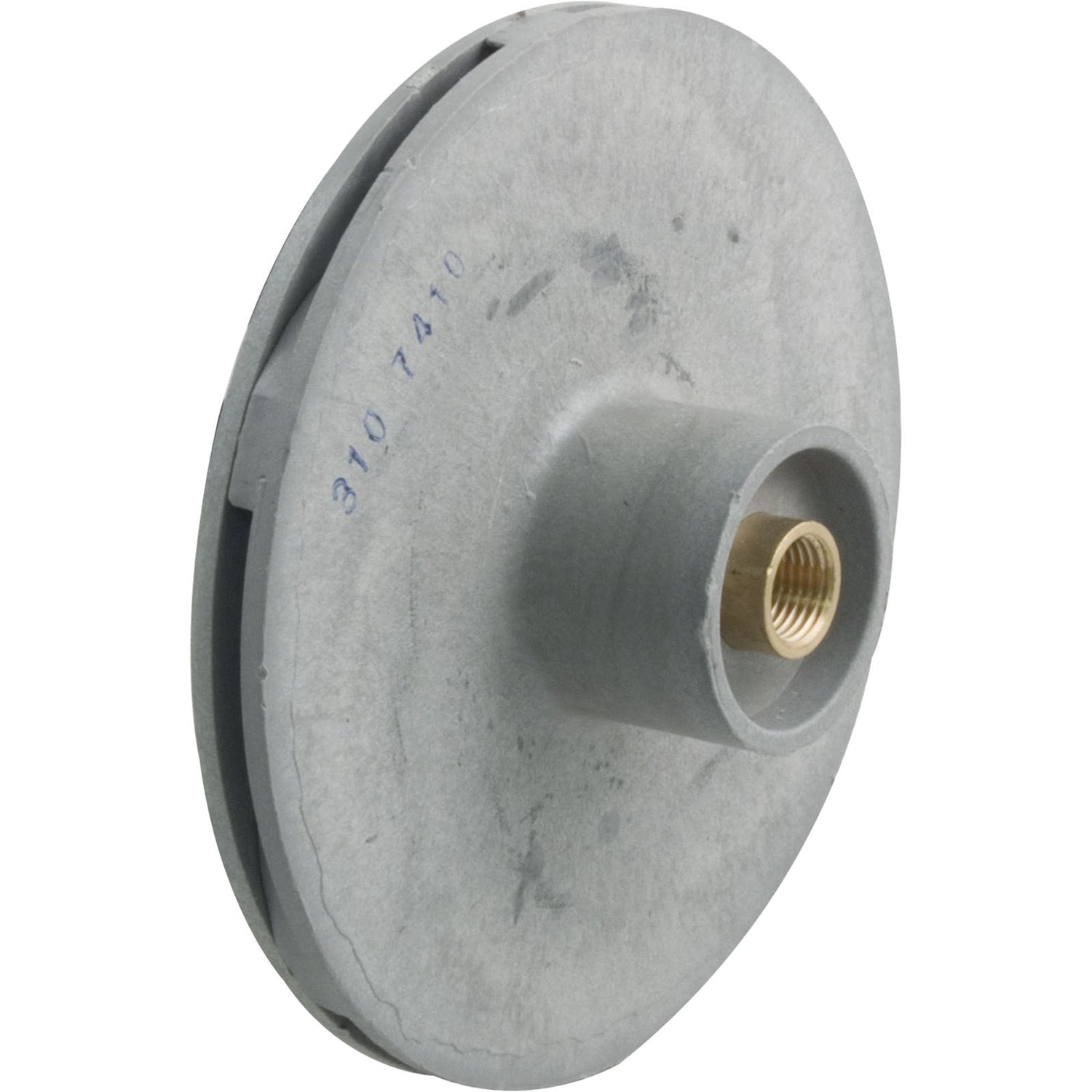

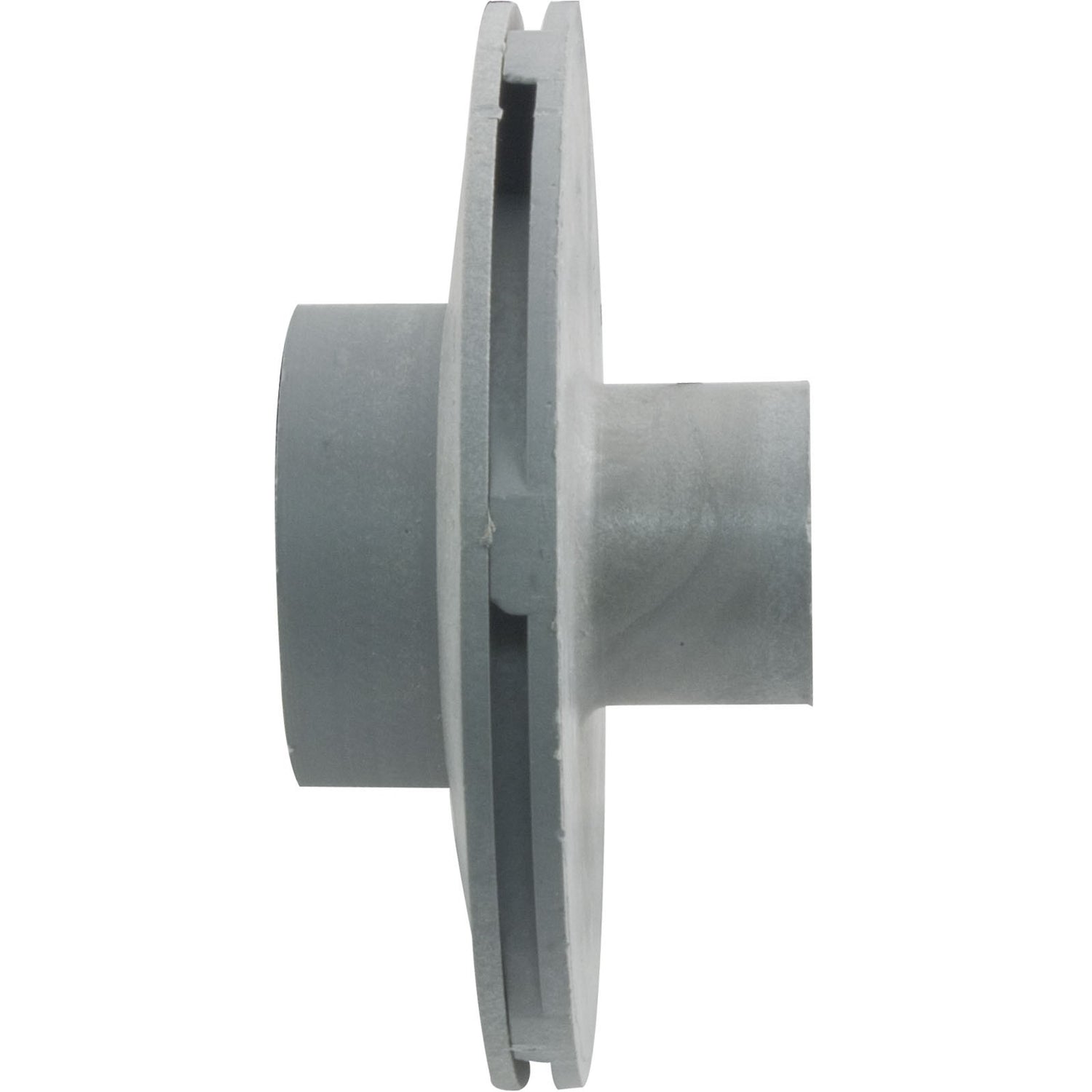

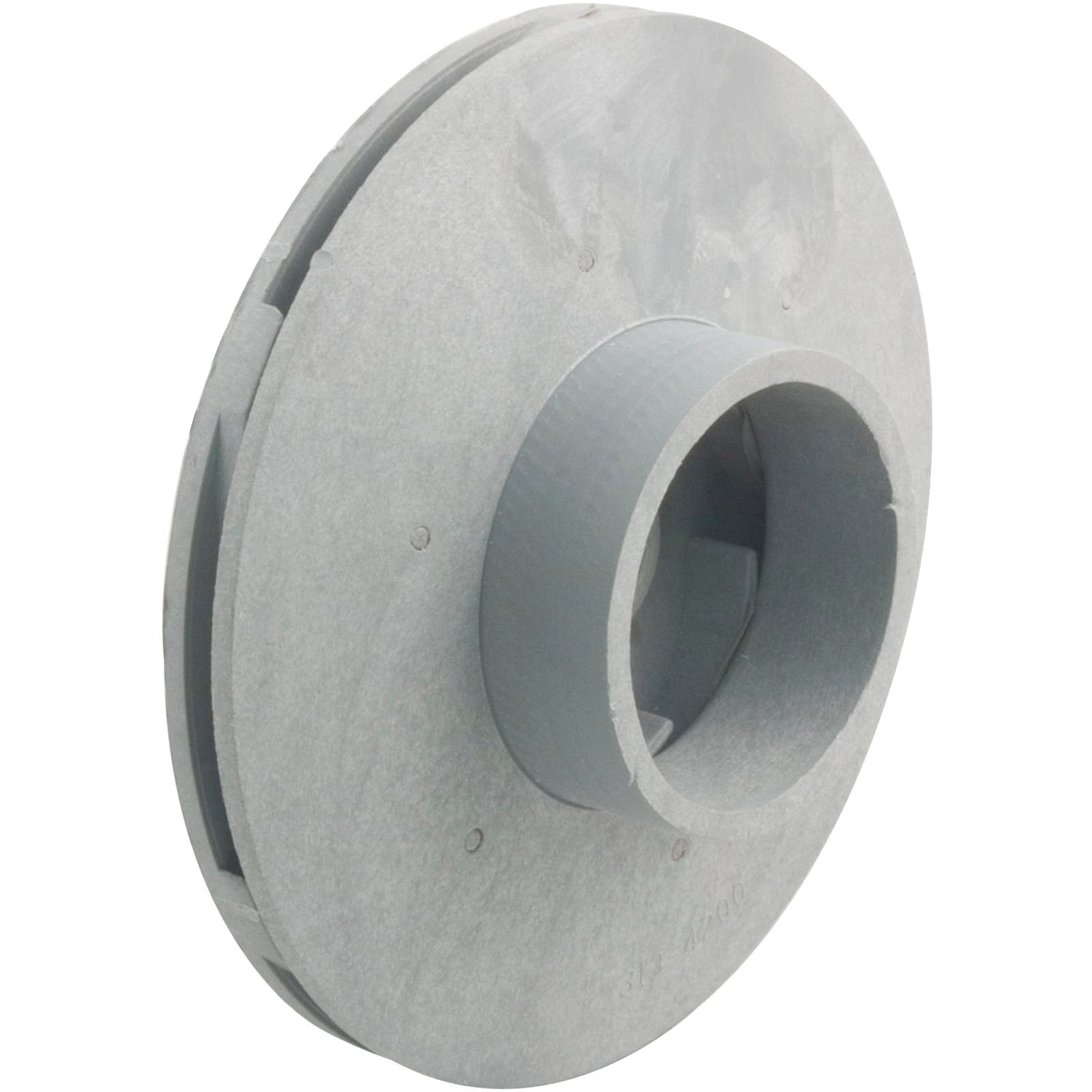

Impeller, Waterway SVL56/Champion, 3/4HP FULL, 1.0HP UP Rate Waterway SVL56/Champion Pump Impeller Closed face impeller made for the SVL56/Champion pump by Waterway Plastics. Rated at 1.0hp, it is used in a Waterway SVL56 and Waterway Champion Pool pump body, and must be installed on a 1.0hp (or greater) square flange motor with a threaded shaft. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-7/8" Vane Width ID: 1/8" Eye Diameter OD: 2-3/16" Eye Length: 11/16" Impeller Width OD: 3/8" Seal Seat Depth: 1-1/16"Shaft Length: Shaft Diameter OD: 5/8"Seal Seat Diameter OD: 1-1/2"Manufacturer: WaterwayPump Application: SVL56 High Pressure Replaces _310-7410,3107410,5033-013,5033-79,632763,806105232168,WW3107410,WWP-101-7410,
