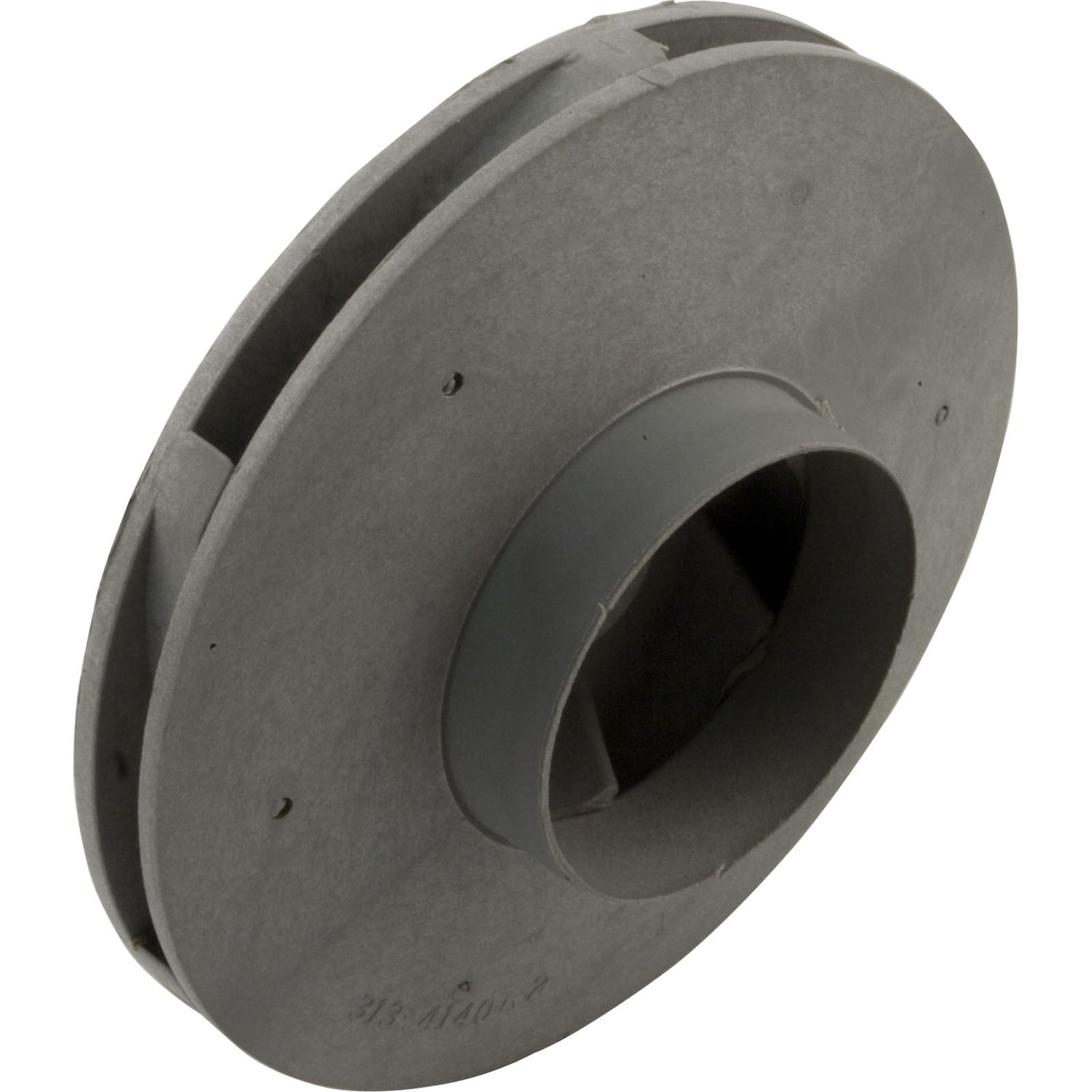

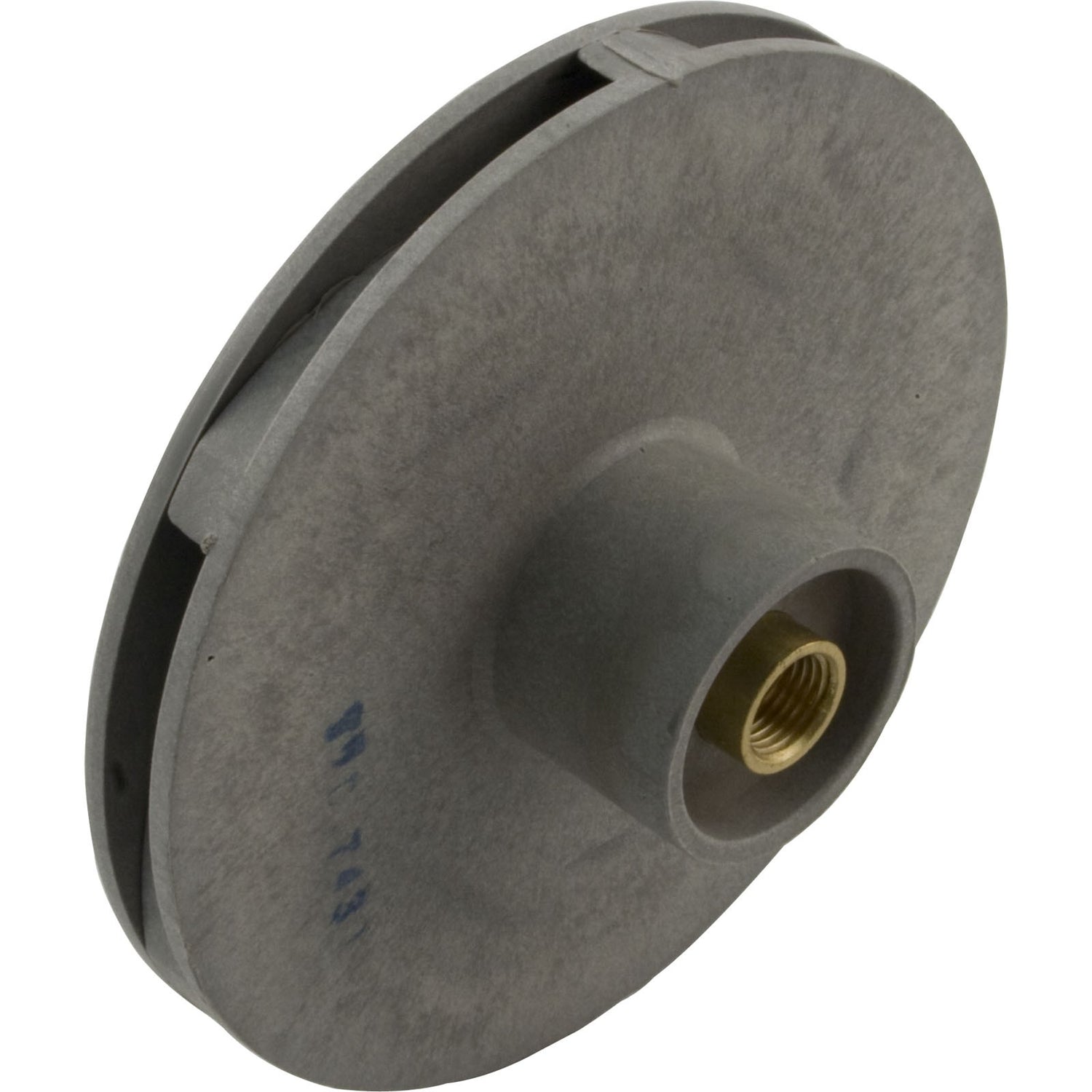

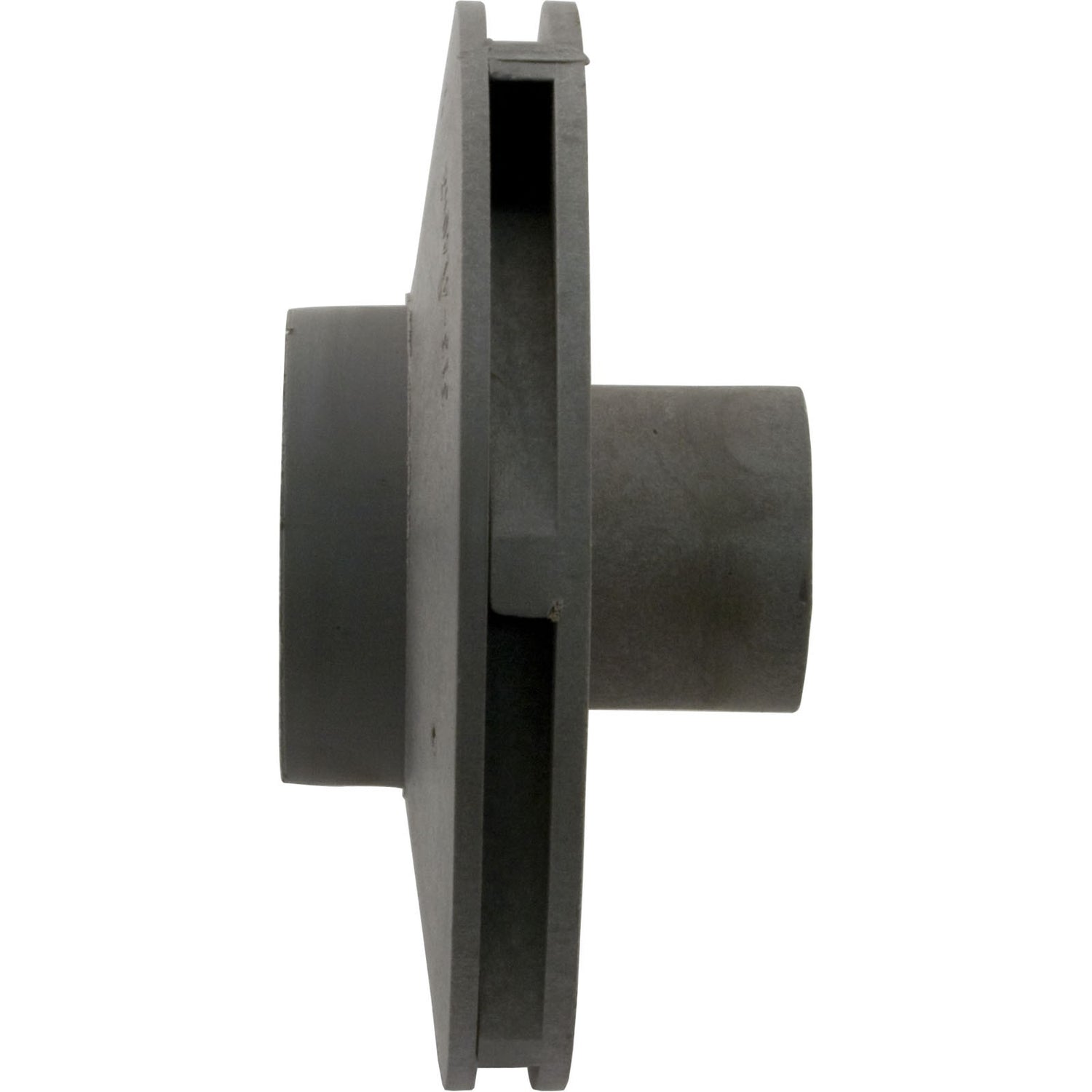

Impeller, Waterway SVL56/Champion, 1.5 Horsepower, High Head : 310-7430

Impeller, Waterway SVL56/Champion, 1.5 Horsepower, High Head Waterway SVL56/Champion Pump Impeller Closed face impeller made for the SVL56/Champion pump by Waterway Plastics. Rated at 1.5hp, it is used in a Waterway SVL56 and Waterway Champion Pool pump body, and must be installed on a 1.5hp (or greater) square flange motor with a threaded shaft. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-7/8" Vane Width ID: 1/4" Eye Diameter OD: 2-1/8" Eye Length: 9/16" Impeller Width OD: 1/2" Seal Seat Depth: 1"Shaft Length: Shaft Diameter OD: 5/8"Seal Seat Diameter OD: 1-1/2"Manufacturer: WaterwayPump Application: SVL56 High Pressure Replaces 3107430,5033-81,632765,806105232182,WW3107430,WWP-101-7430,
