Impeller, Waterway SVL56/Champion, 1.0HP FULL, 1.5HP Up Rate : 310-7420

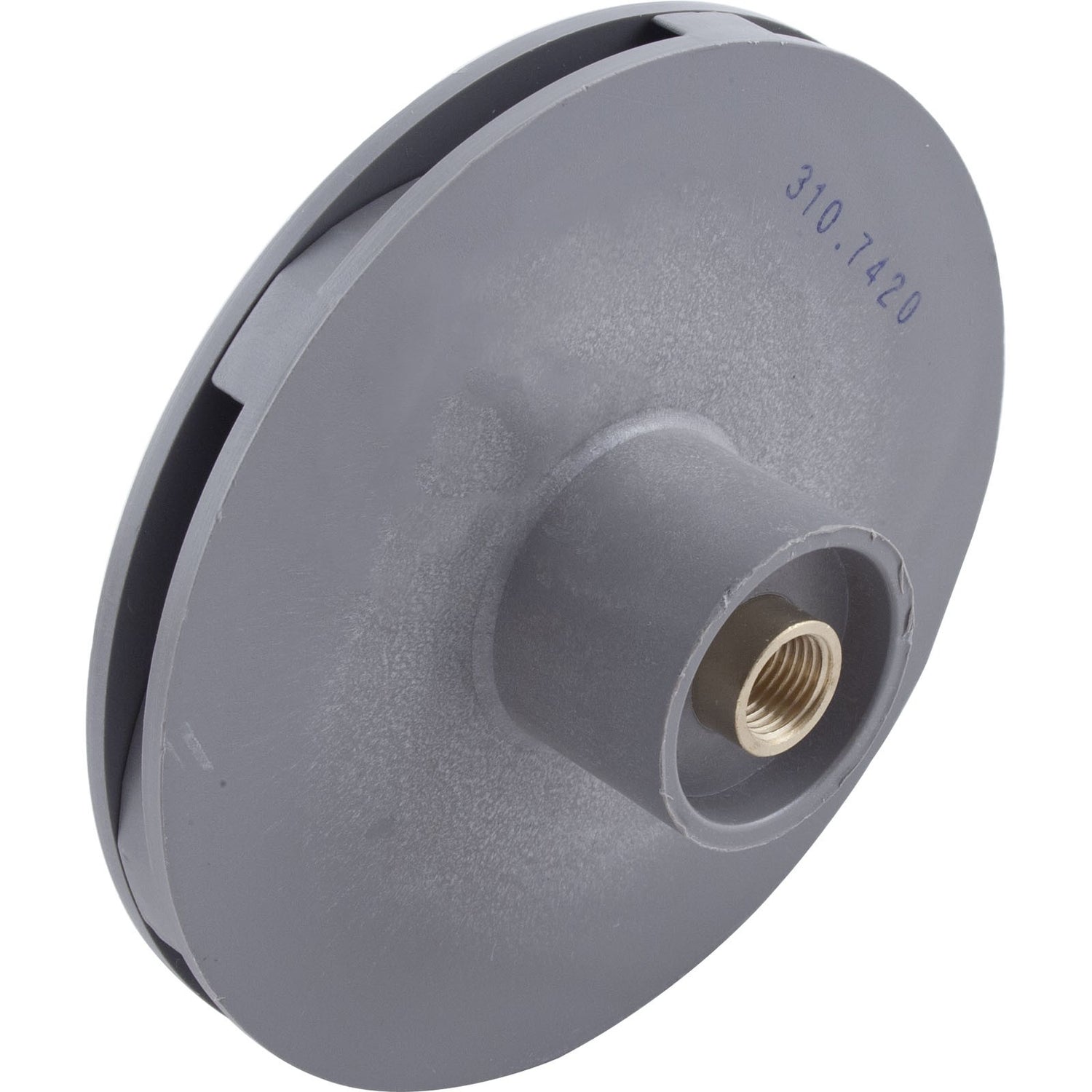

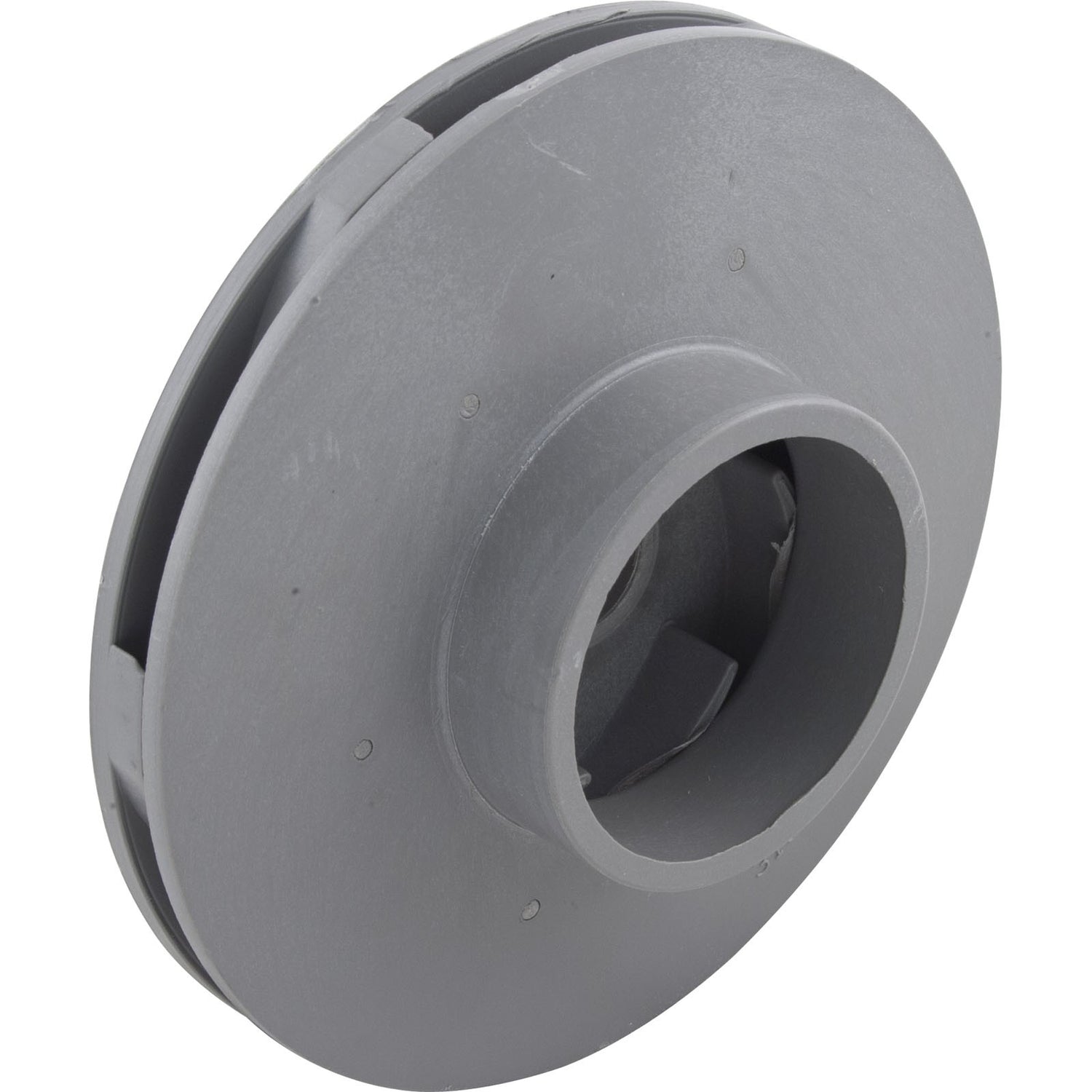

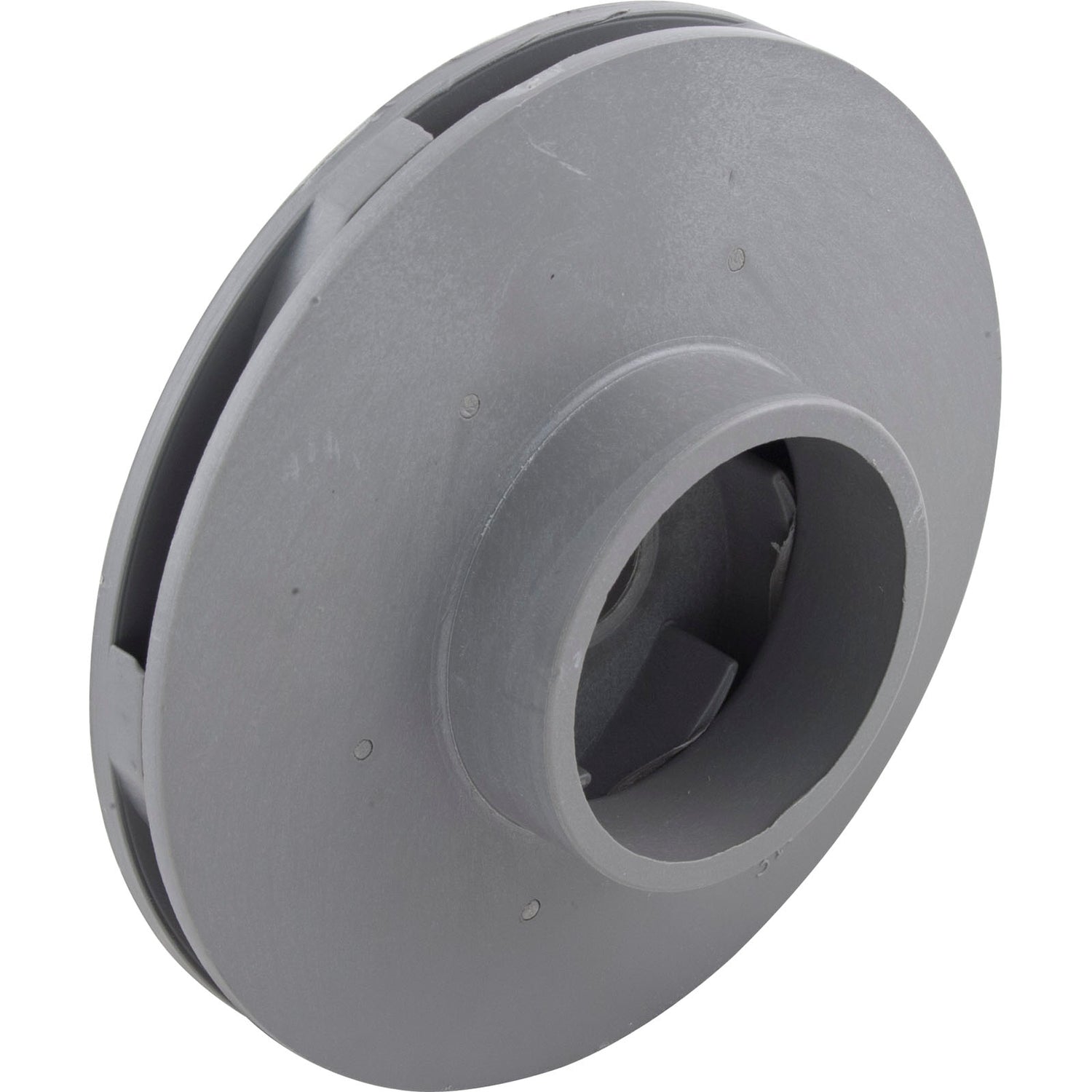

Impeller, Waterway SVL56/Champion, 1.0HP FULL, 1.5HP Up Rate Waterway SVL56/Champion Pump Impeller Closed face impeller made for the SVL56/Champion pump by Waterway Plastics. Rated at 1.0hp, it is used in a Waterway SVL56 and Waterway Champion Pool pump body, and must be installed on a 1.0hp (or greater) square flange motor with a threaded shaft. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-7/8" Vane Width ID: 7/32" Eye Diameter OD: 2-1/4" Eye Length: 11/16" Impeller Width OD: 1/2" Seal Seat Depth: 1-1/16"Shaft Length: Shaft Diameter OD: 5/8"Seal Seat Diameter OD: 1-1/2"Manufacturer: WaterwayPump Application: SVL56 High Pressure Replaces _310-7420,3107420,5033-80,632764,806105232175,WW3107420,WWP-101-7420,
