Impeller, Pentair PacFab Pinnacle/Challenger, 0.75ohp/1.0thp : 355067

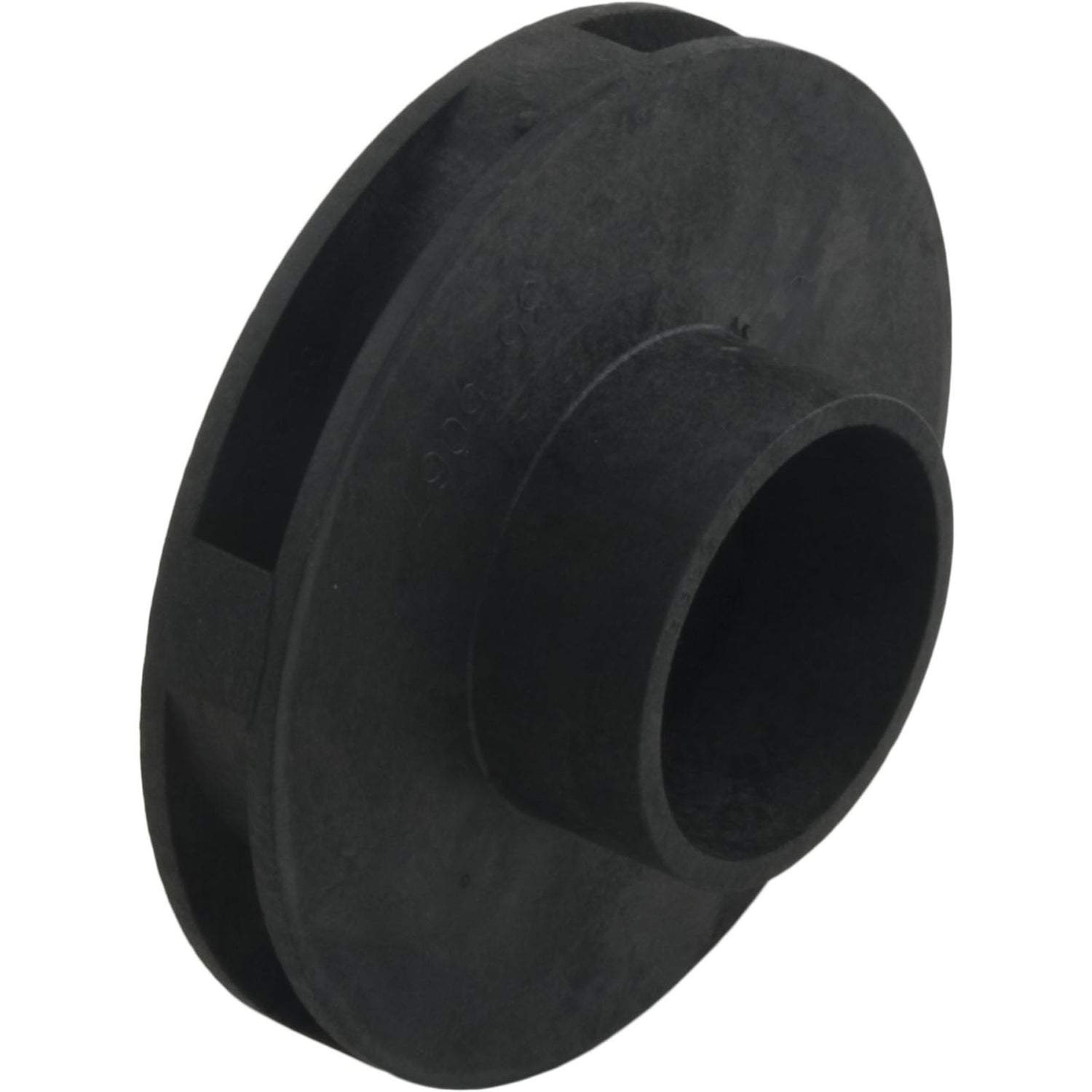

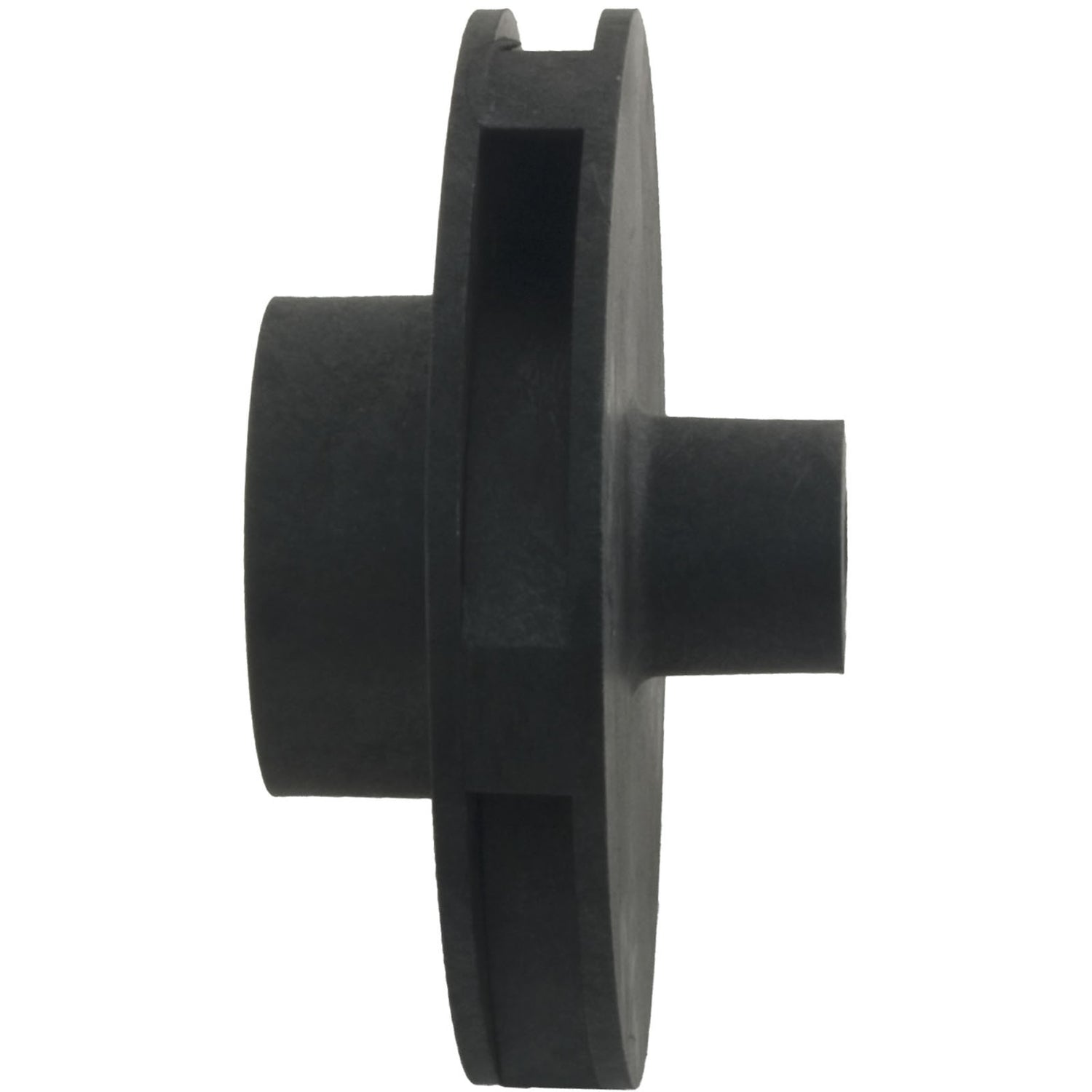

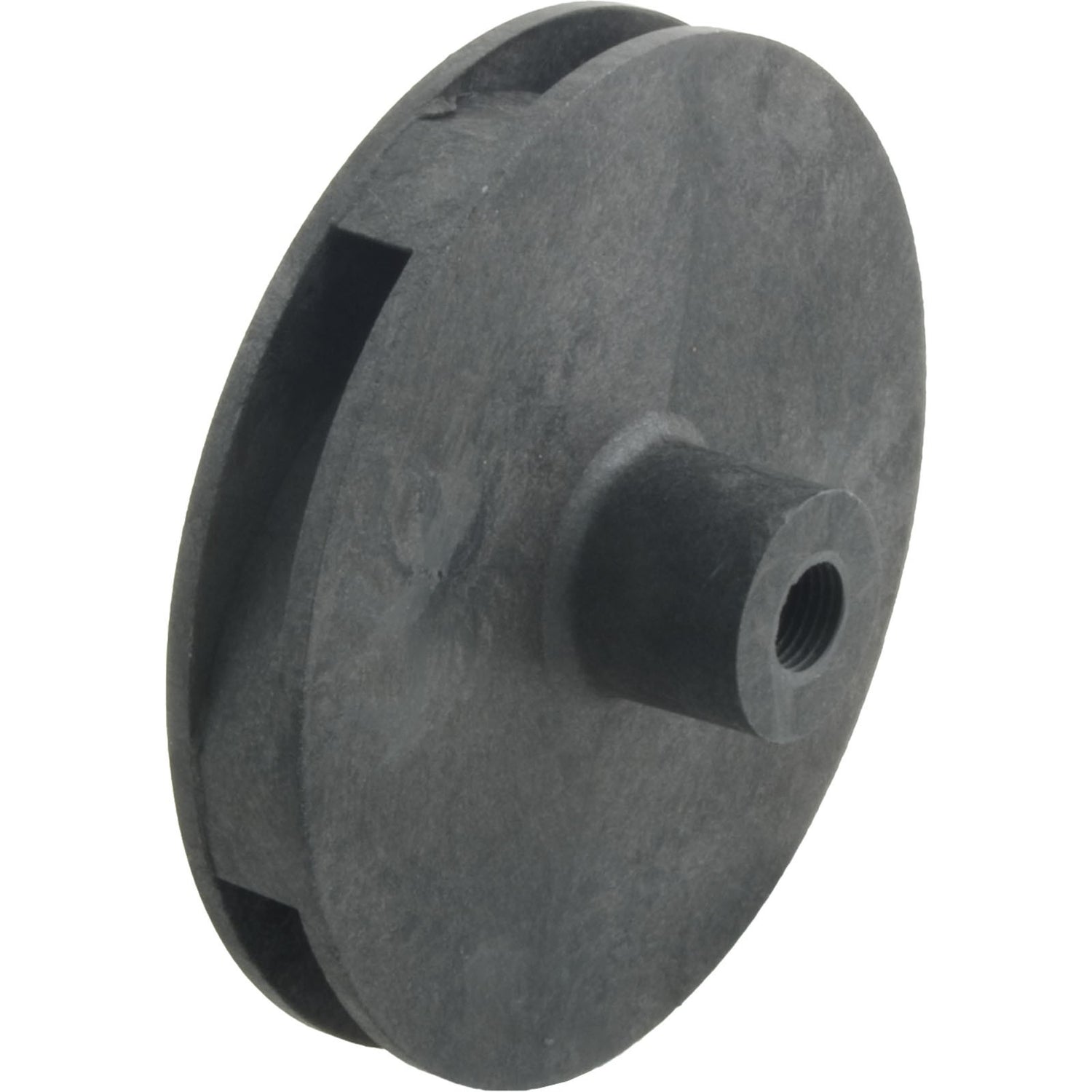

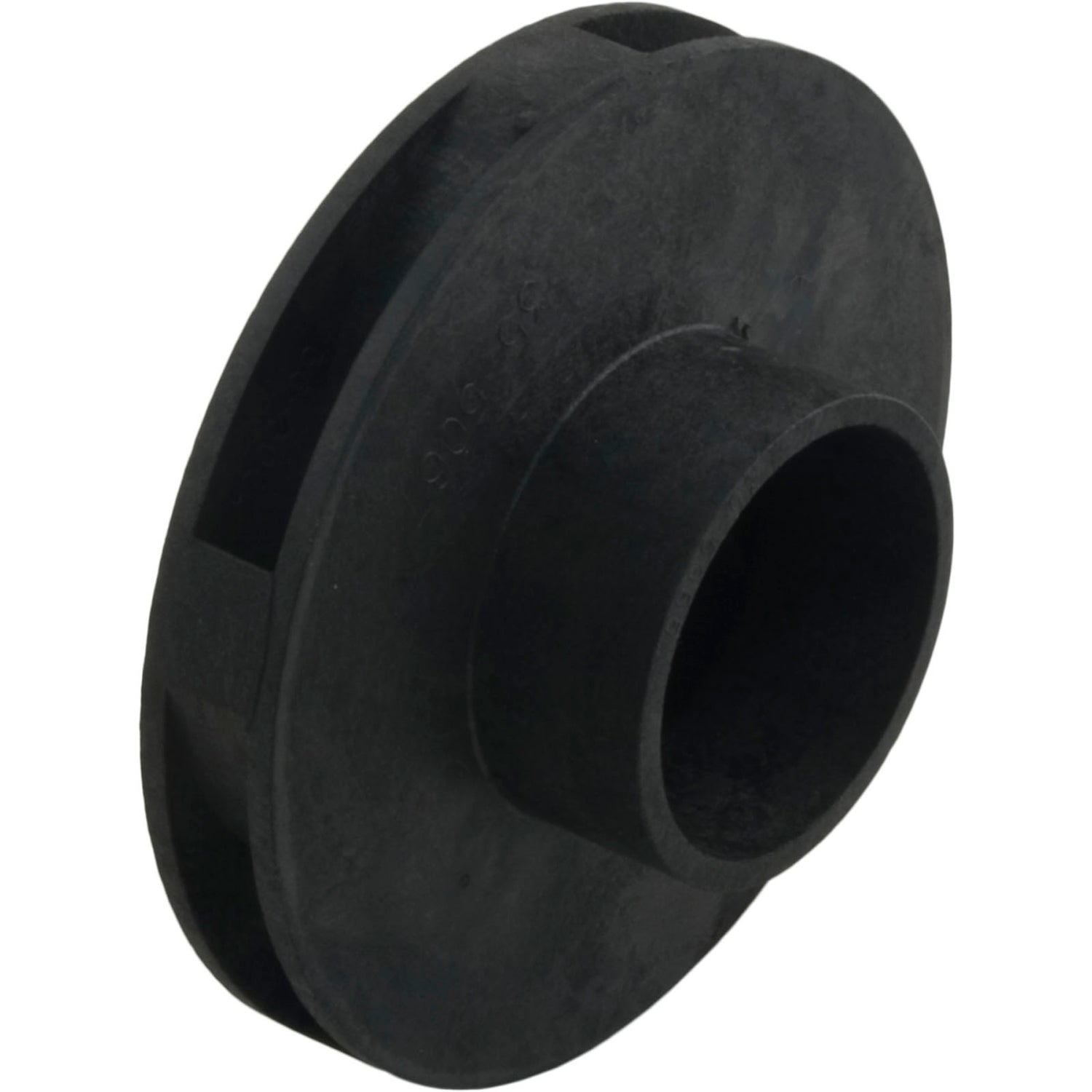

Impeller, Pentair PacFab Pinnacle/Challenger, 0.75ohp/1.0thp California Residents WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov PacFab/Pentair Pump Impeller Closed face impeller made for the Challenger Pool Pump by PacFab/Pentair. Rated at 3/4hp, it is used in the Challenger high pressure pump body, and must be installed on a 3/4hp (or greater) square flange motor. Also used in the Pinnacle High Flow Pump Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-5/16" Vane Width ID: 3/8" Eye Diameter OD: 2" Eye Length: 13/16" Impeller Width OD: 5/8" Seal Seat Depth: 13/16"Shaft Length: Shaft Diameter OD: Seal Seat Diameter OD: 1"Manufacturer: PacFab/PentairPump Application: Pinnacle Replaces _355067,40397,5002-05BA,5002-5064,788379658465,PAC-101-3109,
