Impeller Kit, Hayward Super II Model 3000/3000X, 2.5hp : SPX3025CKIT

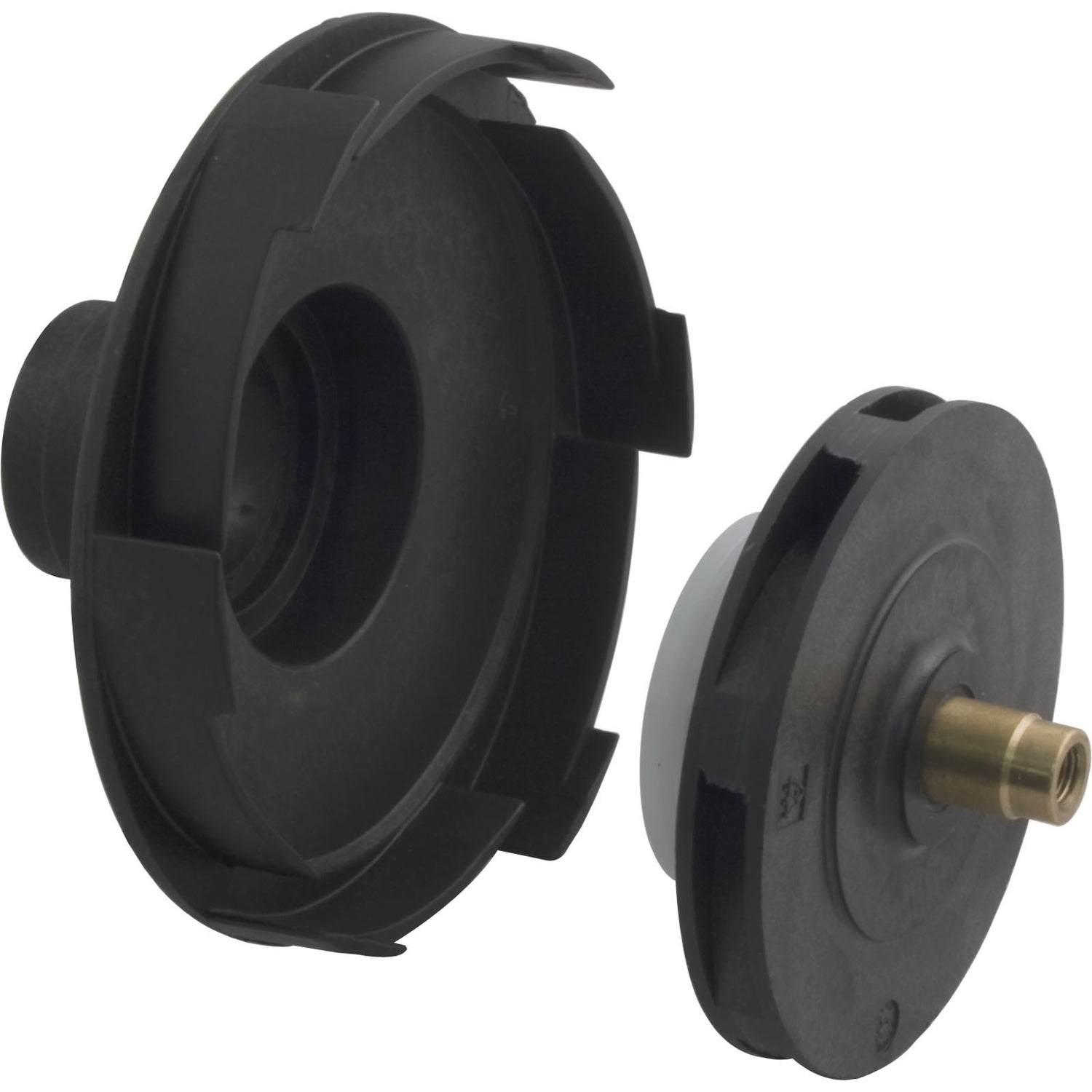

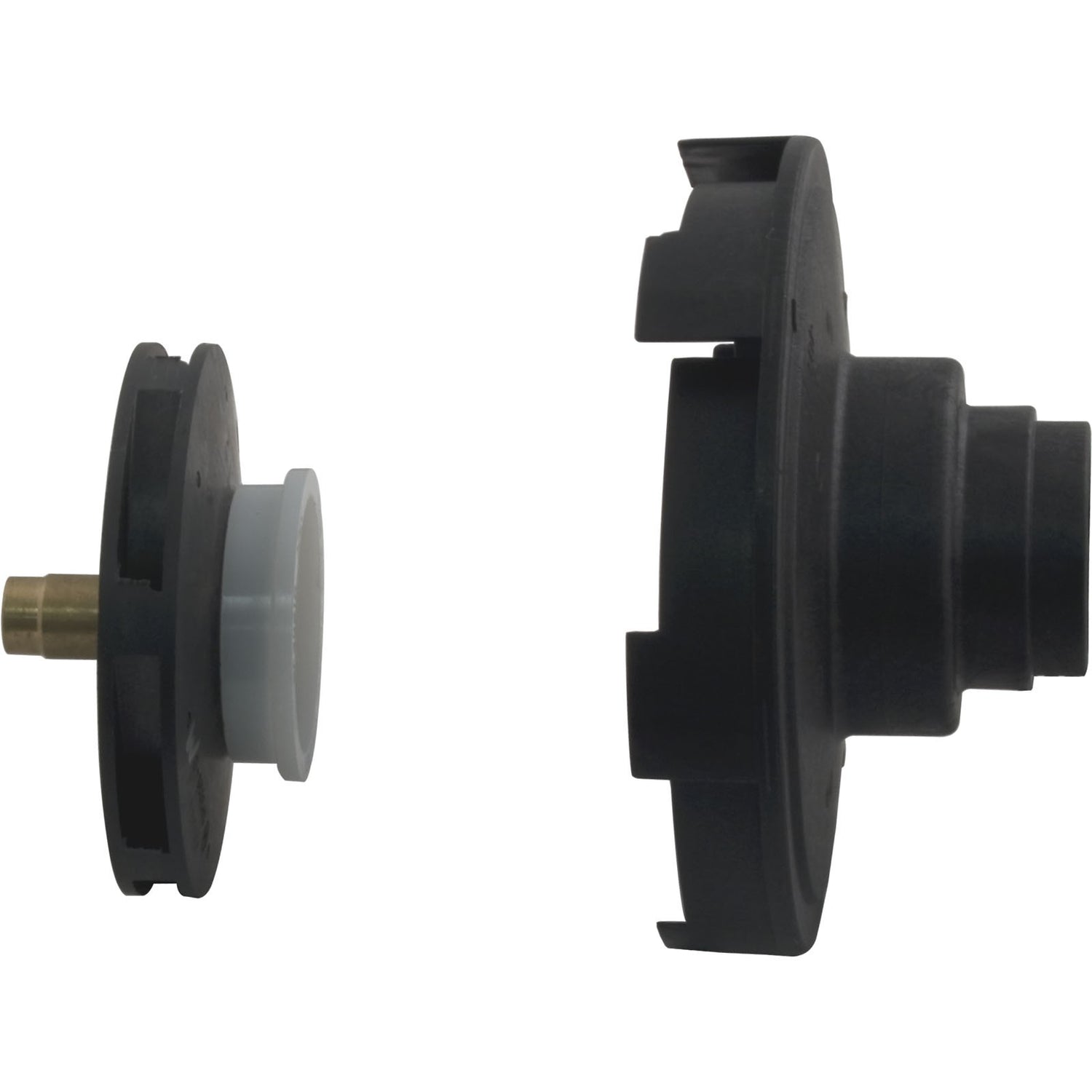

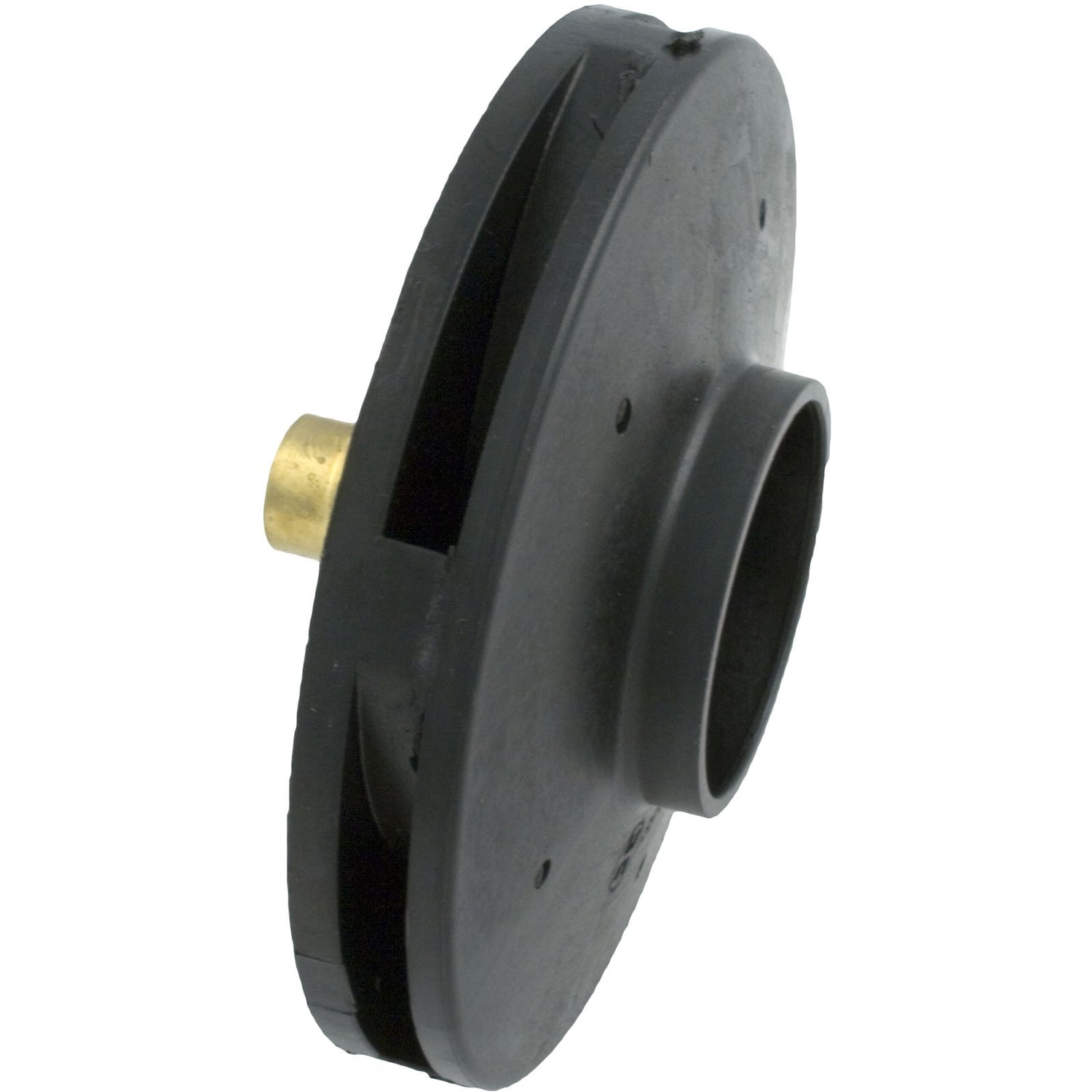

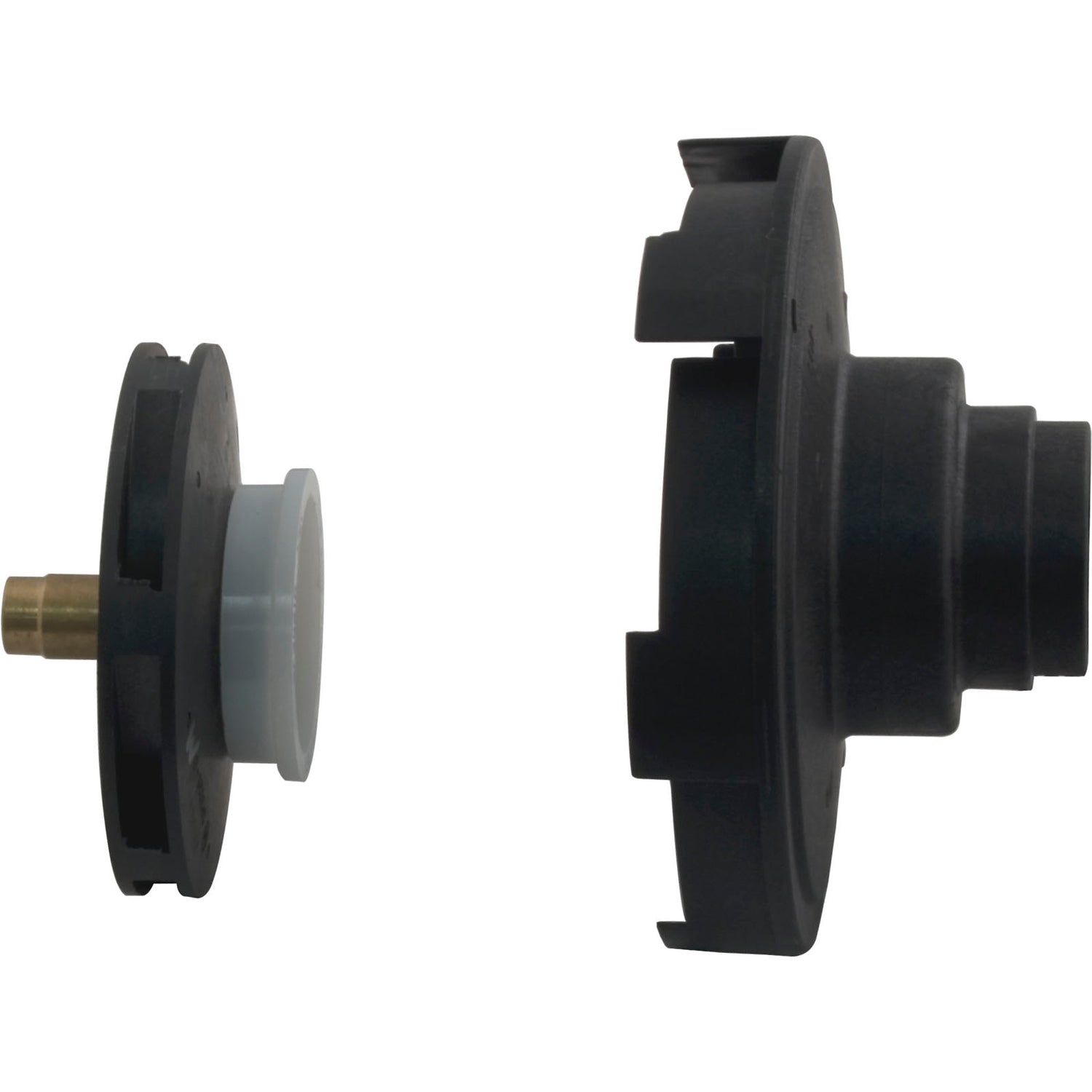

Impeller Kit, Hayward Super II Model 3000/3000X, 2.5hp Hayward Pump Impeller Kit Closed face impeller made for the Super II pool pump by Hayward. Rated at 2.5hp, it is used in a Super II SP3000 pump body, and must be installed on a 2.5hp (or greater) C-face motor with a threaded shaft. This kit includes the diffuser. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-13/16" Vane Width ID: 3/8" Eye Diameter OD: 2-3/16" Eye Length: 7/16" Impeller Width OD: 5/8" Seal Seat Depth: 1/8"Shaft Length: 15/16"Shaft Diameter OD: 3/4"Seal Seat Diameter OD: 1-7/16"Manufacturer: HaywardPump Application: SP3000, Super II Replaces 40433,5110-102,5110-10P,610377031455,HAY-101-3036,HAY-101-6392,SP3025CKIT,SPX3025C,
