Impeller Kit, Carvin P, PH, 1.5hp : 05380308K

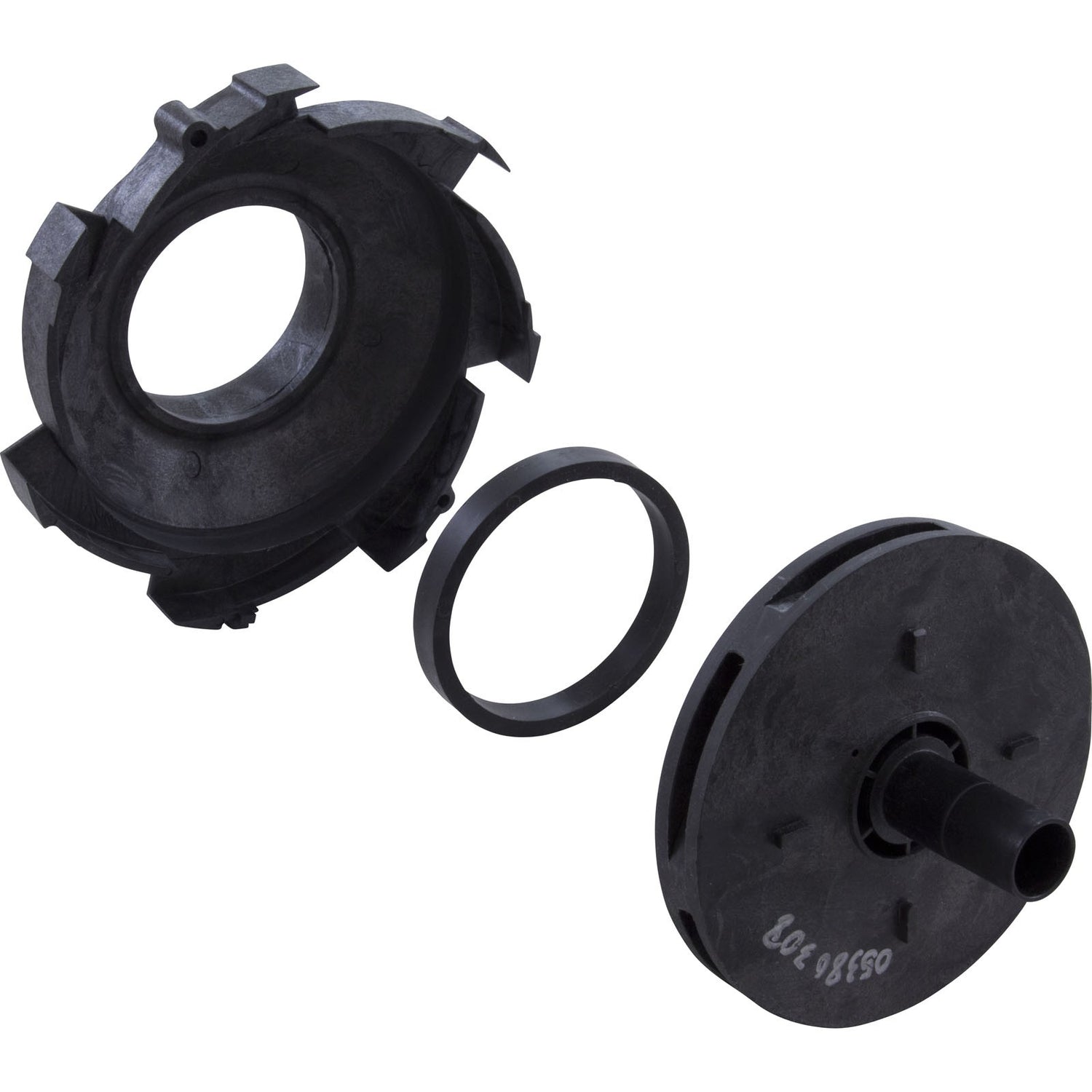

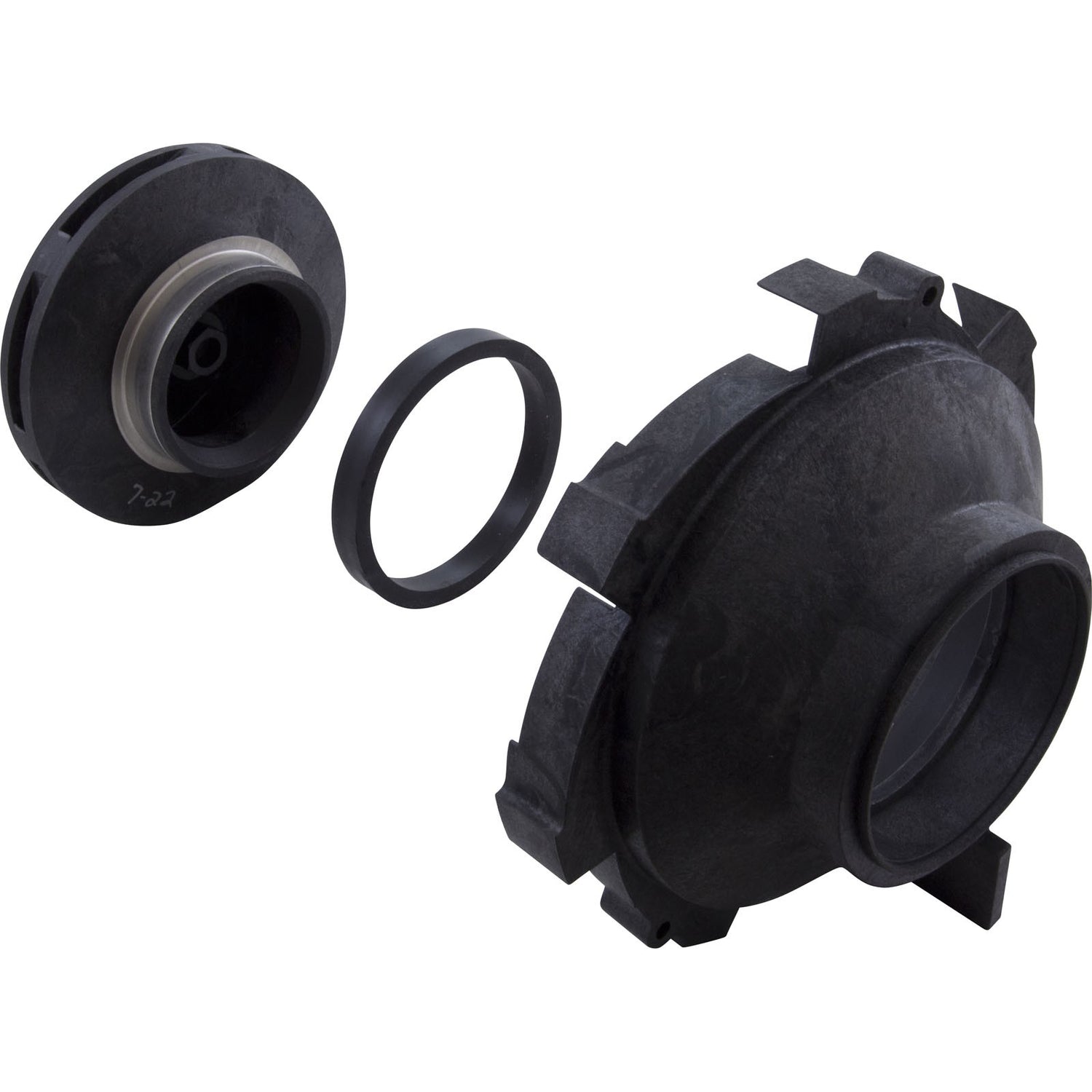

Impeller Kit, Carvin P, PH, 1.5hp Jacuzzi/Carvin Pump Impeller Kit Closed face impeller made for the P and PH series pool pumps by Jacuzzi. Rated at 1.5hp, it is used in a P or PH volute, and must be installed on a 1.5hp (or greater) C-face motor with a threaded shaft. Includes the diffuser. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-9/16" Vane Width ID: 1/4" Eye Diameter OD: 2-1/2" Eye Length: 5/8" Impeller Width OD: 5/8" Seal Seat Depth: 1/16"Shaft Length: 1-9/16"Shaft Diameter OD: 11/16"Seal Seat Diameter OD: 1-3/8"Manufacturer: Jacuzzi/CarvinPump Application: P Series, PH Series Replaces 05380308RKIT,390371,
