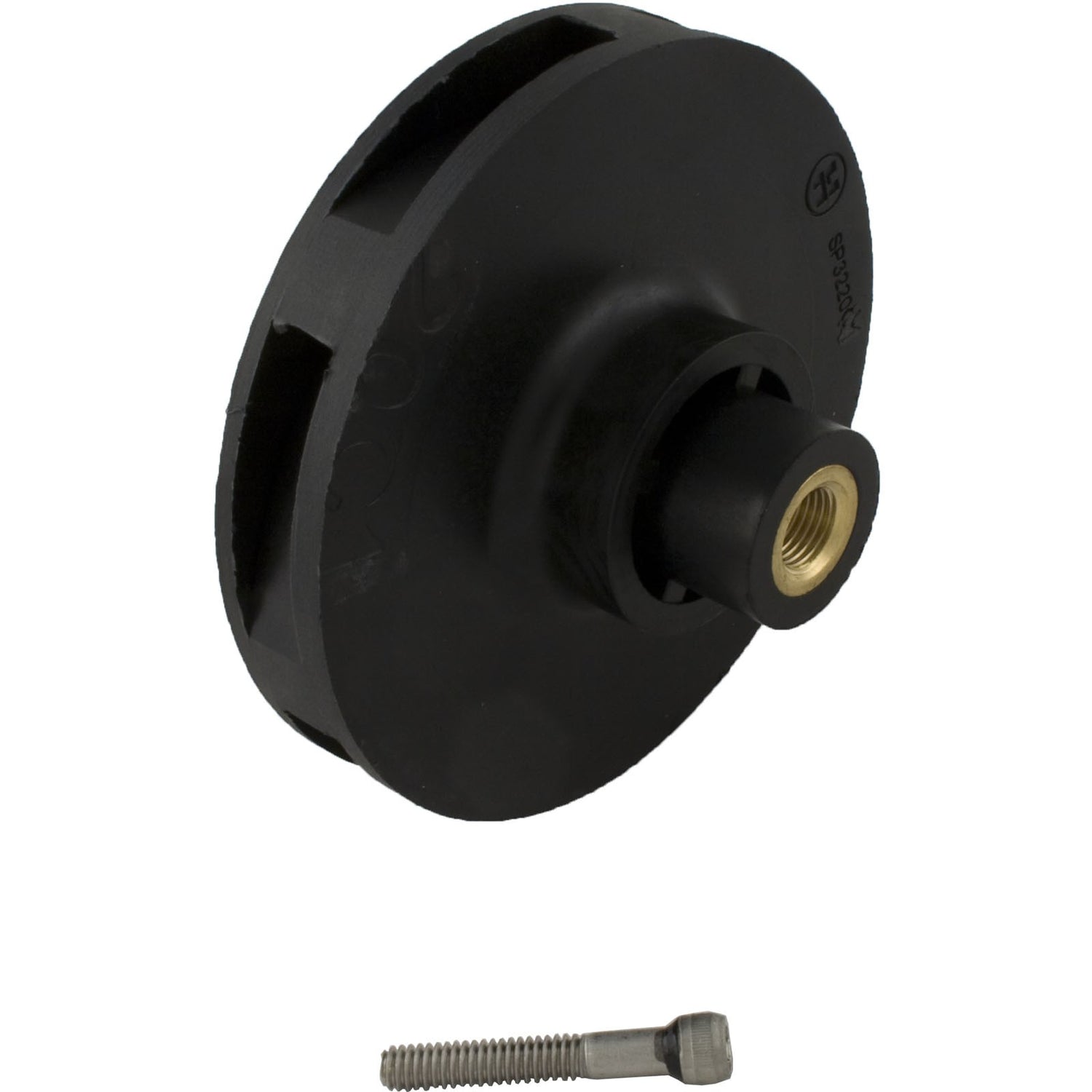

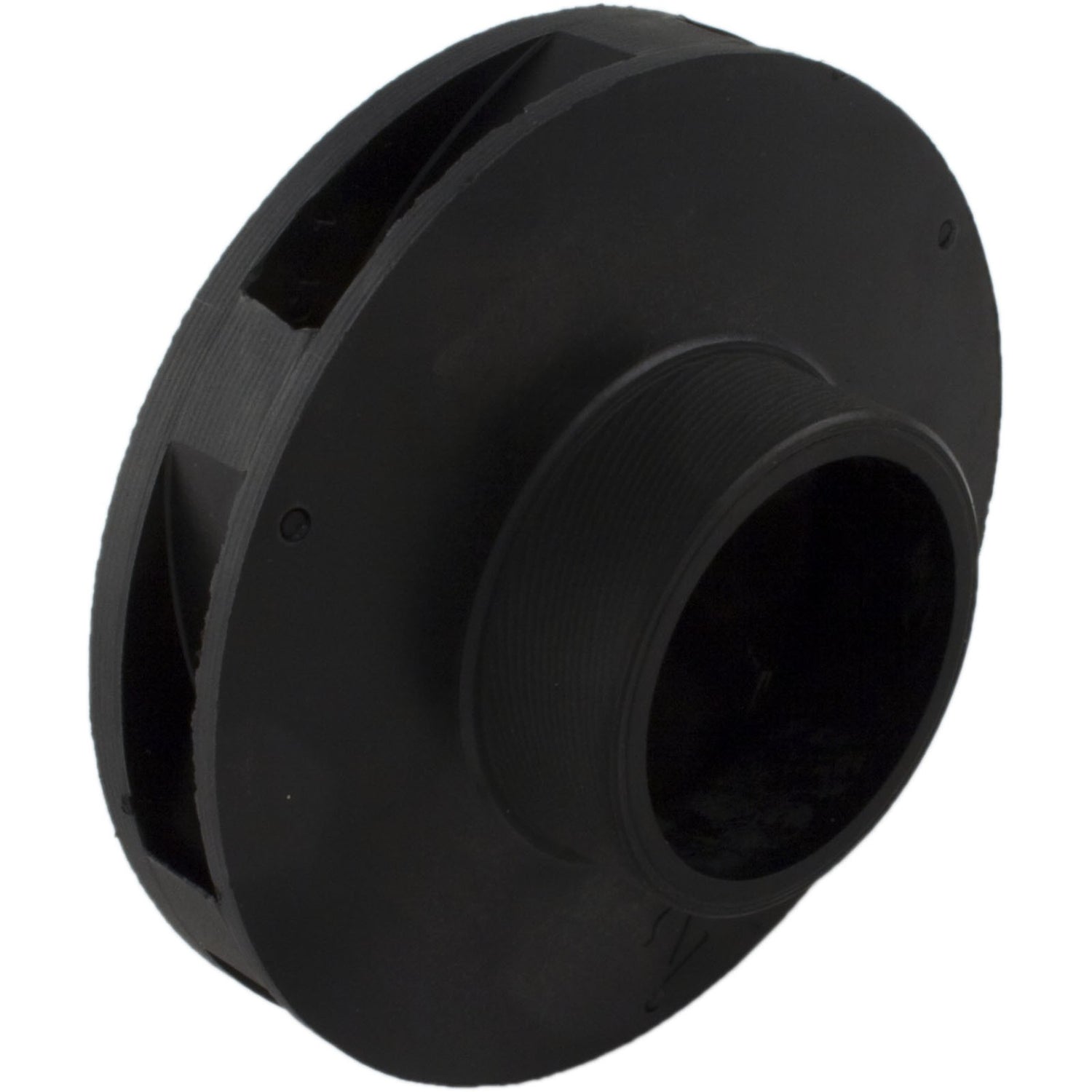

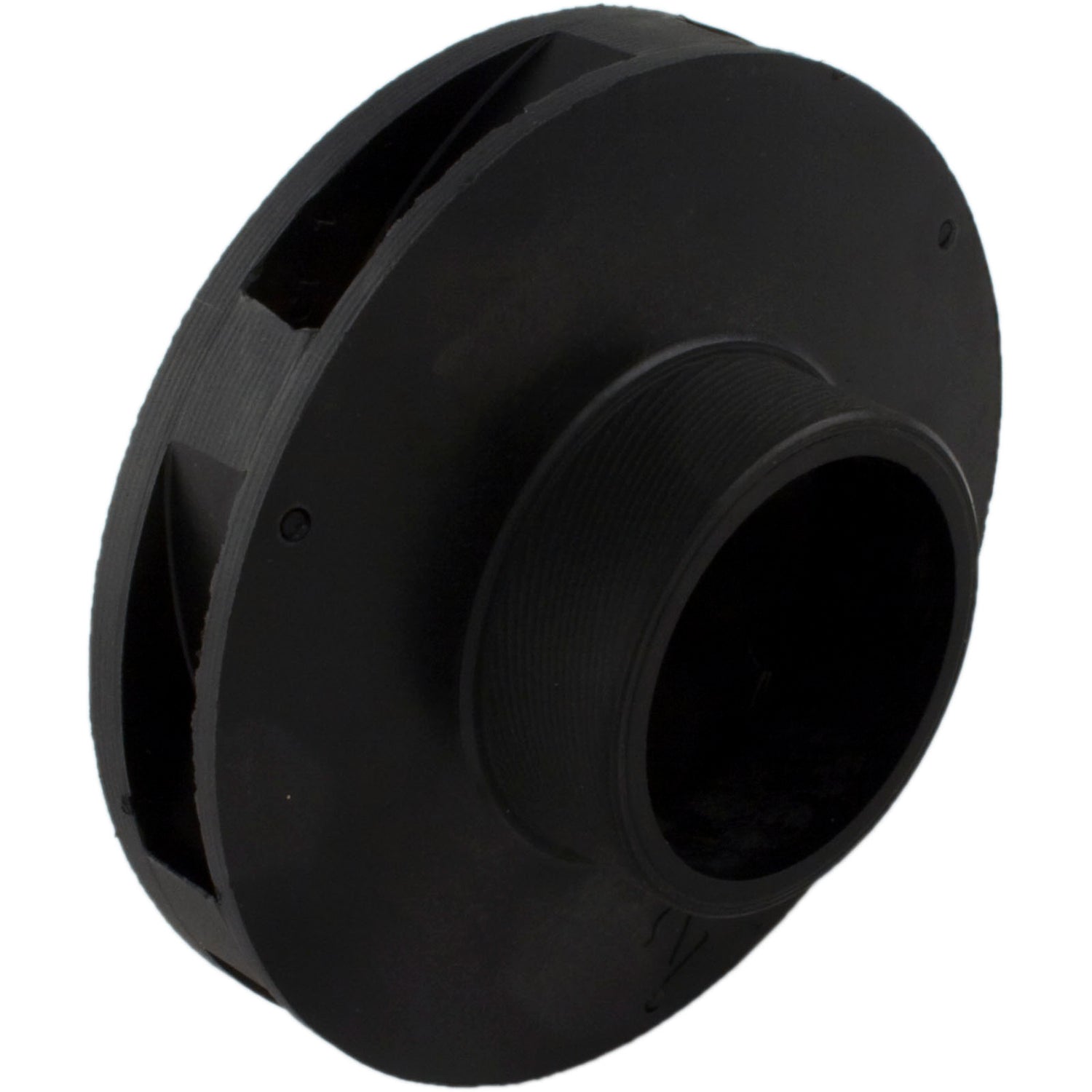

Impeller, Hayward Tristar SP3200X, 2.5thp, w/Screw : SPX3220CM

Impeller, Hayward Tristar SP3200X, 2.5thp, w/Screw Hayward Pump Impeller Closed face impeller made for the TriStar SP3200X pool pump by Hayward. Rated at 2.5hp, it is used in a SP3200 and or SP3600 pump body, and must be installed on a 2.5hp (or greater) square flange motor. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 5-1/4" Vane Width ID: 1/4" Eye Diameter OD: 5-5/16" Eye Length: 3/4" Impeller Width OD: 5/8" Seal Seat Depth: 1/2"Shaft Length: 1-1/16"Shaft Diameter OD: 3/4"Seal Seat Diameter OD: 1-3/8"Manufacturer: HaywardPump Application: SP3200, SP3200EE, SP3600, Tristar Replaces 362223,610377031264,SP3220CM,
