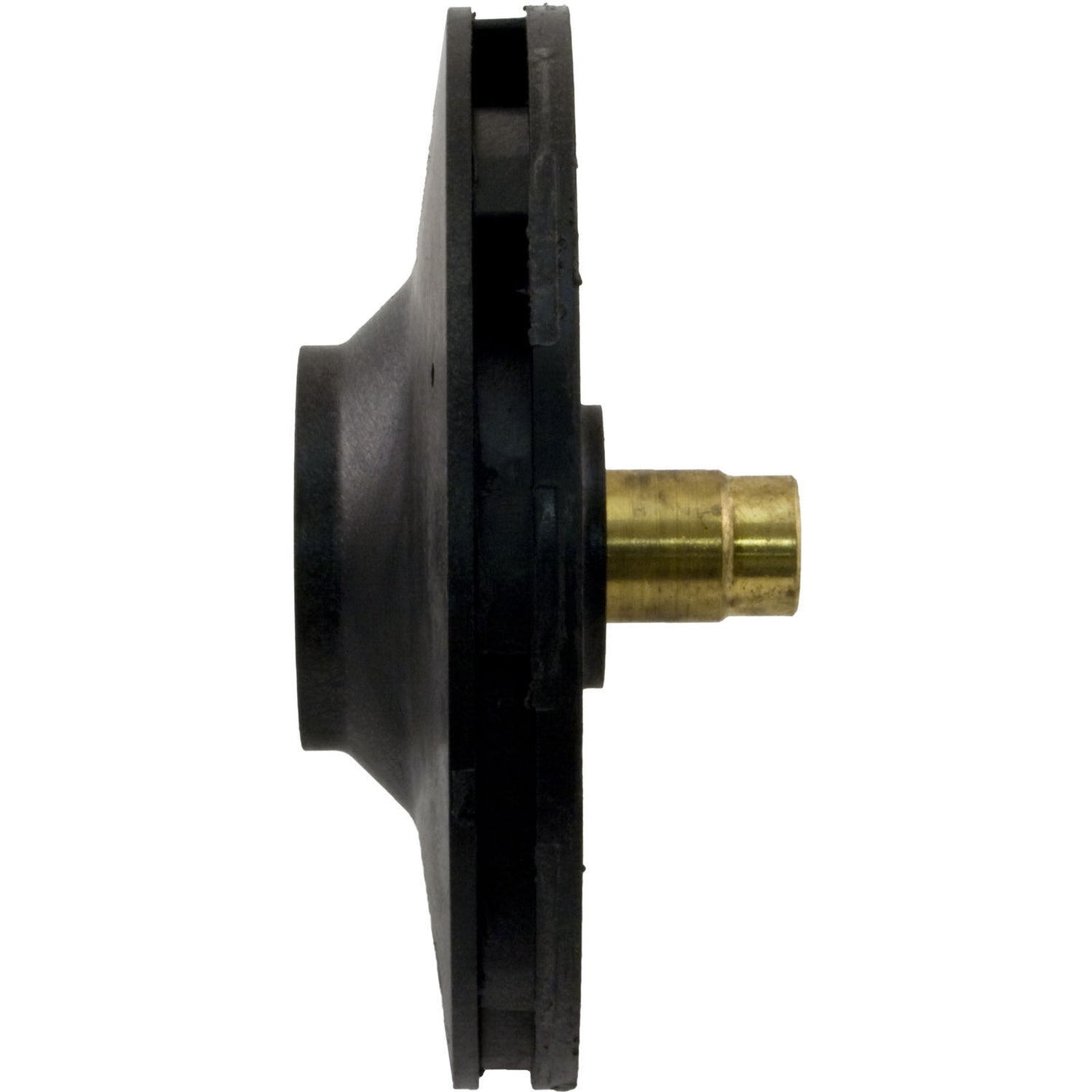

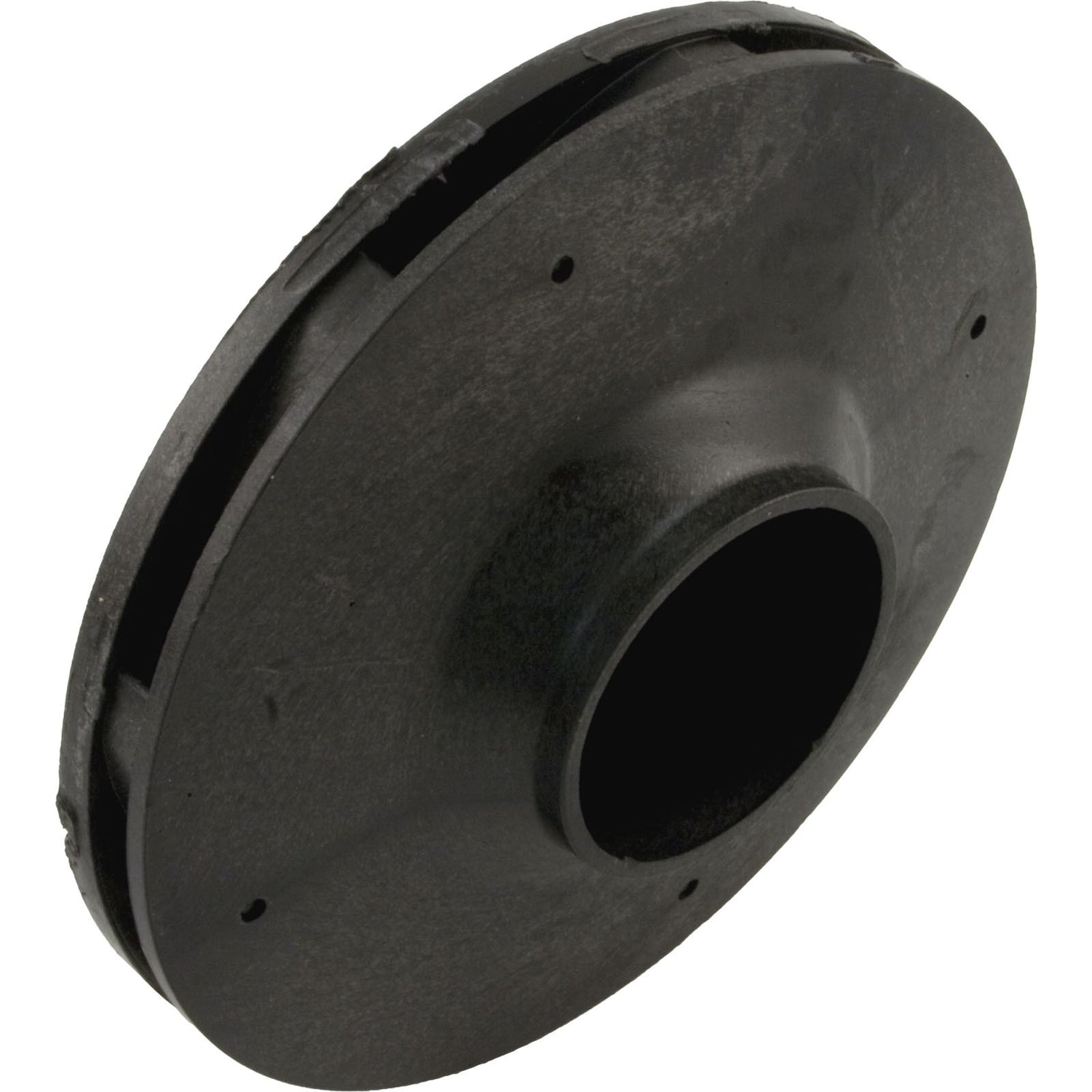

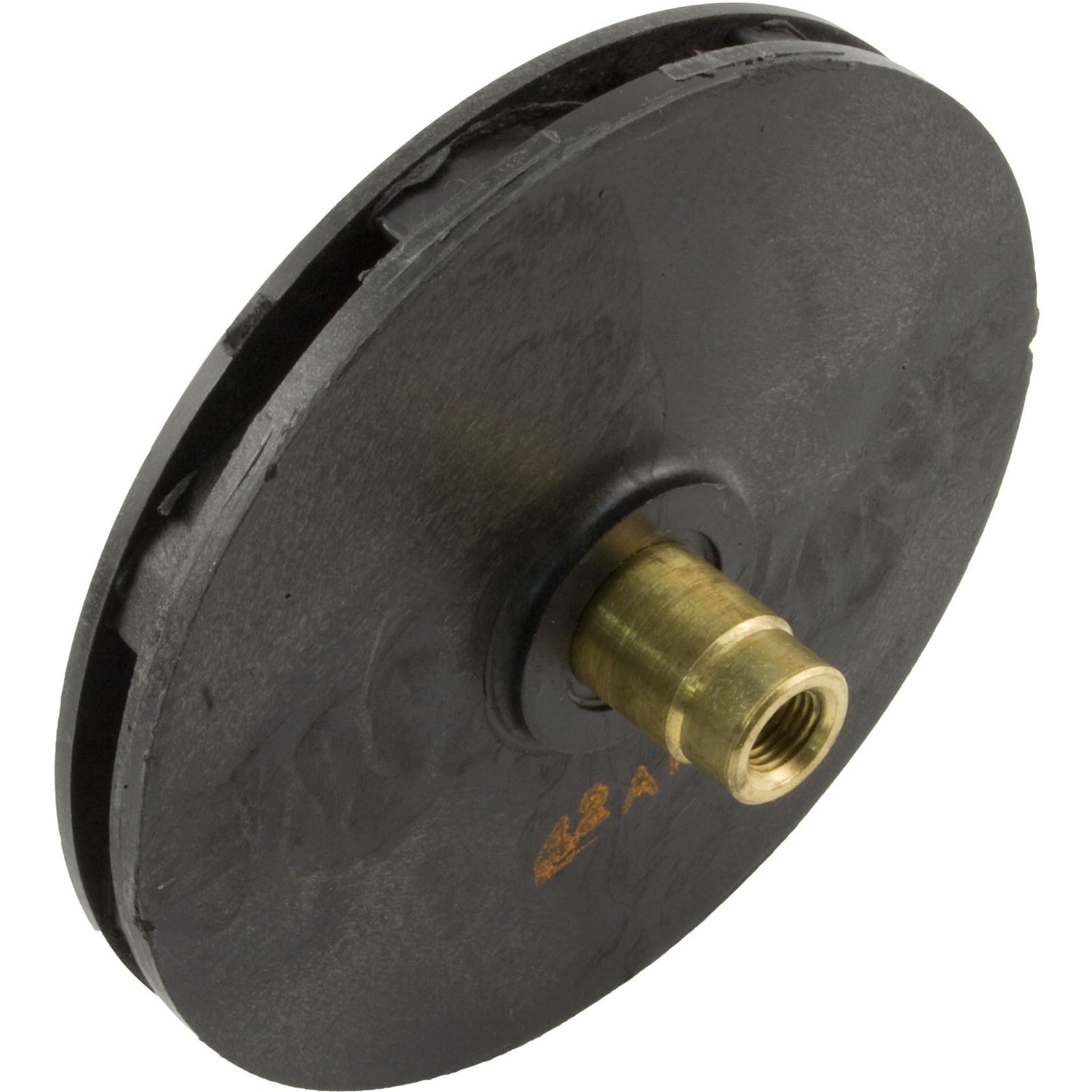

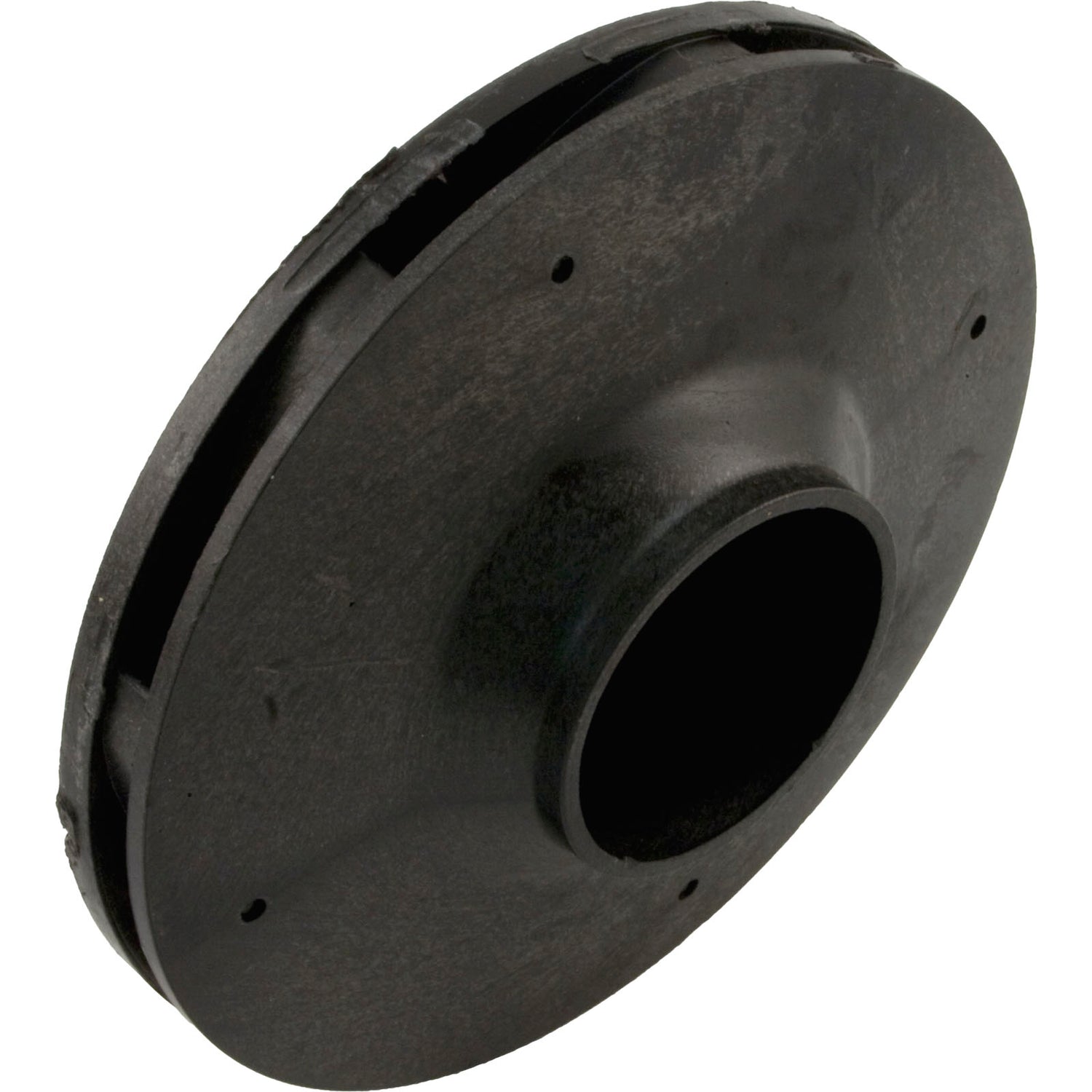

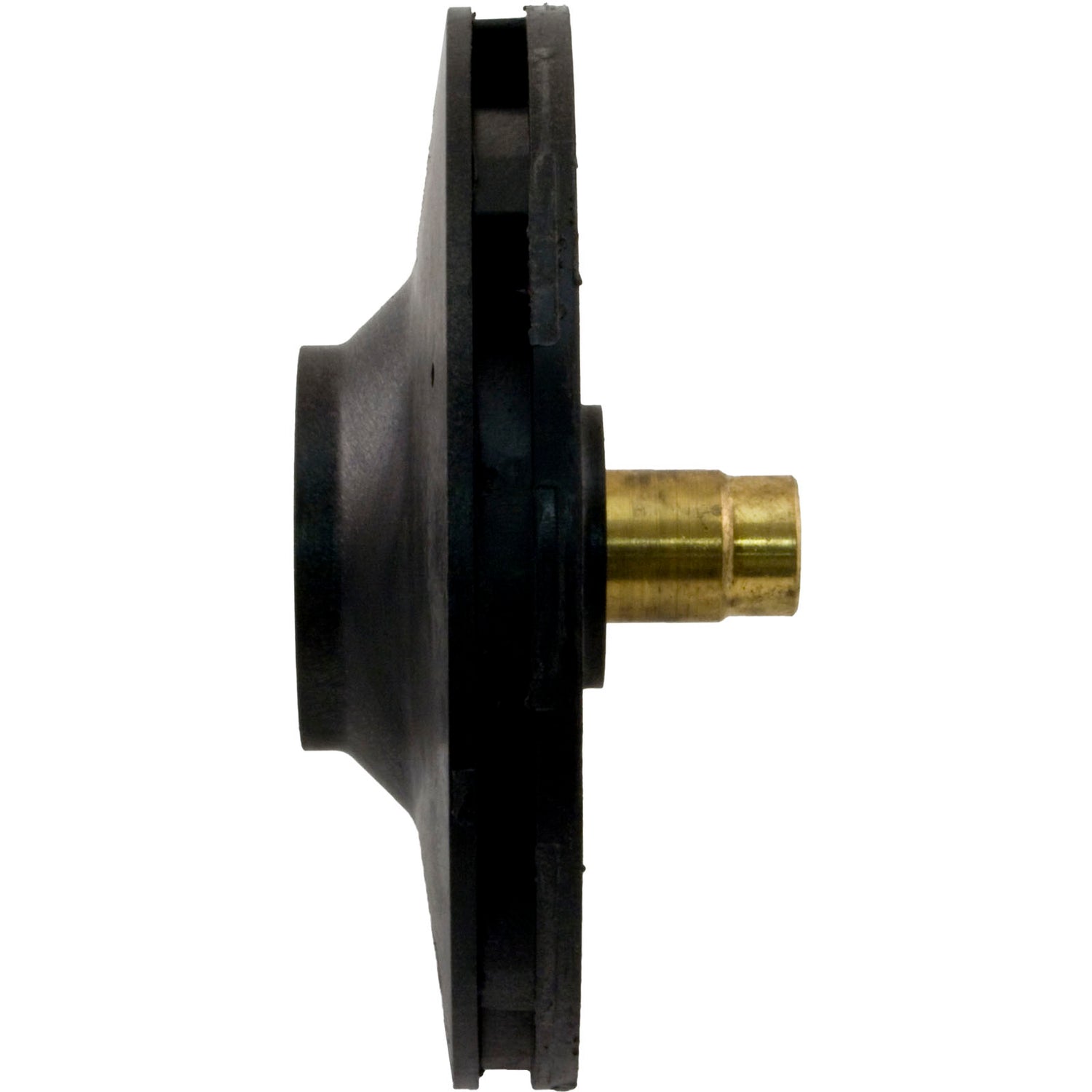

Impeller, Hayward Super Pump, 2.0ohp/2.5thp : SPX1621C

Impeller, Hayward Super Pump, 2.0ohp/2.5thp Hayward Pump Impeller Closed face impeller made for the SP1600 series pool/spa pump by Hayward. Rated at 2.0hp, it is used in a SP1600 and SP2600 wet end, and must be installed on a 2.0hp (or greater) C-face motor with a threaded shaft. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 5-3/16" Vane Width ID: 1/4" Eye Diameter OD: 2" Eye Length: 9/16" Impeller Width OD: 9/16" Seal Seat Depth: 1/8"Shaft Length: 15/16"Shaft Diameter OD: 11/16"Seal Seat Diameter OD: 1-3/8"Manufacturer: HaywardPump Application: SP1600, SP2600 Replaces 40422,5110-10F,610377040600,SP1621C,
