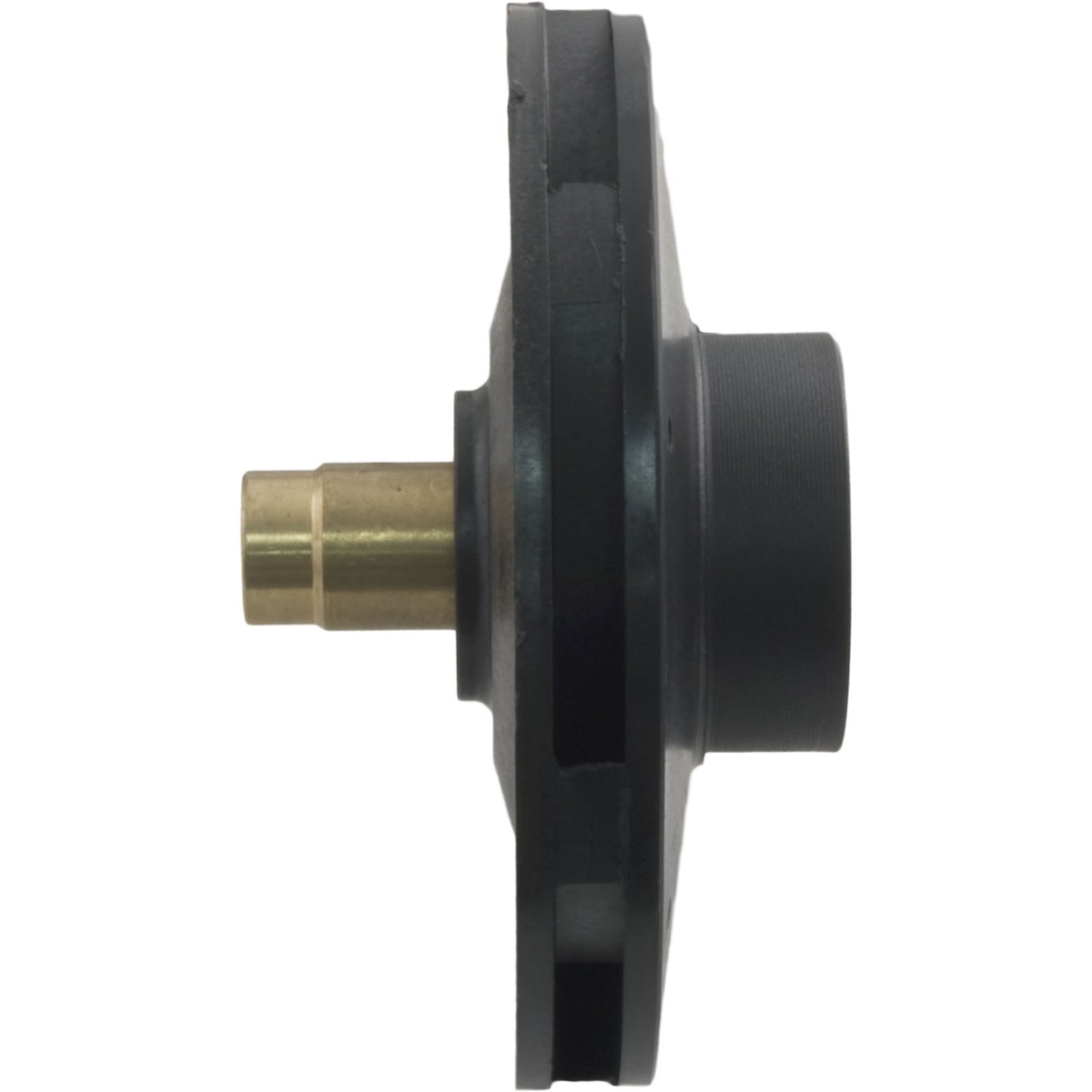

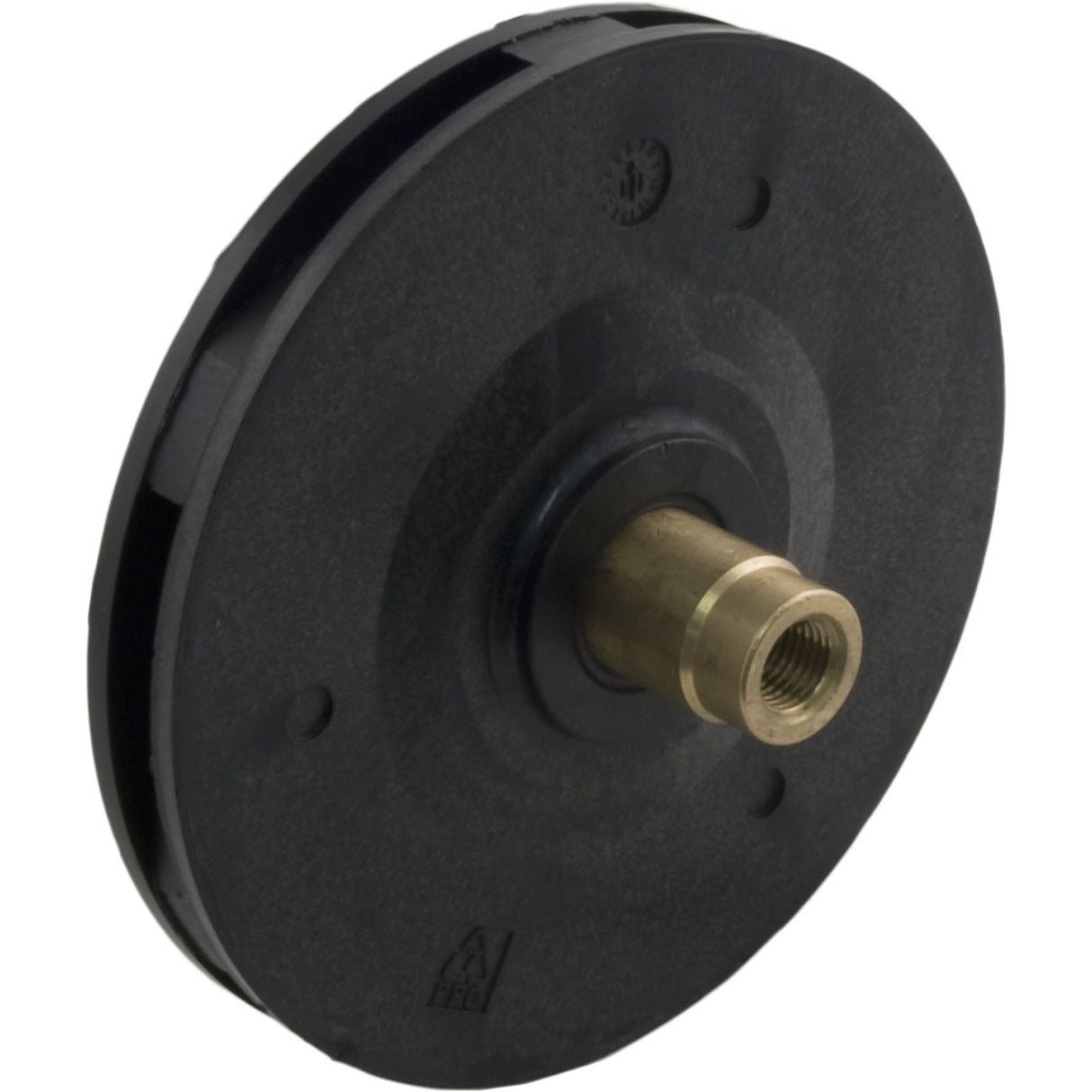

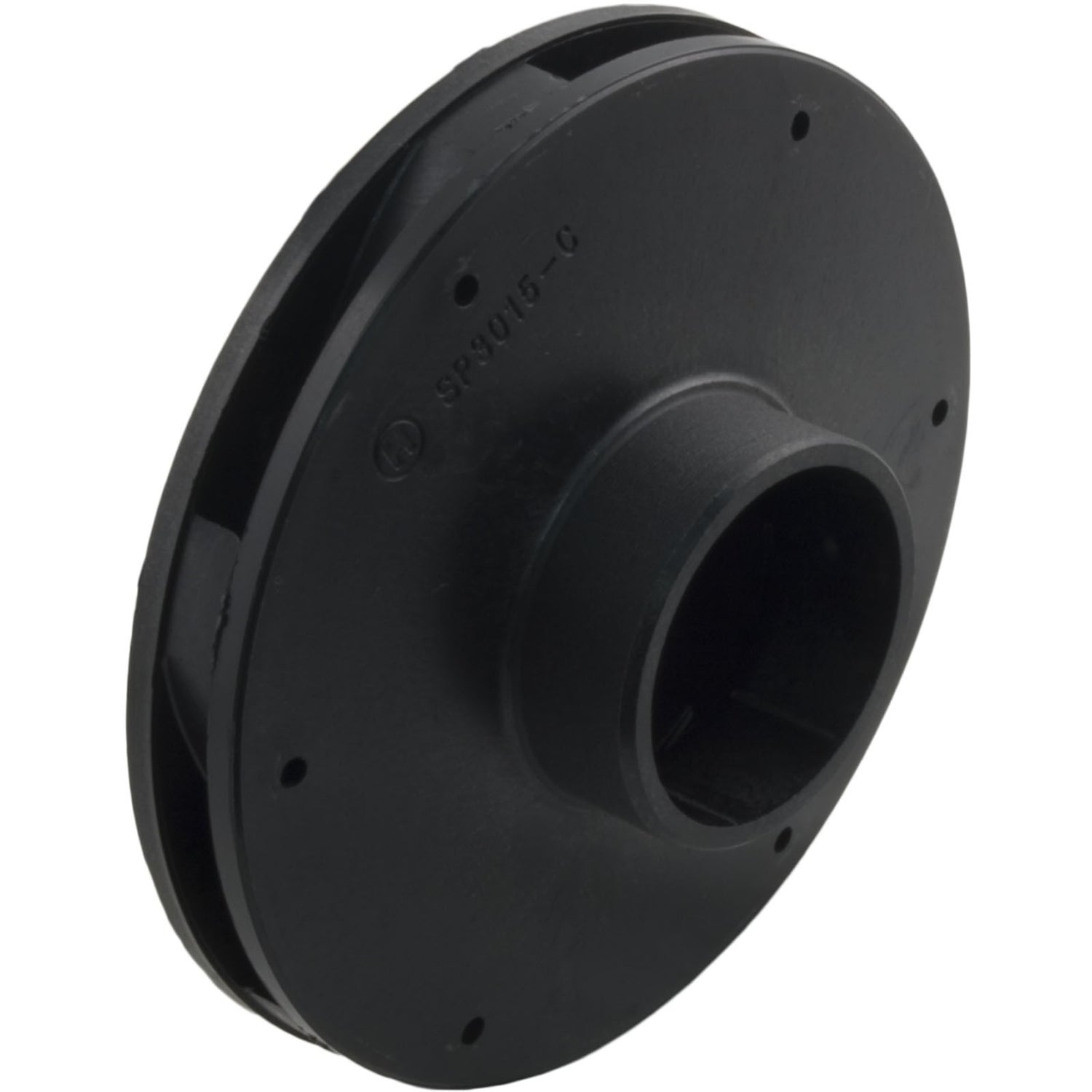

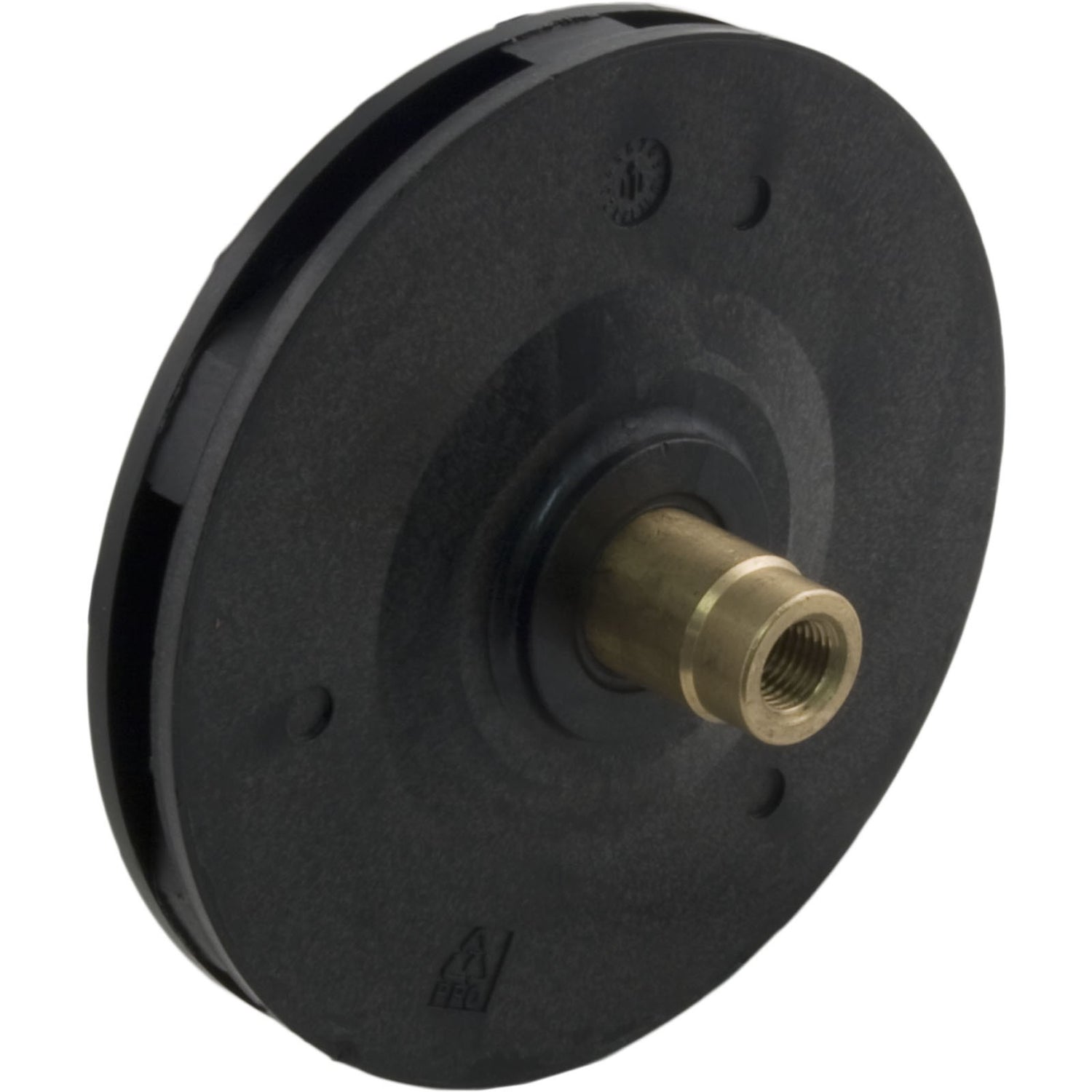

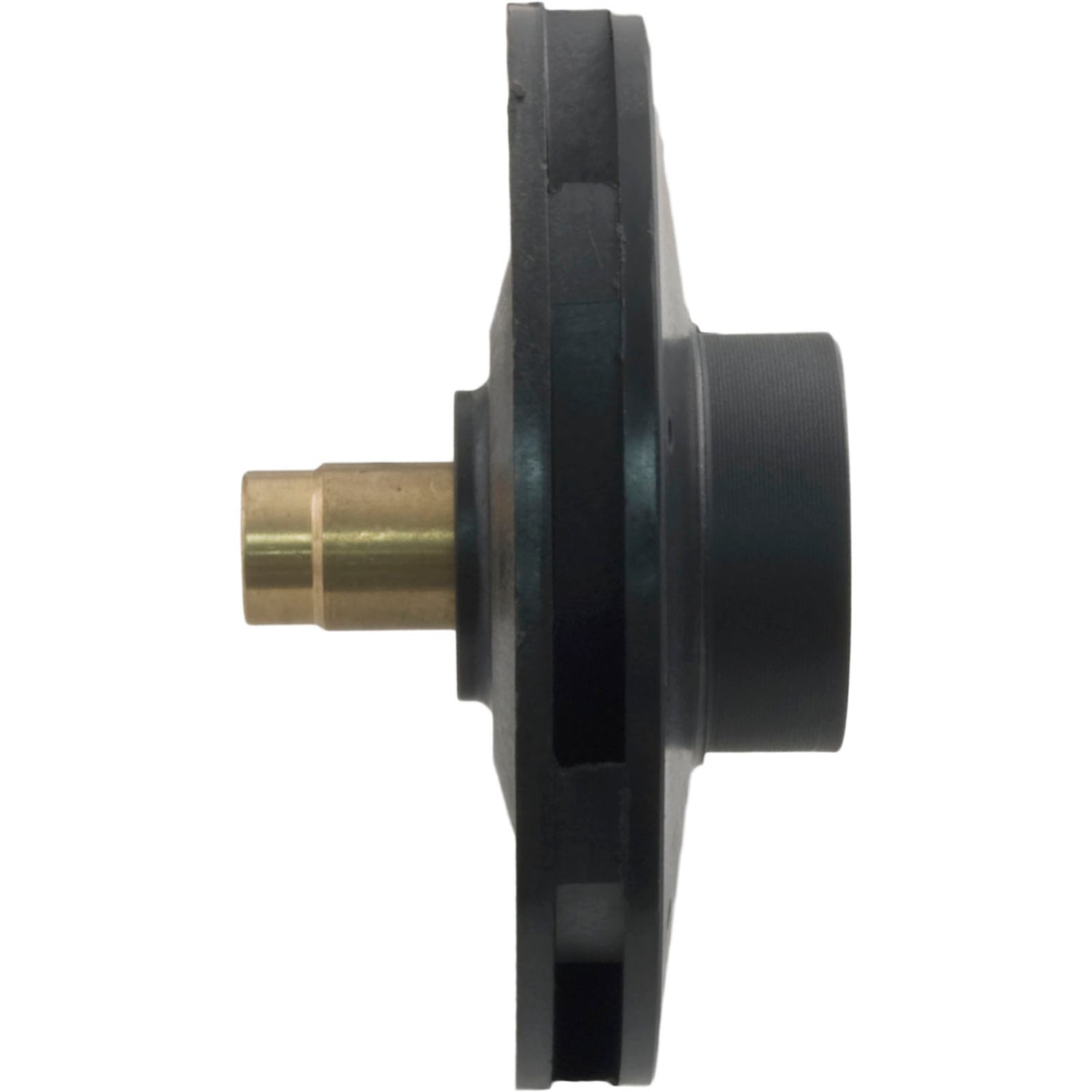

Impeller, Hayward Super II, 1.5 Horsepower : SPX3015C

Impeller, Hayward Super II, 1.5 Horsepower Hayward Pump Impeller Closed face impeller made for the Super II pool pump by Hayward. Rated at 1.5hp, it is used in a Super II SP3000 pump body, and must be installed on a 1.5hp (or greater) C-face motor with a threaded shaft. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-3/4" Vane Width ID: 5/16" Eye Diameter OD: 1-7/8" Eye Length: 5/8" Impeller Width OD: 5/8" Seal Seat Depth: 1/8"Shaft Length: 15/16"Shaft Diameter OD: 3/4"Seal Seat Diameter OD: 1-3/8"Manufacturer: HaywardPump Application: SP3000, Super II Replaces 40436,5110-10K,610377041317,HAY-101-2072,SP3015C,
