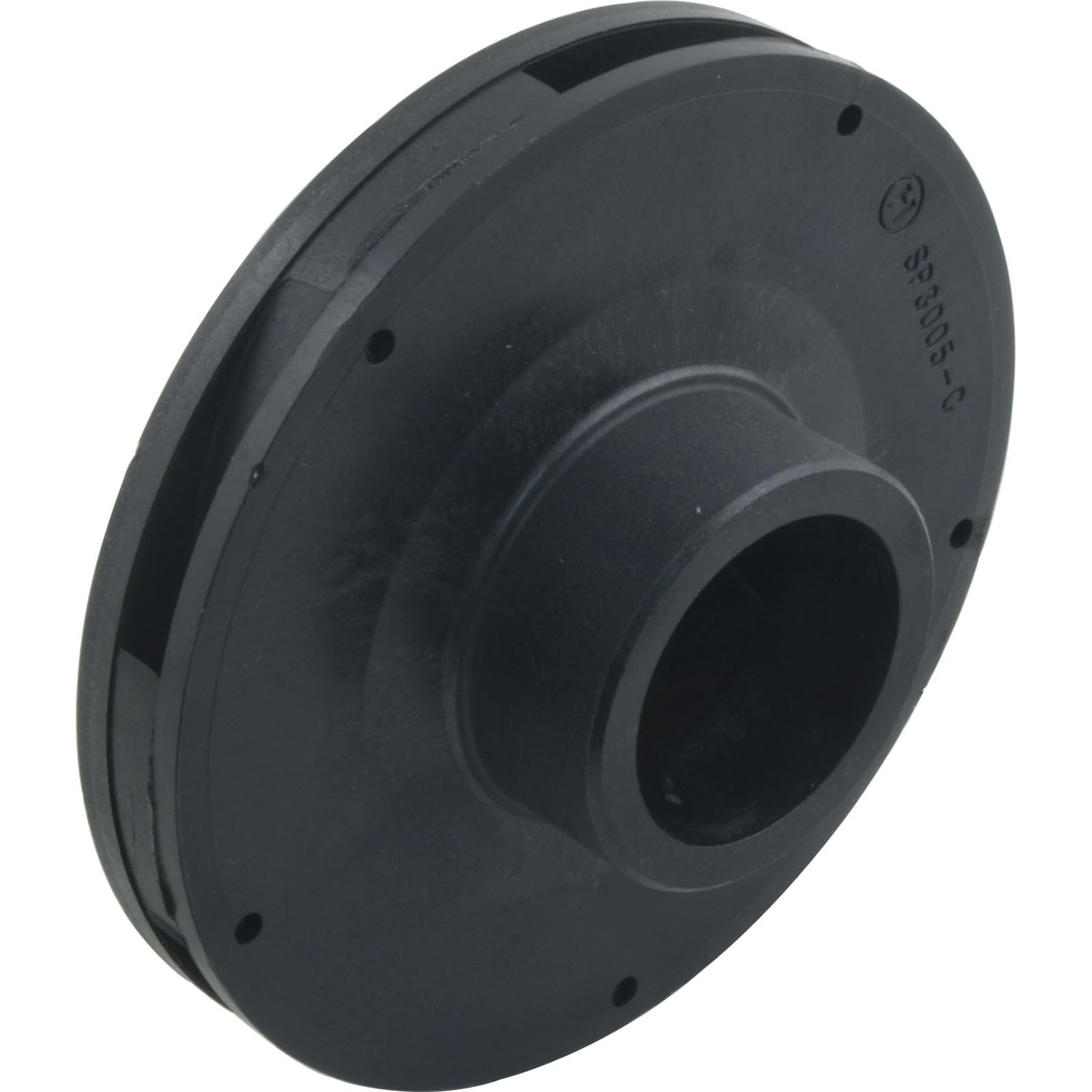

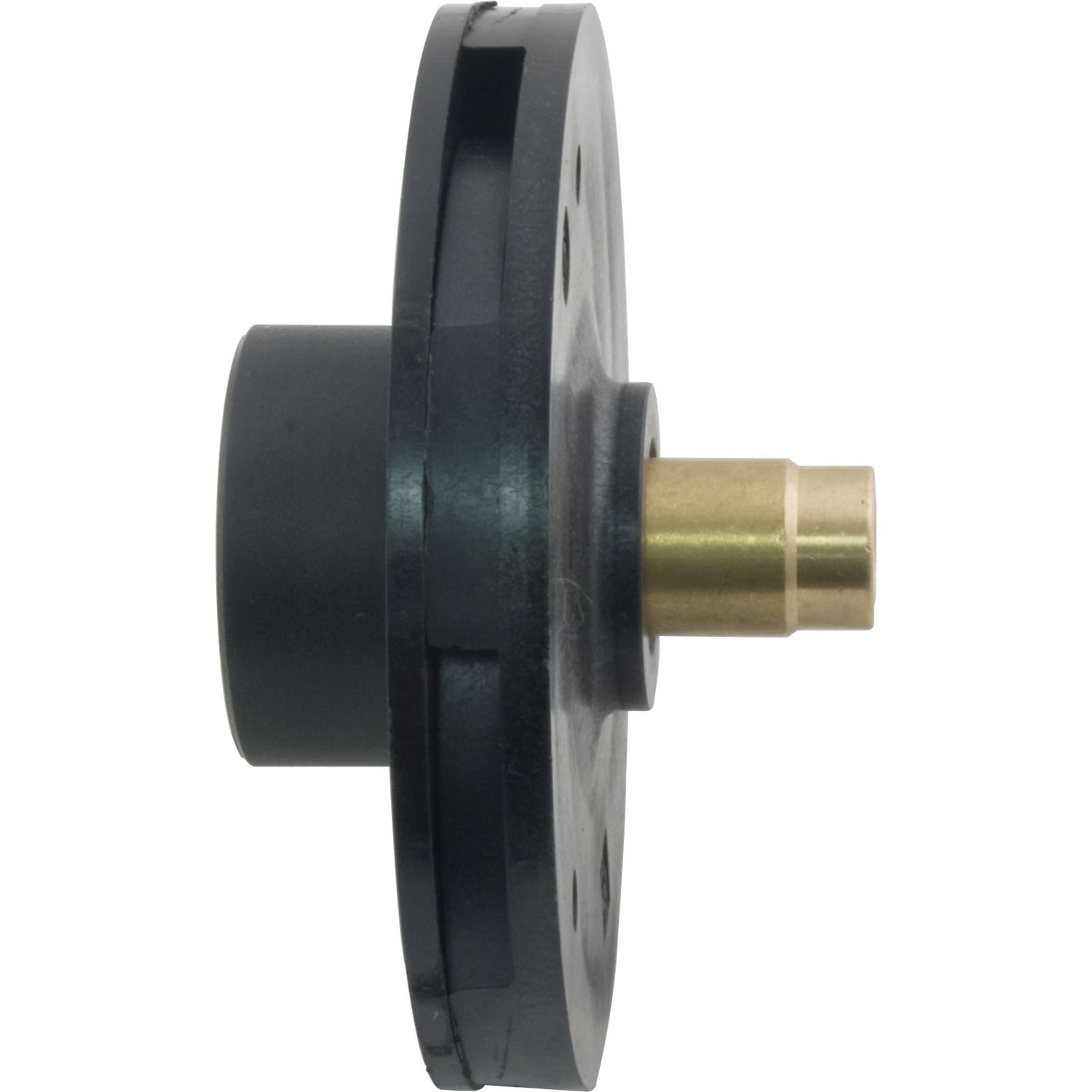

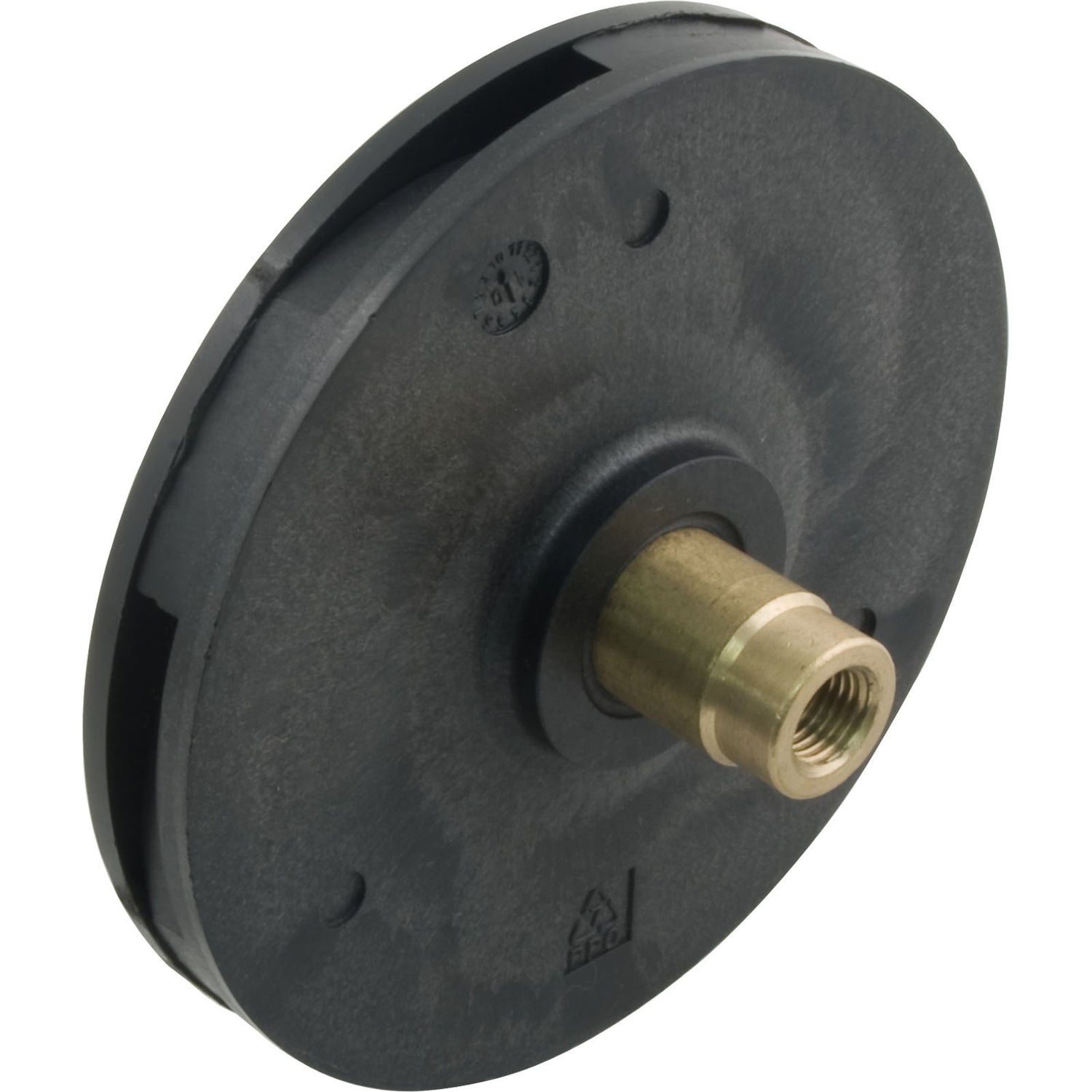

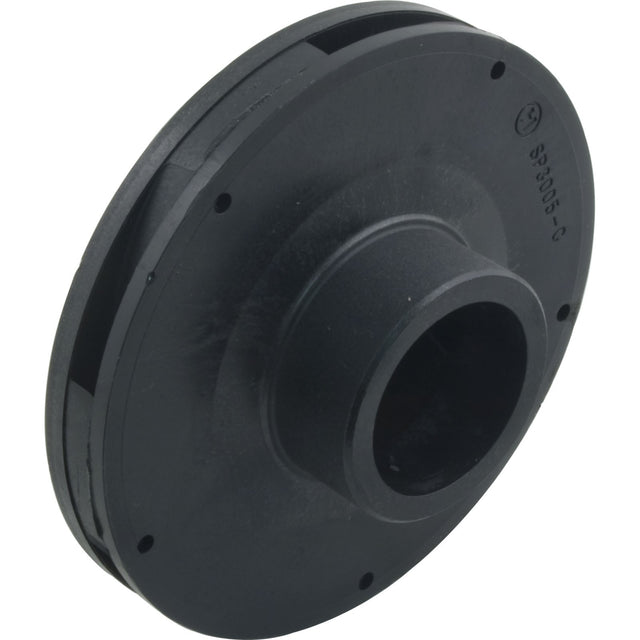

Impeller, Hayward Super II, 0.5 Horsepower : SPX3005C

Impeller, Hayward Super II, 0.5 Horsepower Hayward Pump Impeller Closed face impeller made for the Super II pool pump by Hayward. Rated at 1/2hp, it is used in a Super II SP3000 pump body, and must be installed on a 1/2hp (or greater) C-face motor with a threaded shaft. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-1/2" Vane Width ID: 1/4" Eye Diameter OD: 1-7/8" Eye Length: 3/4" Impeller Width OD: 5/8" Seal Seat Depth: 3/16"Shaft Length: 15/16"Shaft Diameter OD: 11/16"Seal Seat Diameter OD: 1-3/8"Manufacturer: HaywardPump Application: SP3000 Replaces 40406,5110-10G,610377041270,HAY-101-2052,SP3005C,
