Impeller, Hayward Max-Flo/Super Pump, 1.5ohp/2.0thp : SPX2615C

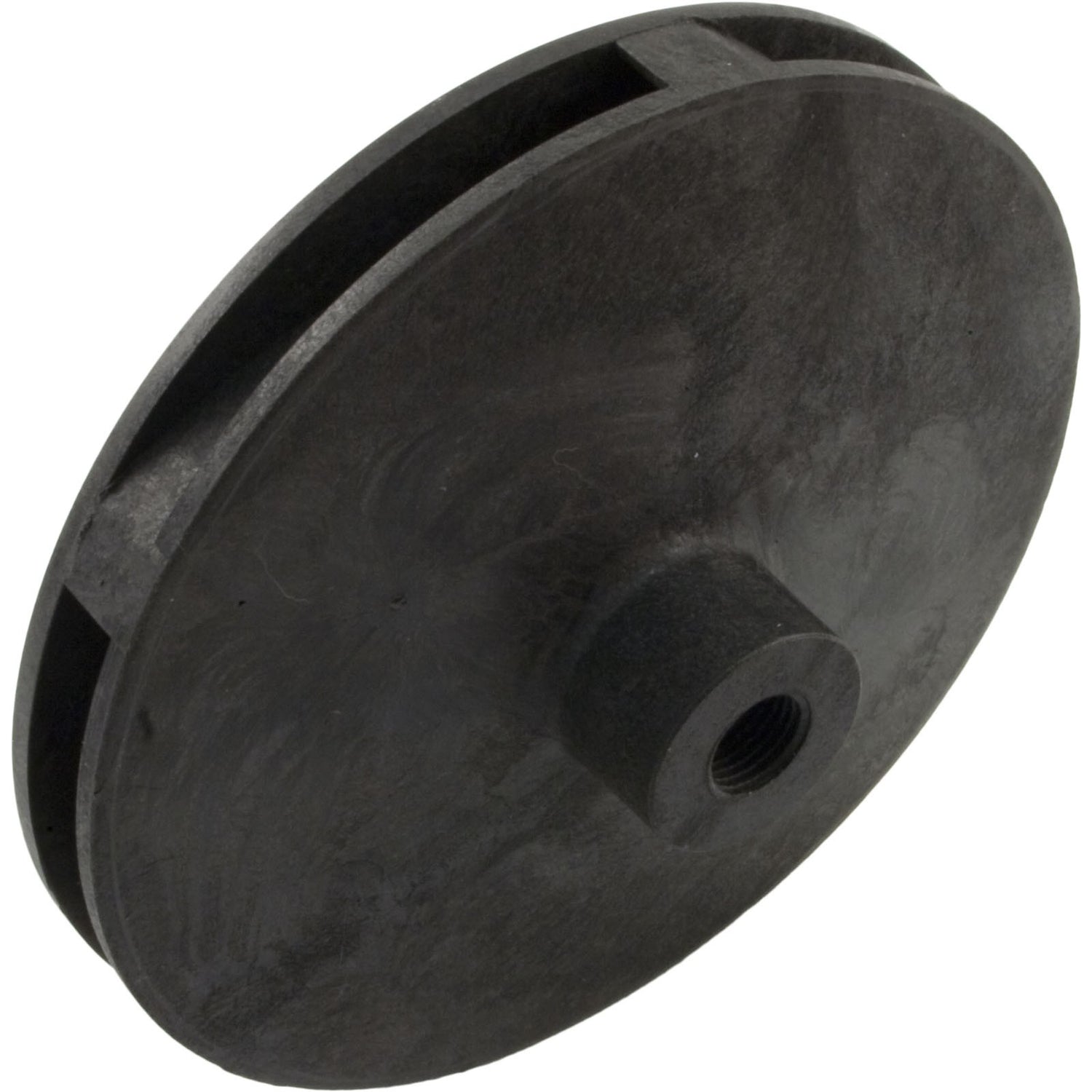

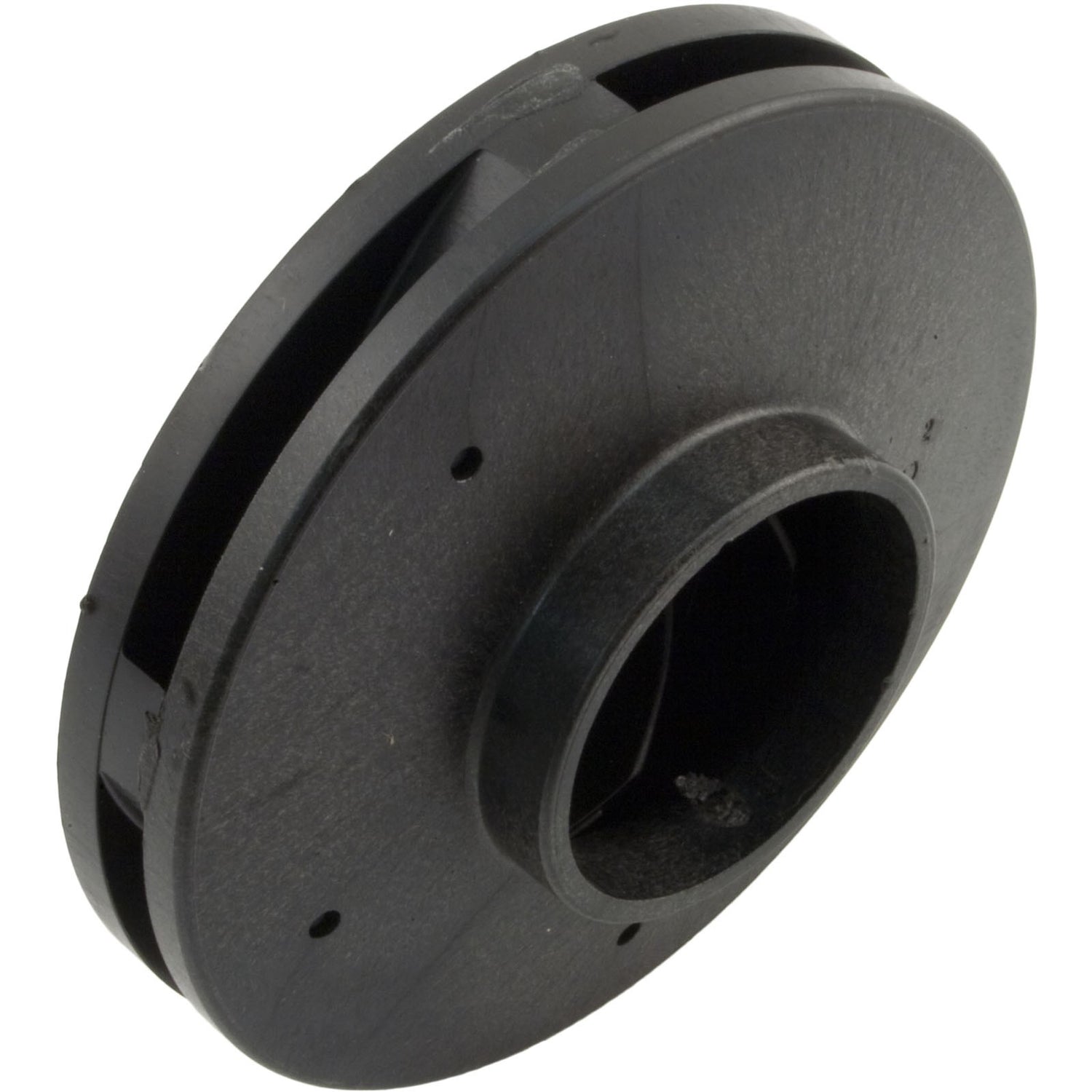

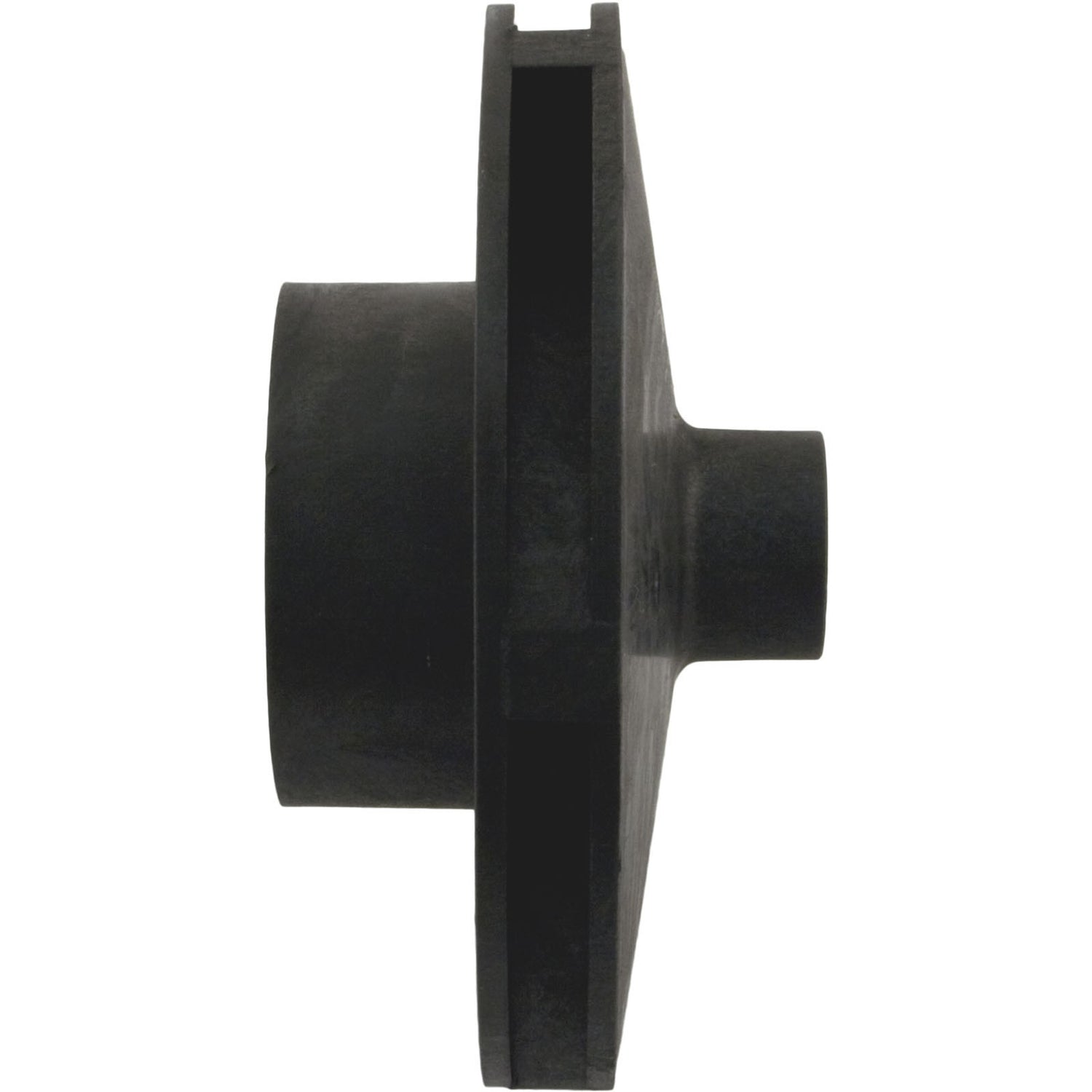

Impeller, Hayward Max-Flo/Super Pump, 1.5ohp/2.0thp Hayward Pump Impeller Closed face impeller made for the SP2600/SP2800/SP3000 series Max-Flo/Super pool/spa pump by Hayward. Rated at 1.5hp, it is used in a SP2600/SP2800/SP3000 pump body, and must be installed on a 1.5hp (or greater) C-face motor with a threaded shaft. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-9/16" Vane Width ID: 1/4" Eye Diameter OD: 2" Eye Length: 3/8" Impeller Width OD: 3/4" Seal Seat Depth: 1/8"Shaft Length: 15/16"Shaft Diameter OD: 11/16"Seal Seat Diameter OD: 1-3/8"Manufacturer: HaywardPump Application: SP2600, SP2800, SP3000 Replaces 40420,5110-10EA,610377041126,HAY-101-2055,SP2615C,
