Impeller, Gecko AquaFlo FMHP/FMCP/TMCP, 2.0ohp/3.0thp : 91693701

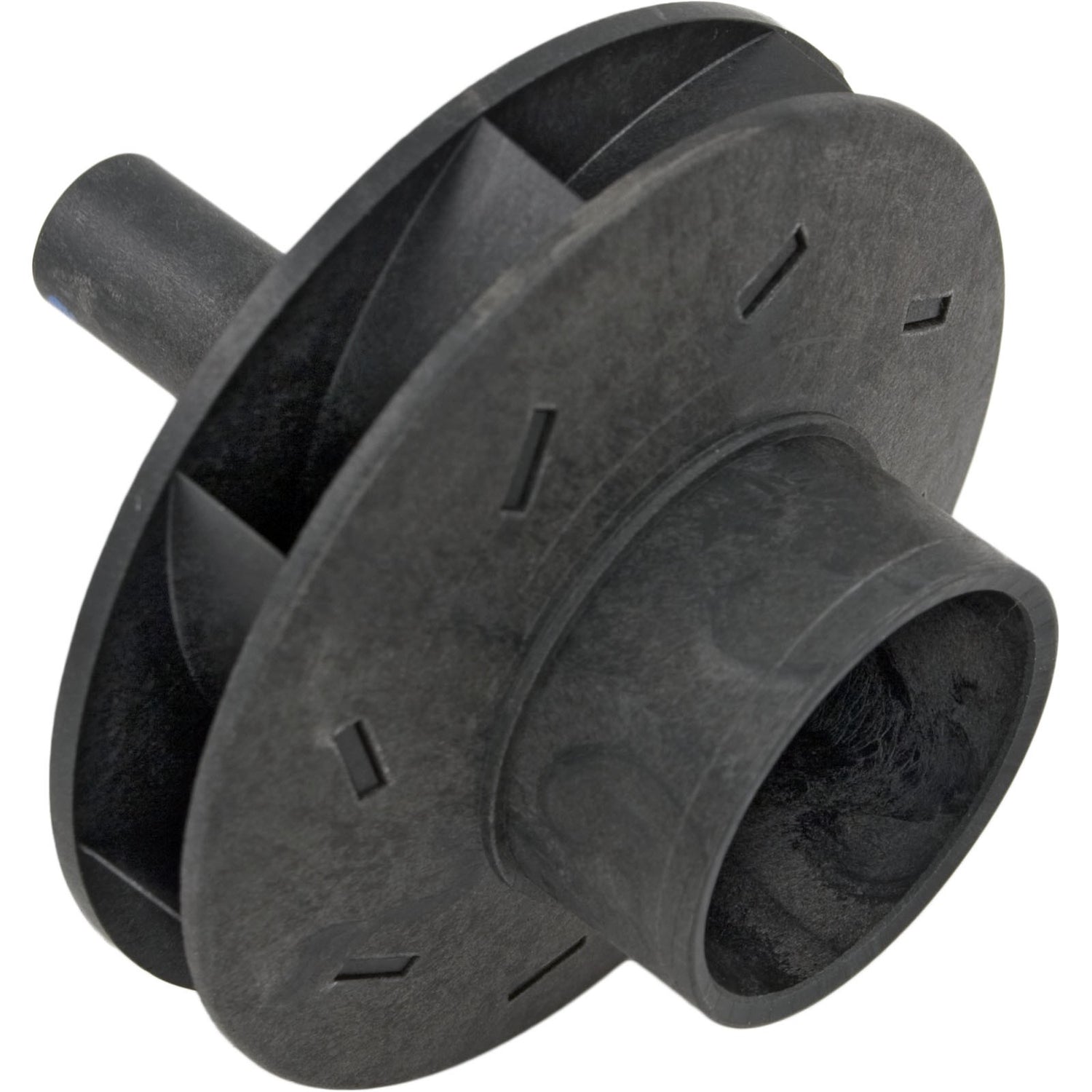

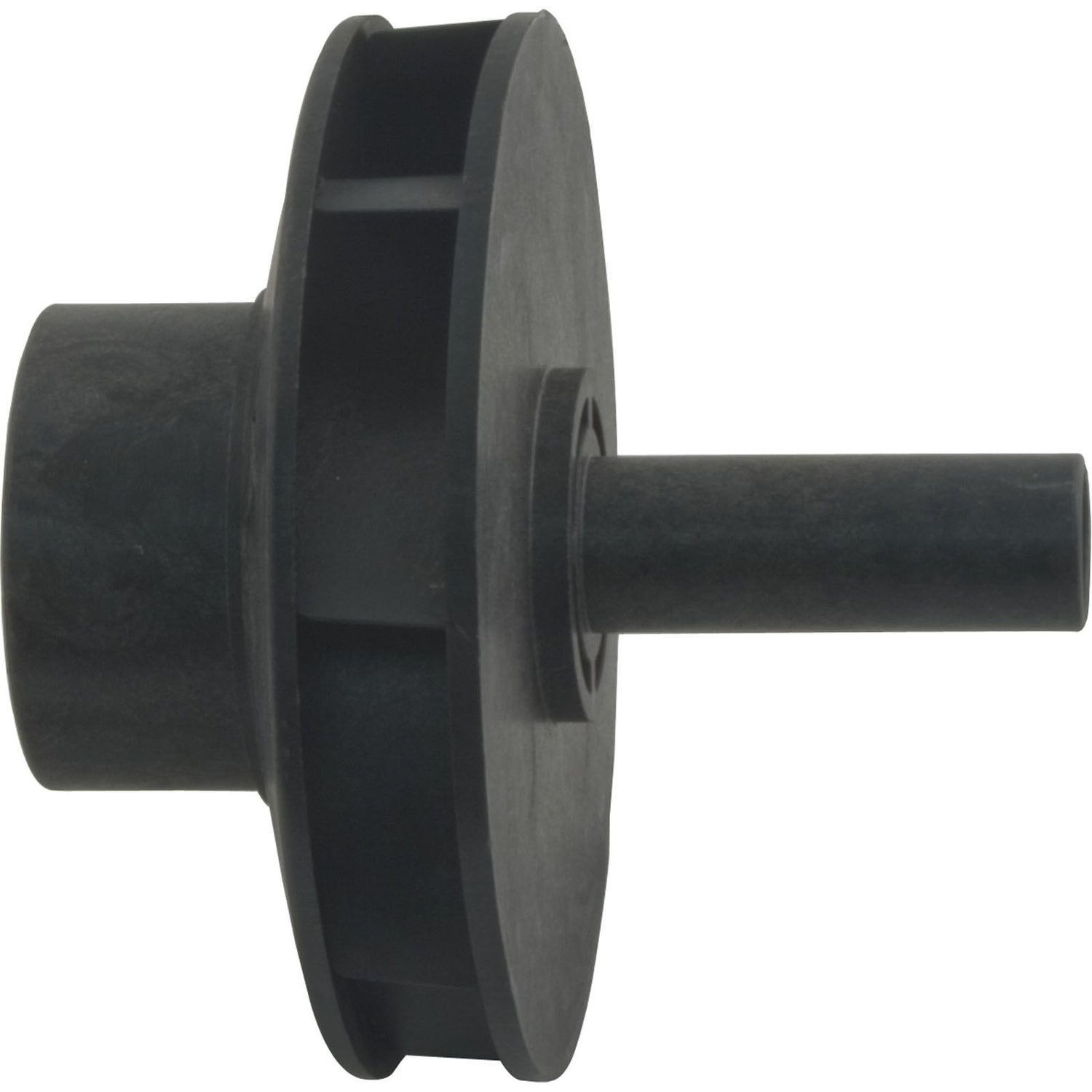

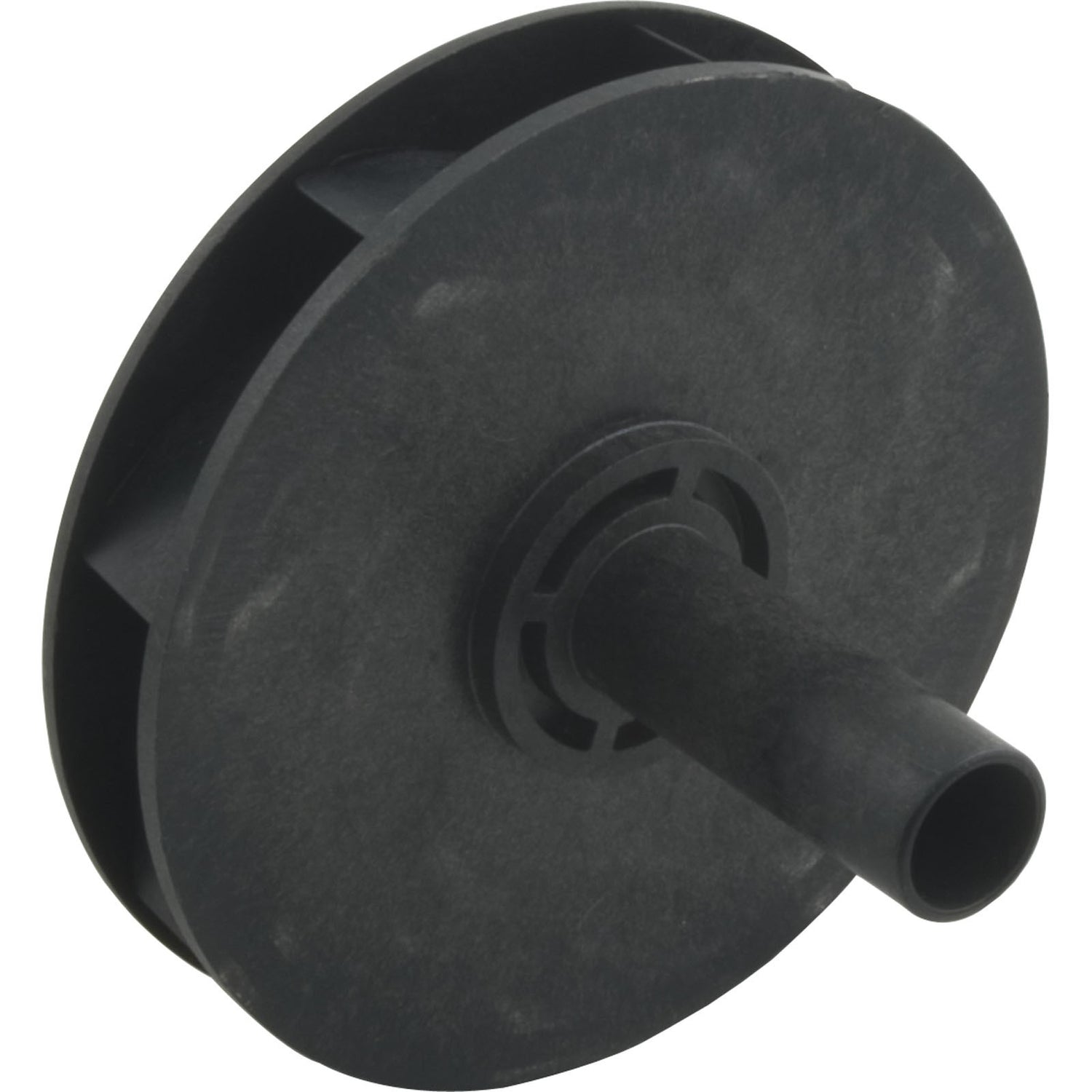

Impeller, Gecko AquaFlo FMHP/FMCP/TMCP, 2.0ohp/3.0thp AquaFlo/Gecko FMHP/FMCP/TMCP Pump Impeller Closed face impeller made for the AquaFlo/Gecko FMHP, FMCP, and TMCP series spa pumps by AquaFlo/Gecko. Rated at 2.0hp, it is used in a FMHP/CP, or TMCP wet end, and must be installed on a 2.0hp (or greater) thru bolt motor. Shaft seal sold separately In 2012, the manufacturer changed the way Aquaflo pumps are rated. These pumps are now assigned both an operational horsepower (ohp), and a total horsepower (thp) rating. Previous versions of these pumps used only the operational horsepower. If you are replacing an older Aquaflo pump, be sure to match the operational hp rating rather than the total hp. Impeller Type: Closed Face Impeller Diameter OD: 3-3/4" Vane Width ID: 1/2" Eye Diameter OD: 1-3/4" Eye Length: 13/16" Impeller Width OD: 11/16" Seal Seat Depth: 1/8"Shaft Length: 1-3/4"Shaft Diameter OD: 5/8"Seal Seat Diameter OD: 1-1/4"Manufacturer: AquaFlo/GeckoPump Application: FMCP, FMHP, TMCP Replaces 5121-06D,5177-106,601085,AP7005,AQF-101-2135,
