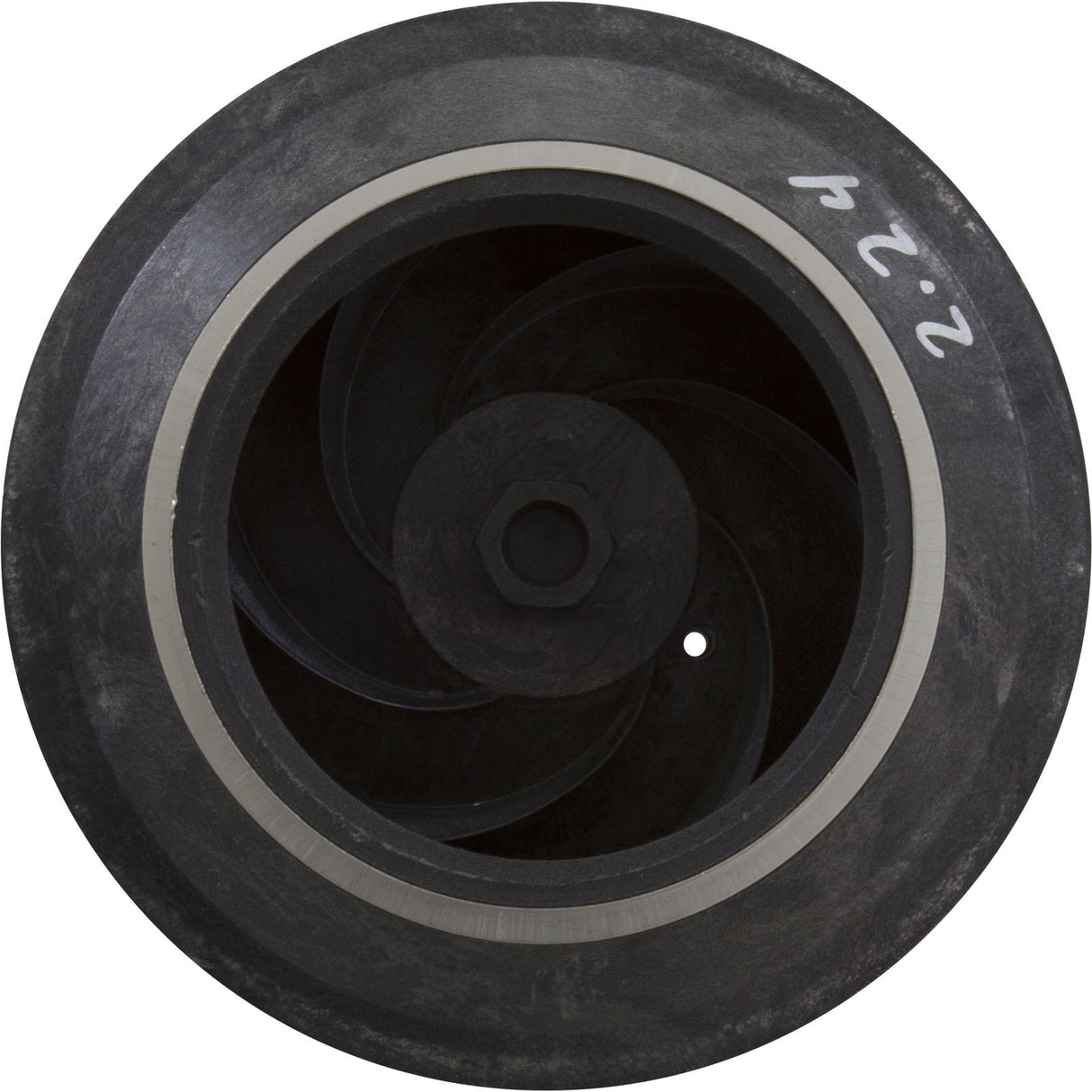

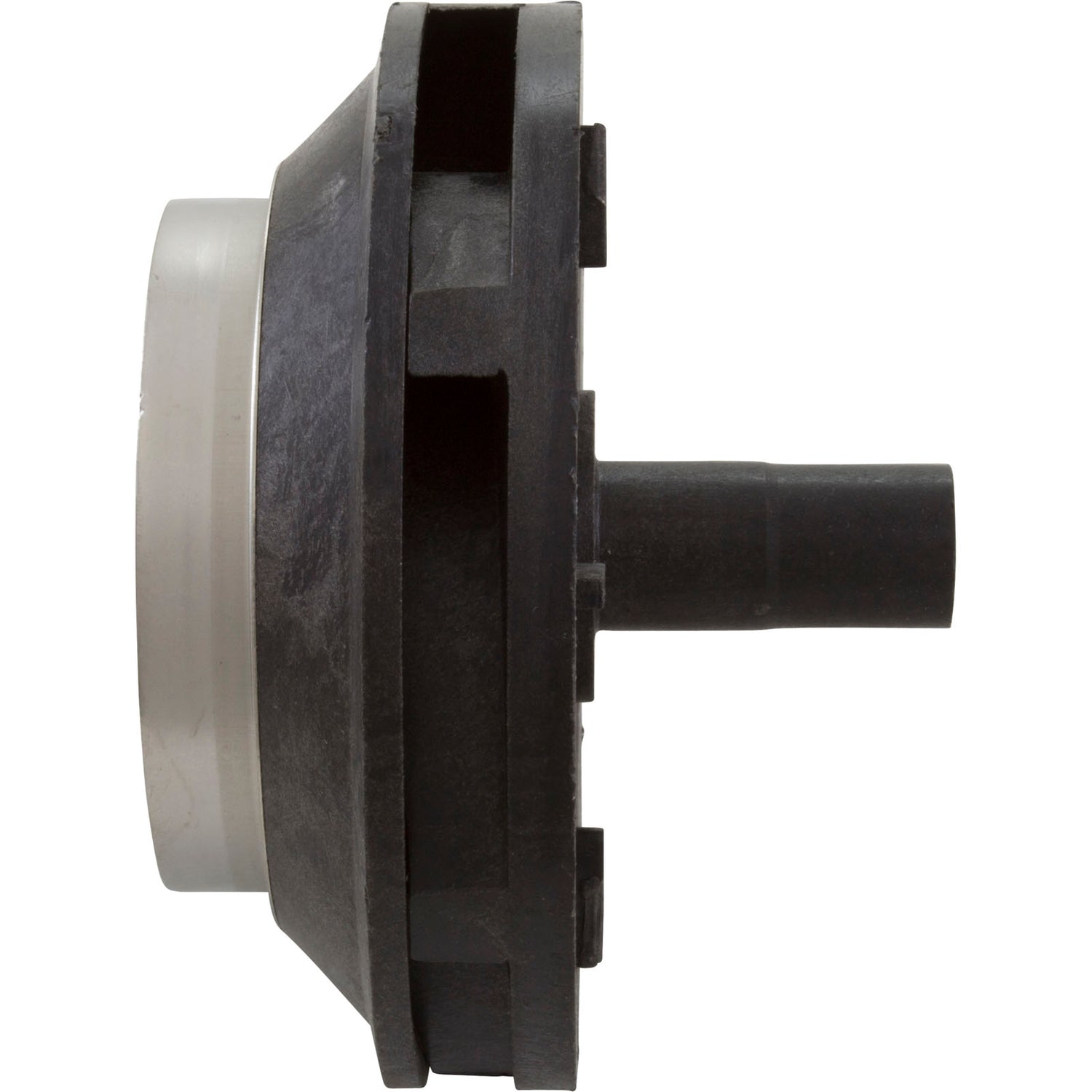

Impeller, Carvin Magnum High Flow, P, R, 3.0 Horsepower : 05-3805-06-R

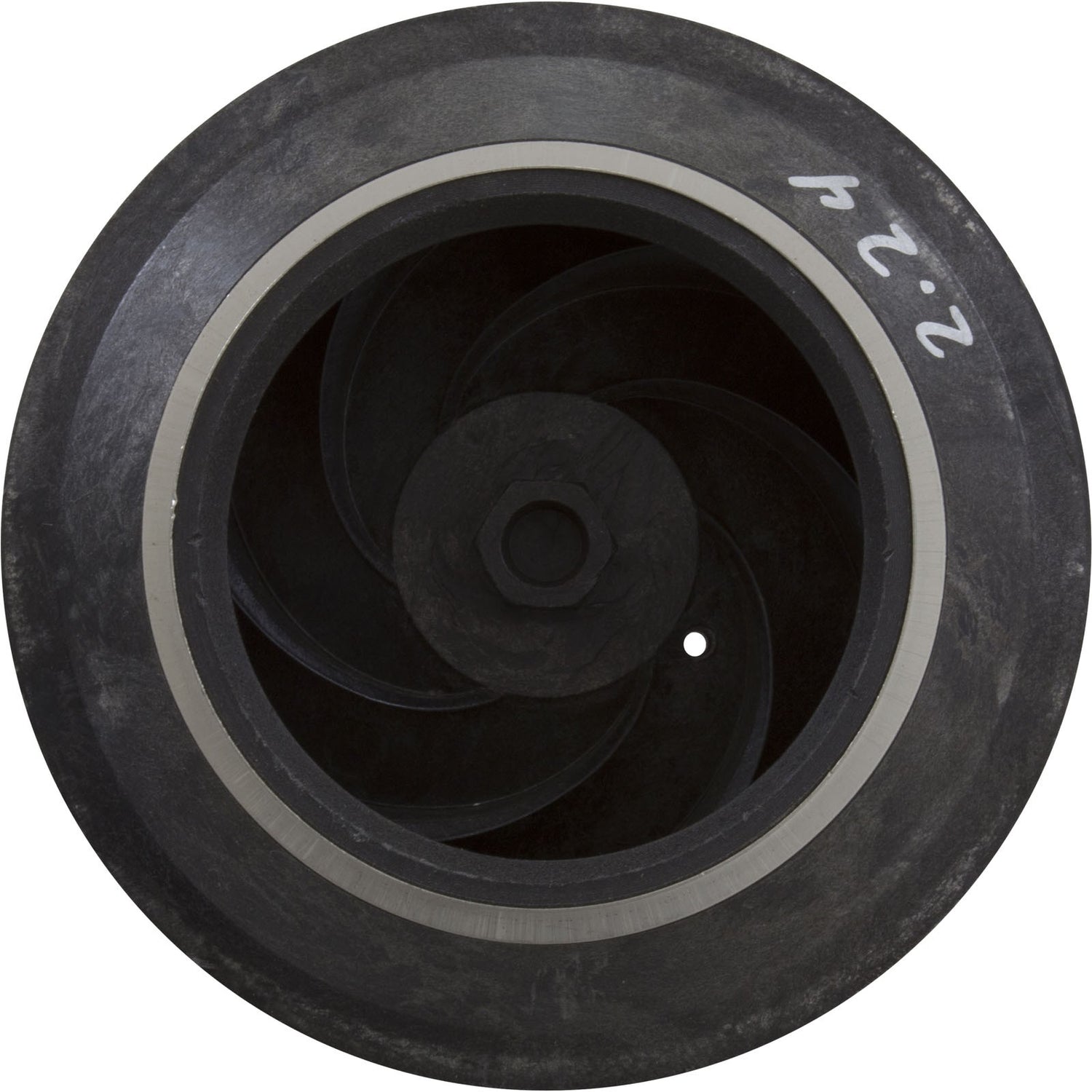

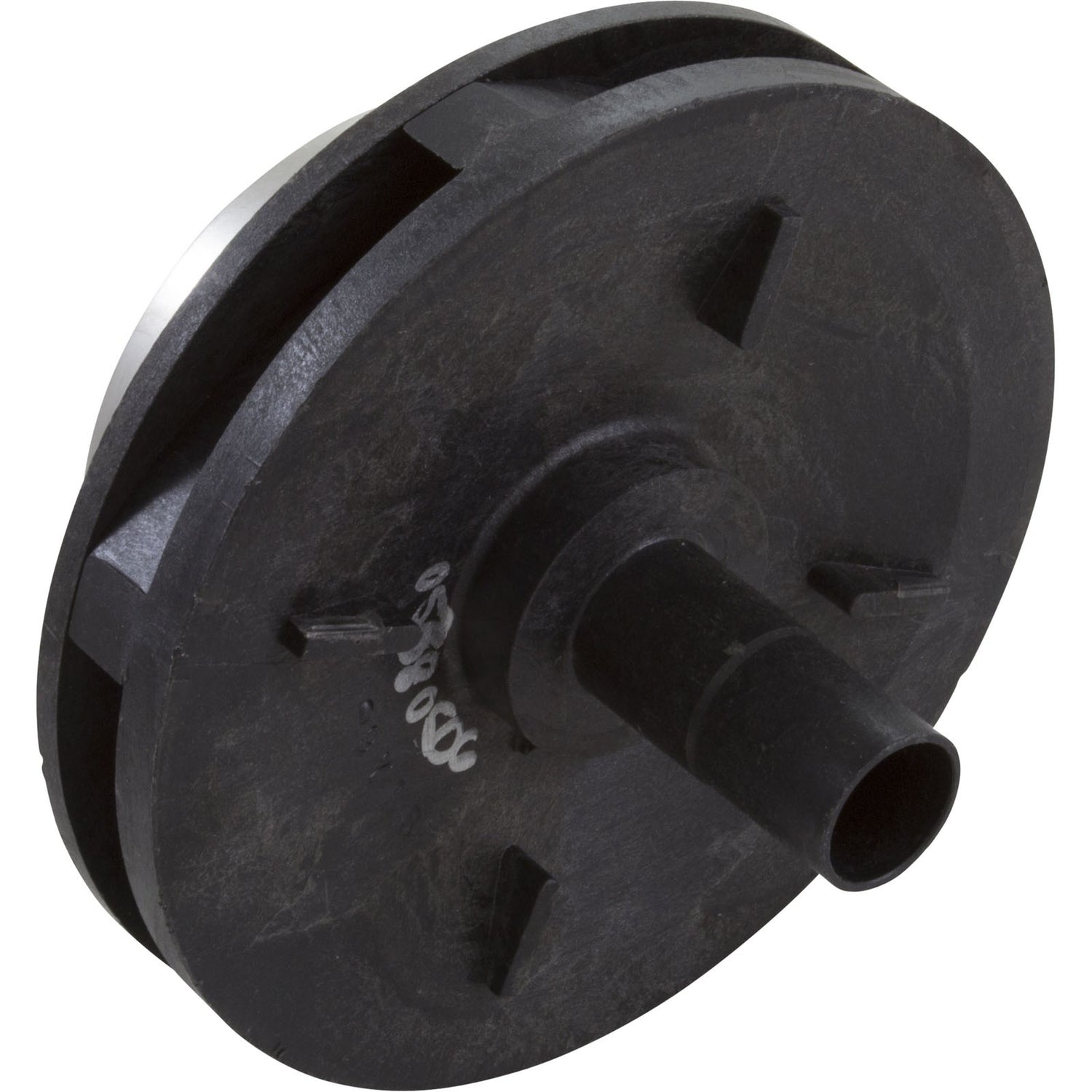

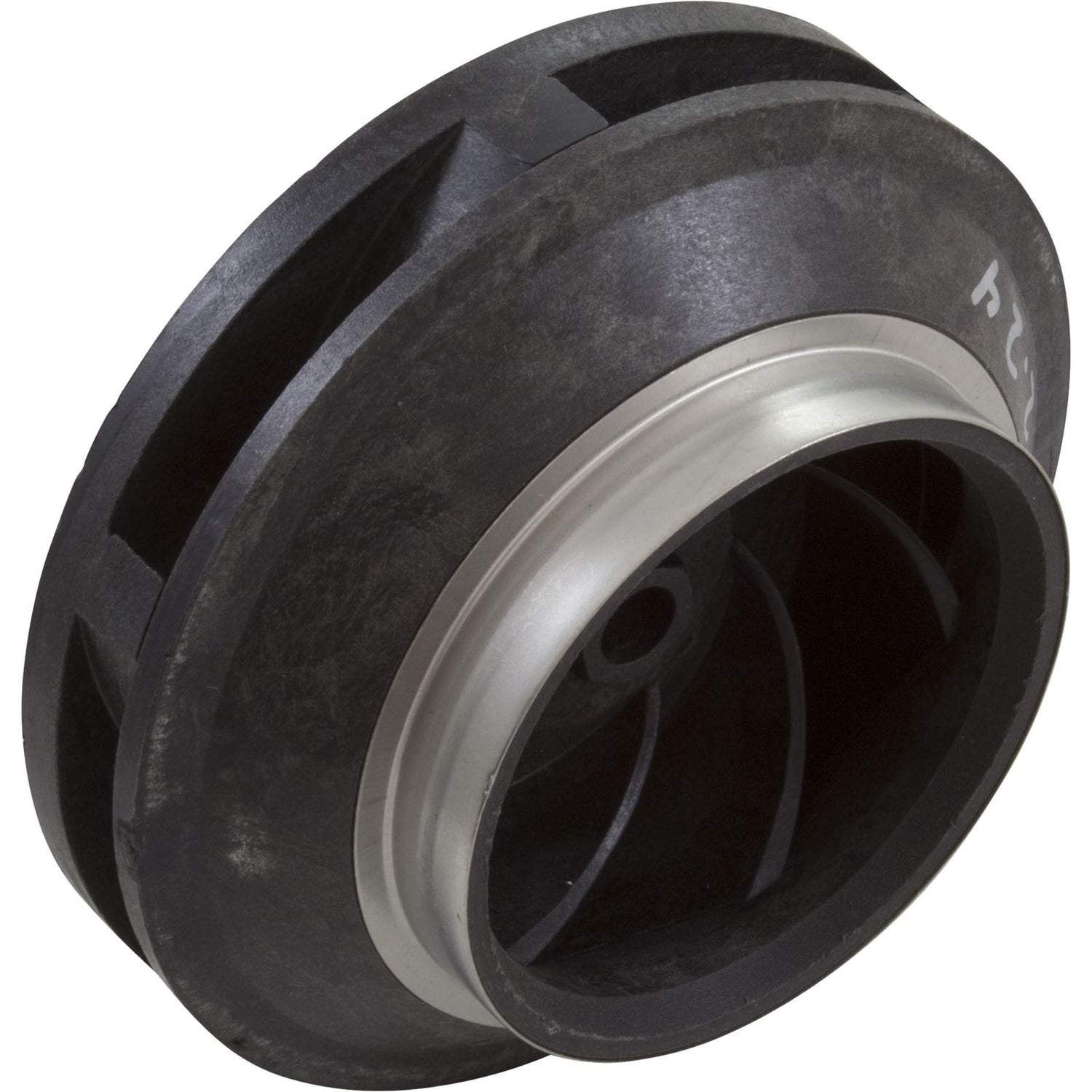

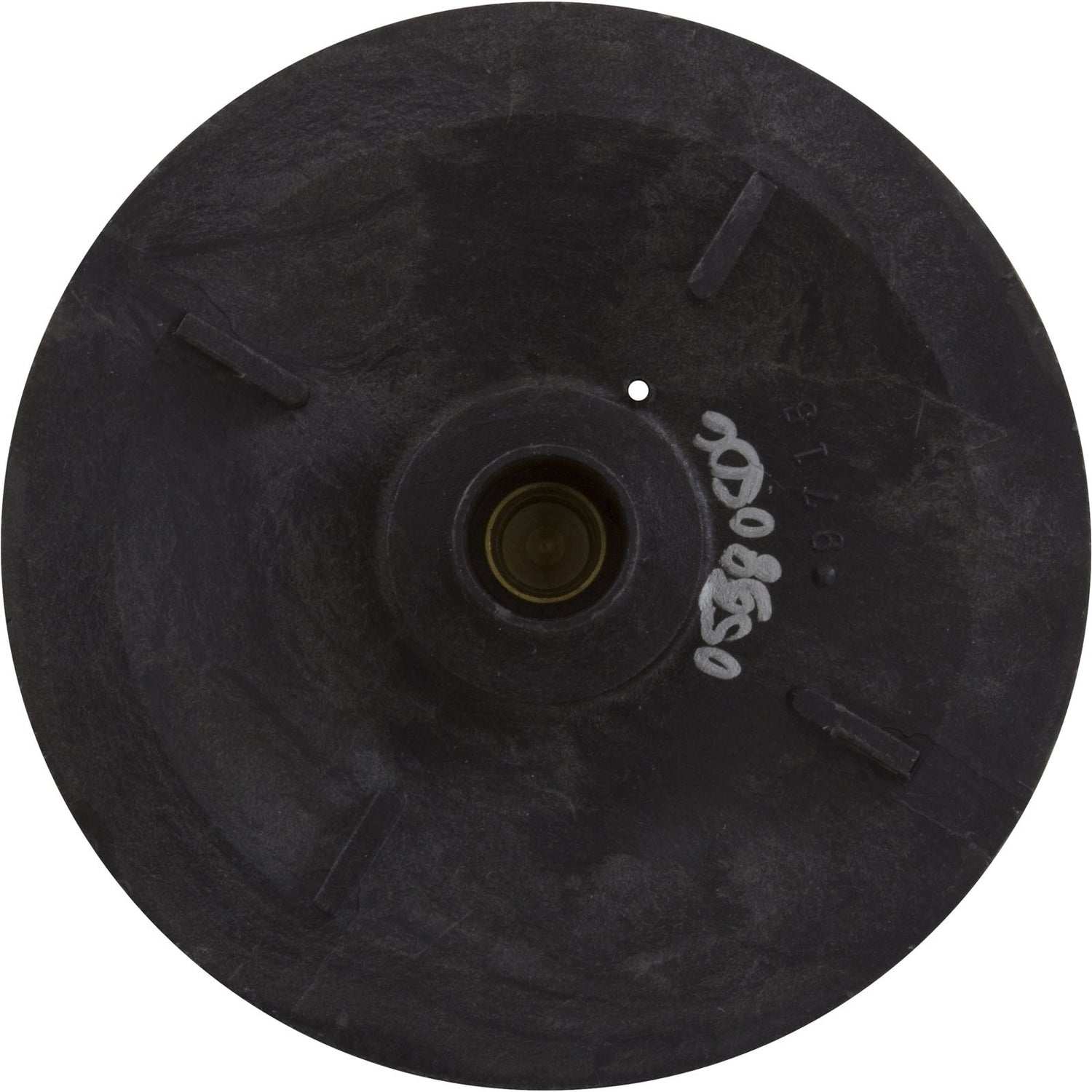

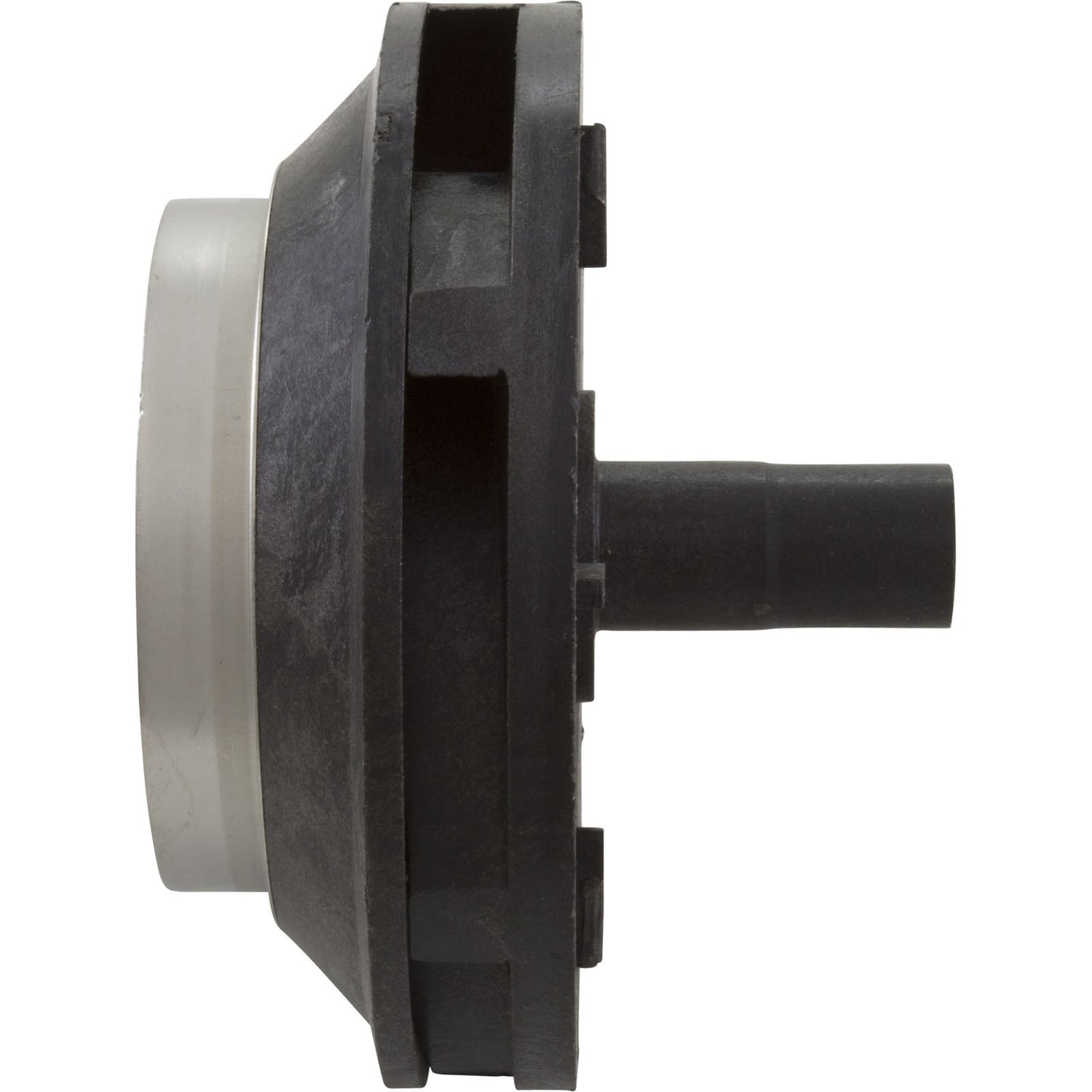

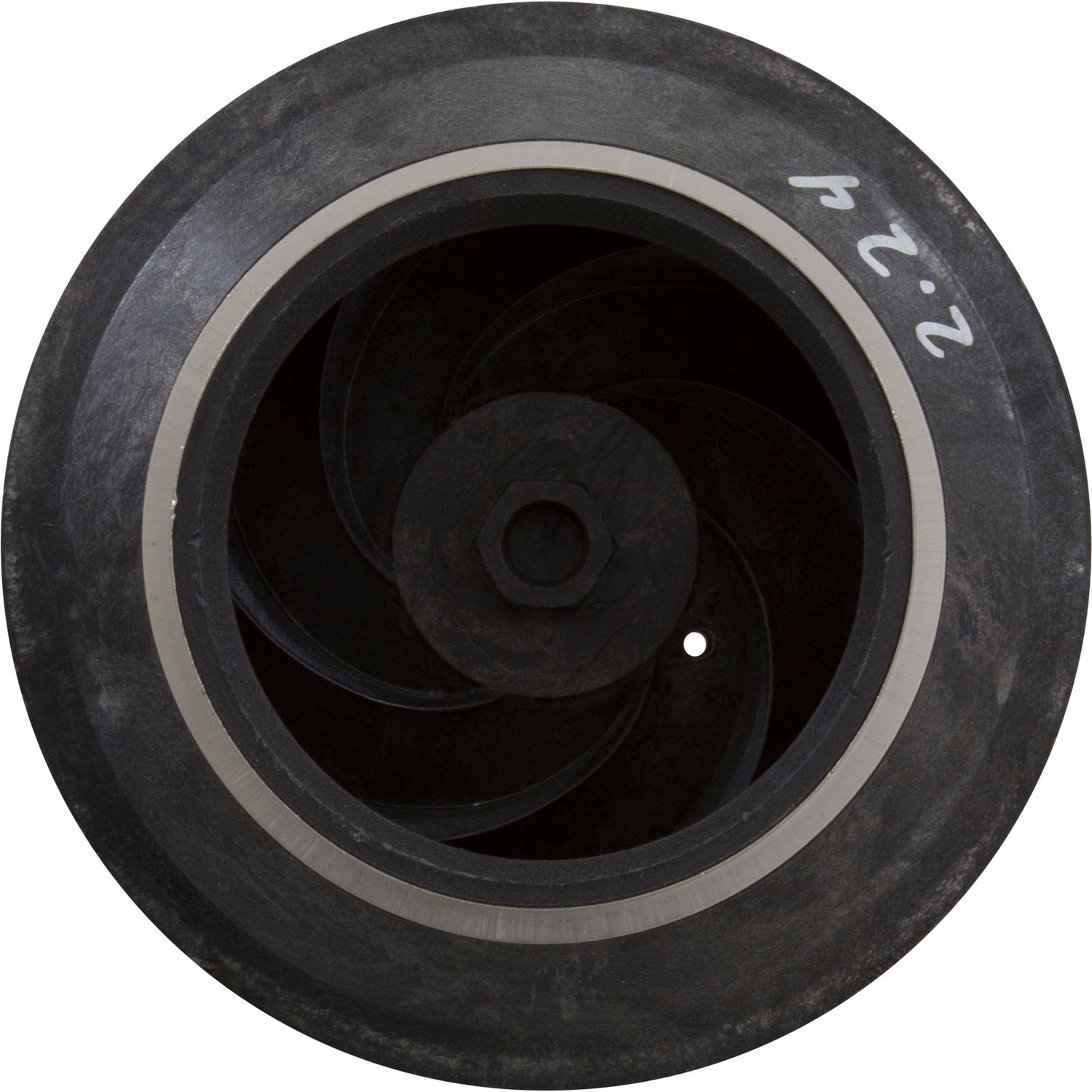

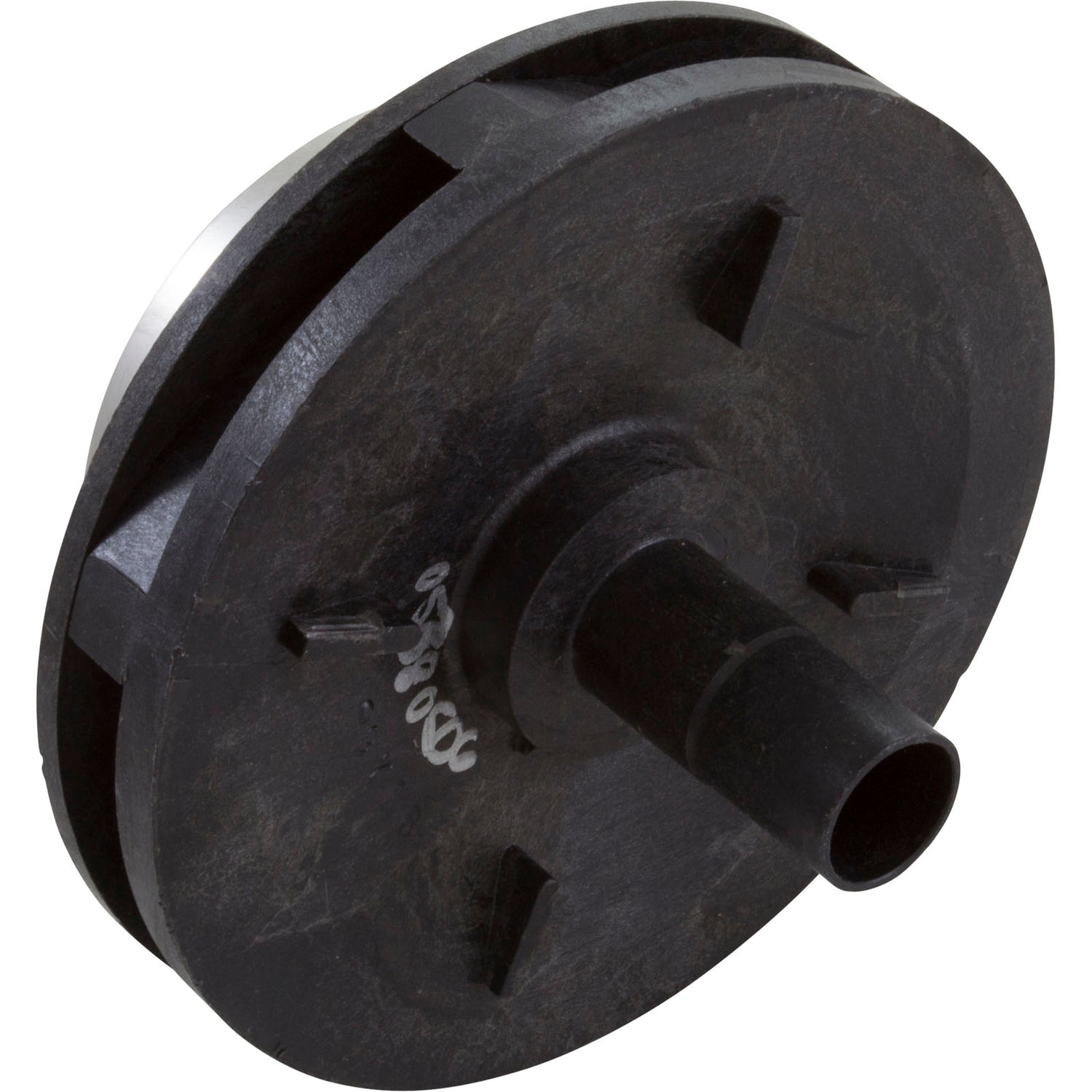

Impeller, Carvin Magnum High Flow, P, R, 3.0 Horsepower Jacuzzi/Carvin Pump Impeller Closed face impeller made for the Magnum High Flow pool pump by Jacuzzi. Rated at 3.0hp, it is used in a Magnum pump body, and must be installed on a 3.0hp (or greater) C-face motor with a threaded shaft. Also fits Jacuzzi, P, and R series pumps. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-3/4" Vane Width ID: 3/8" Eye Diameter OD: 3" Eye Length: 1/2" Impeller Width OD: 13/16" Seal Seat Depth: 3/8"Shaft Length: 1-9/16"Shaft Diameter OD: 3/4"Seal Seat Diameter OD: 1-3/8"Manufacturer: Jacuzzi/CarvinPump Application: EP Series, P Series, PC Series, R Series, RC Series, UP Series Replaces 05-3805-06,05380506R,410572,5062-18F,5380506,JAC-101-9505,
