Impeller, Carvin Magnum High Flow, P, R, 2.0 Horsepower : 05-3852-08-R

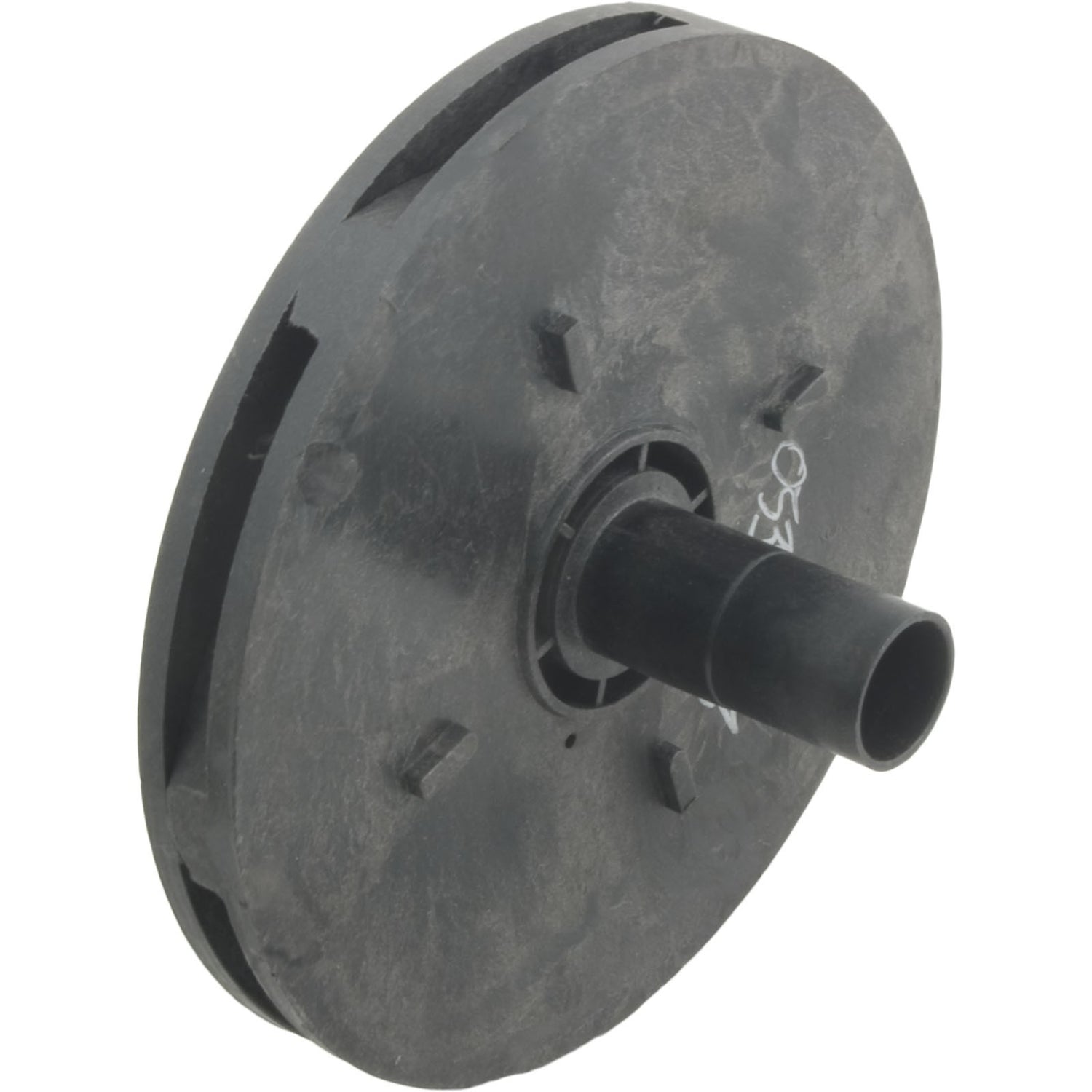

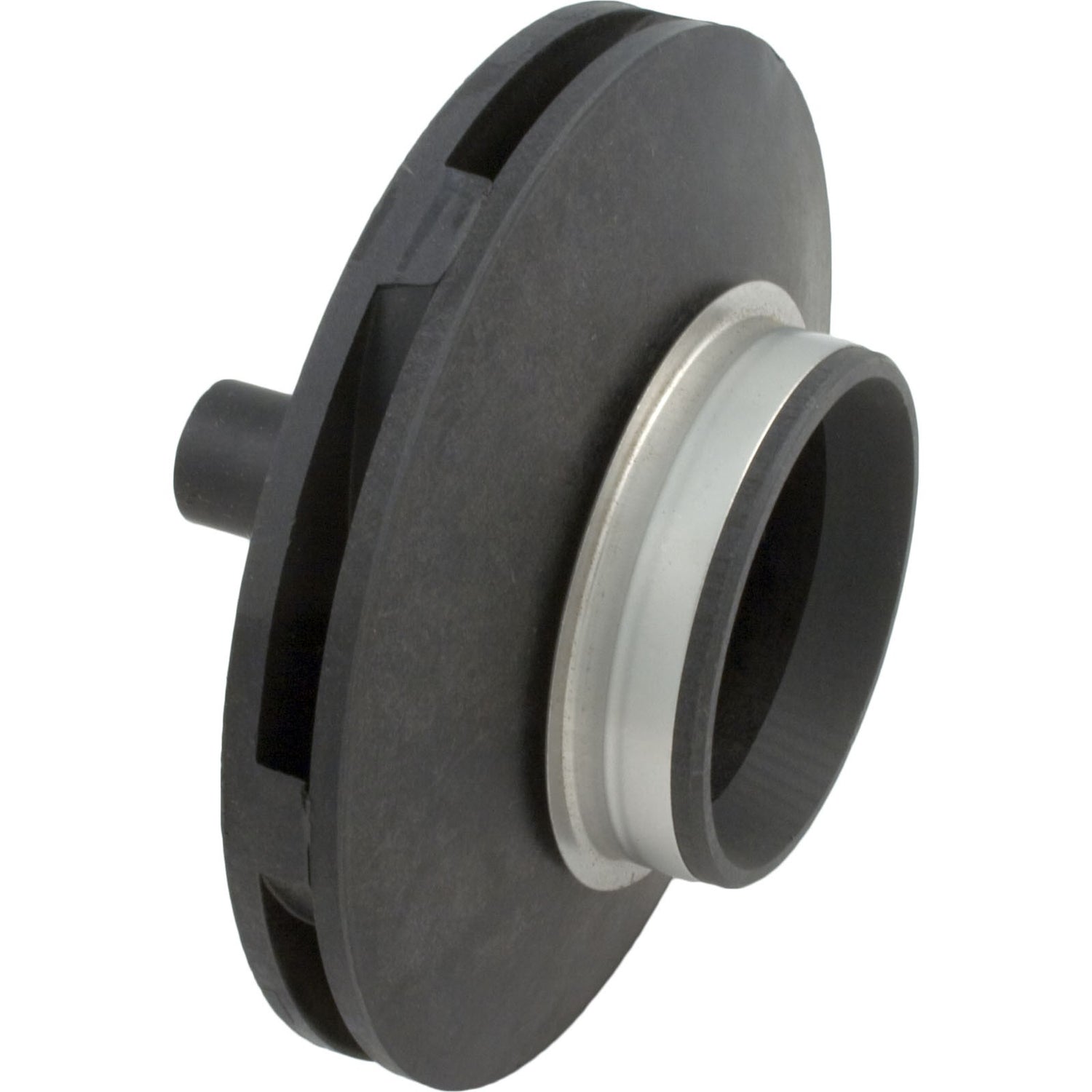

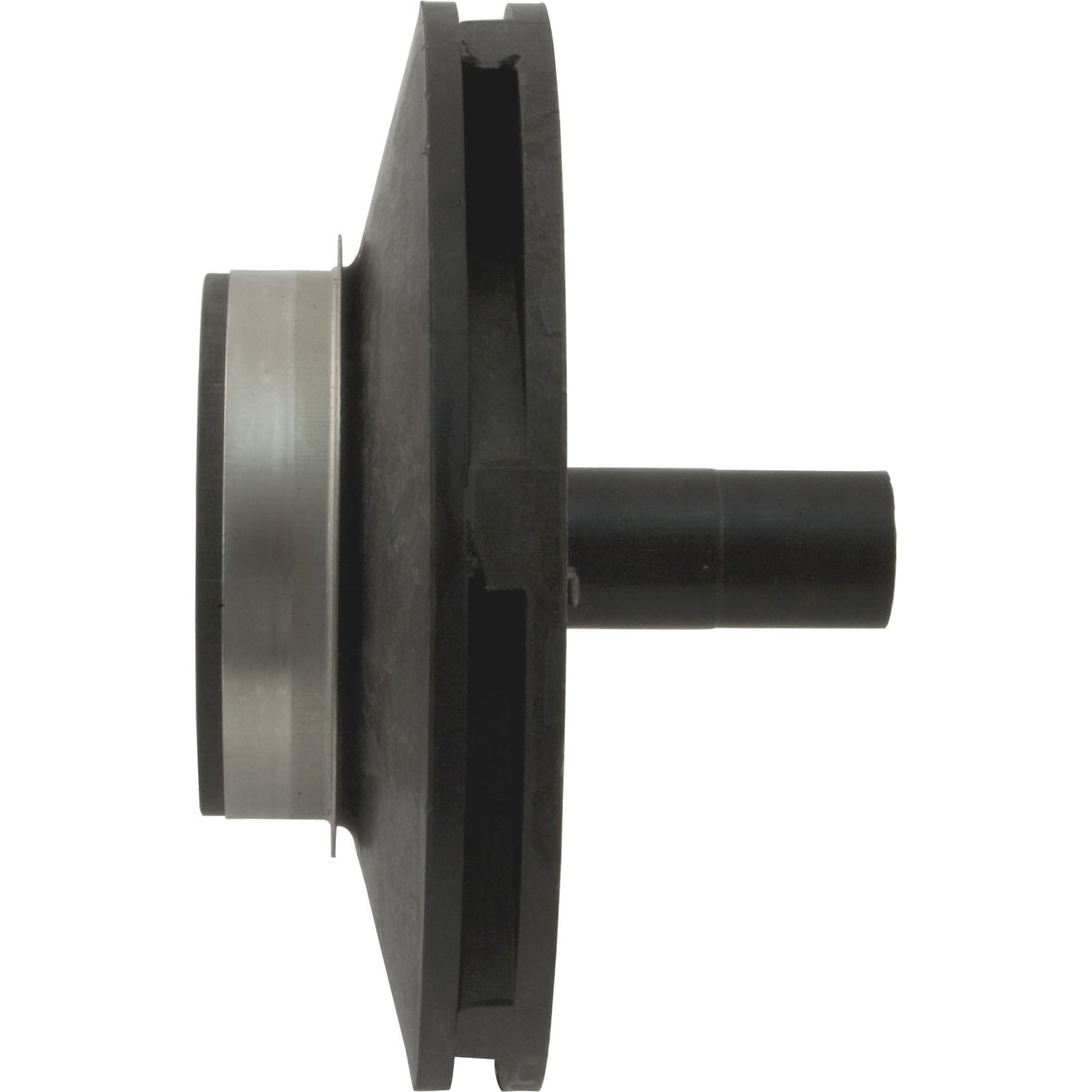

Impeller, Carvin Magnum High Flow, P, R, 2.0 Horsepower Jacuzzi/Carvin Pump Impeller Closed face impeller made for the Magnum High Flow pool pump by Jacuzzi. Rated at 2.0hp, it is used in a Magnum pump body, and must be installed on a 2.0hp (or greater) C-face motor with a threaded shaft. Also fits Jacuzzi, P, and R series pumps. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 5" Vane Width ID: 1/4" Eye Diameter OD: 2-1/2" Eye Length: 5/8" Impeller Width OD: 1/2" Seal Seat Depth: 1/16"Shaft Length: 1-9/16"Shaft Diameter OD: 3/4"Seal Seat Diameter OD: 1-3/8"Manufacturer: Jacuzzi/CarvinPump Application: Magnum Force, Magnum Plus, Magnum RC Replaces 05385208R,05385208R000,5064-15E,600293,JAC-101-9509,
