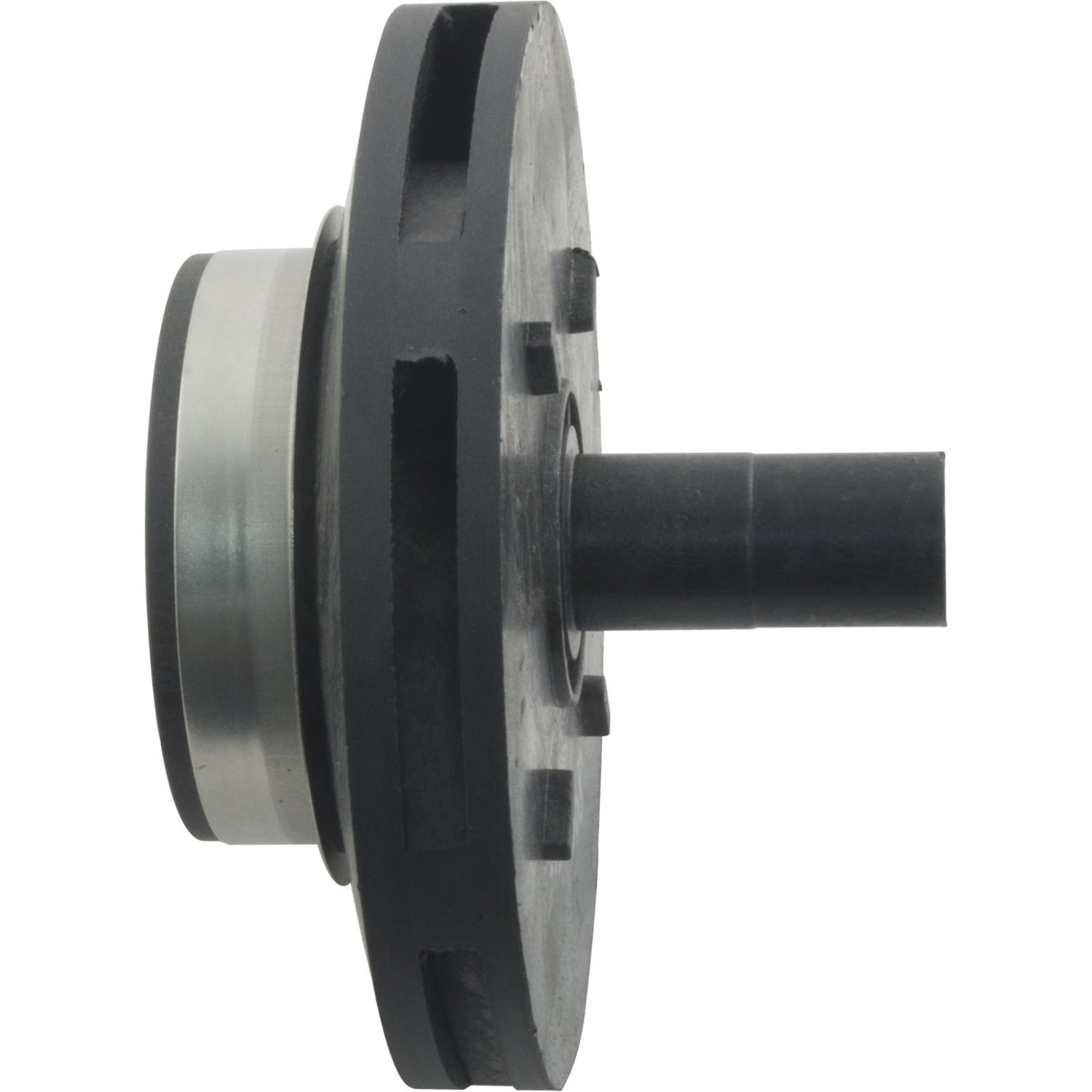

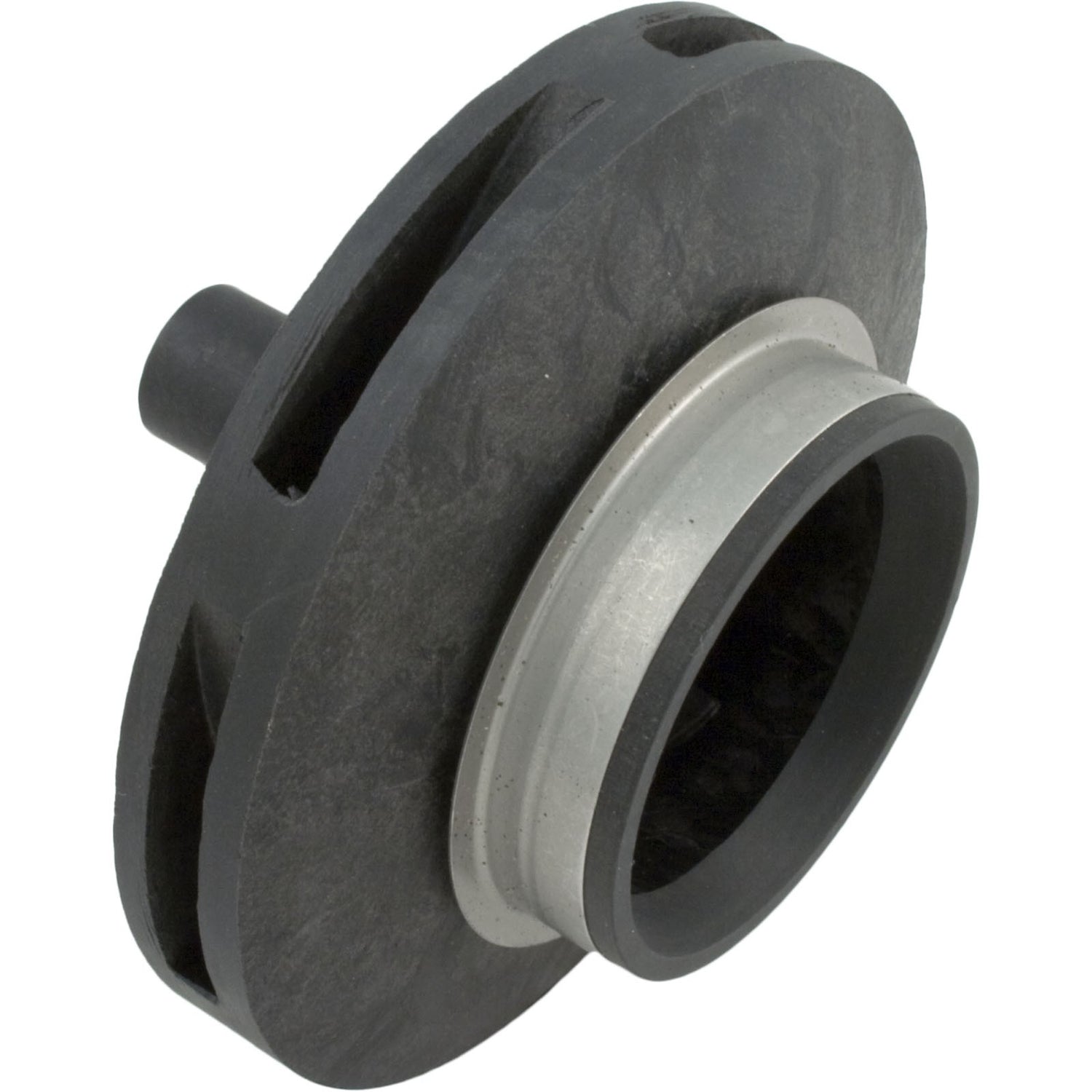

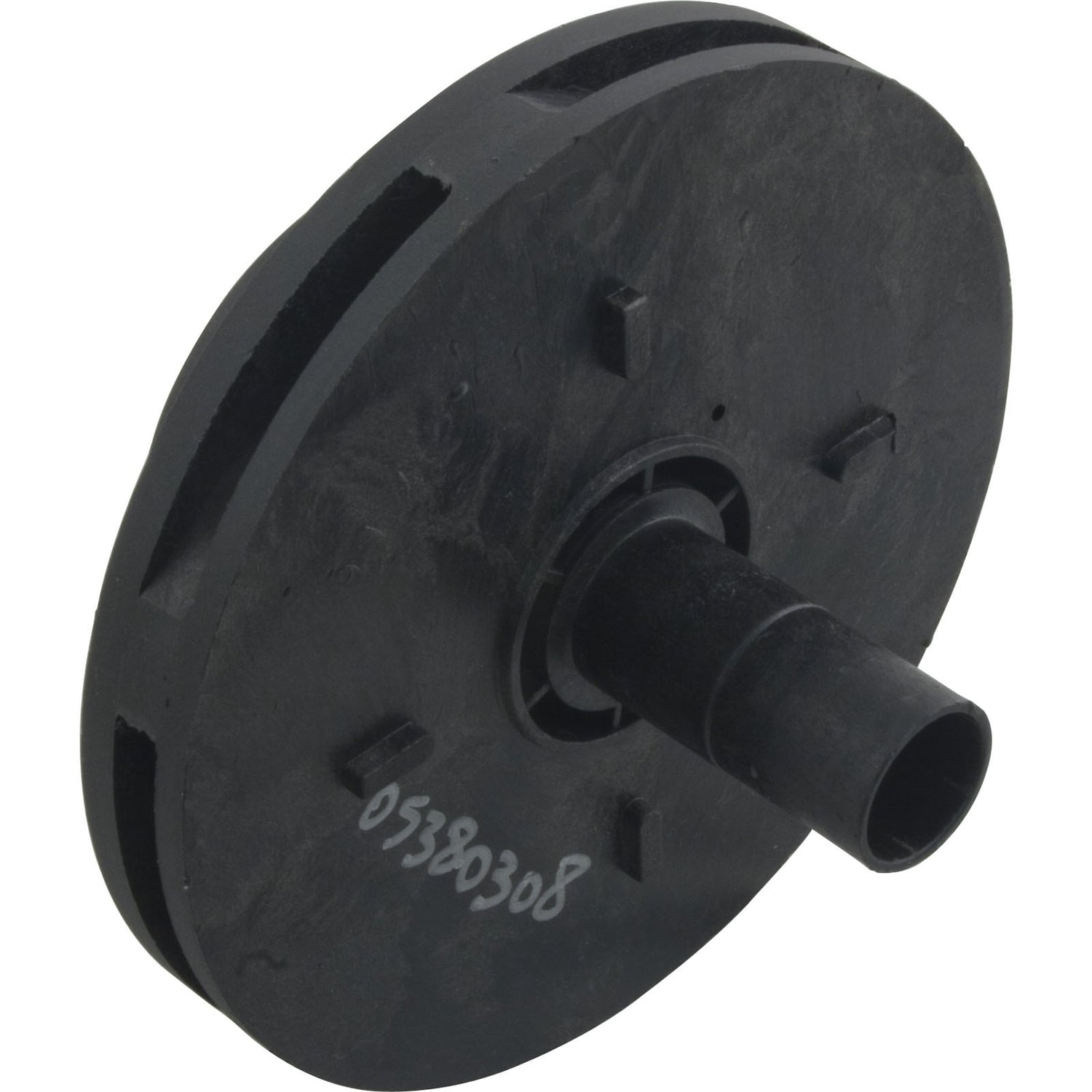

Impeller, Carvin Magnum HF, P, R, 1.5 Horsepower : 05-3803-08-R

Impeller, Carvin Magnum HF, P, R, 1.5 Horsepower Jacuzzi/Carvin Pump Impeller Closed face impeller made for the Magnum High Flow pool pump by Jacuzzi. Rated at 1.5hp, it is used in a Magnum pump body, and must be installed on a 1.5hp (or greater) C-face motor with a threaded shaft. Also fits Magnum Force/3, Jacuzzi P, and R series pumps. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-1/2" Vane Width ID: 1/4" Eye Diameter OD: 2-1/2" Eye Length: 5/8" Impeller Width OD: 5/8" Seal Seat Depth: 1/16"Shaft Length: 1-9/16"Shaft Diameter OD: 3/4"Seal Seat Diameter OD: 1-3/8"Manufacturer: Jacuzzi/CarvinPump Application: EP Series, P Series, PC Series, R Series, RC Series, UP Series Replaces 05-3803-08,05-3803-08-R000,05380308R,5062-18D,5380308,600061,
