Impeller, Carvin Magnum HF, P, R, 1.0hp : 05380209R

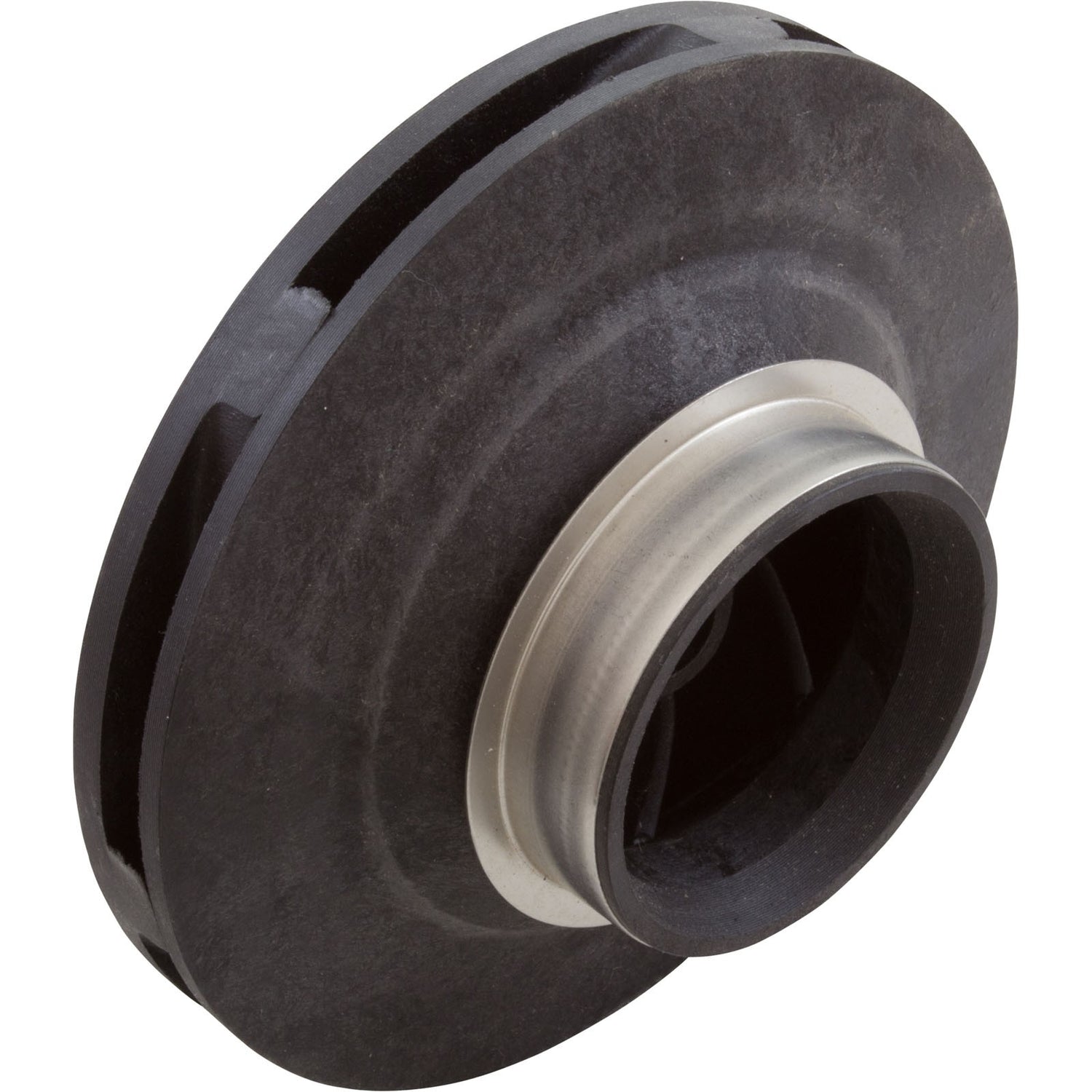

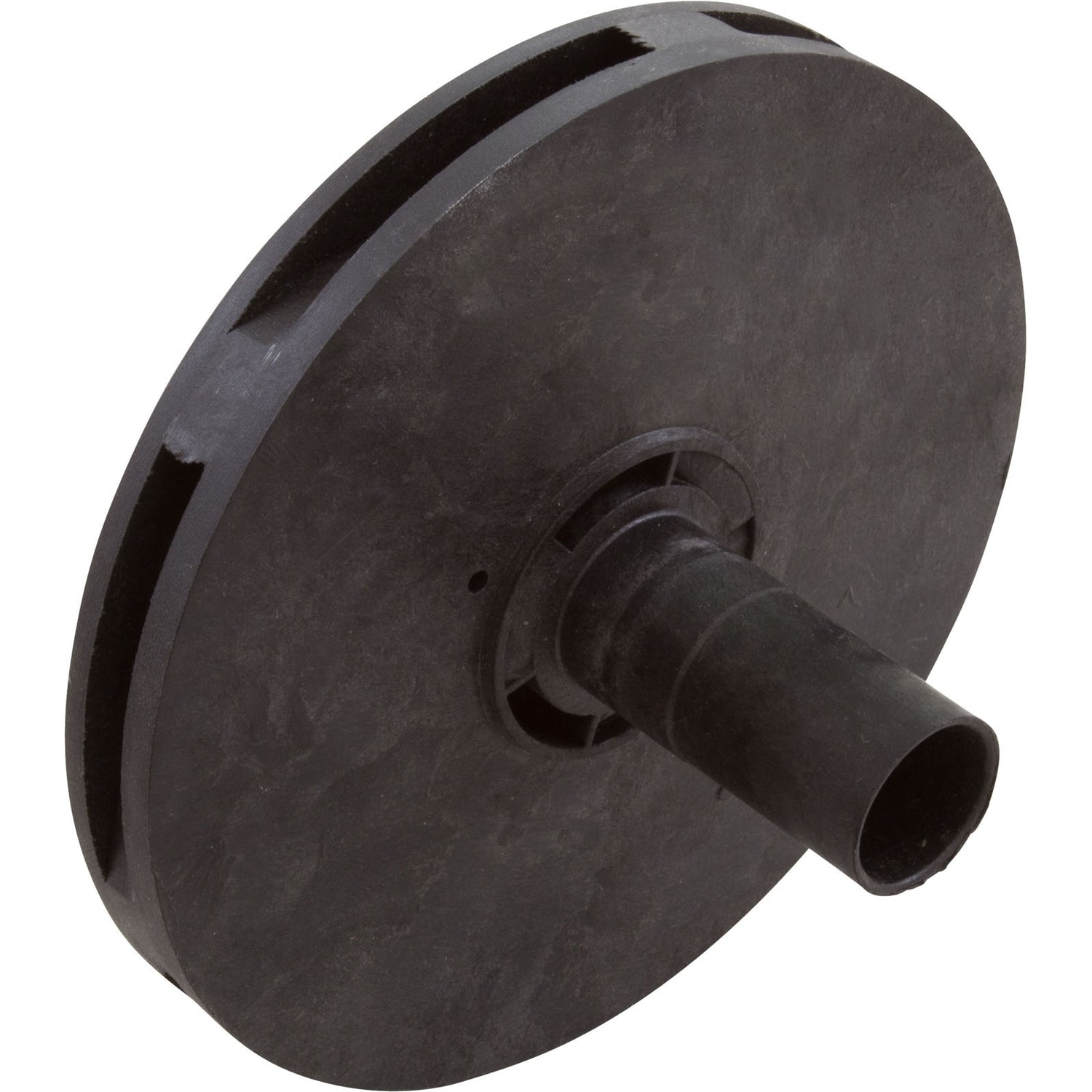

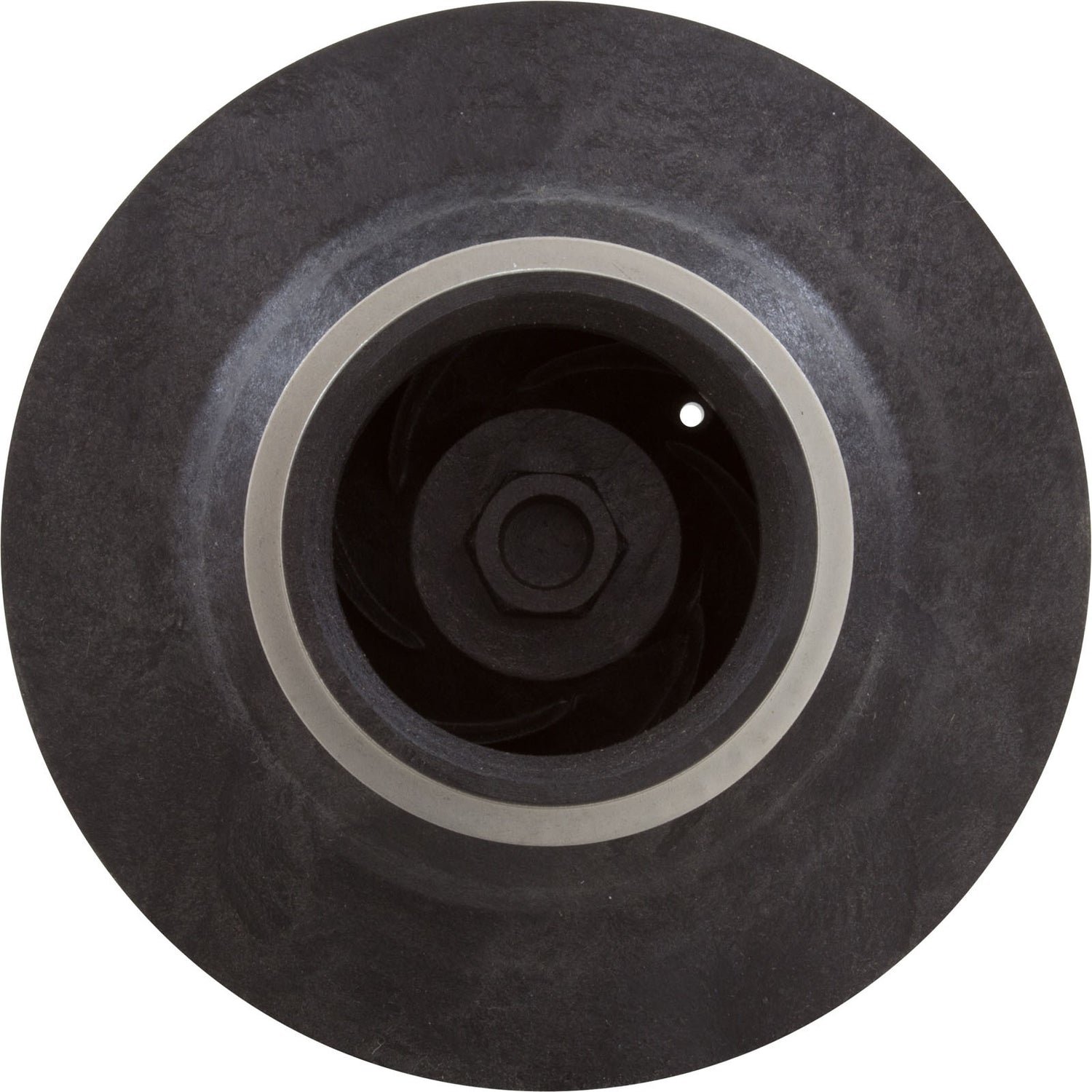

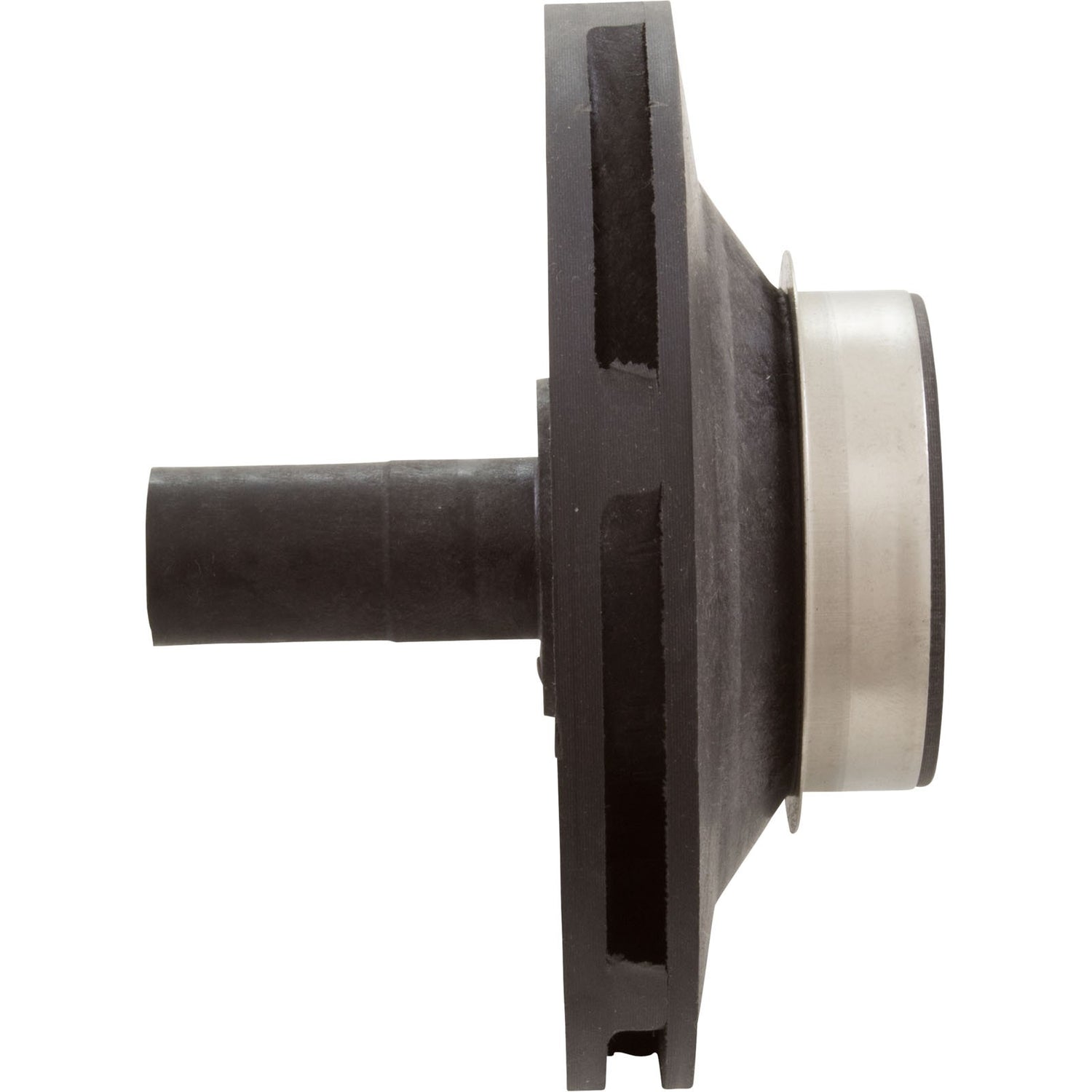

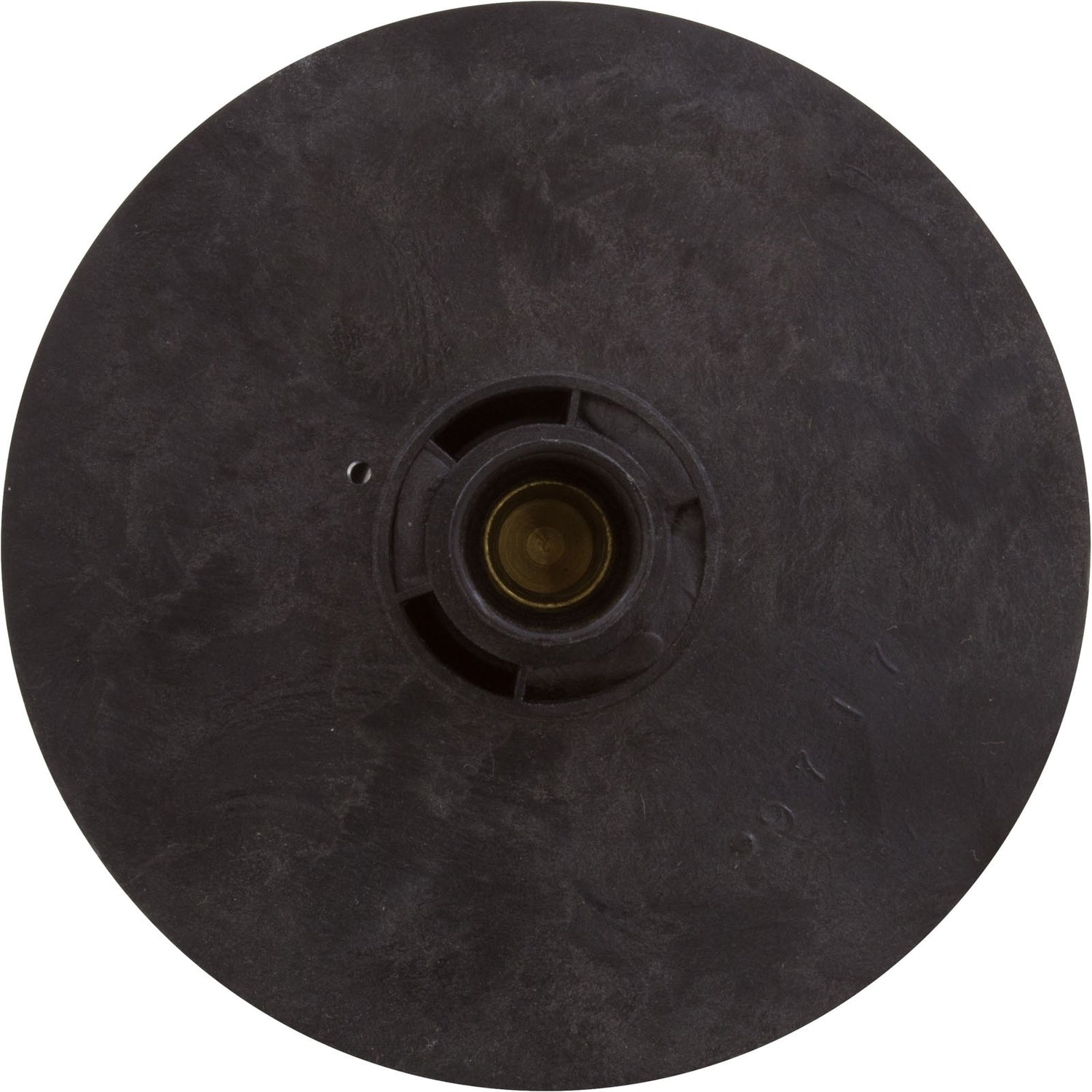

Impeller, Carvin Magnum HF, P, R, 1.0hp Jacuzzi/Carvin Pump Impeller Closed face impeller made for the Magnum High Flow pool pump by Jacuzzi. Rated at 1.0hp, it is used in a Magnum pump body, and must be installed on a 1.0hp (or greater) C-face motor with a threaded shaft. Also fits Magnum Force/3, Jacuzzi P, and R series pumps. Includes the diffuser. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-3/8" Vane Width ID: 3/16" Eye Diameter OD: 2" Eye Length: 1/2" Impeller Width OD: 1/2" Seal Seat Depth: 1/16"Shaft Length: 1-9/16"Shaft Diameter OD: 11/16"Seal Seat Diameter OD: 1-3/8"Manufacturer: Jacuzzi/CarvinPump Application: HF Series, Magnum, P Series, R Series Replaces 390362,
