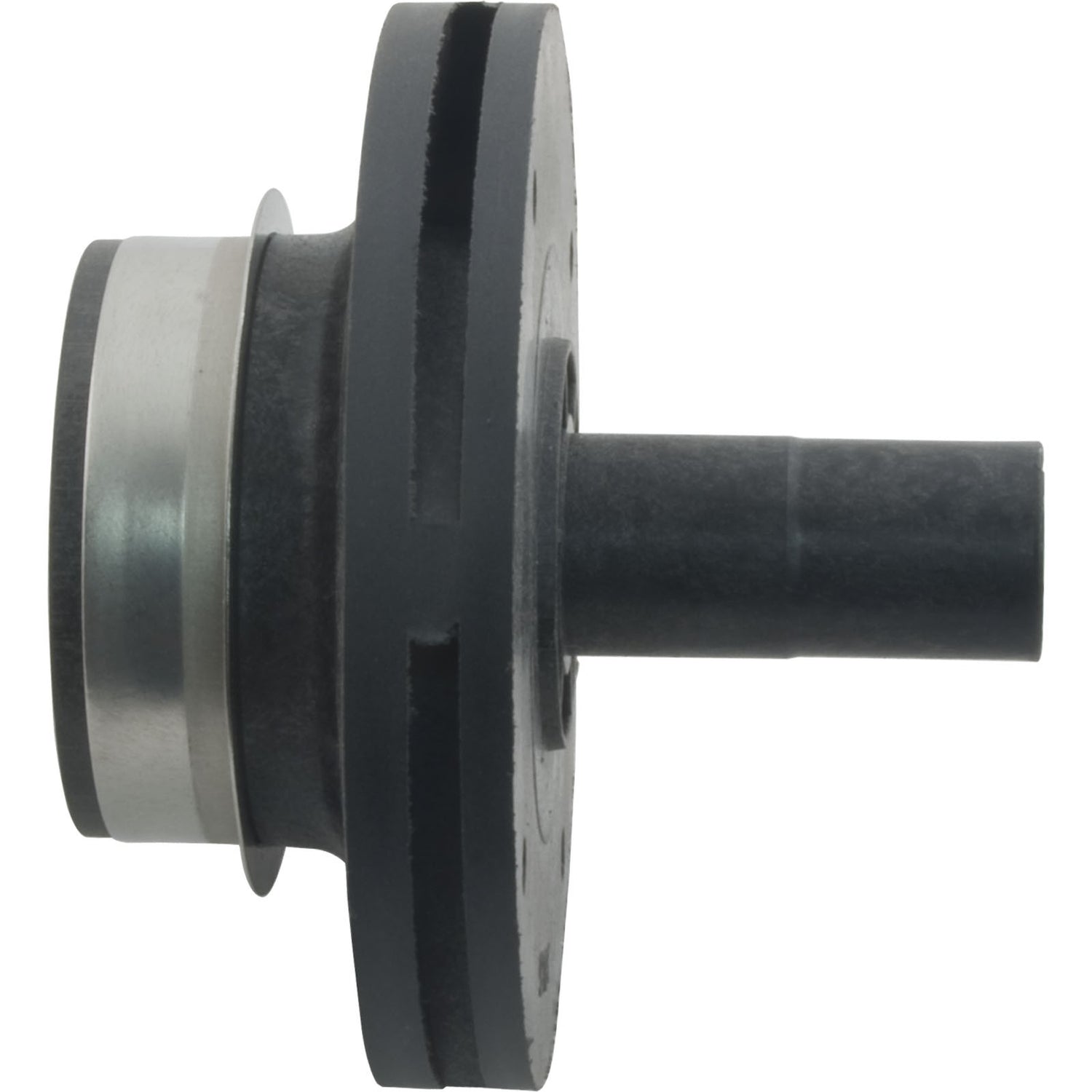

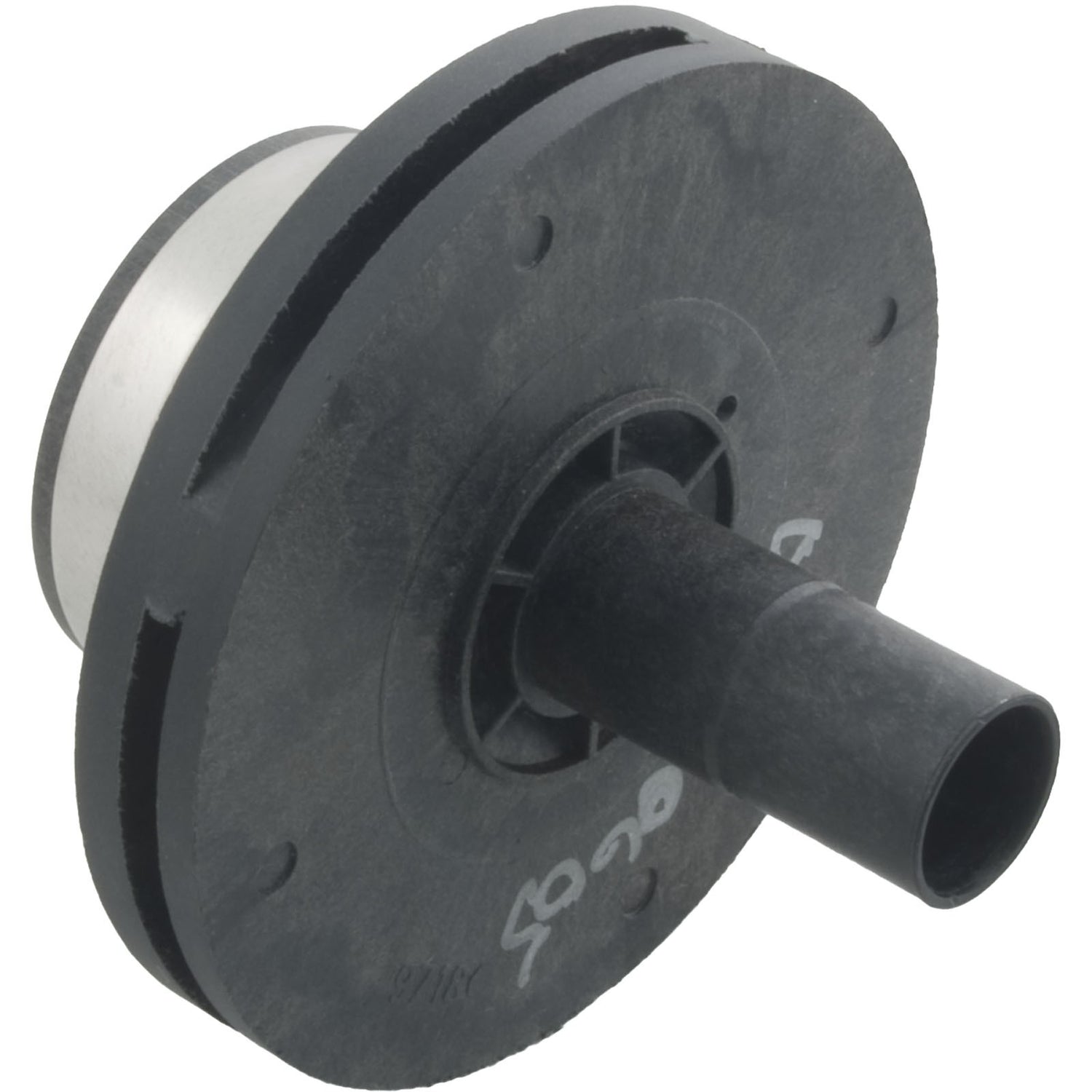

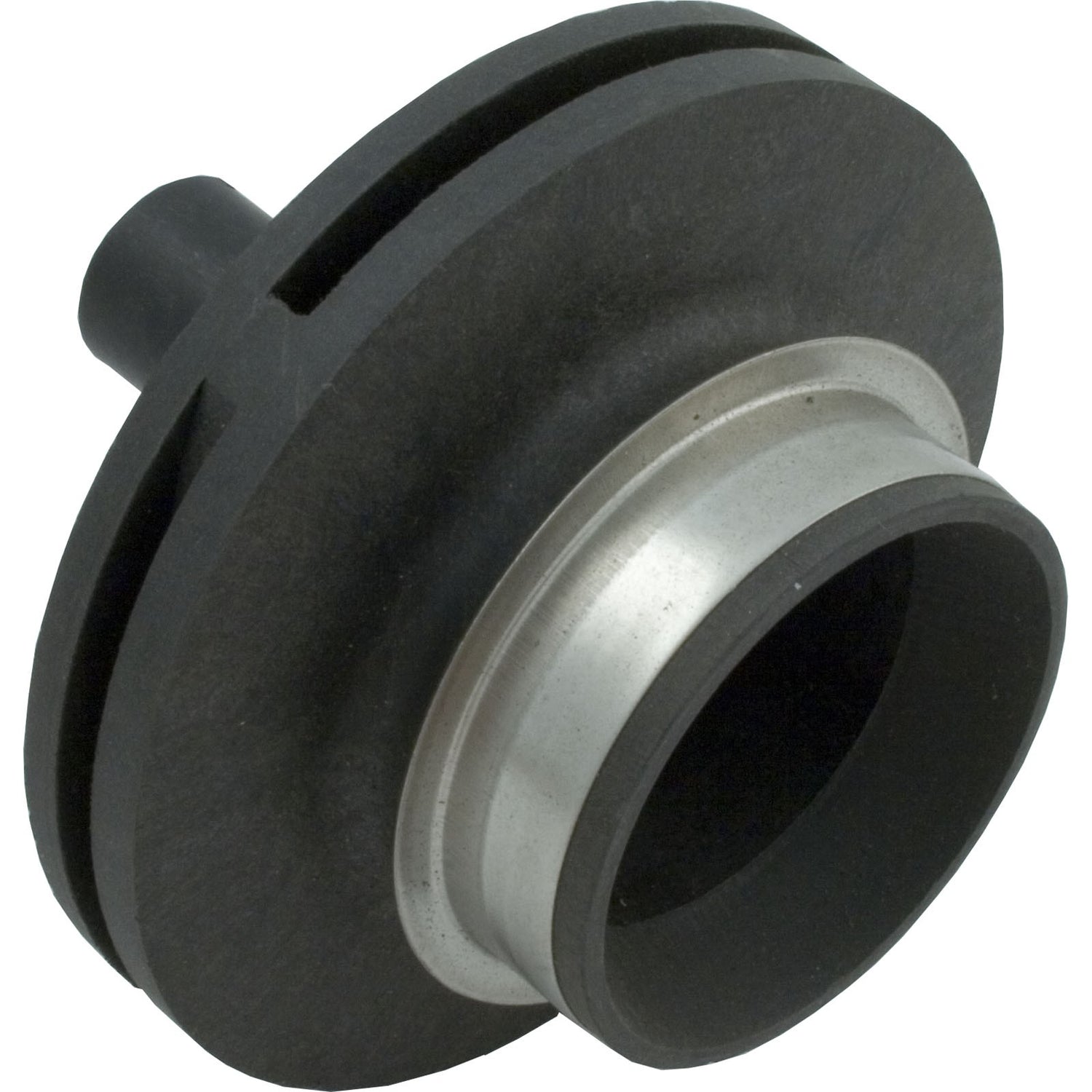

Impeller, Carvin Magnum HF, P, R, 0.5 Horsepower : 05-3806-05-R

Impeller, Carvin Magnum HF, P, R, 0.5 Horsepower Jacuzzi/Carvin Pump Impeller Closed face impeller made for the Magnum High Flow pool pump by Jacuzzi. Rated at 1/2hp, it is used in a Magnum pump body, and must be installed on a 1/2hp (or greater) C-face motor with a threaded shaft. Also fits Jacuzzi, P, and R series pumps. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 3-5/8" Vane Width ID: 3/16" Eye Diameter OD: 2" Eye Length: 5/8" Impeller Width OD: 1/2" Seal Seat Depth: 1/16"Shaft Length: 1-9/16"Shaft Diameter OD: 3/4"Seal Seat Diameter OD: 1-3/8"Manufacturer: Jacuzzi/CarvinPump Application: EP Series, P Series, PC Series, PH Series, R Series, RC Series, UP Series, UPH Series Replaces 05-3806-05-R000,05380605R,05380605R000,5062-18,600318,JAC-101-6227,
