Impeller, Carvin Magnum, 5.0thp, All Date Codes : 05-0371-06-R

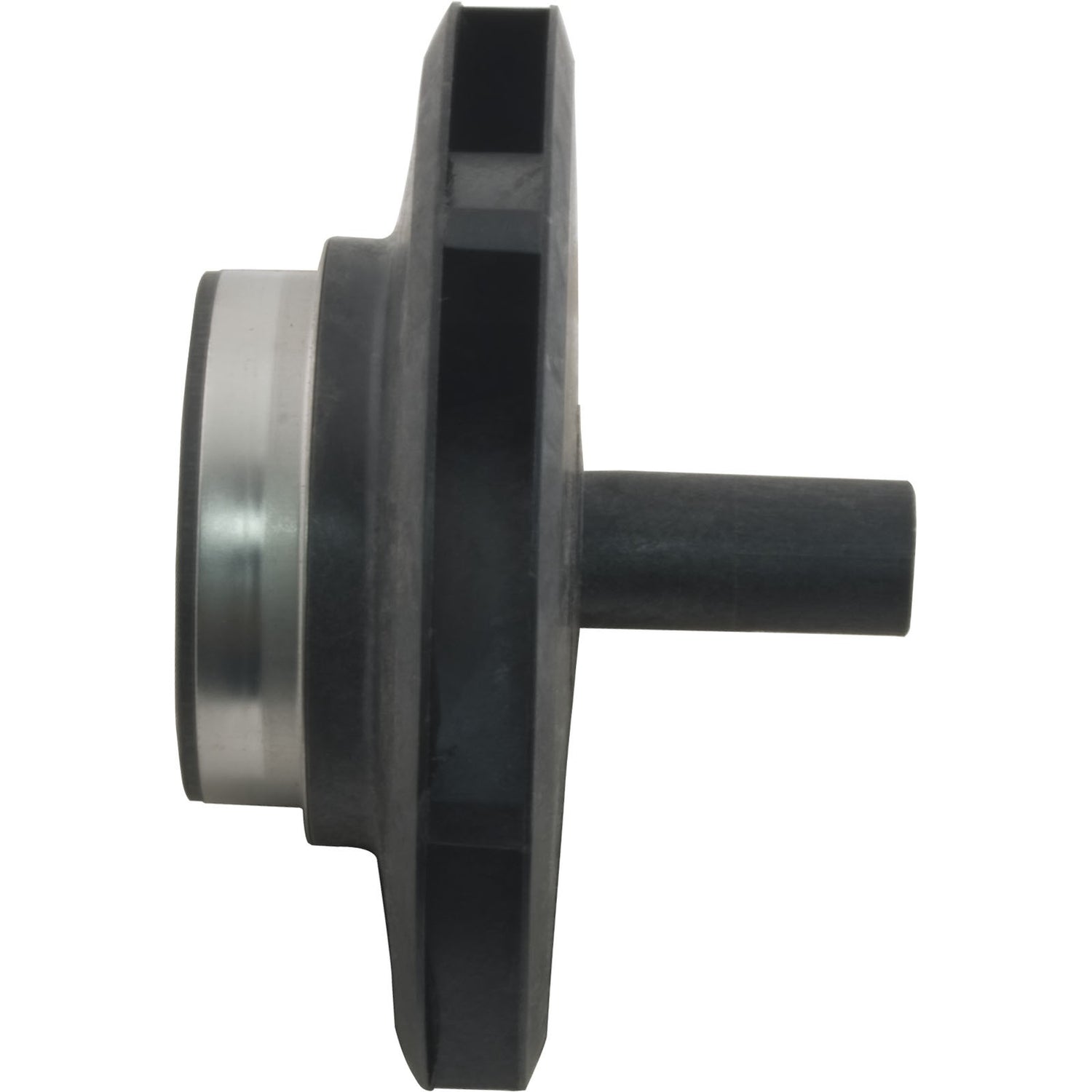

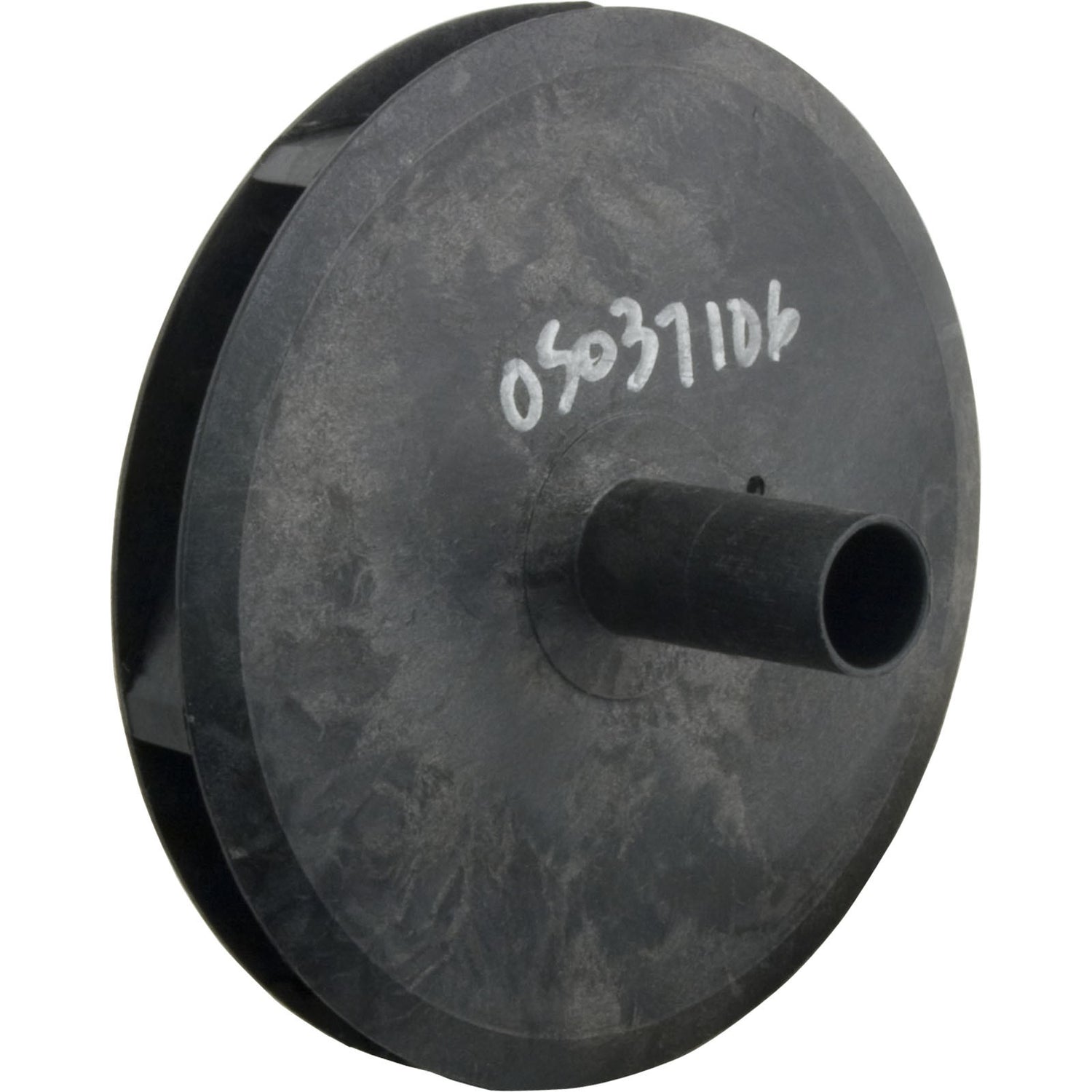

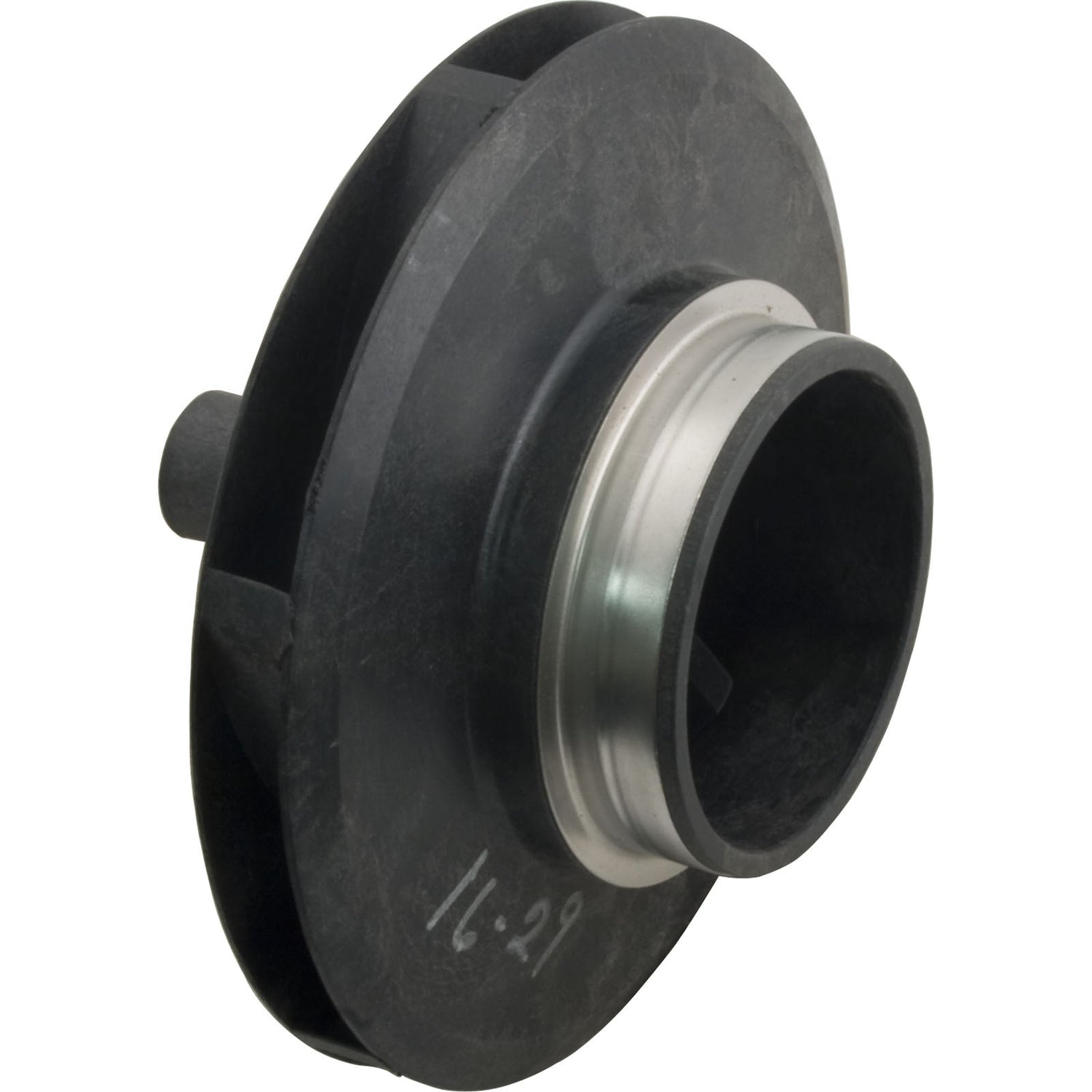

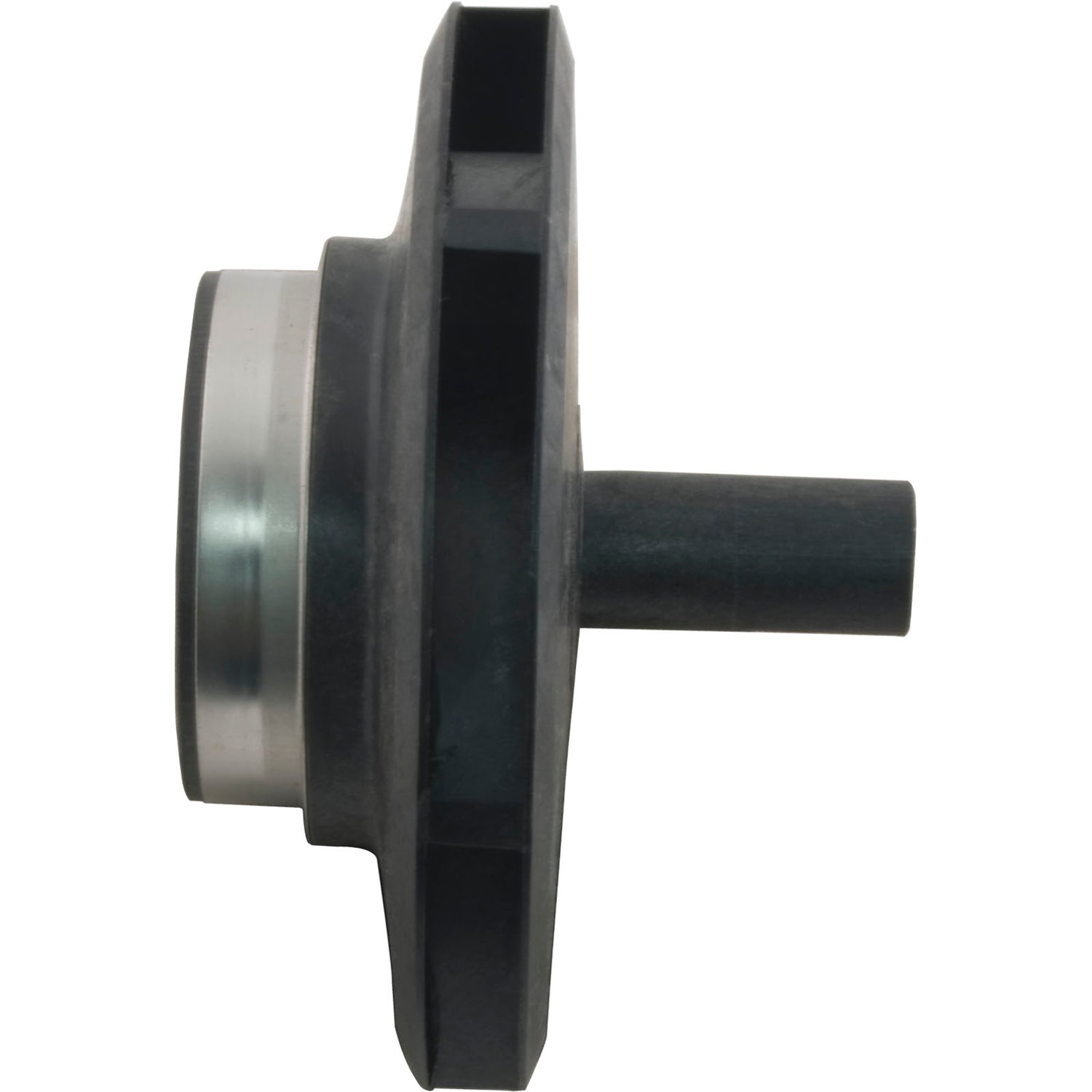

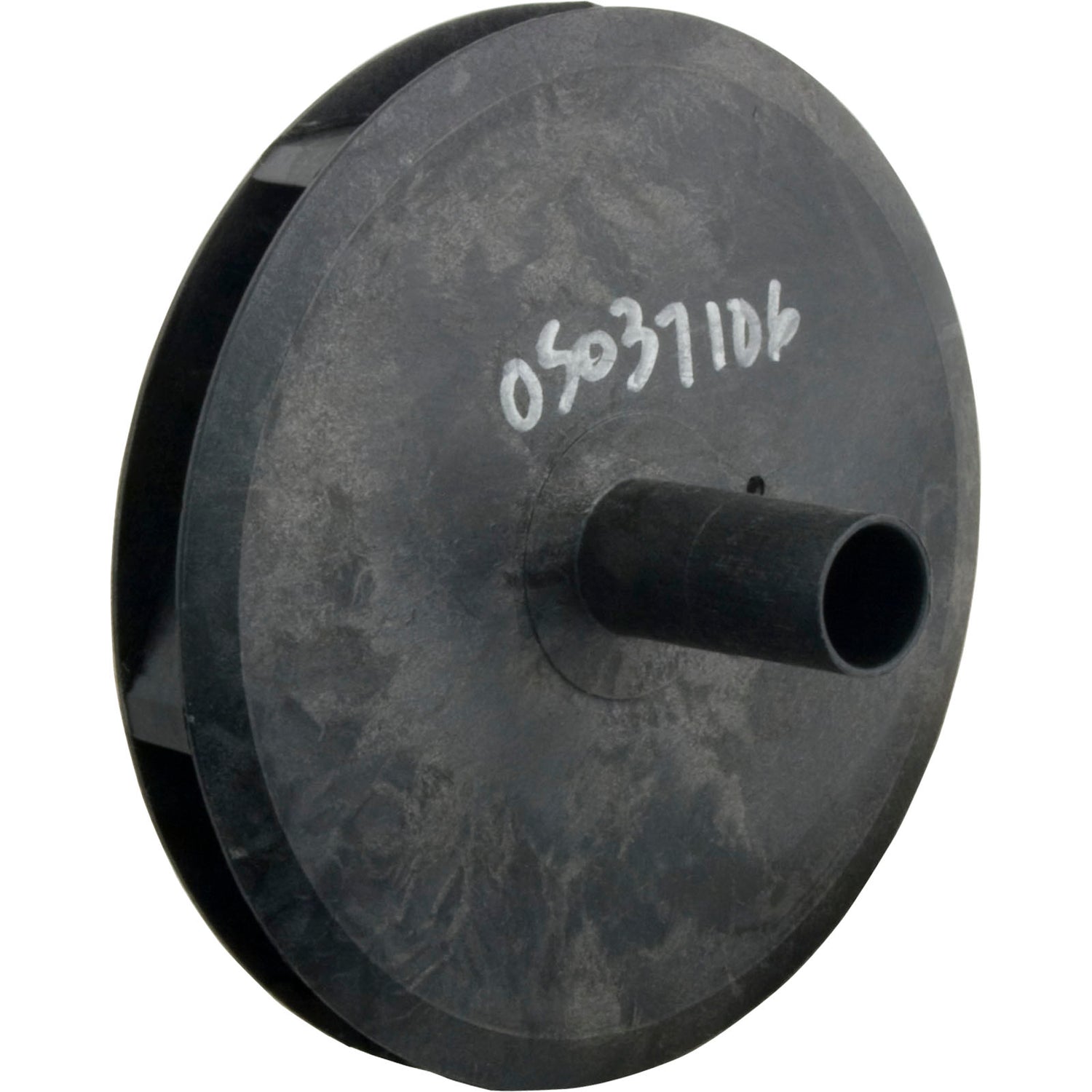

Impeller, Carvin Magnum, 5.0thp, All Date Codes Jacuzzi/Carvin Pump Impeller Closed face impeller made for the Magnum pool pump by Jacuzzi. Rated at 5.0hp, it is used in a Magnum pump body, and must be installed on a 5.0hp (or greater) C-face motor with a threaded shaft. Also fits Magnum Plus, Magnum Force and Magnum Force 3 pumps. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 5-1/8" Vane Width ID: 7/16" Eye Diameter OD: 2-1/2" Eye Length: 9/16" Impeller Width OD: 1/2" Seal Seat Depth: Shaft Length: 1-9/16"Shaft Diameter OD: 3/4"Seal Seat Diameter OD: Manufacturer: Jacuzzi/CarvinPump Application: Magnum, Magnum Force, Magnum Force 3, Magnum Plus Replaces 05037106R,05037106R000,5064-31,620374,
