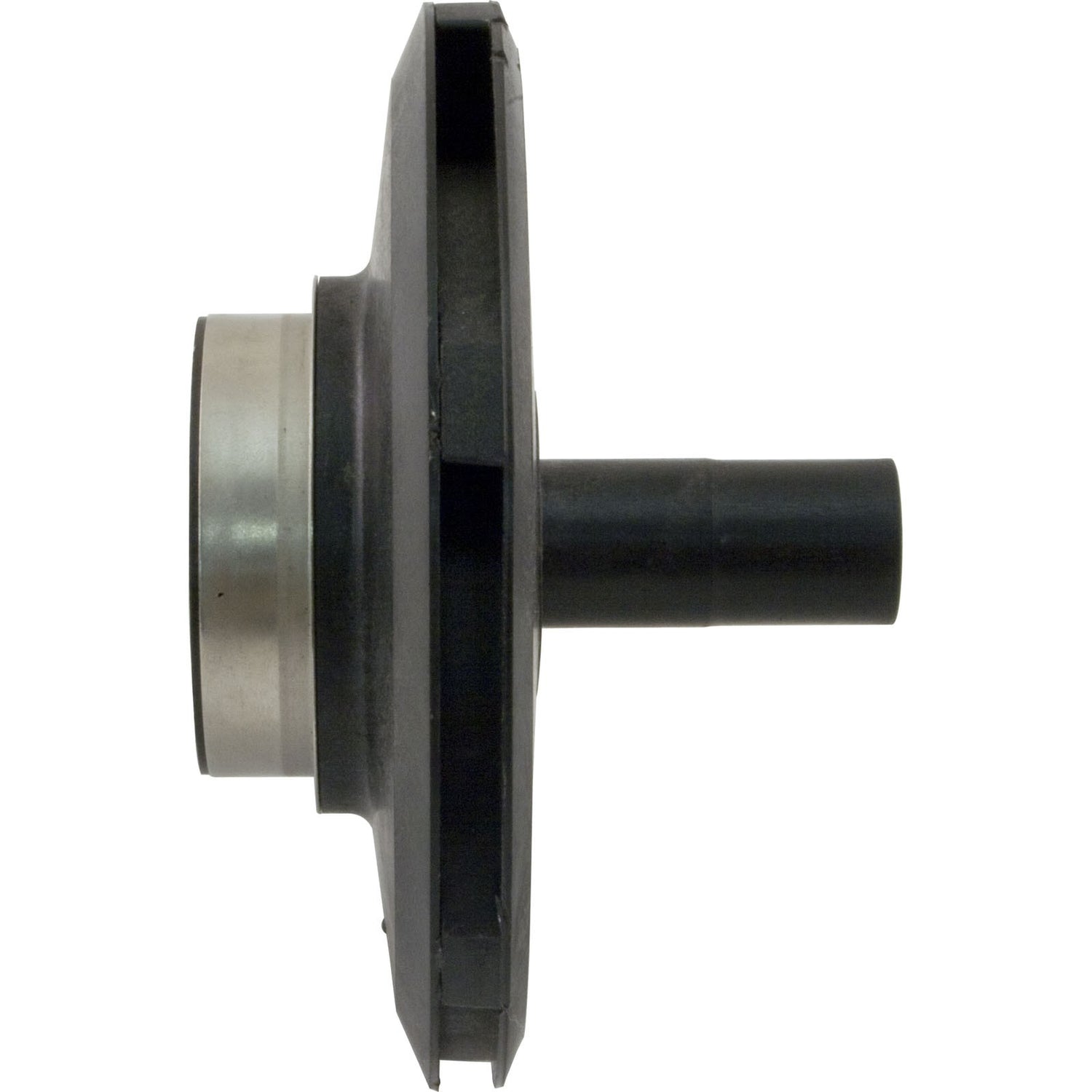

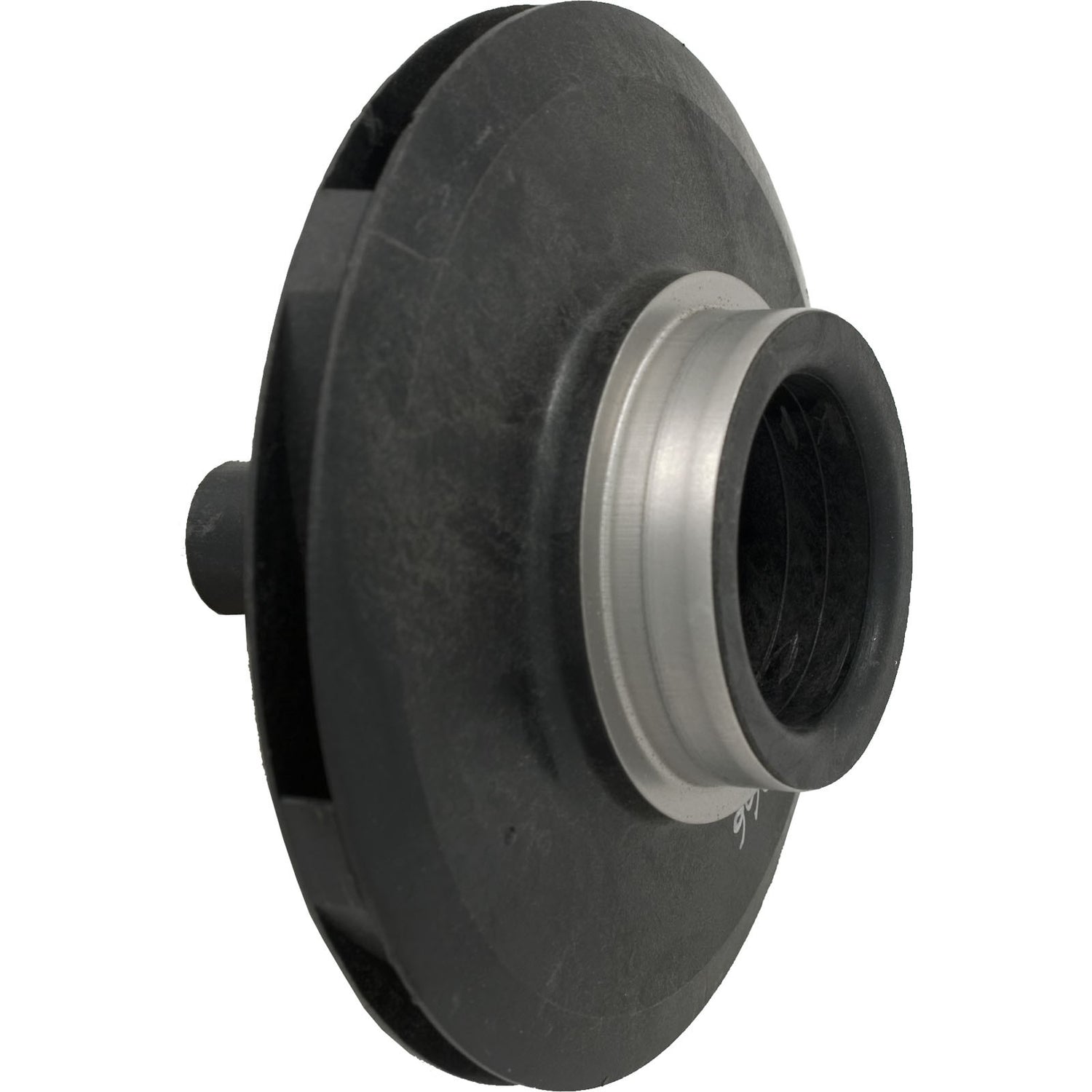

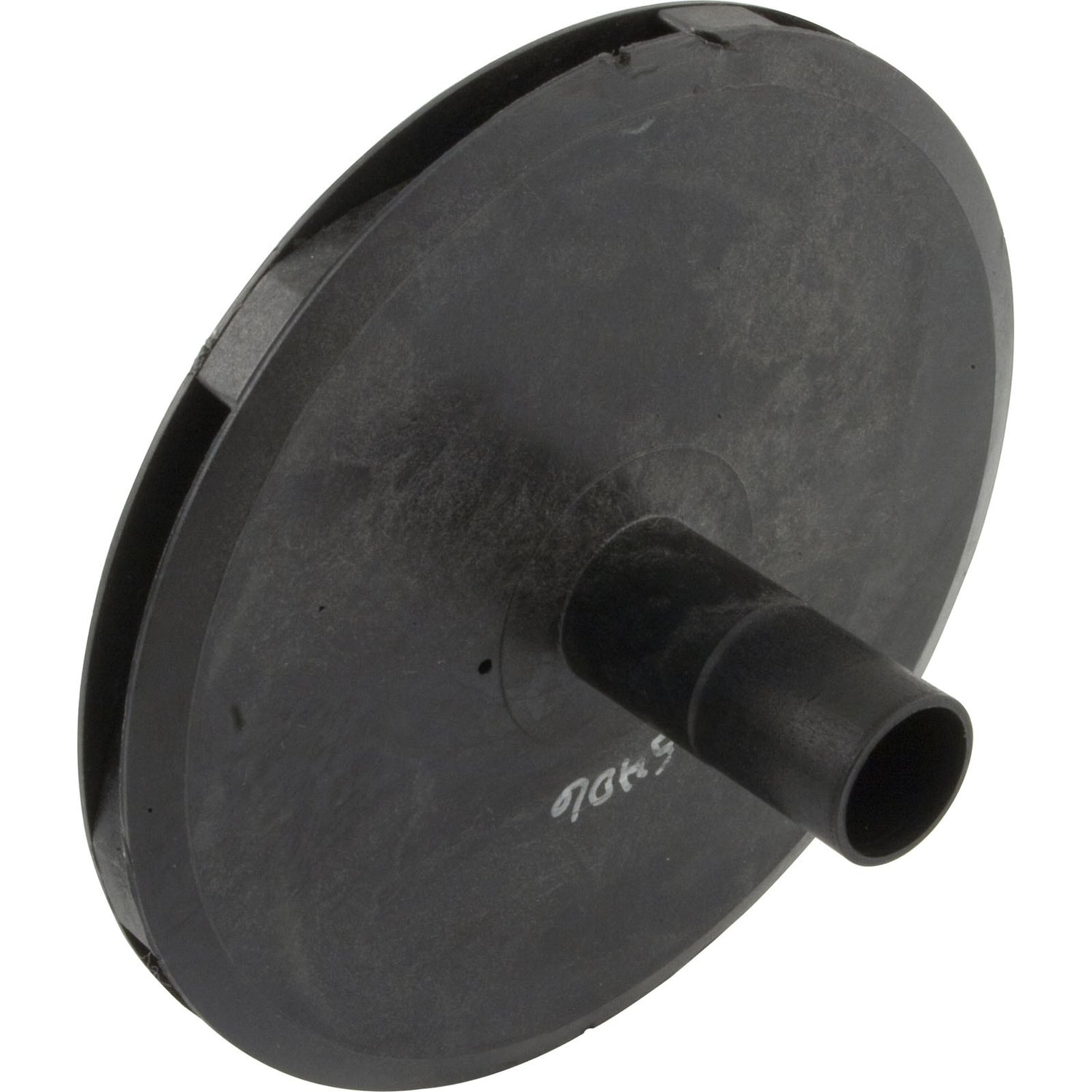

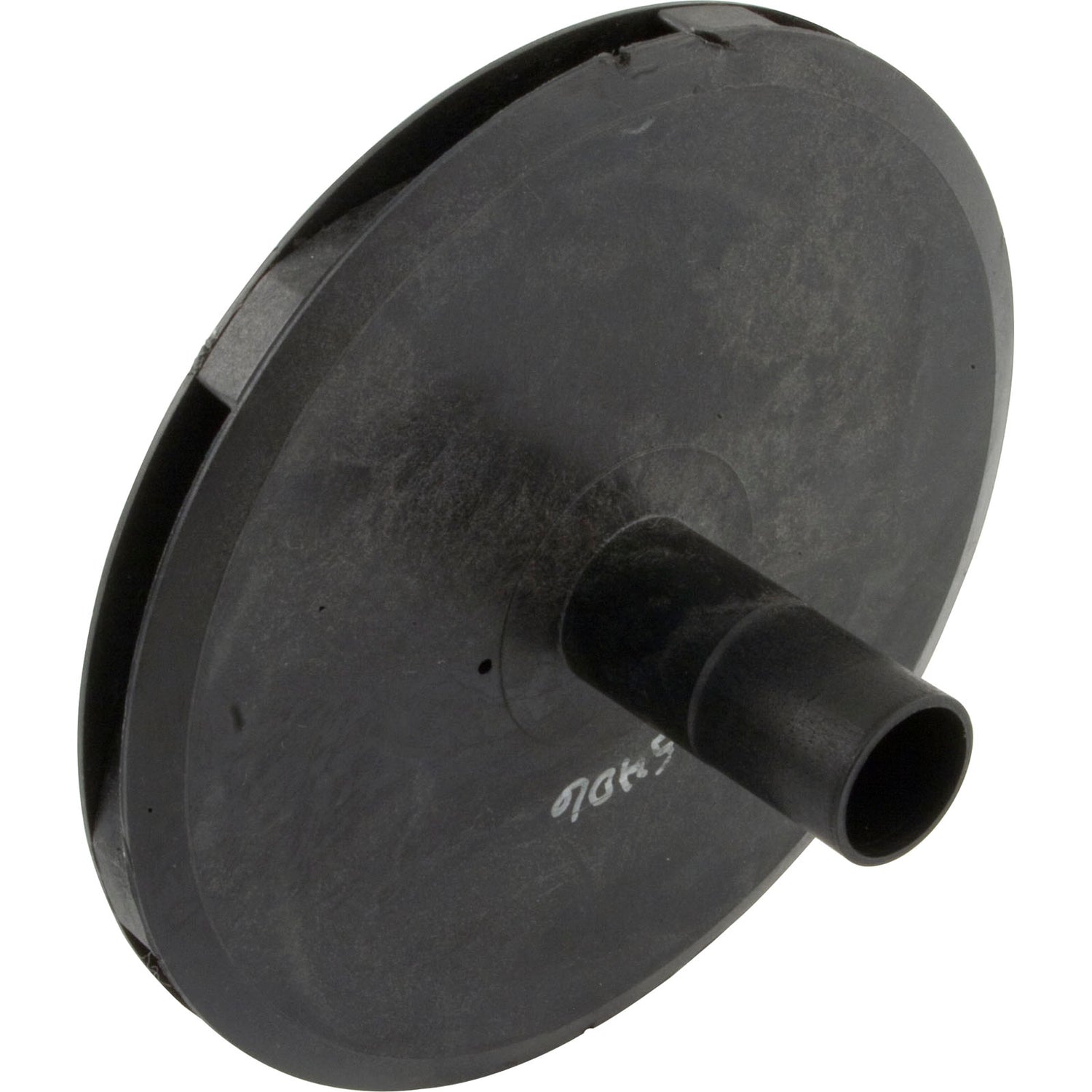

Impeller, Carvin Magnum, 1.0ohp/1.5thp, pre-04 : 05-3854-06-R

Impeller, Carvin Magnum, 1.0ohp/1.5thp, pre-04 Jacuzzi/Carvin Pump Impeller Closed face impeller made for the Magnum pool pump by Jacuzzi. Rated at 1.0hp, it is used in a Magnum pump body, and must be installed on a 1.0hp (or greater) C-face motor with a threaded shaft. Also fits Magnum Plus, Magnum Force and Magnum Force 3 pumps. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-3/4" Vane Width ID: 1/4" Eye Diameter OD: 2" Eye Length: 1/2" Impeller Width OD: 5/16" Seal Seat Depth: Shaft Length: 1-9/16"Shaft Diameter OD: 3/4"Seal Seat Diameter OD: Manufacturer: Jacuzzi/CarvinPump Application: Magnum, Magnum Force, Magnum Force 3, Magnum Plus Replaces 05-3854-06,05385406-R000,05385406R,429532,5064-15A,5385406,JAC-101-6463,
