Impeller, Carvin Magnum, 0.75ohp/1.0thp, All Date Codes : 05-3855-05-R

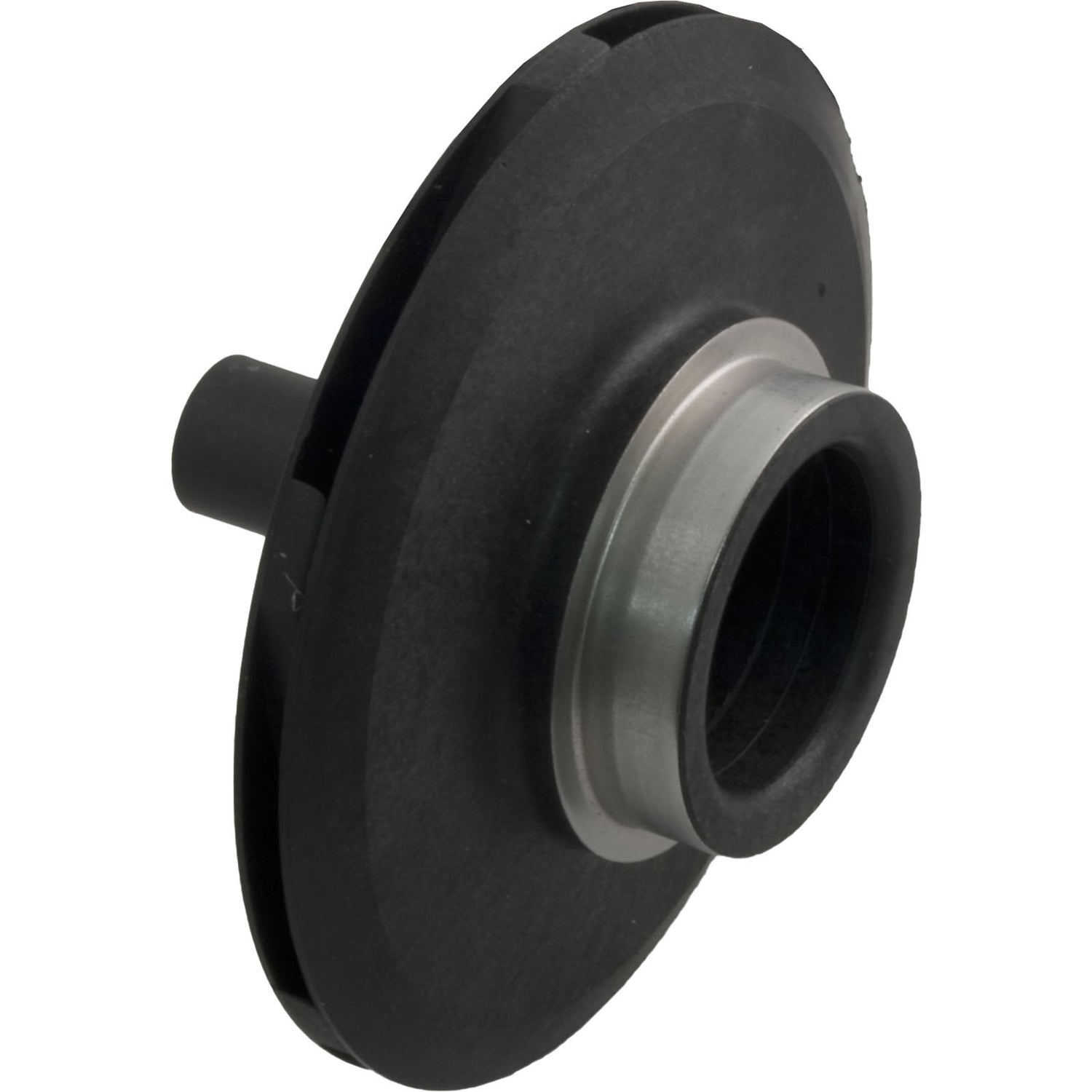

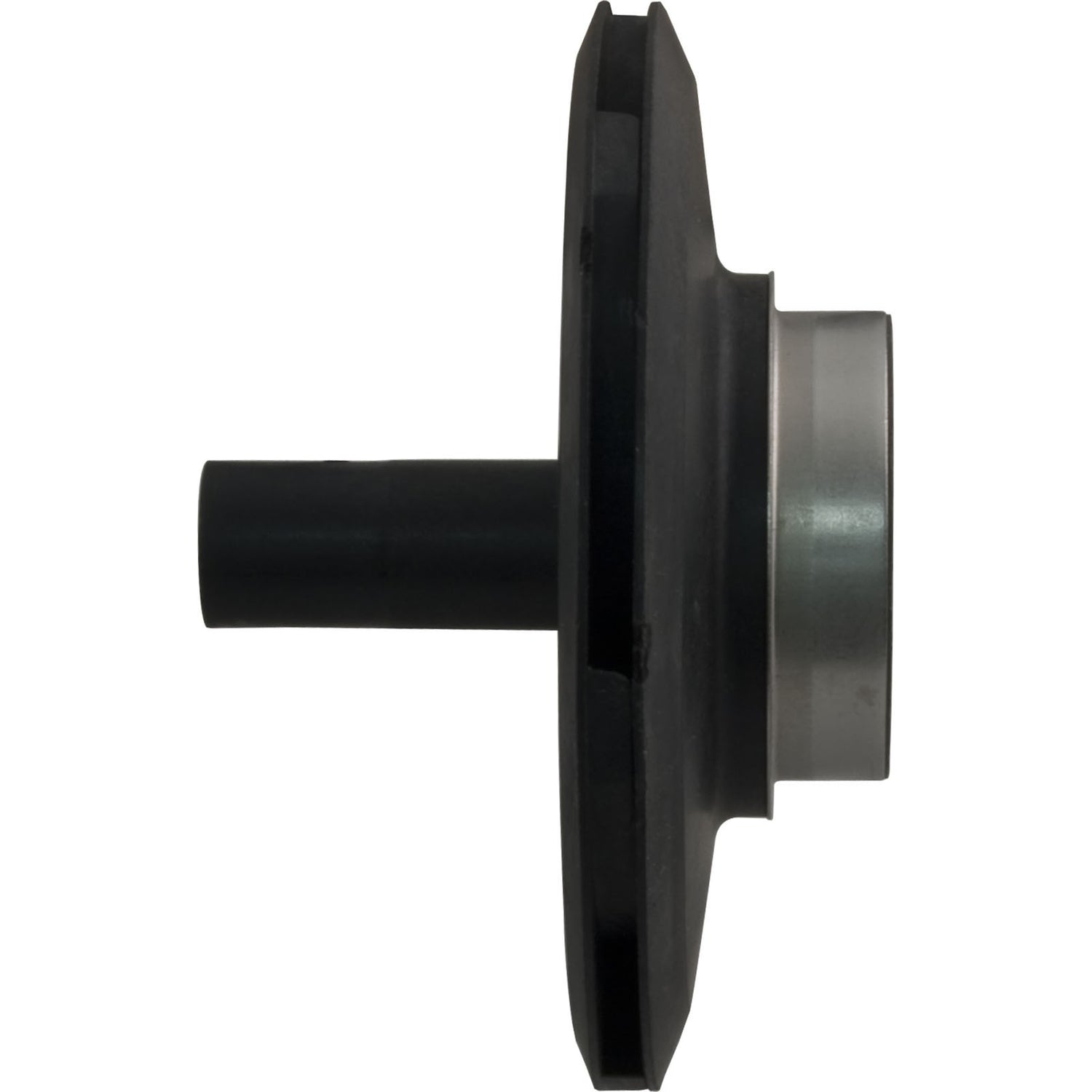

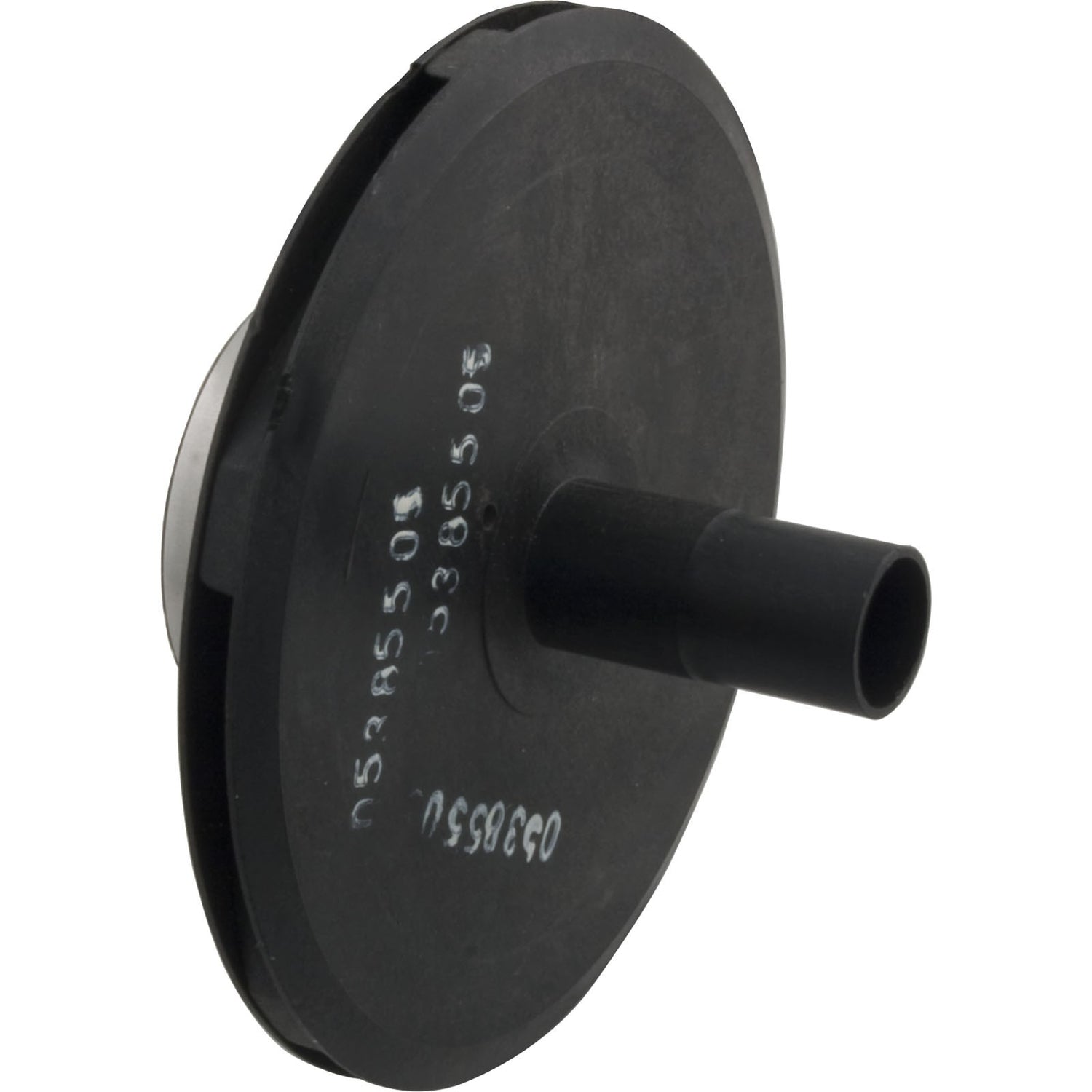

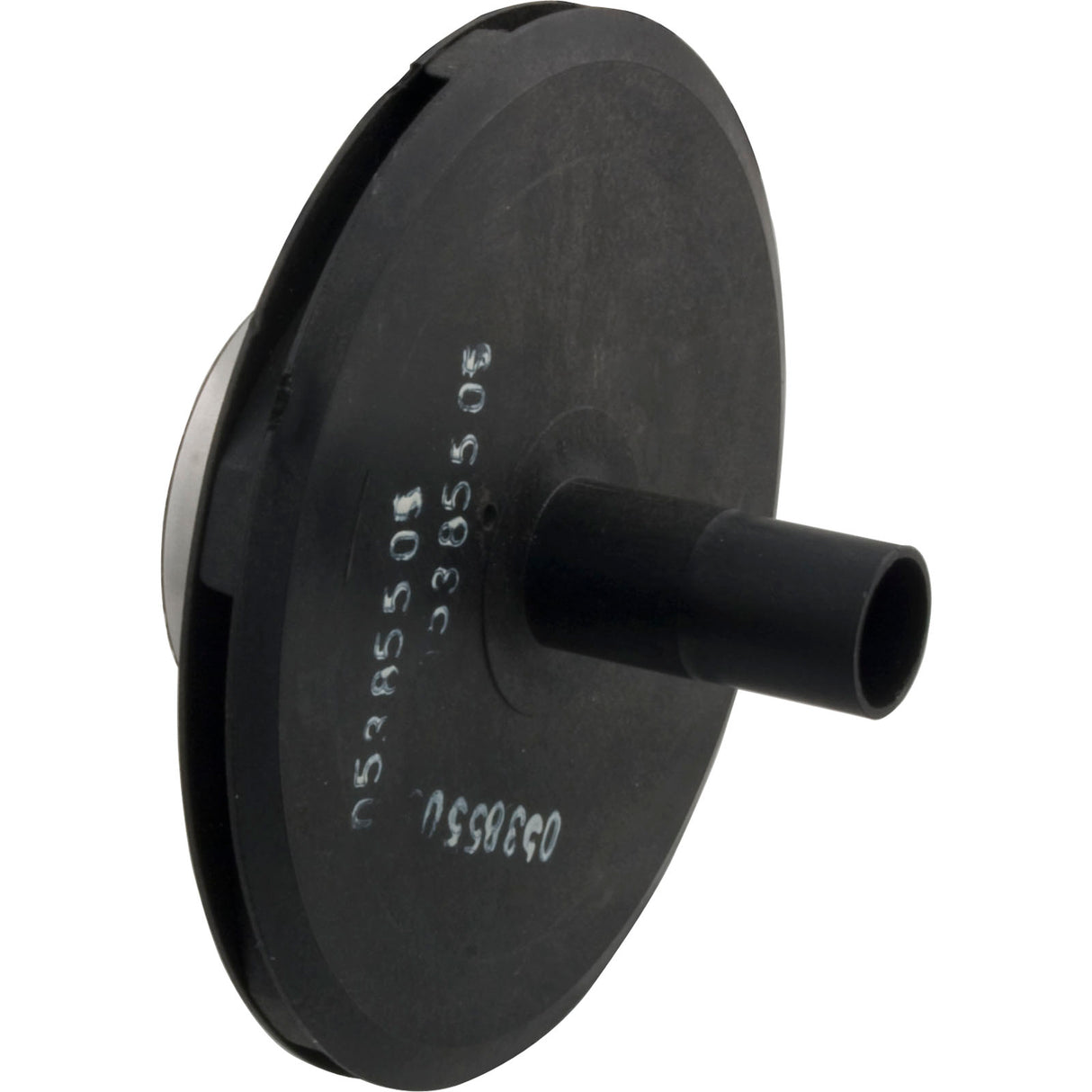

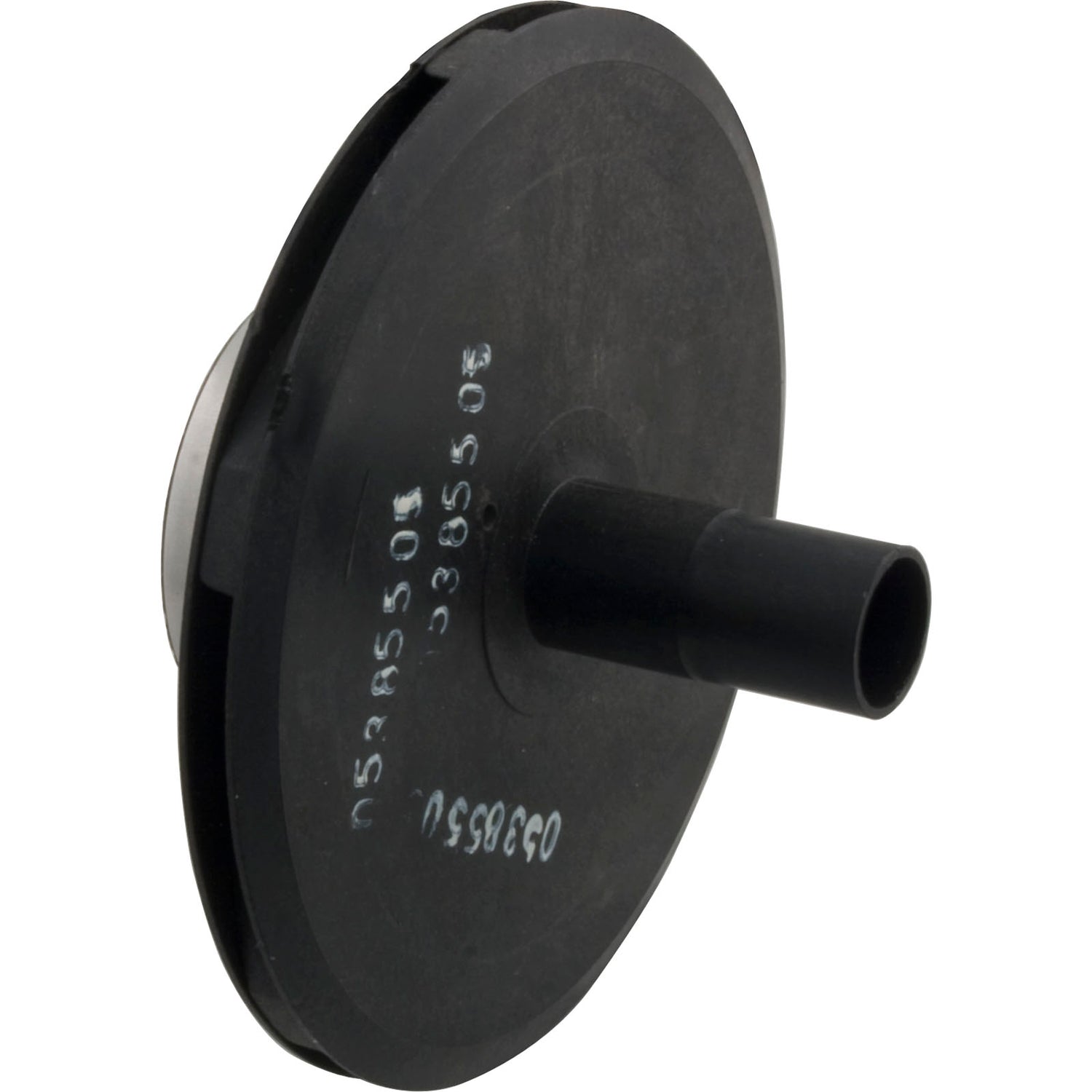

Impeller, Carvin Magnum, 0.75ohp/1.0thp, All Date Codes Jacuzzi/Carvin Pump Impeller Closed face impeller made for the Magnum pool pump by Jacuzzi. Rated at 3/4hp, it is used in a Magnum pump body, and must be installed on a 3/4hp (or greater) C-face motor with a threaded shaft. Also fits Magnum Plus, Magnum Force and Magnum Force 3 pumps. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-3/4" Vane Width ID: 3/16" Eye Diameter OD: 2-1/16" Eye Length: 1/2" Impeller Width OD: 5/16" Seal Seat Depth: Shaft Length: 1-9/16"Shaft Diameter OD: 3/4"Seal Seat Diameter OD: Manufacturer: Jacuzzi/CarvinPump Application: Magnum, Magnum Force, Magnum Force 3, Magnum Plus Replaces 05-3855-05,05385505R,448242,5064-15,5385505,JAC-101-6464,
