Impeller, Carvin Magnum, 0.5ohp/0.75thp, All Date Codes : 05-3800-01-R

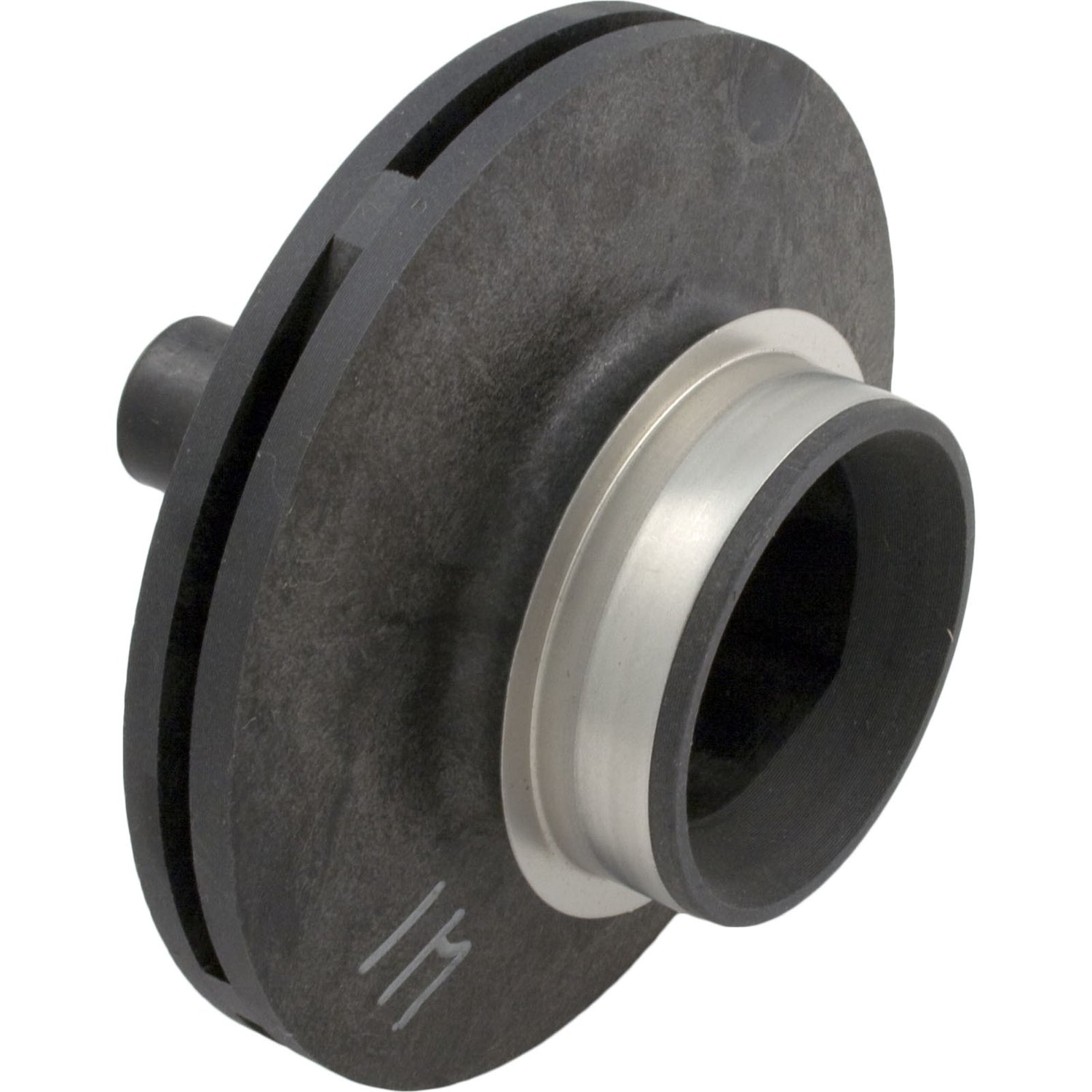

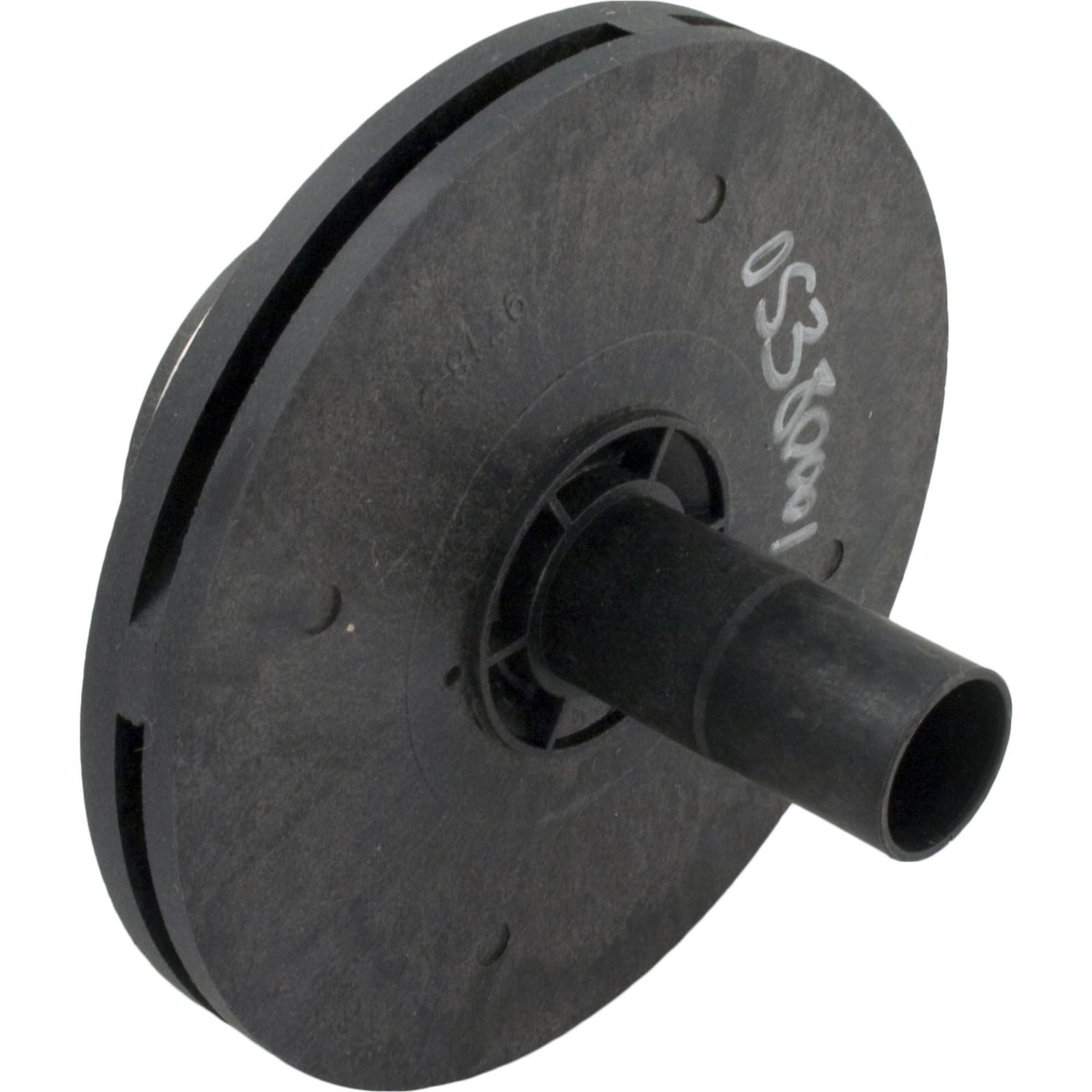

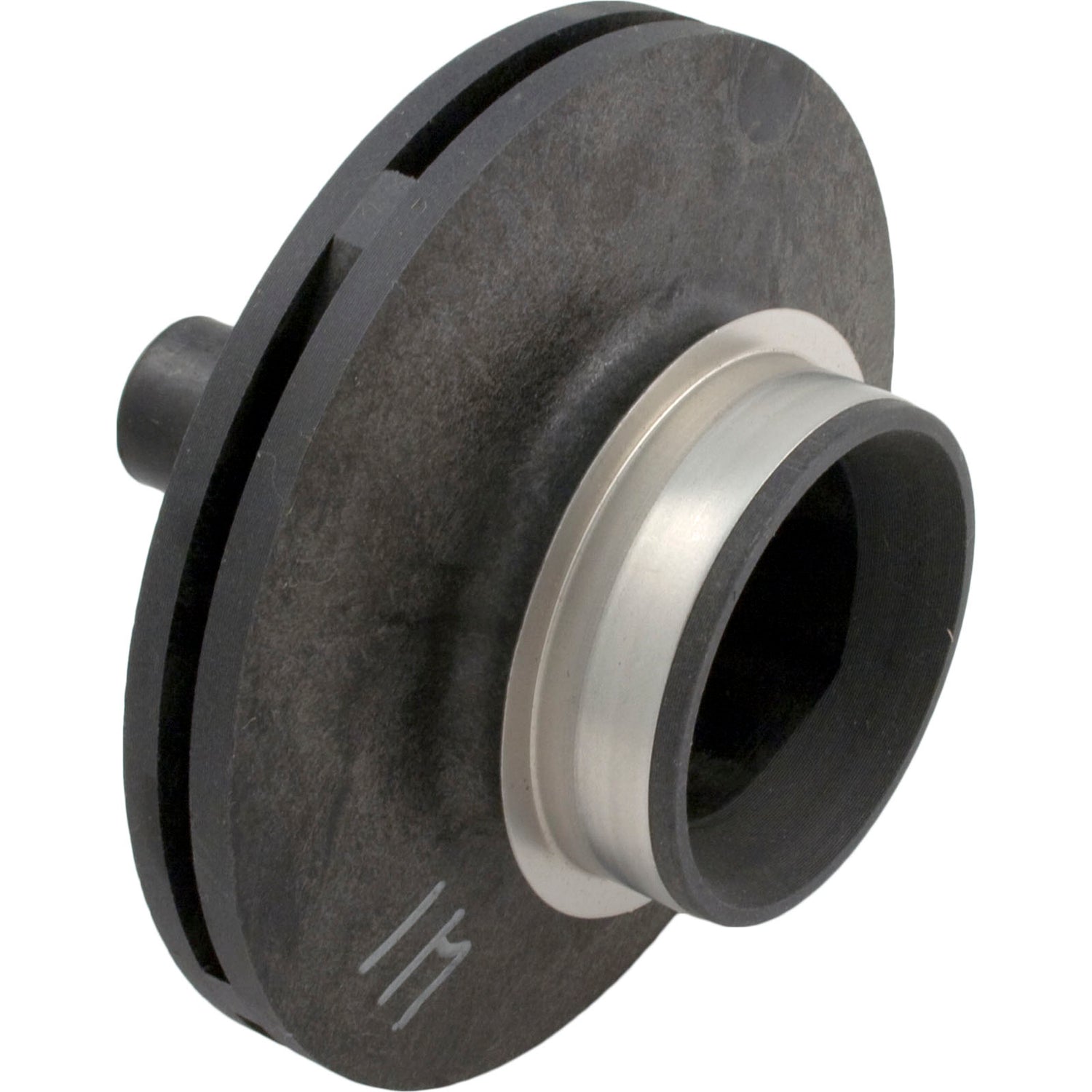

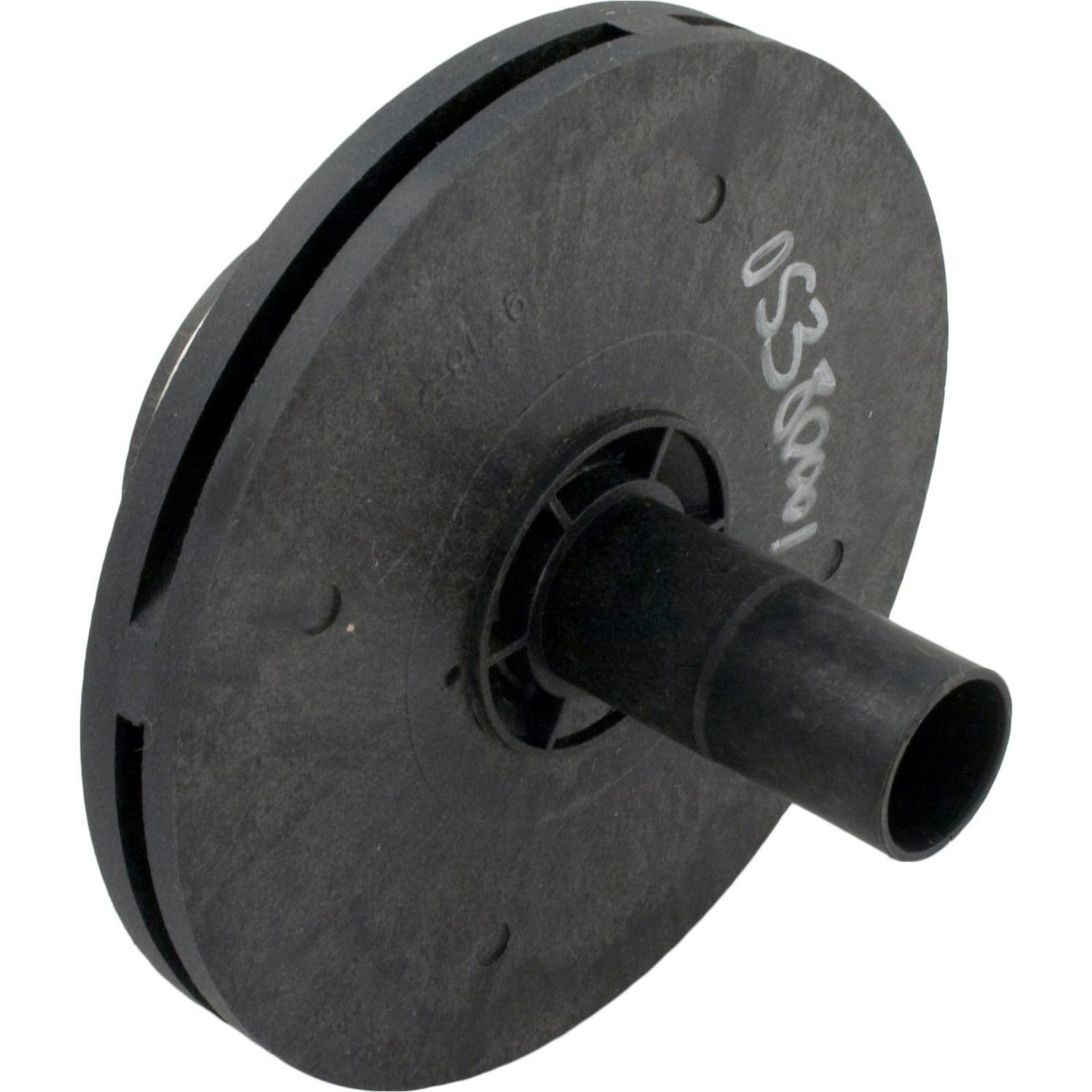

Impeller, Carvin Magnum, 0.5ohp/0.75thp, All Date Codes Jacuzzi/Carvin Pump Impeller Closed face impeller made for the Magnum pool pump by Jacuzzi. Rated at 1/2hp, this impeller fits multiple Jacuzzi model pumps, but is used mainly in a Magnum pump body, and must be installed on a 1/2hp (or greater) C-face motor with a threaded shaft. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-3/16" Vane Width ID: 1/8" Eye Diameter OD: 2" Eye Length: 5/8" Impeller Width OD: 1/2" Seal Seat Depth: 1/16"Shaft Length: 1-9/16"Shaft Diameter OD: 3/4"Seal Seat Diameter OD: 1-3/8"Manufacturer: Jacuzzi/CarvinPump Application: EP Series, Magnum, Magnum Force, Magnum Force 3, Magnum Plus, P Series, PC Series, R Series, RC Series, UP Series, UPH Series Replaces 05-3800-01,05380001K,05380001R,5062-18A,5380001,600064,
