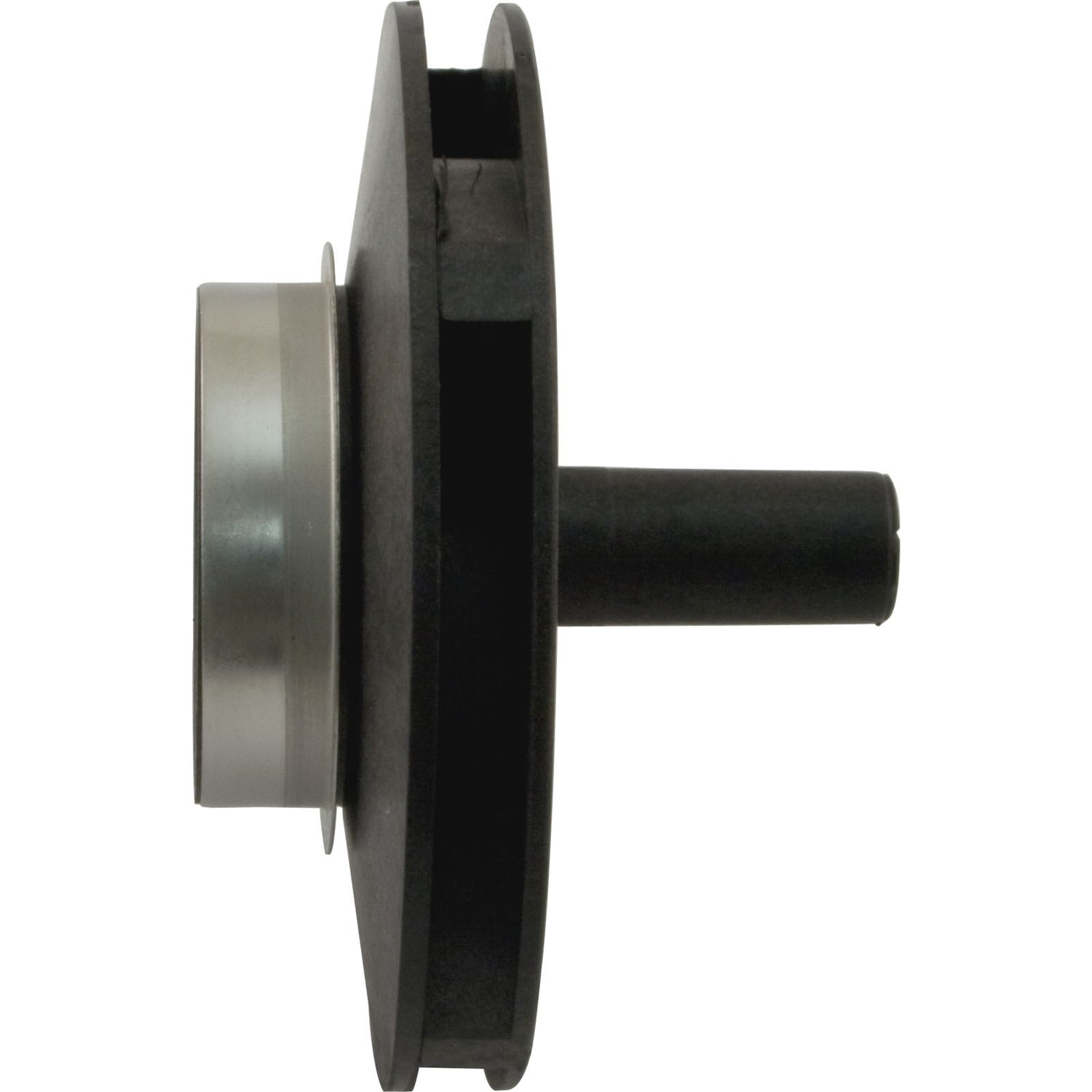

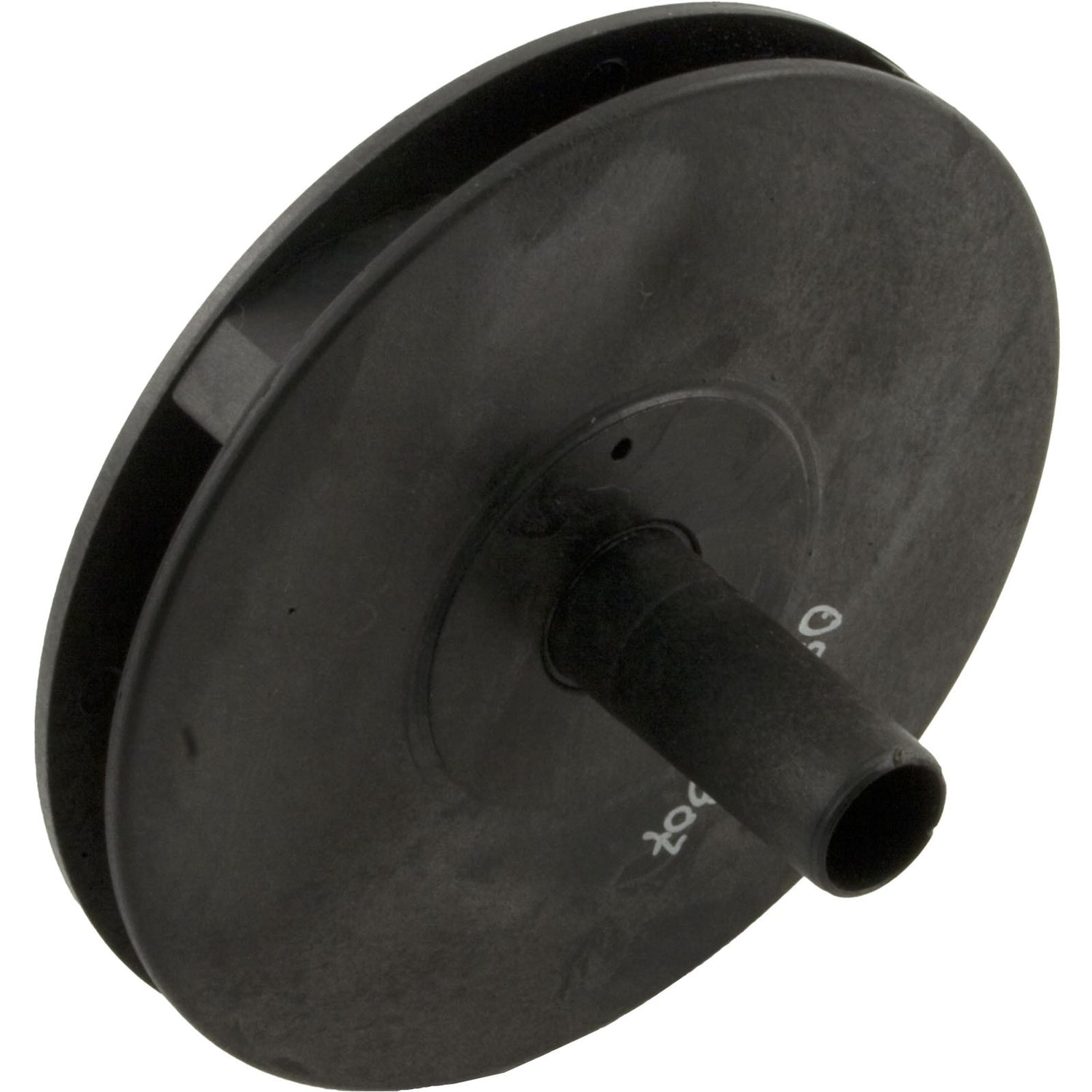

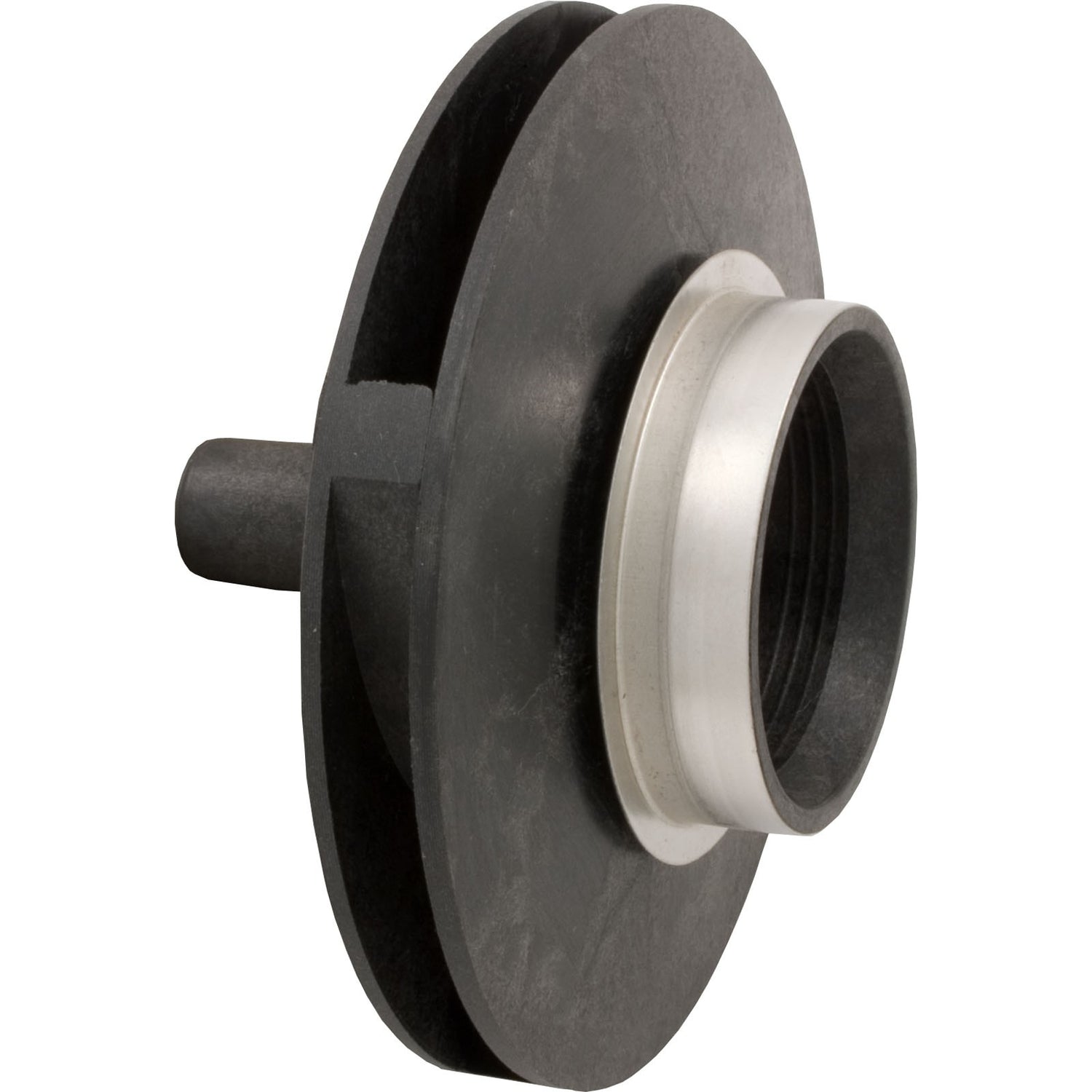

Impeller, Carvin LC/SharkJet, 1.5/2.0 Horsepower : 05-3853-07-R

Impeller, Carvin LC/SharkJet, 1.5/2.0 Horsepower Jacuzzi/Carvin Pump Impeller Closed face impeller made for the LC series spa pump by Jacuzzi. Rated at 1.5hp, it is used in multiple Jacuzzi model pumps, but mainly used in the LC series pump wet end, and must be installed on a 1.5hp (or greater) thru bolt motor. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-1/4" Vane Width ID: 5/16" Eye Diameter OD: 2" Eye Length: 1/2" Impeller Width OD: 1/2" Seal Seat Depth: 1/32"Shaft Length: 1-7/16"Shaft Diameter OD: 5/8"Seal Seat Diameter OD: 1-11/16"Manufacturer: Jacuzzi/CarvinPump Application: L Series, SharkJet, UL Series Replaces 05-3853-07,05385307R,5063-08C,5385307,600056,JAC-101-6480,
