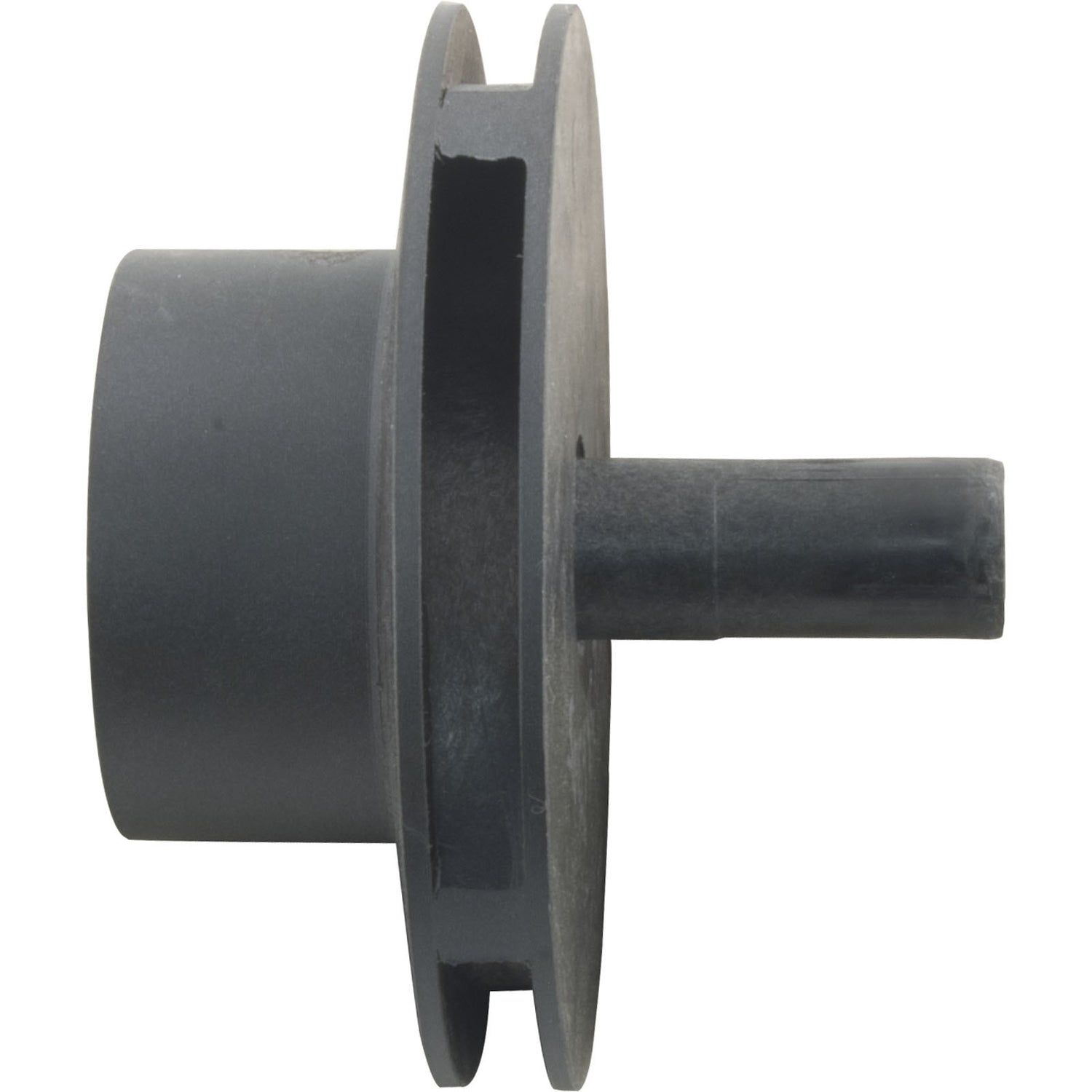

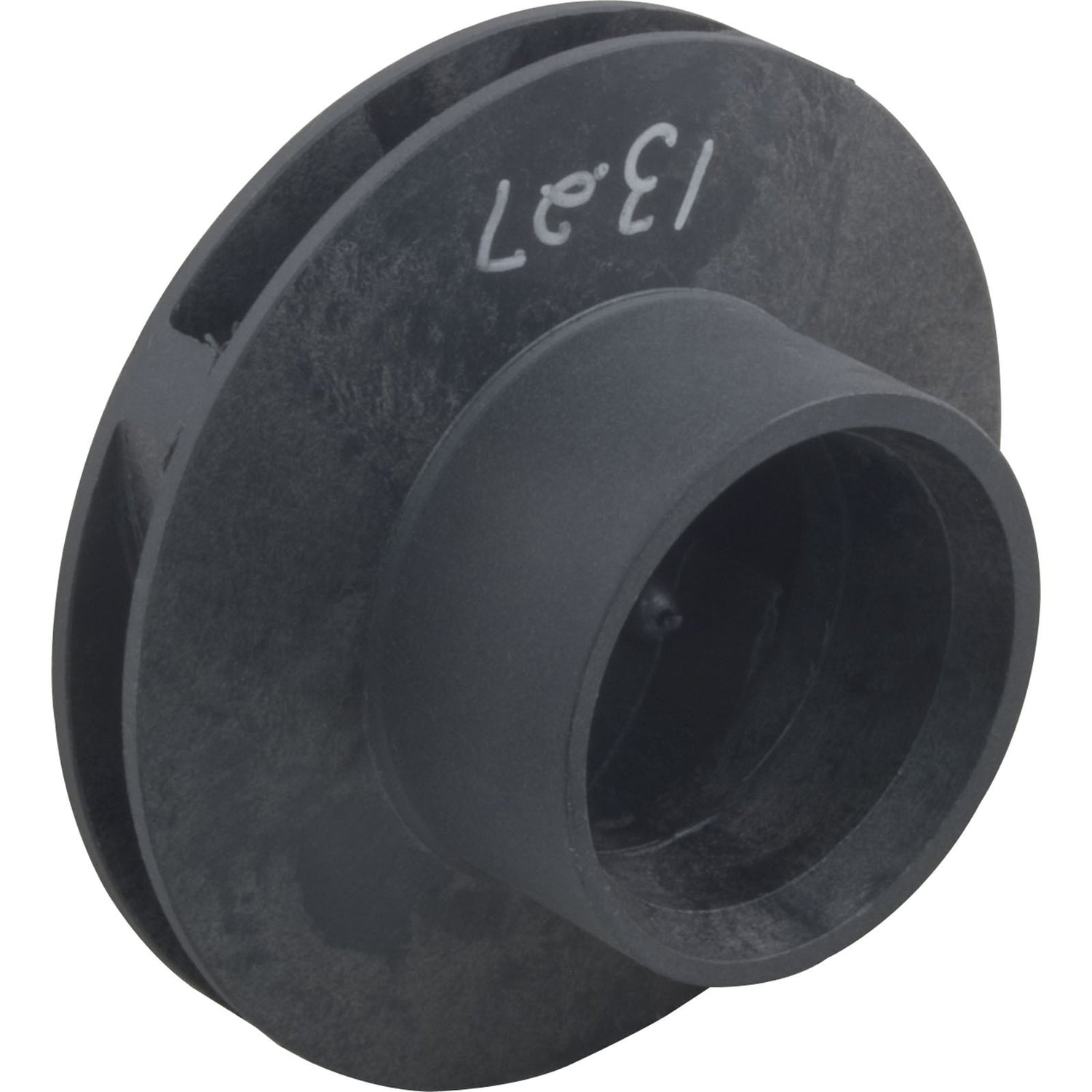

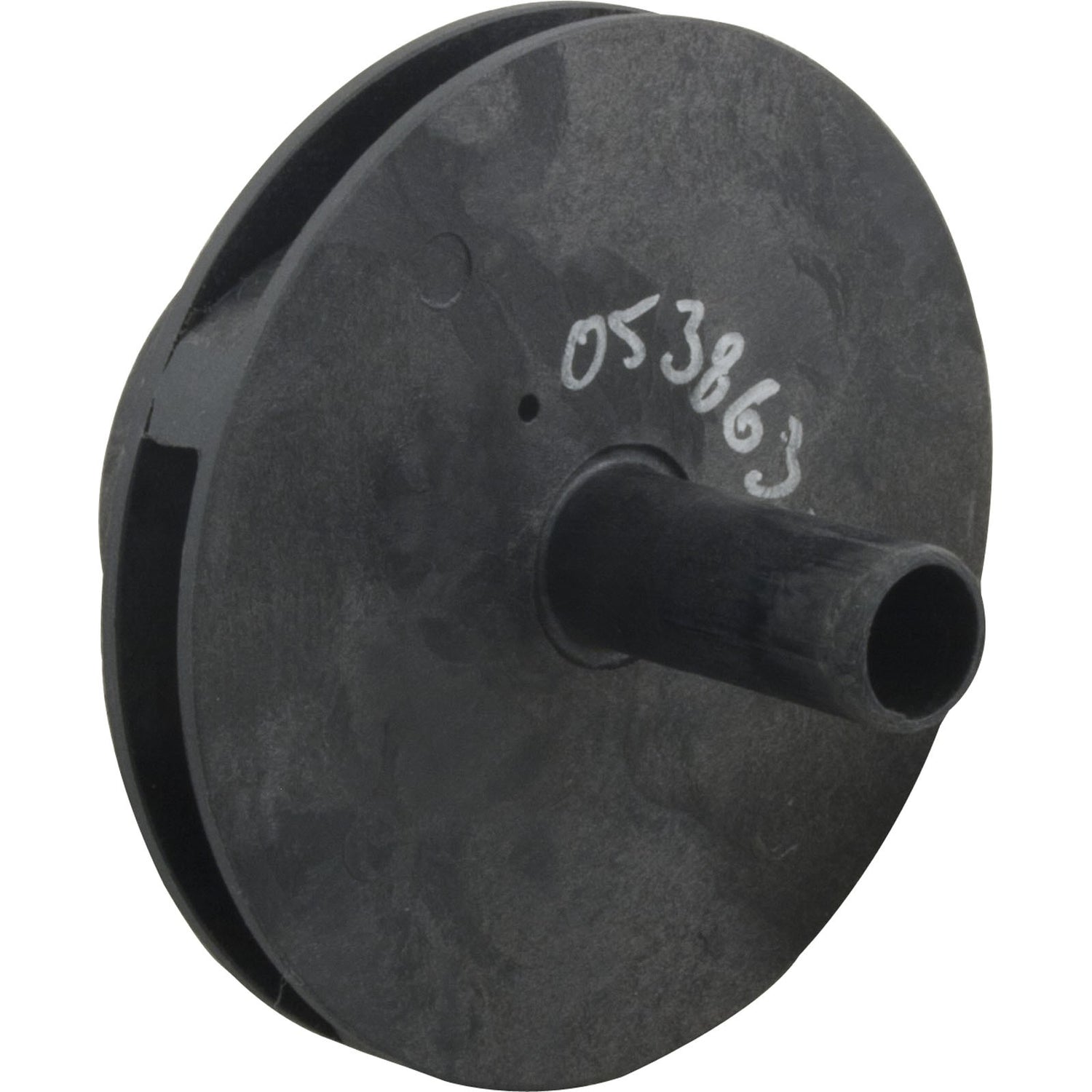

Impeller, Carvin J-Series, 1.0 Horsepower : 05-3863-05-R

Impeller, Carvin J-Series, 1.0 Horsepower Jacuzzi/Carvin Pump Impeller Closed face impeller made for the J series spa pump by Jacuzzi. Rated at 1.0hp, it is used in a J series pump wet end, and must be installed on a 1.0hp (or greater) thru bolt motor. Also used in the JCM, K, and KM series pumps. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 3-3/4" Vane Width ID: 1/4" Eye Diameter OD: 2" Eye Length: 1" Impeller Width OD: 3/4" Seal Seat Depth: Shaft Length: 1-7/16"Shaft Diameter OD: 5/8"Seal Seat Diameter OD: Manufacturer: Jacuzzi/CarvinPump Application: J Series, JCM Series, K Series, KM Series Replaces 05-3863-05,05-3863-05R,05386305R,5069-05A,5386305,600002,C145000,Q-4704,
