Impeller, Carvin J-Series, 0.75 Horsepower : 05-3862-06-R

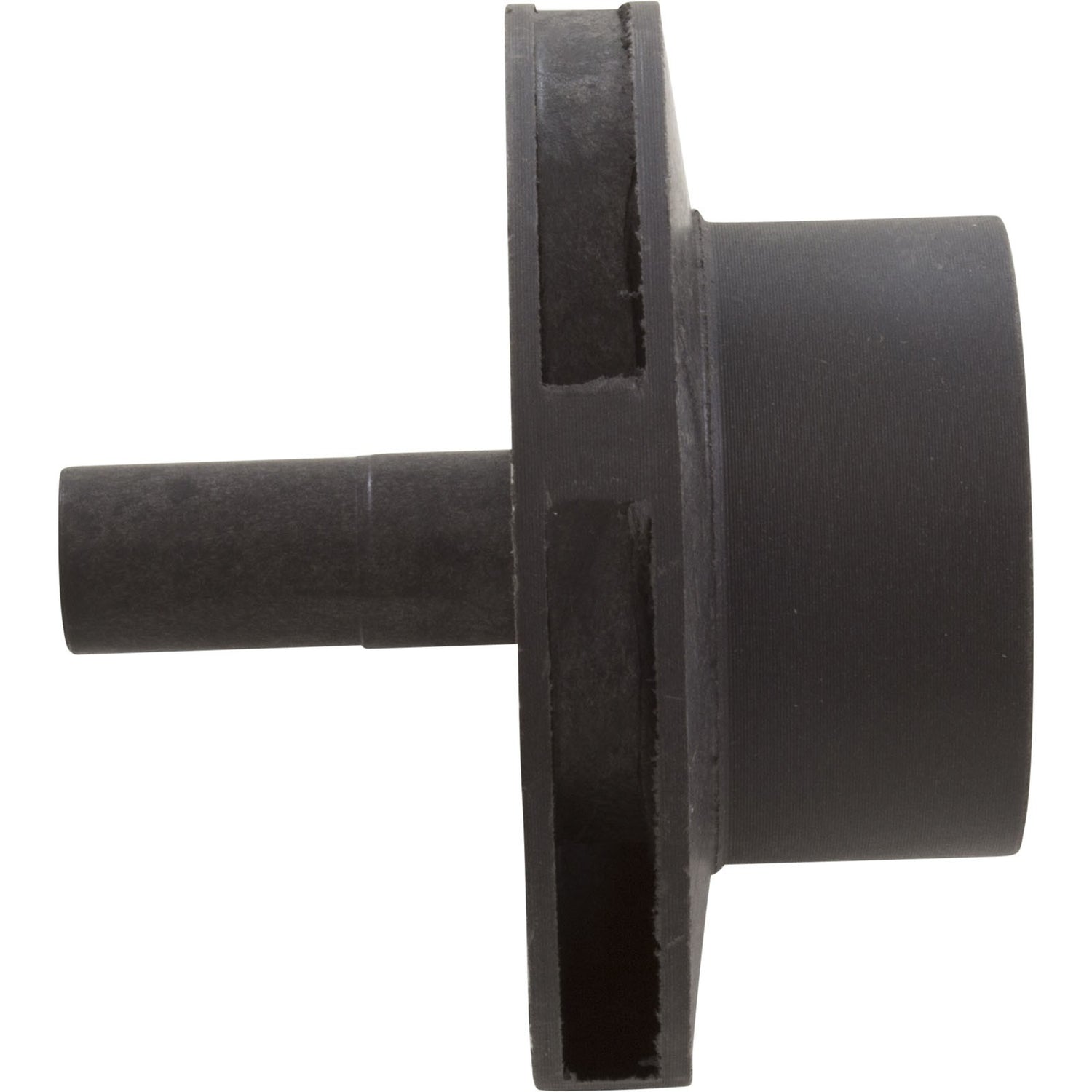

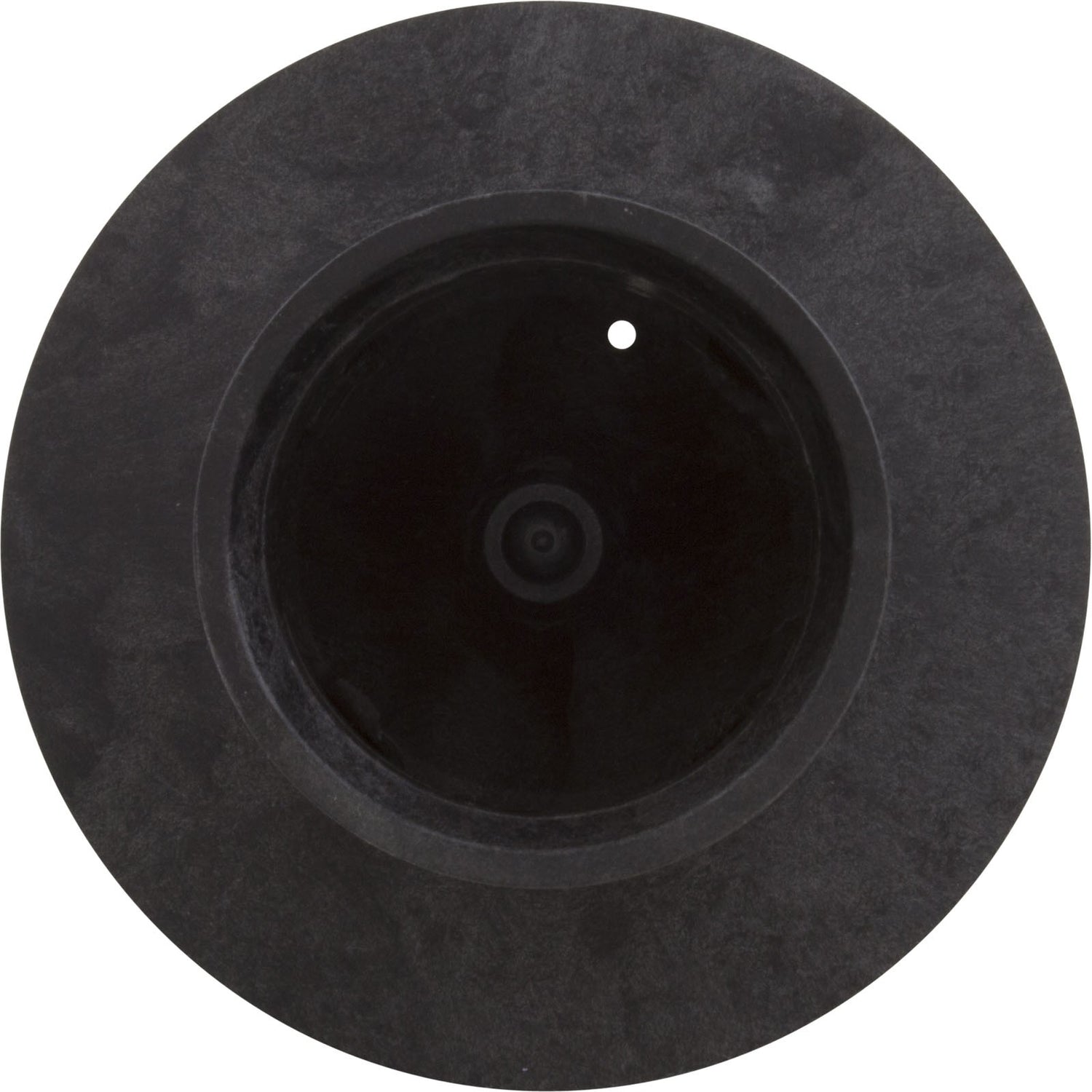

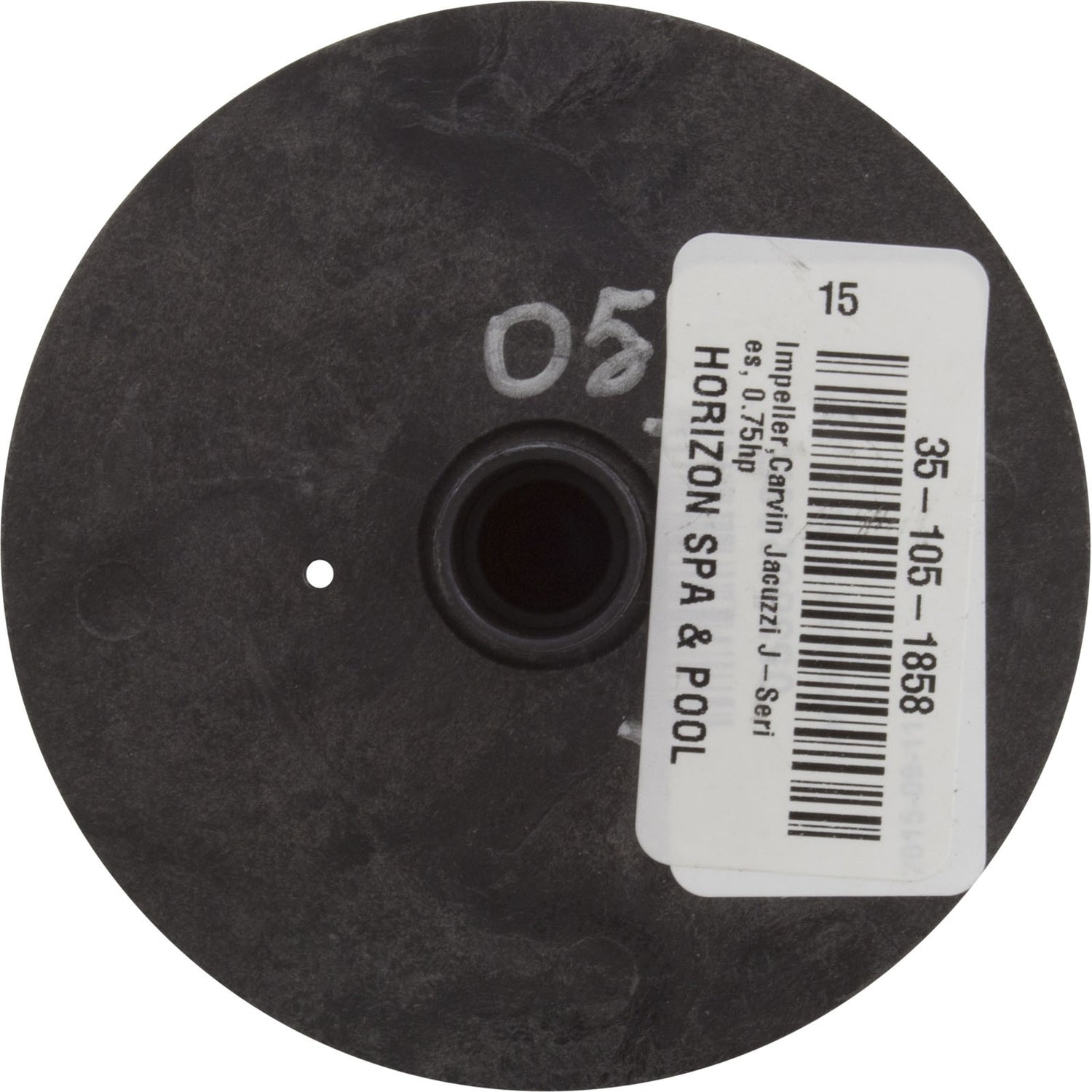

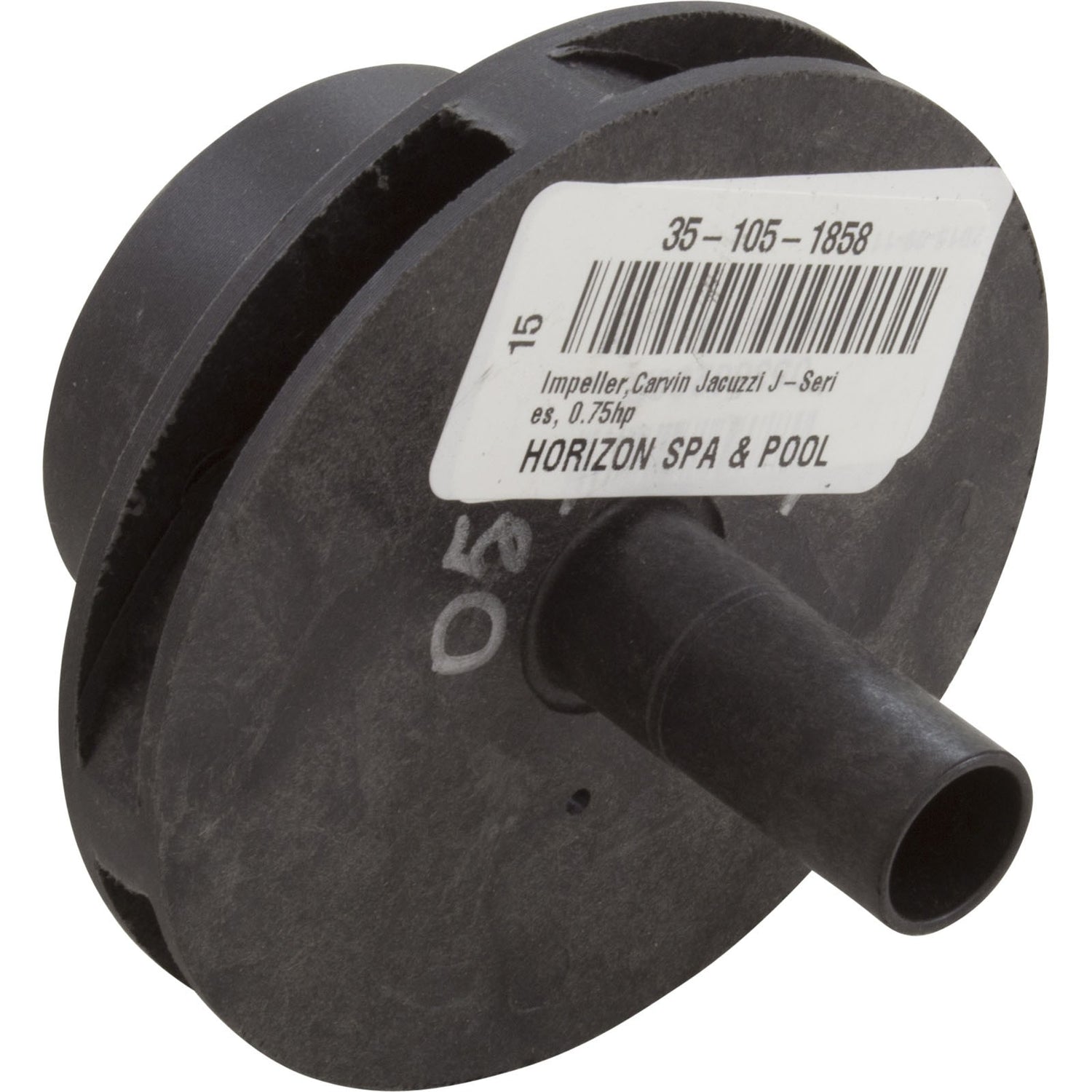

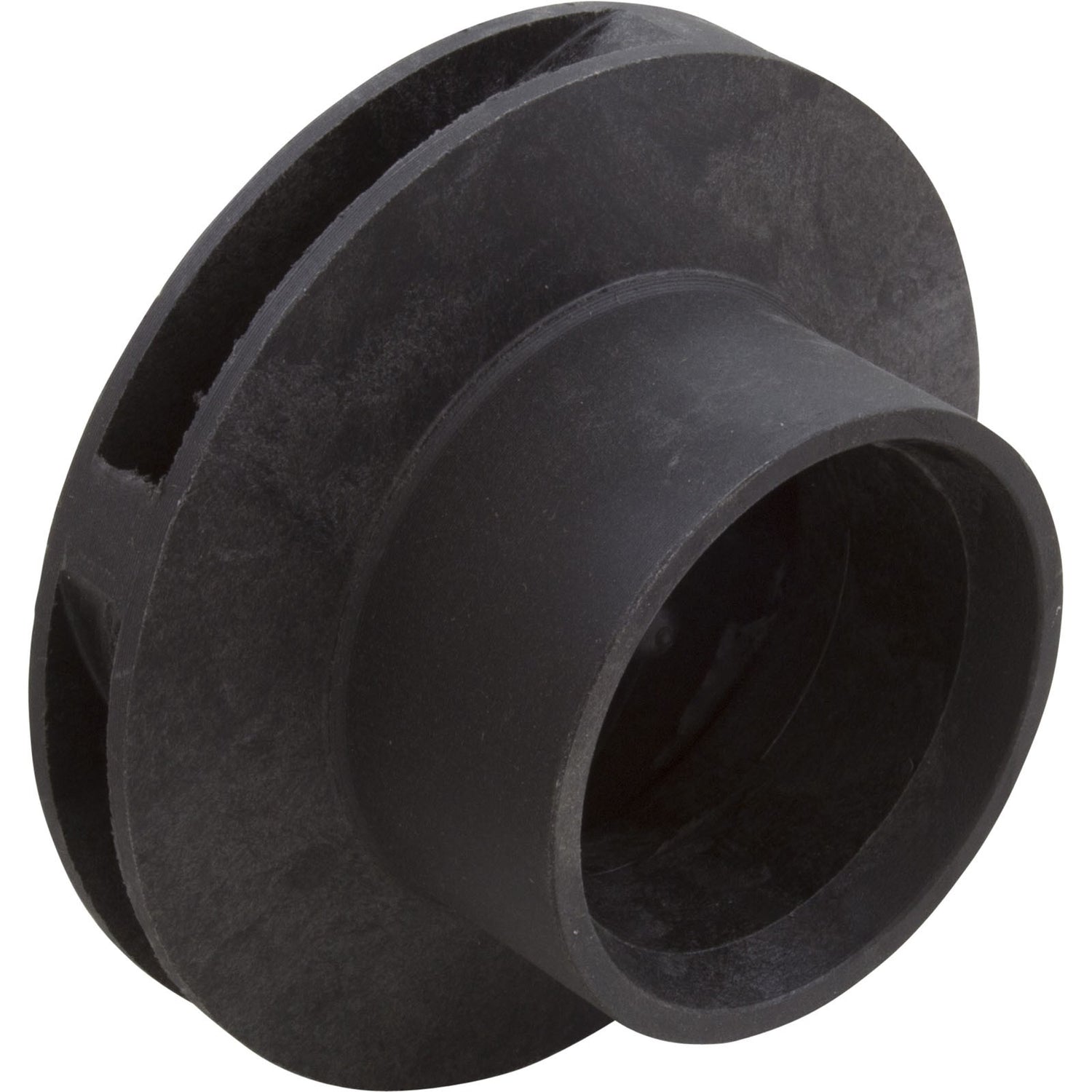

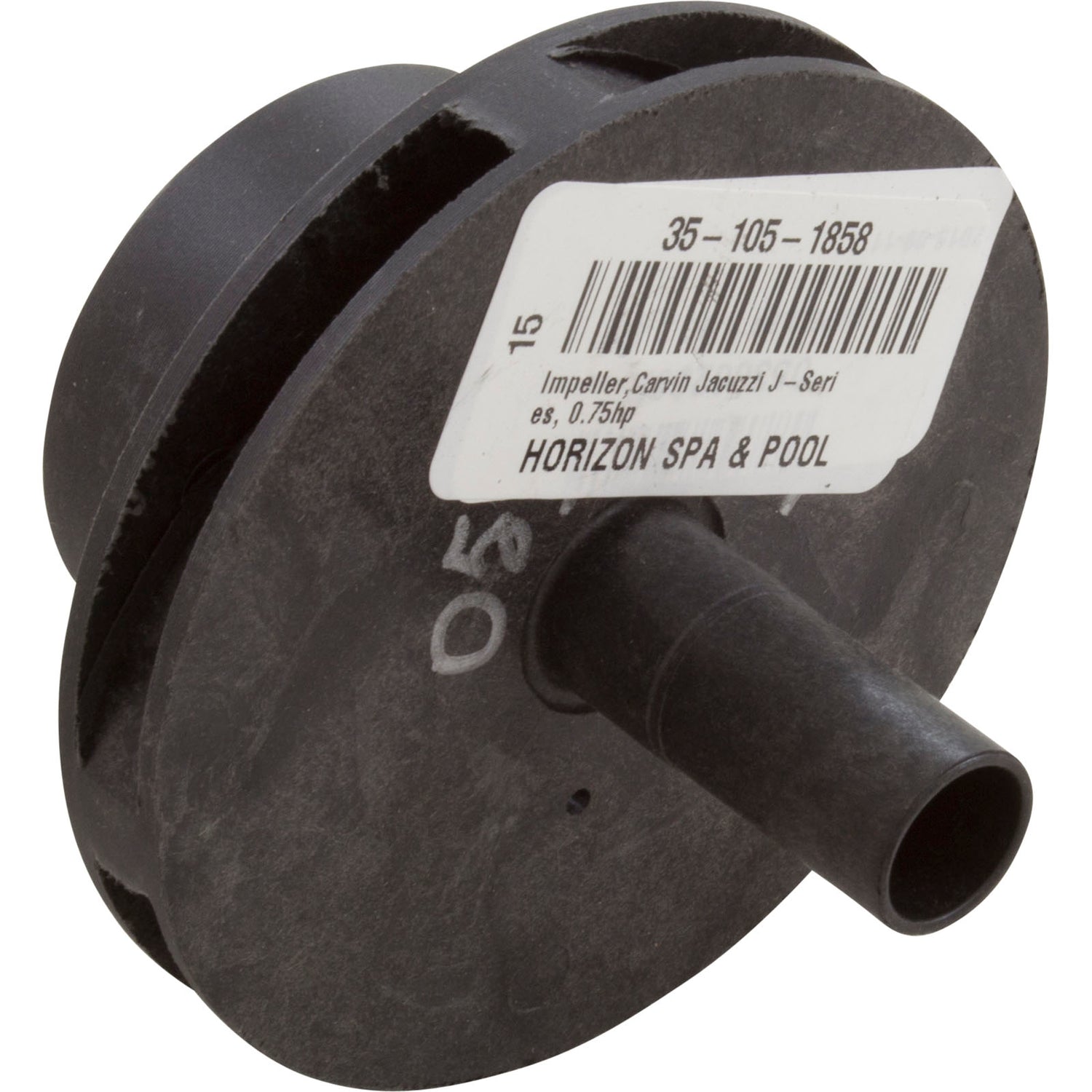

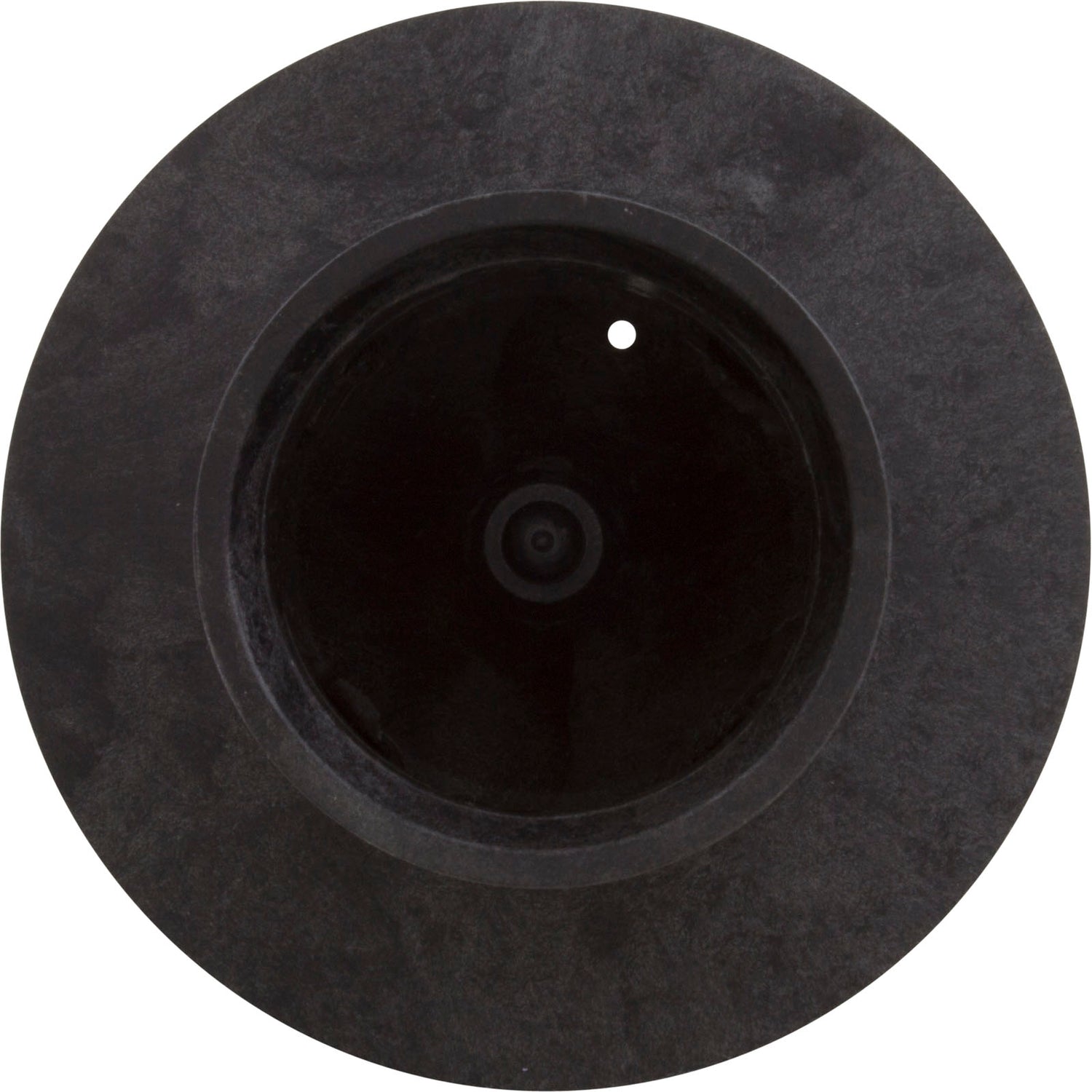

Impeller, Carvin J-Series, 0.75 Horsepower Jacuzzi/Carvin Pump Impeller Closed face impeller made for the J series spa pump by Jacuzzi. Rated at 3/4hp, it is used in a J series pump wet end, and must be installed on a 3/4hp (or greater) thru bolt motor. Also used in the JCM, K, and KM series pumps. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 3-7/16" Vane Width ID: 5/16" Eye Diameter OD: 2" Eye Length: 5/16" Impeller Width OD: 1/2" Seal Seat Depth: Shaft Length: 1-1/2"Shaft Diameter OD: 5/8"Seal Seat Diameter OD: Manufacturer: Jacuzzi/CarvinPump Application: J Series, JCM Series, K Series, KM Series Replaces 05-3862-06,05386206R,5069-24,5386206,613272,9221000,
