Impeller, Carvin Cygnet, 1.5 Horsepower : 05-3939-05-R

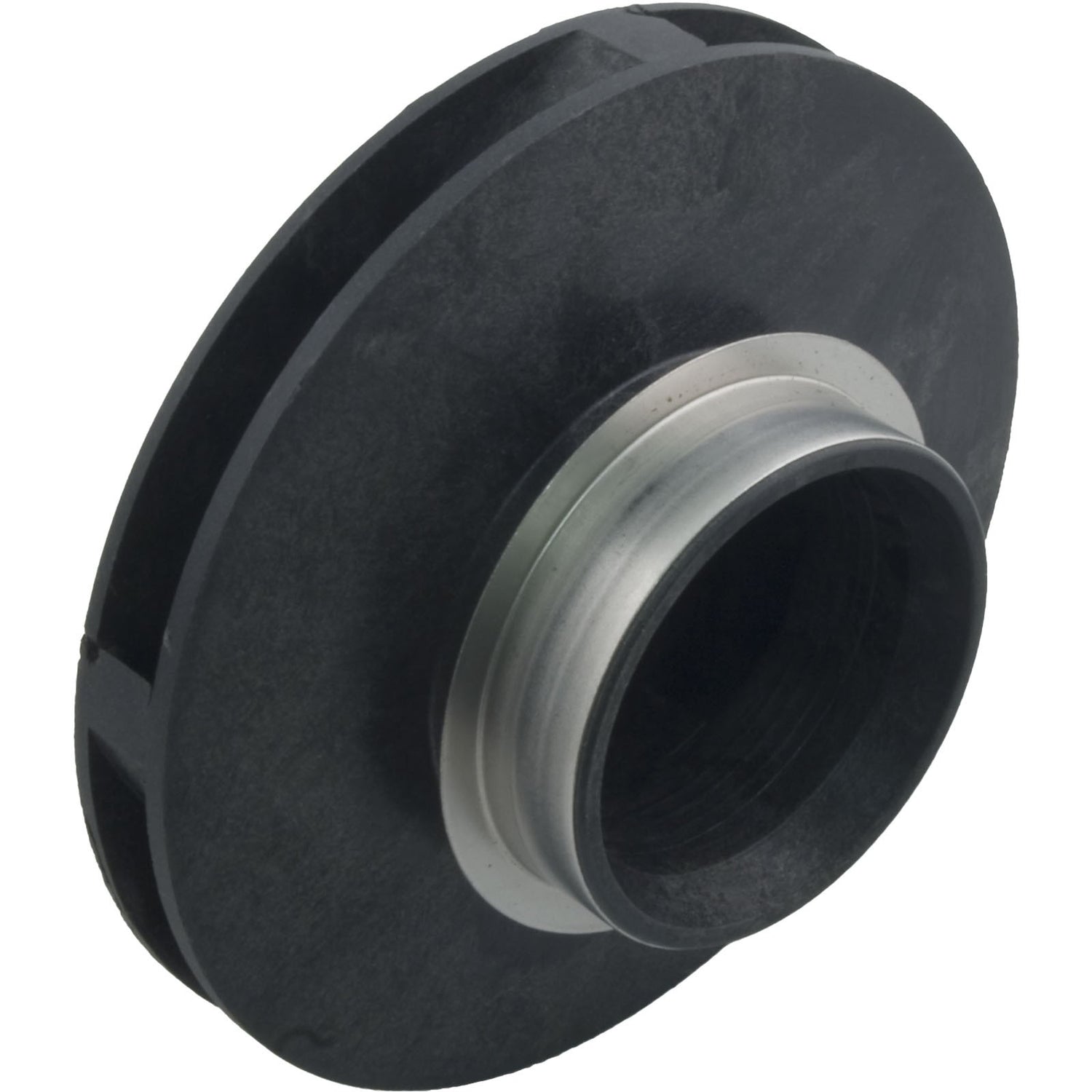

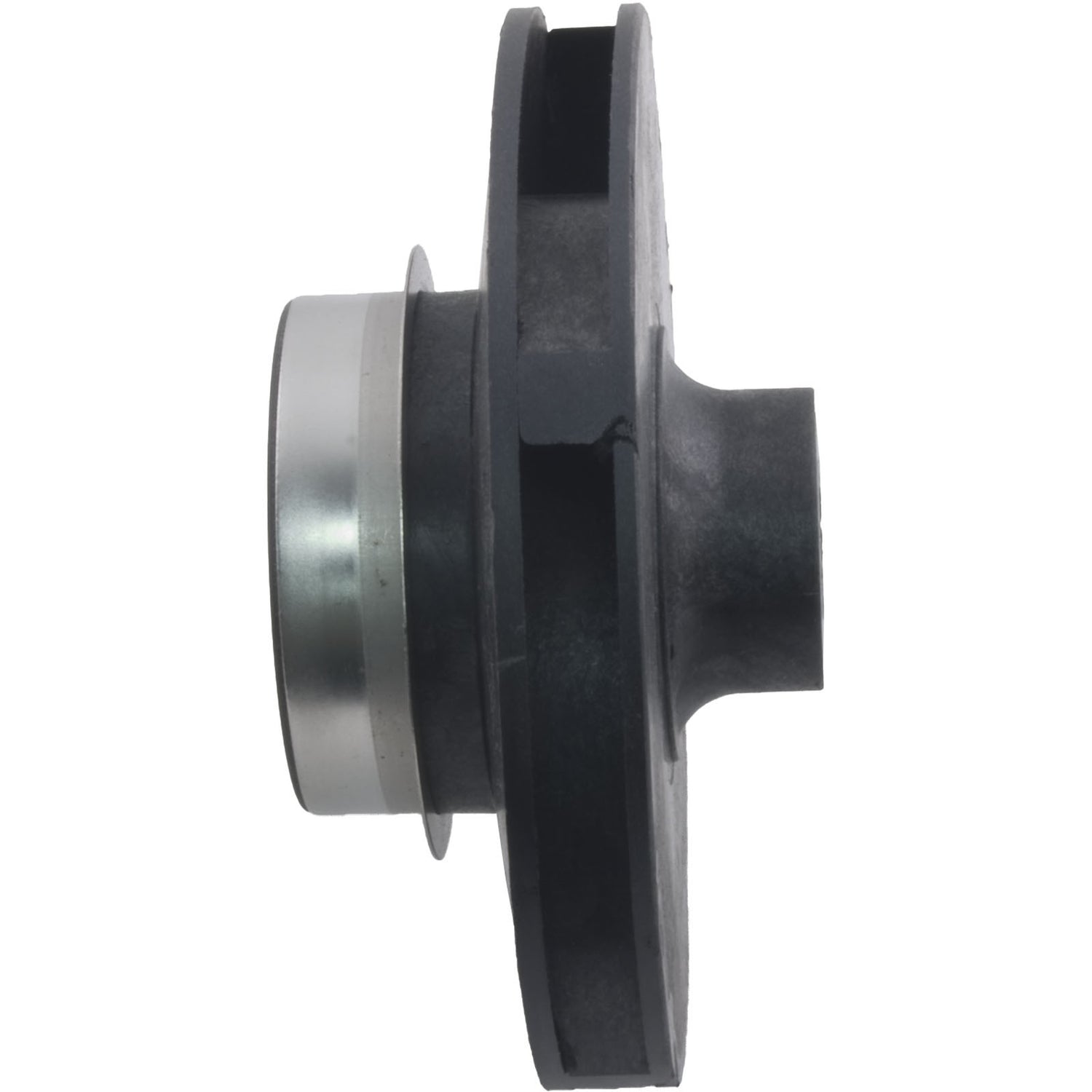

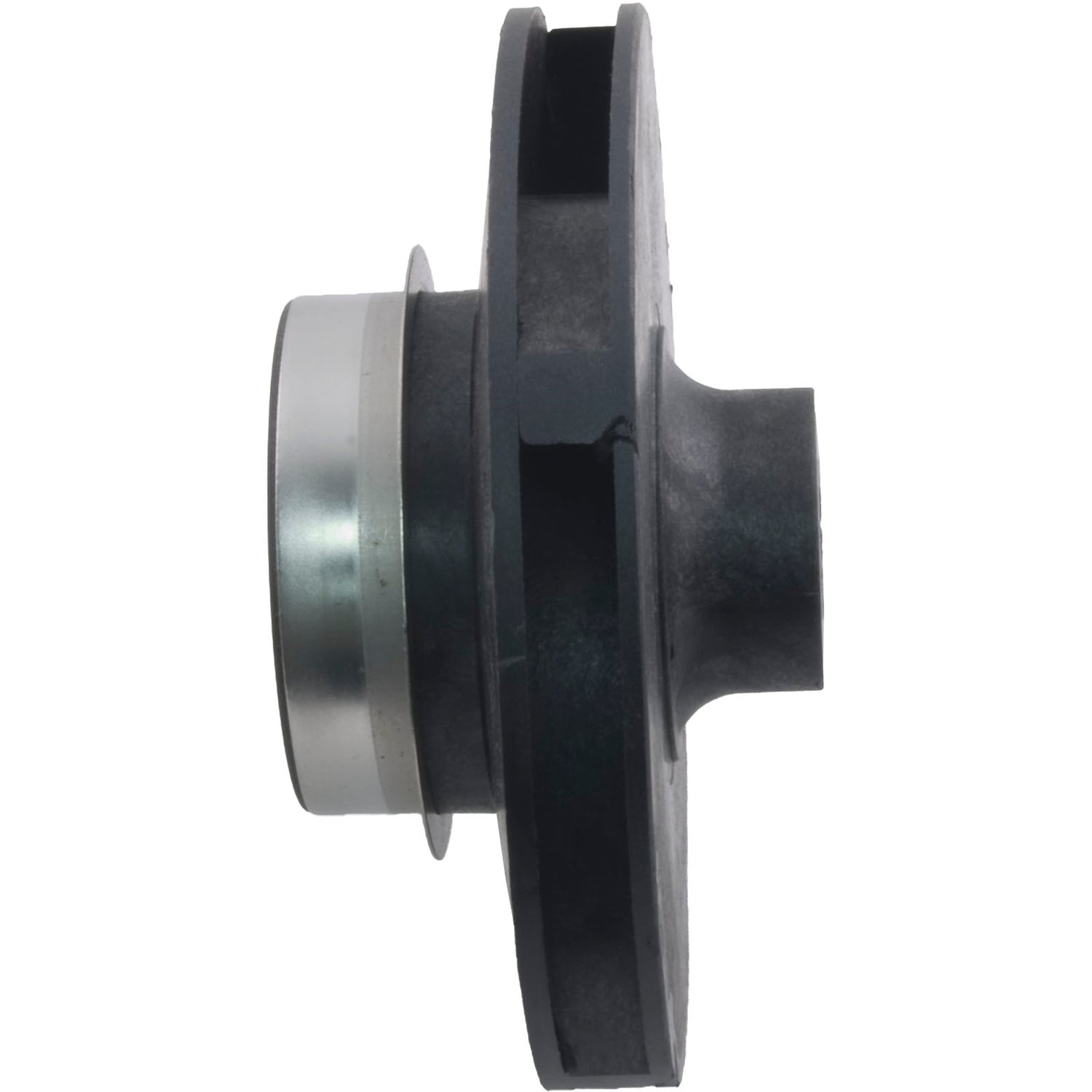

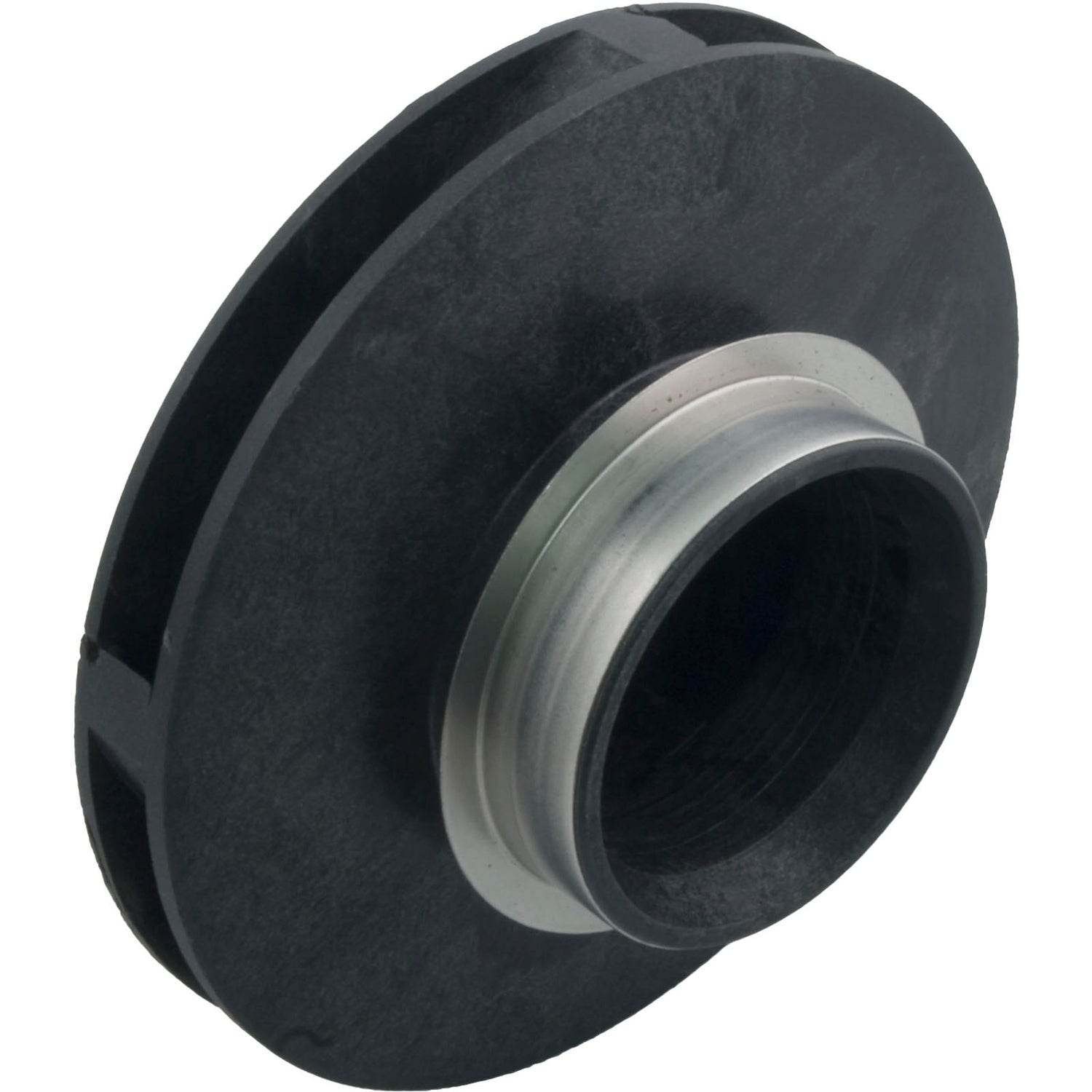

Impeller, Carvin Cygnet, 1.5 Horsepower Jacuzzi/Carvin Pump Impeller Closed face impeller made for the Cygnet series pool pumps by Jacuzzi. Rated at 1.5hp, it is used in a Cygnet pump body, and must be installed on a 1.5hp (or greater) C-face motor with a threaded shaft. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-3/16" Vane Width ID: 5/16" Eye Diameter OD: 2" Eye Length: 1/2" Impeller Width OD: 1/2" Seal Seat Depth: 5/8"Shaft Length: Shaft Diameter OD: Seal Seat Diameter OD: 1-3/16"Manufacturer: Jacuzzi/CarvinPump Application: Cygnet Replaces 05393905R,05393905R000,5063-47,600304,
