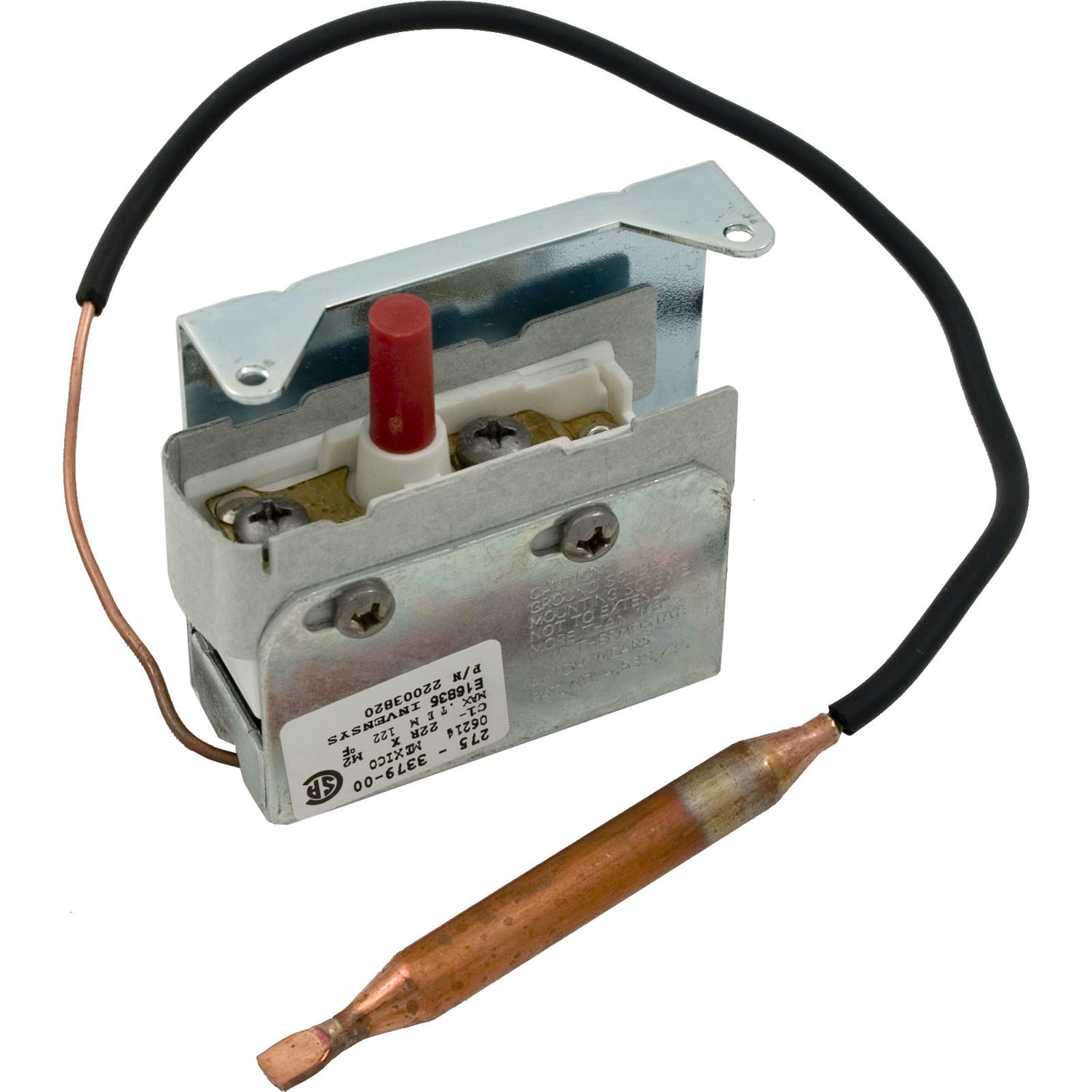

Hi-Limit, 5/16" dia, 12"Cap, SPST, Screw Terminal, Coates 61L/E-6 : 22003820

Hi-Limit, 5/16" dia, 12"Cap, SPST, Screw Terminal, Coates 61L/E-6 Hi Limits Single pole rated at 25 amps with temperature rating set at 121°F. Best results are obtained when the bulb is installed in a dry well or groove tube at or immediately before the heater 12" capillary length, 5/16" bulb thickness This is a safety device! If it is found to be out of calibration, do not attempt to perform a field adjustment! Replace bad hi limit with a new one Hi-Limit Application: Coates Hi-Limit Style: Capillary Bulb Diameter: 5/16" Bulb Length: 3" Capillary Length: 12" Pole/Throw: Single Pole Single Throw (spst) Hi-Limit Amperage: 25AElectrical Connection: Screw Terminal Replaces 603891,6240-27,CHC-151-7588,
