Dimension One Spas | SKU:
46-456-1525
Heater, FloThru, D-1, 15" x 2", 230v, 4.0kW : 1563-08
Regular price
$212.25
Unit price
Unavailable
Shipping calculated at checkout.
Heater, FloThru, D-1, 15" x 2", 230v, 4.0kW : 1563-08 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Ships Same Day (M-F) if ordered before 12pm EST otherwise will ship next business day. Shipping Policy
30 Day Returns
30 Day Returns
30 Day Returns / 10% Restocking Fee
Full Return Policy
Heater, FloThru, D-1, 15" x 2", 230v, 4.0kW : 1563-08
Regular price
$212.25
Unit price
Unavailable
Dimension One Spas | SKU:
46-456-1525
Regular price
$212.25
Unit price
Unavailable
Shipping calculated at checkout.
Heater, FloThru, D-1, 15" x 2", 230v, 4.0kW : 1563-08 is backordered and will ship as soon as it is back in stock.
Description
Description

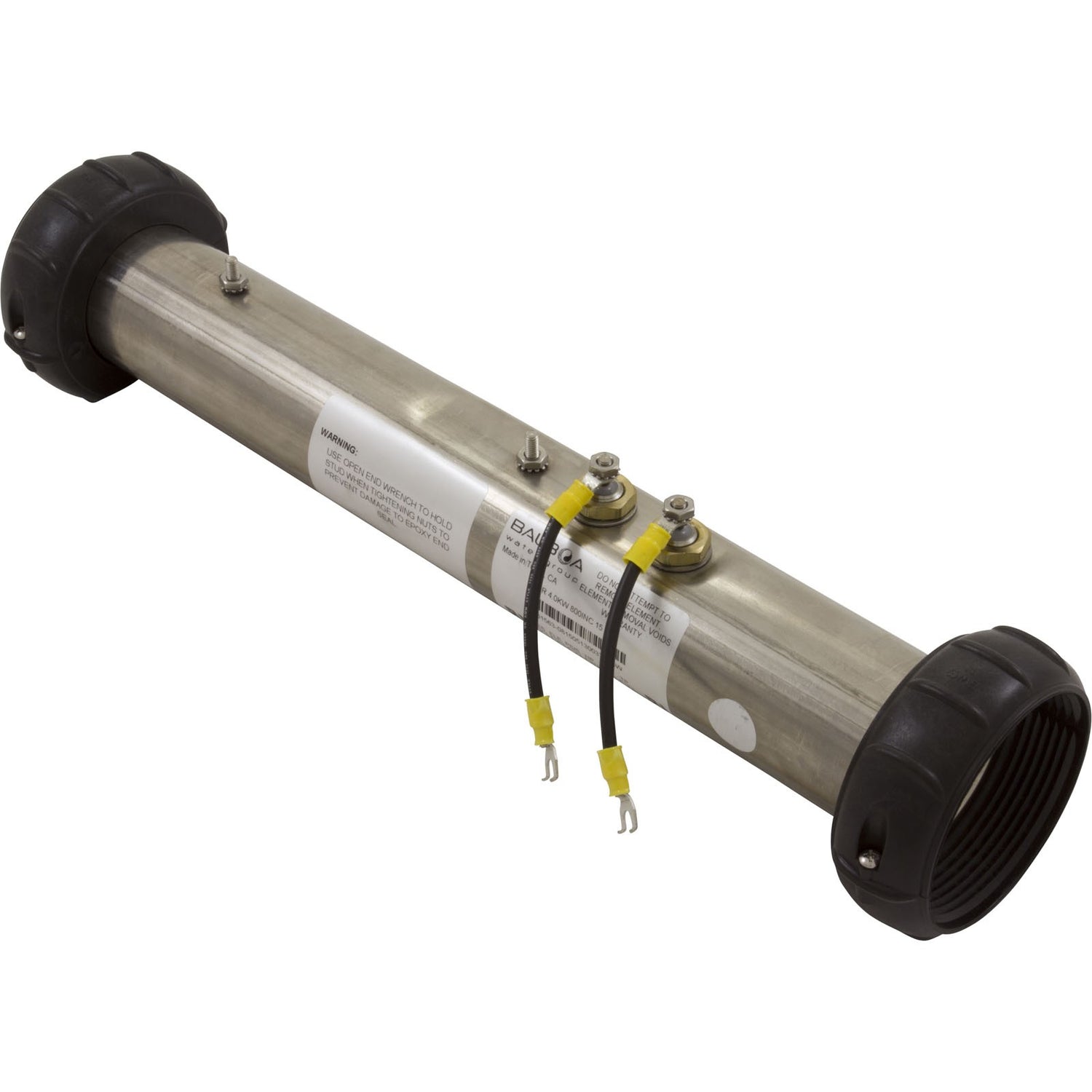

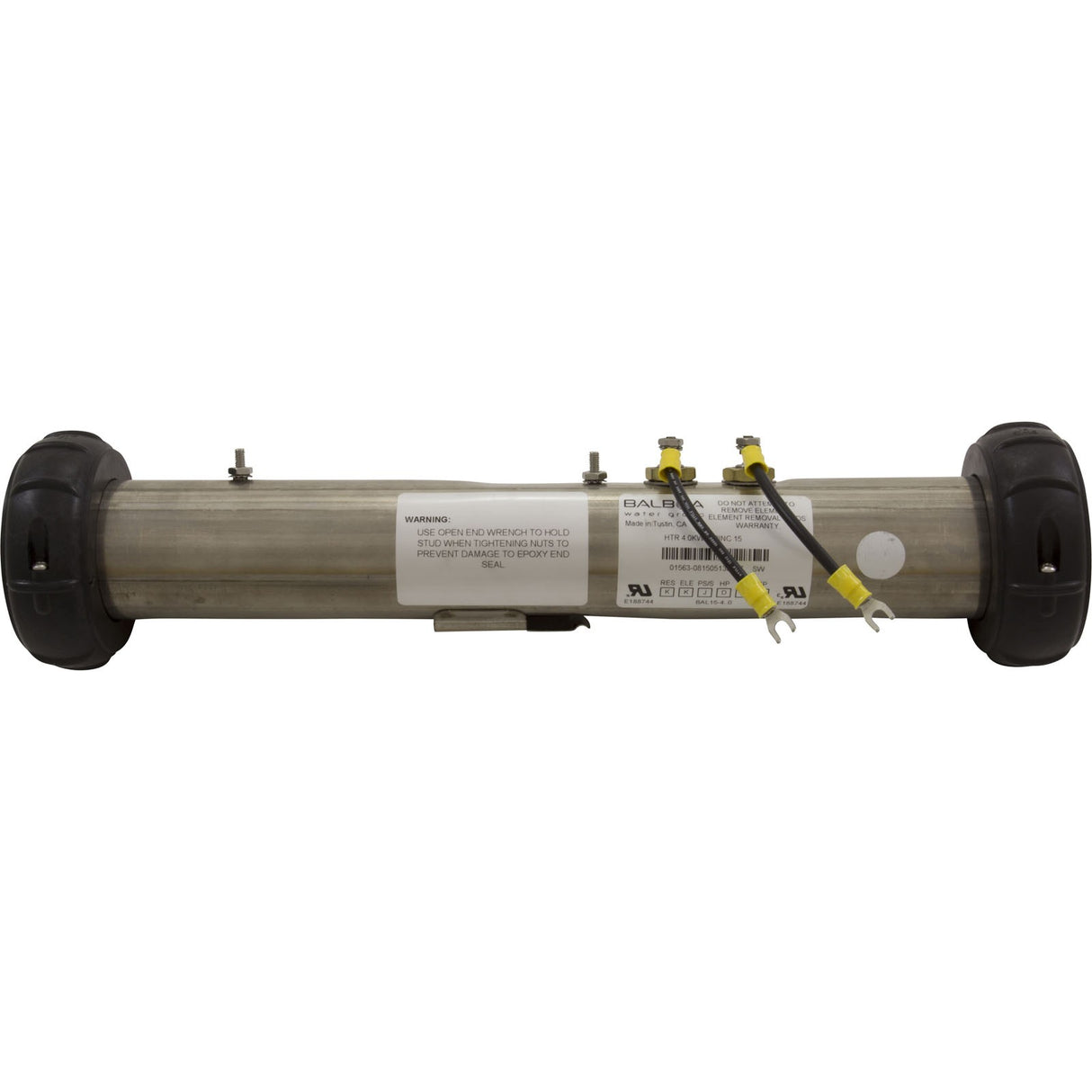

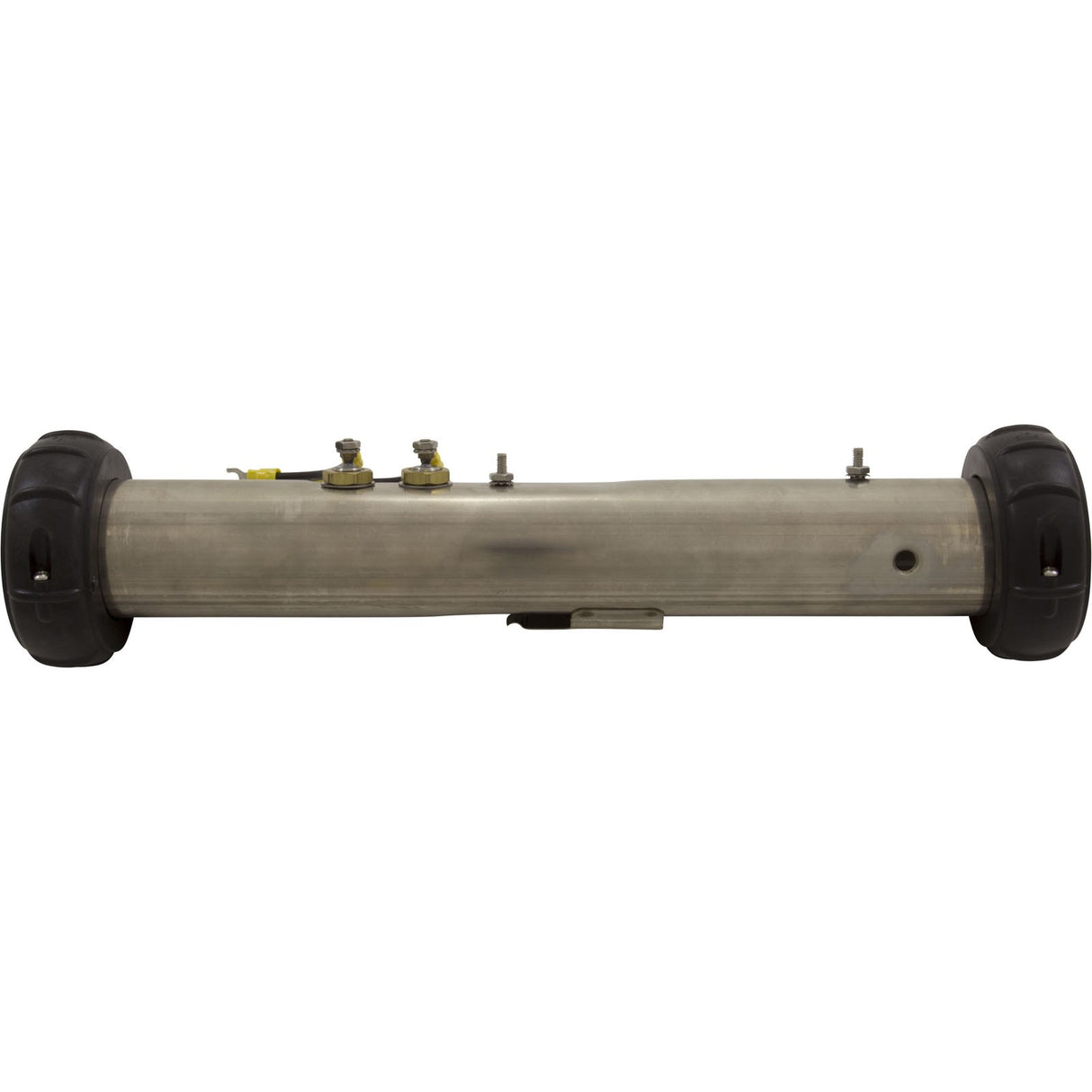

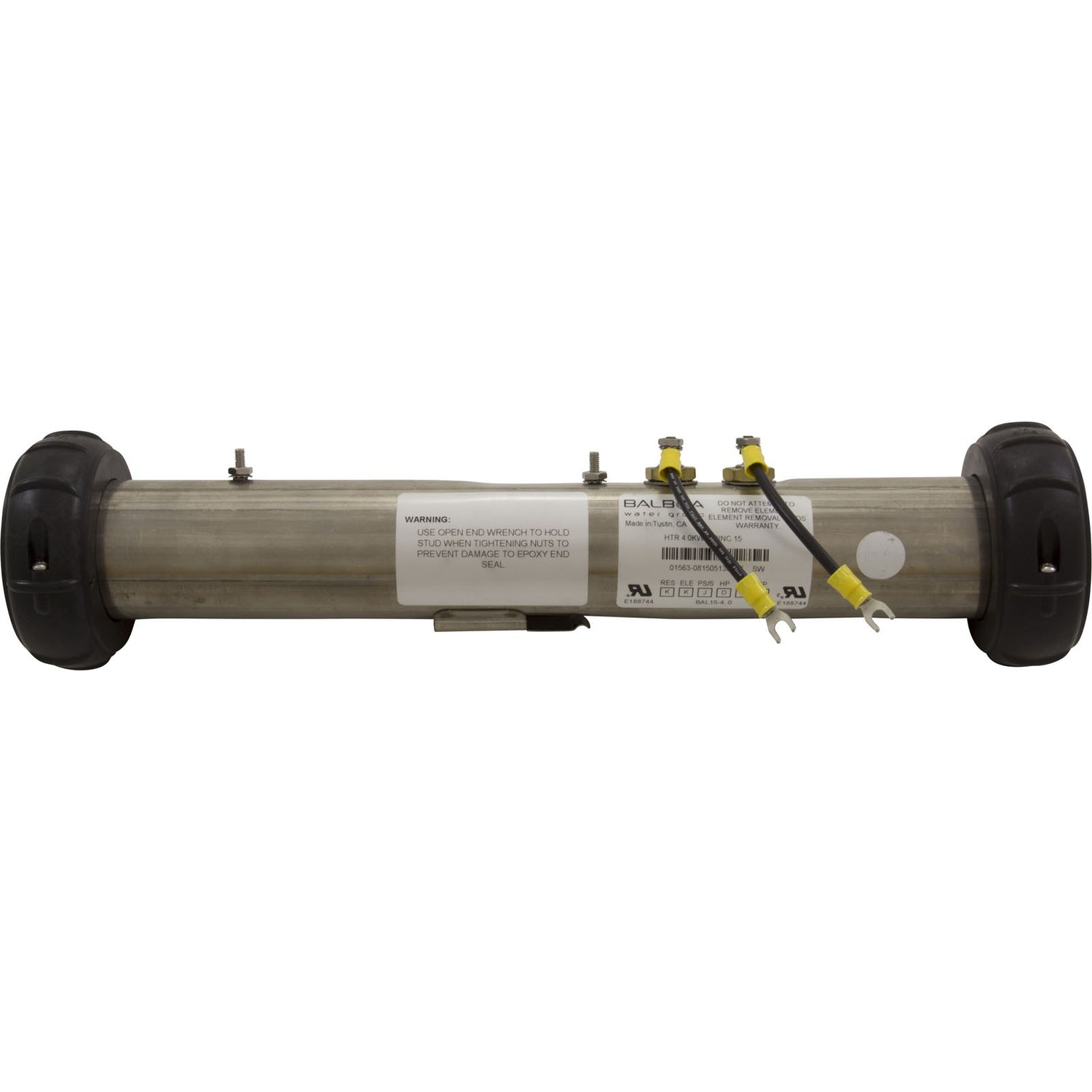

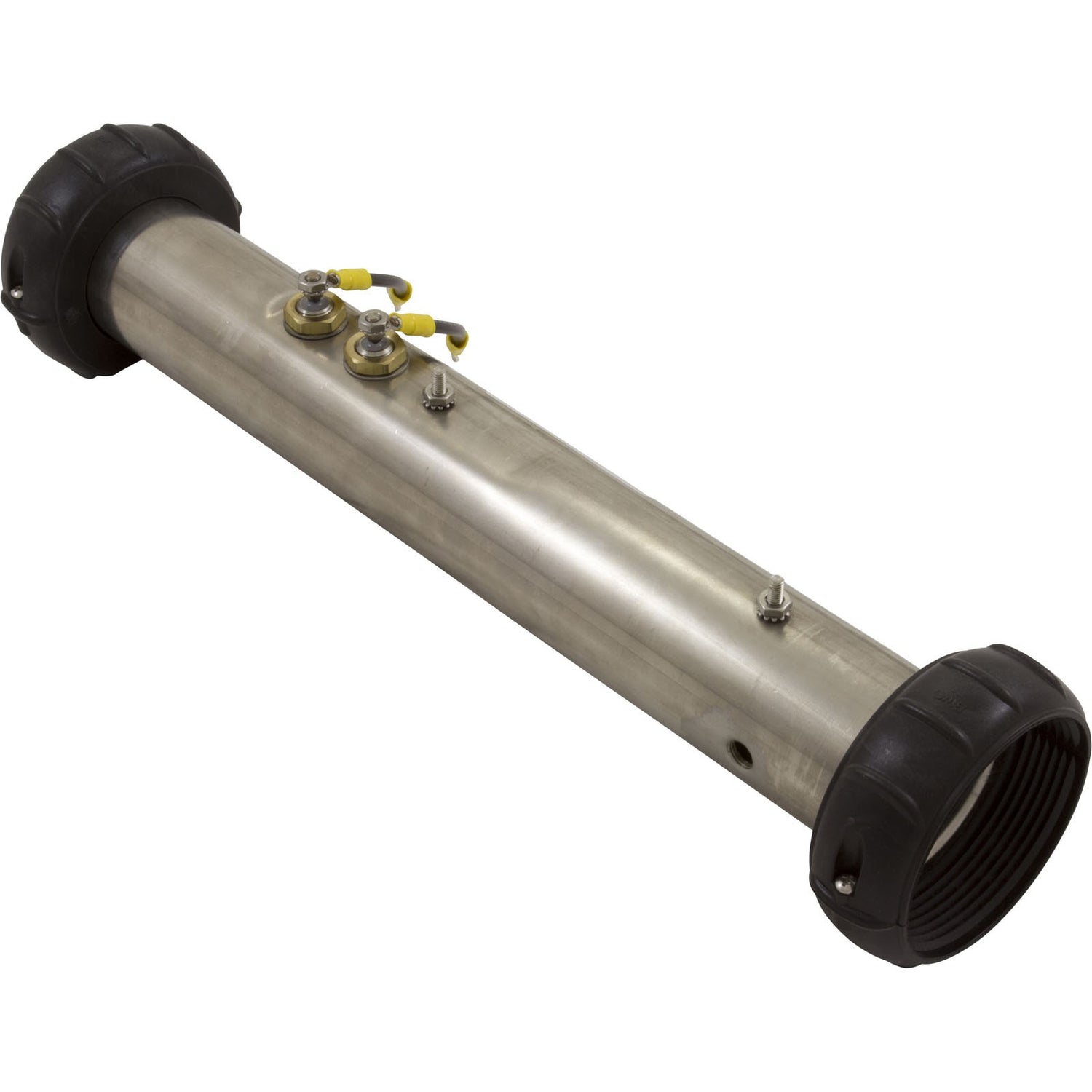

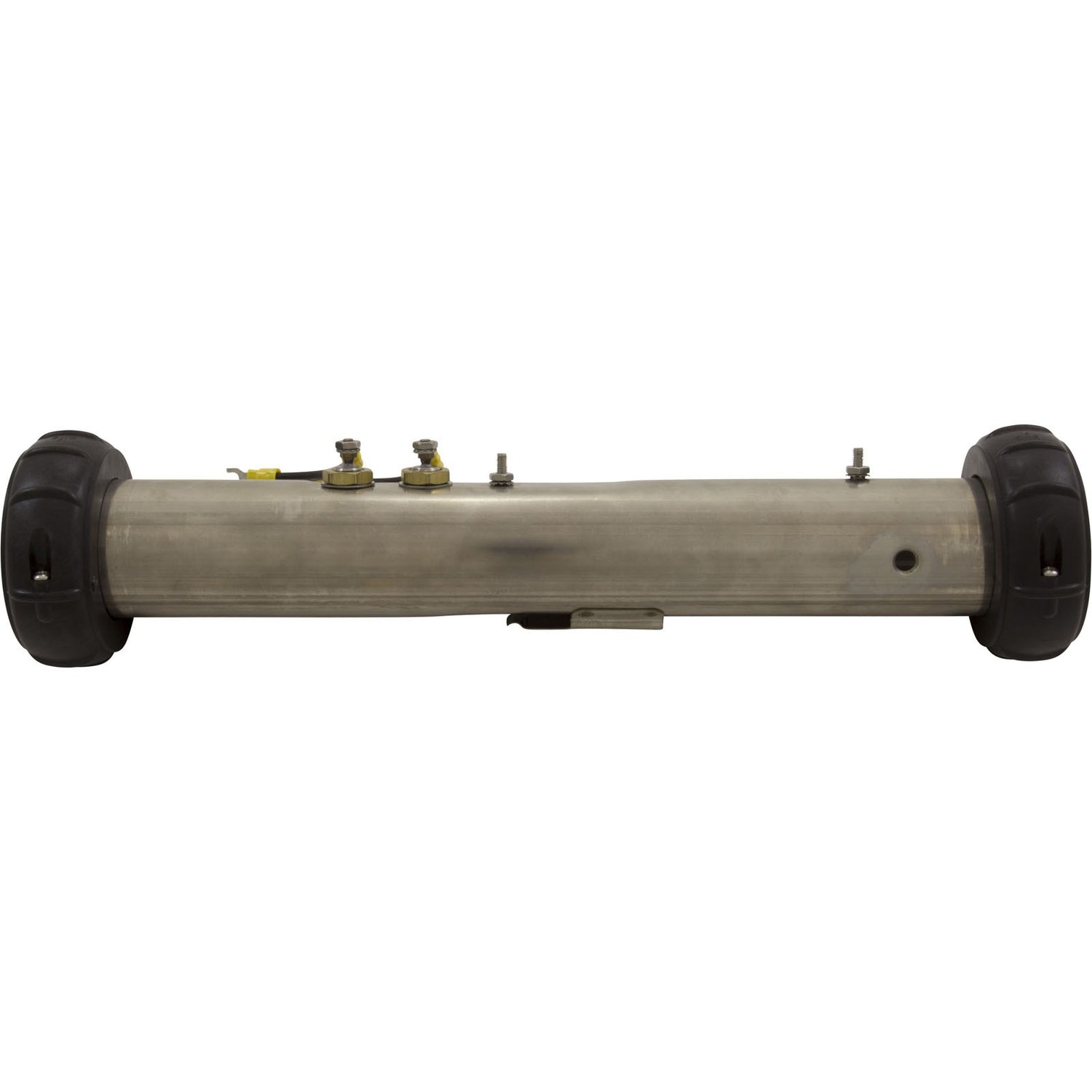

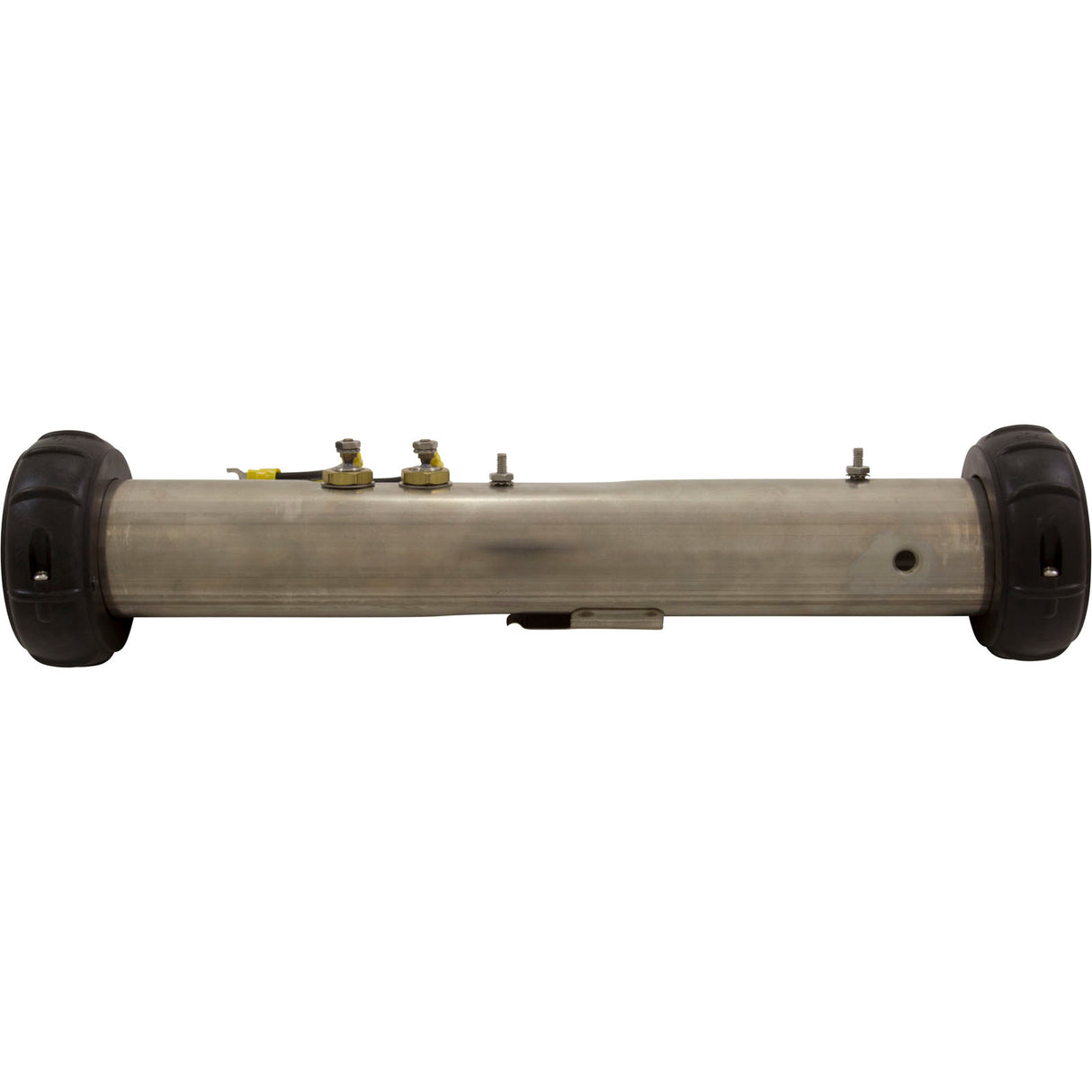

Heater, FloThru, D-1, 15" x 2", 230v, 4.0kW
Dimension One
Stainless steel replacement 4.0kW/230v 15" x 2" heater assy. Sensors can be mounted under the heater cover plate located 180 degrees from the heater terminals. Shipped with heater split nuts. Pressure switch, gaskets, and tailpieces not included
Housing Configuration: Straight
Heater Length: 15"
Lead End Terminal Location: 4-1/4"
Threaded Tap Orientation: 3 O`Clock
Threaded Tap Location: 13-1/8"-From-Leading-End
Kilowatts: 1.0kW, 4.0kW
Voltage: 115v, 230vSensor Stud Orientation: 6 O`ClockMounting Stud Type: FixedHeater Size: 2"Heater Application: Dimension One
Replaces
01563-12C,1563-12,389703,48-3600-10-158H,C2400-0158,E2400-004,
