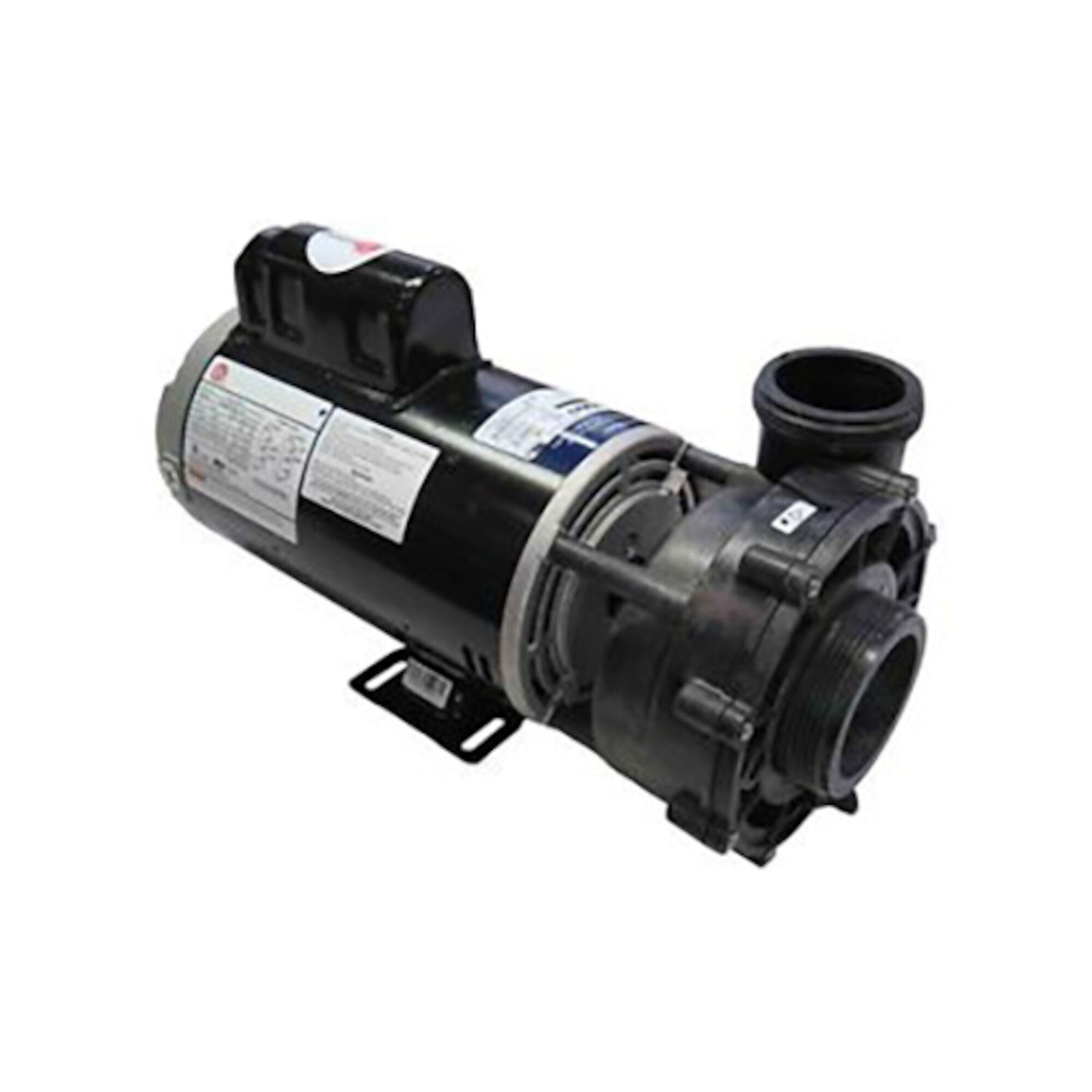

Pump, Aqua-Flo FMXP2e, 4.0HP, SD, 56-Frame, 2-Speed, 230V, 15.0/4.5A, 2-1/2" x 2" MBT, Unions : 05340011-5040

Product Details

The Aqua-Flo FMXP2e is a powerful 4.0 HP jet pump designed for multi-jet spa and hot tub applications. Featuring a 2-speed motor and energy-efficient performance, it supports higher flow rates to enhance spa features and user experience.

• Horsepower: 4.0 HP
• Voltage: 230 V
• Amperage: 15.0 / 4.5 A (High/Low Speed)
• Frame Size: 56-Frame
• Speed: 2-Speed Motor
• Intake & Discharge Size: 2-1/2" x 2" MBT (Male Buttress Thread)
• Application: Ideal for multi-jet spa and hot tub booster jet pump use
• Flow Rate: Up to 280 GPM
• Motor Frame Options: 48 or 56 frame motors available
• Customization: Discharge orientation adjustable to 4 positions; multiple wet-end colors; various compression fittings and power cable options
• Certifications: cULus or cURus certified
• Warranty: 2 years
• Alternate Part Numbers: 1-00-0230, 05334034-2311, 05340011-5040, 05340015-2000, 05340015-2300, 05340015-5061, 05340022-2361, 05340022-5361

Note: Pump and motor manufacturers reserve the right to change motor styles or models without notice. Functionality remains consistent despite possible visual differences.
