Description
Description
Product Details

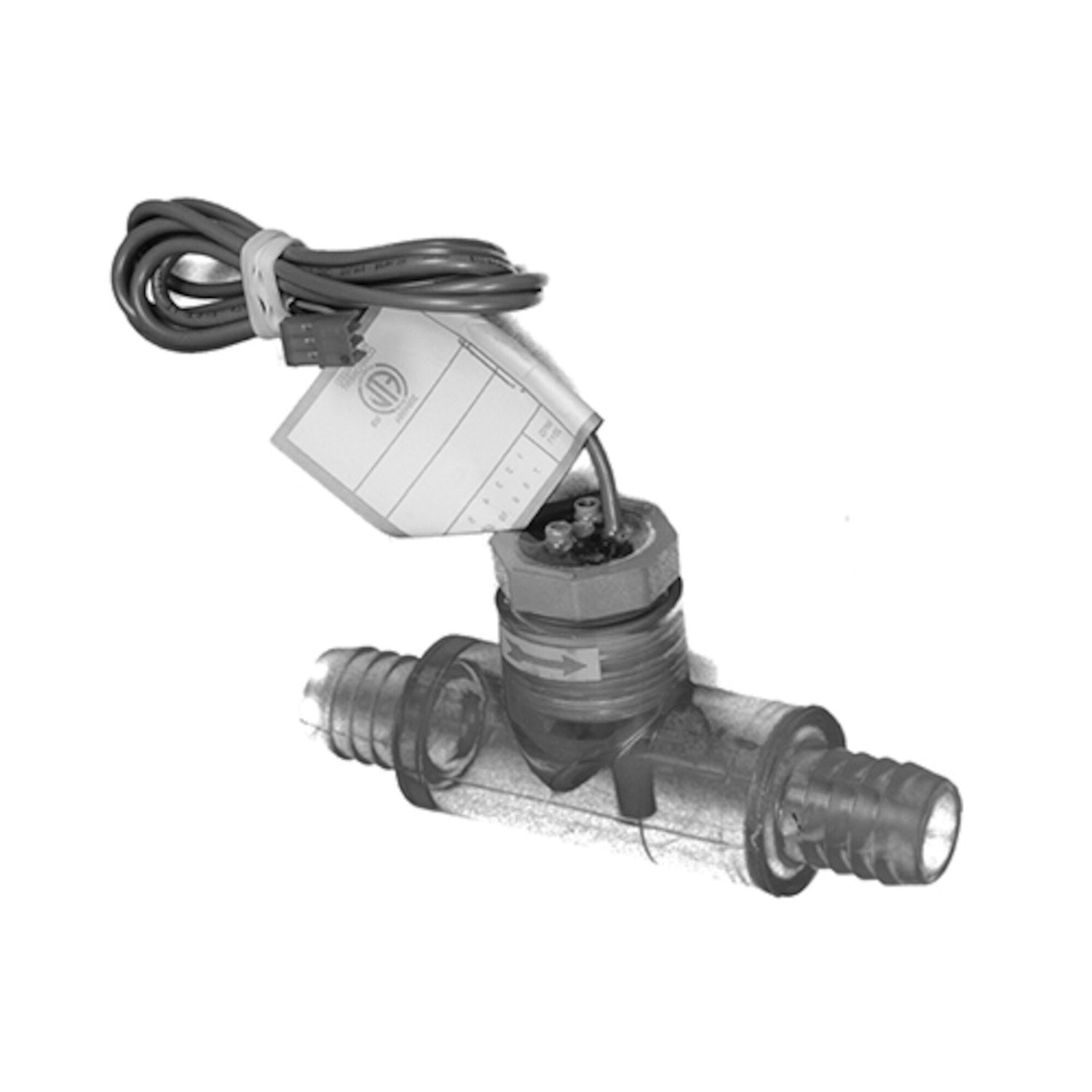

The Harwil Q-12 Flow Switch is a versatile and reliable fluid flow verification device widely used in pool, spa, and fluid control applications since the mid-1980s. Factory set for LA Spas, it ensures proper flow to protect equipment and maintain system safety.
Flow Switch, Harwil, 1/2" MPT, Factory Set For LA Spas
- Model: Q12DSCSLA
- Connection Size: 1/2" Male Pipe Thread (MPT)
- Connector: 3-pin MTA connector with two wires
- Flow Range: 0.7 to 590 gallons per minute (GPM)
- Power Rating: 1 Amp
- Pressure Drop: Very low, typically less than 1.0 psig at normal flow
- Compatibility: Suitable for pipe sizes from 3/4" to 6"
- Factory Settings: Pre-configured specifically for LA Spas
- Function: Verifies fluid flow to protect equipment such as water heaters, chillers, and salt chlorine generators
- Electrical Switching Range: Switches from 5 VDC up to 240 VAC
- Additional Use: Powers driving coils of small ice cube relays and some 30A power relays
- Alternate Part Numbers: Q-12DS-C2/LASPAS with tee and connector (Harwil)
The Harwil Q-12 flow switch provides flexible, factory adjustable parameters to meet diverse application requirements. It is trusted by major pool and spa manufacturers to ensure safe and efficient operation by confirming sufficient fluid flow before activating critical systems.
