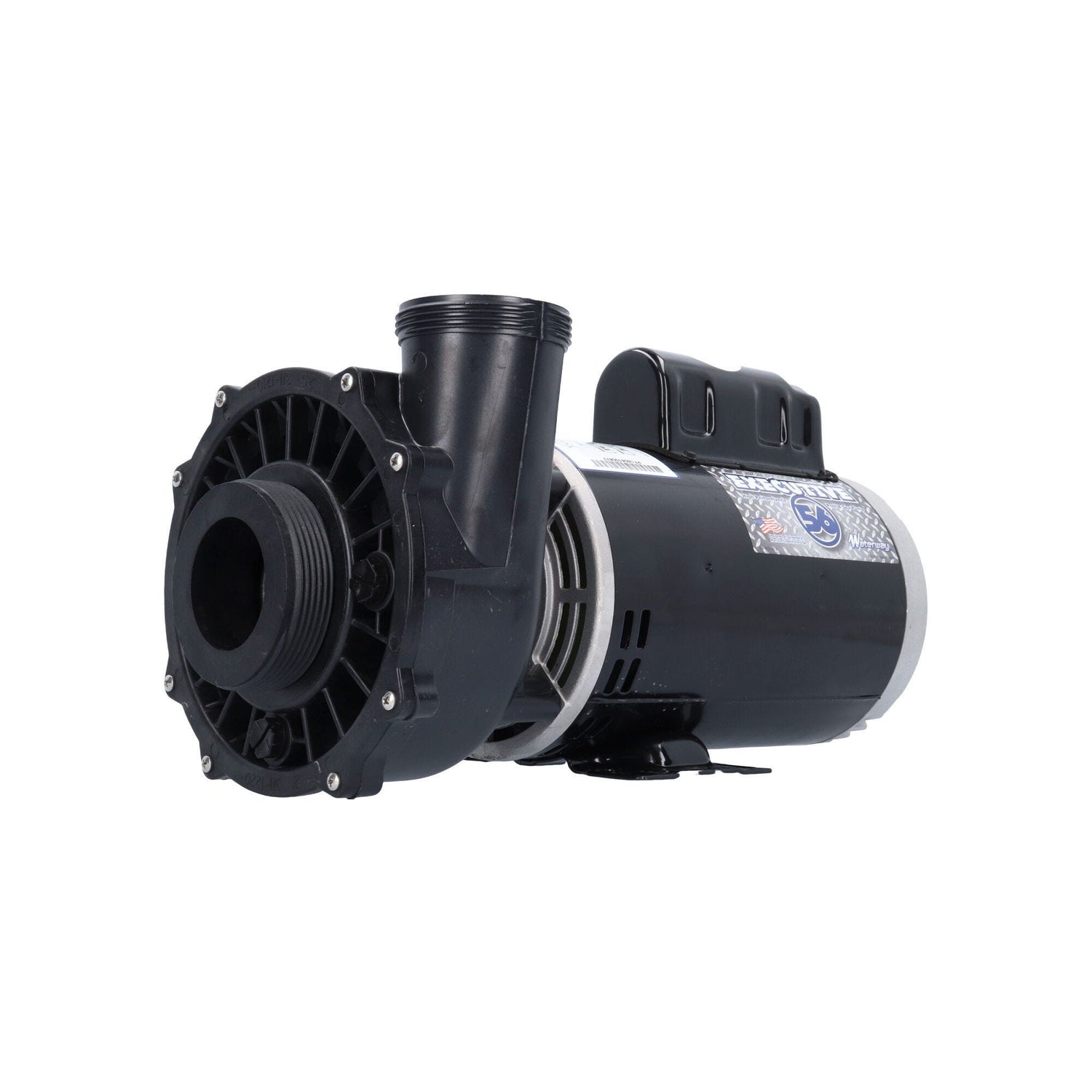

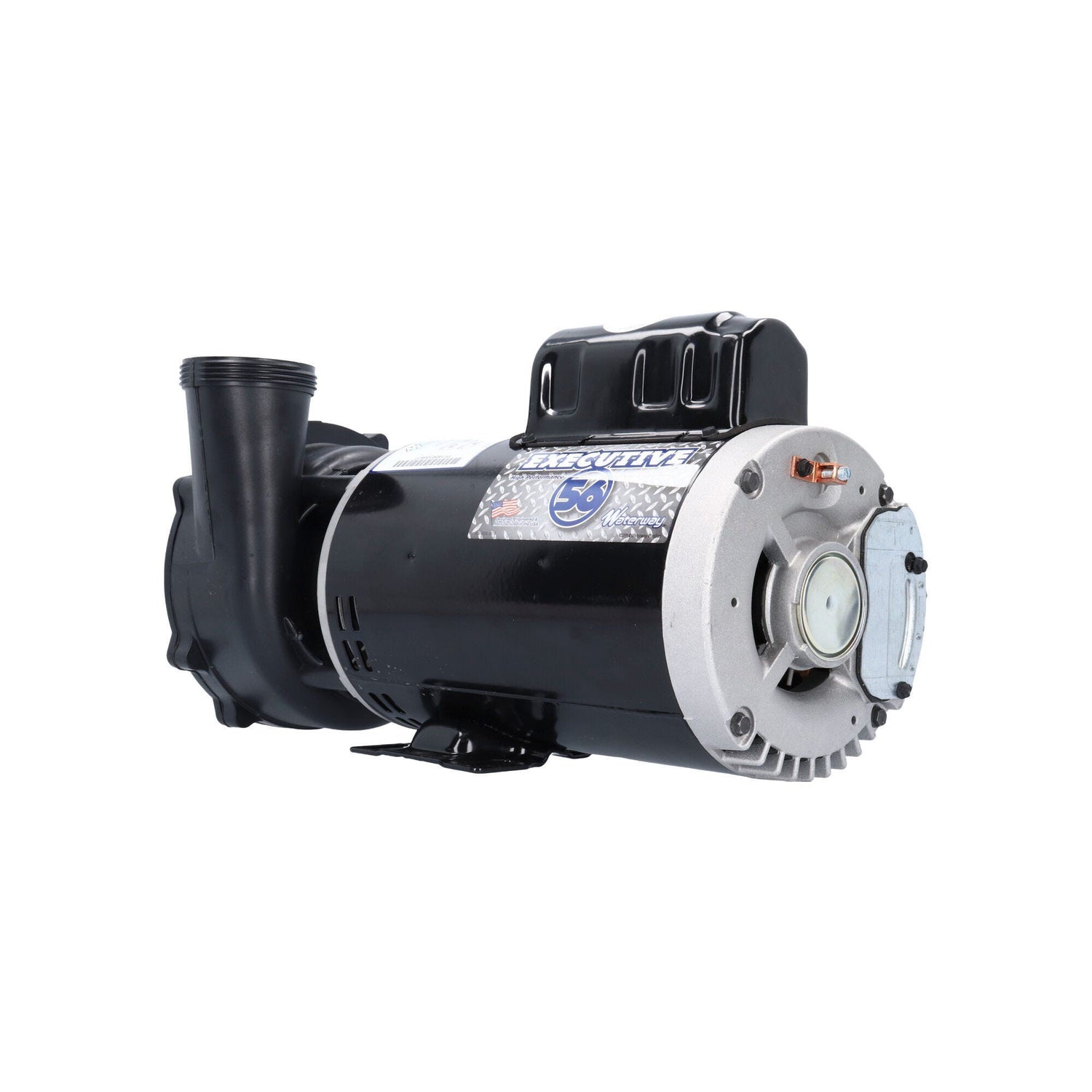

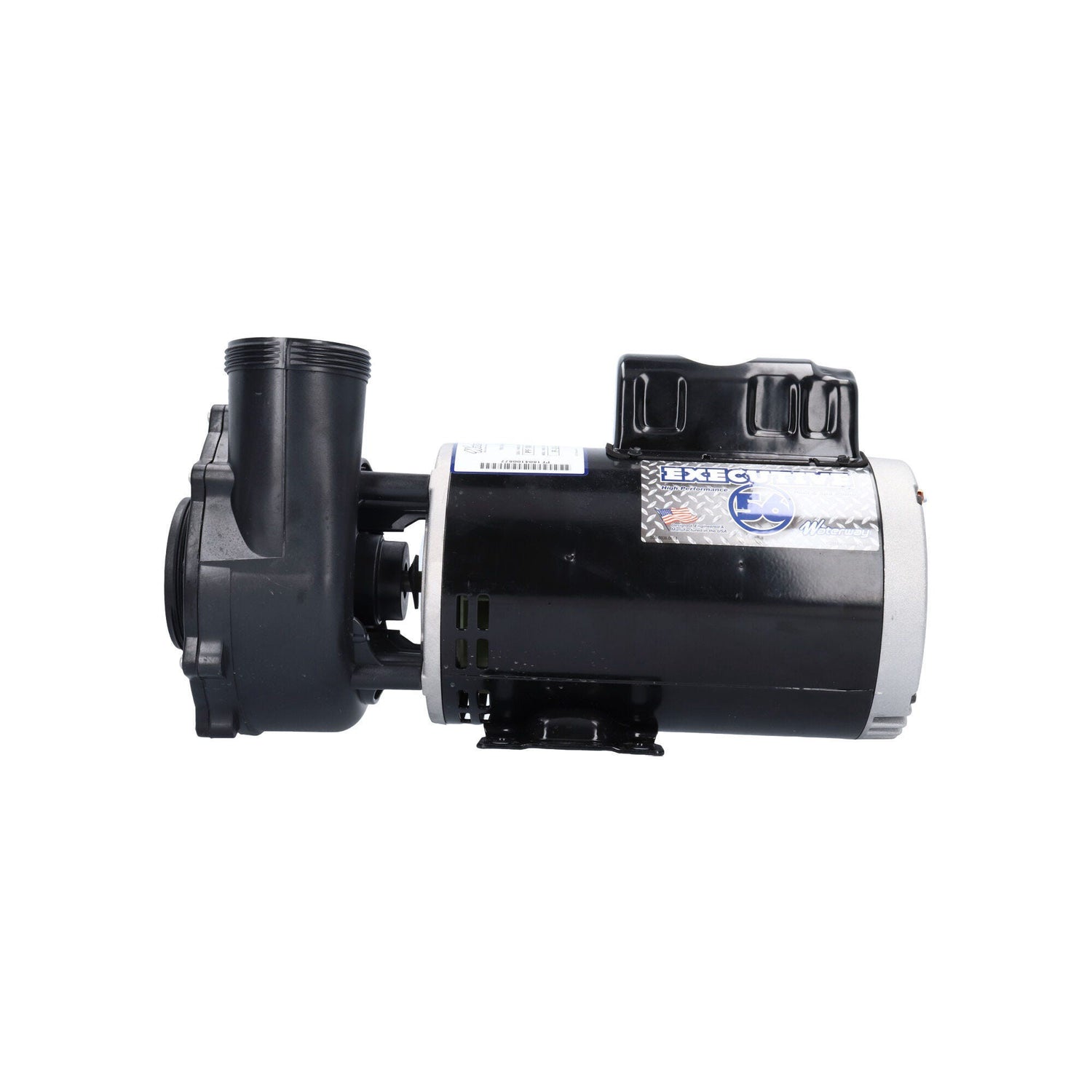

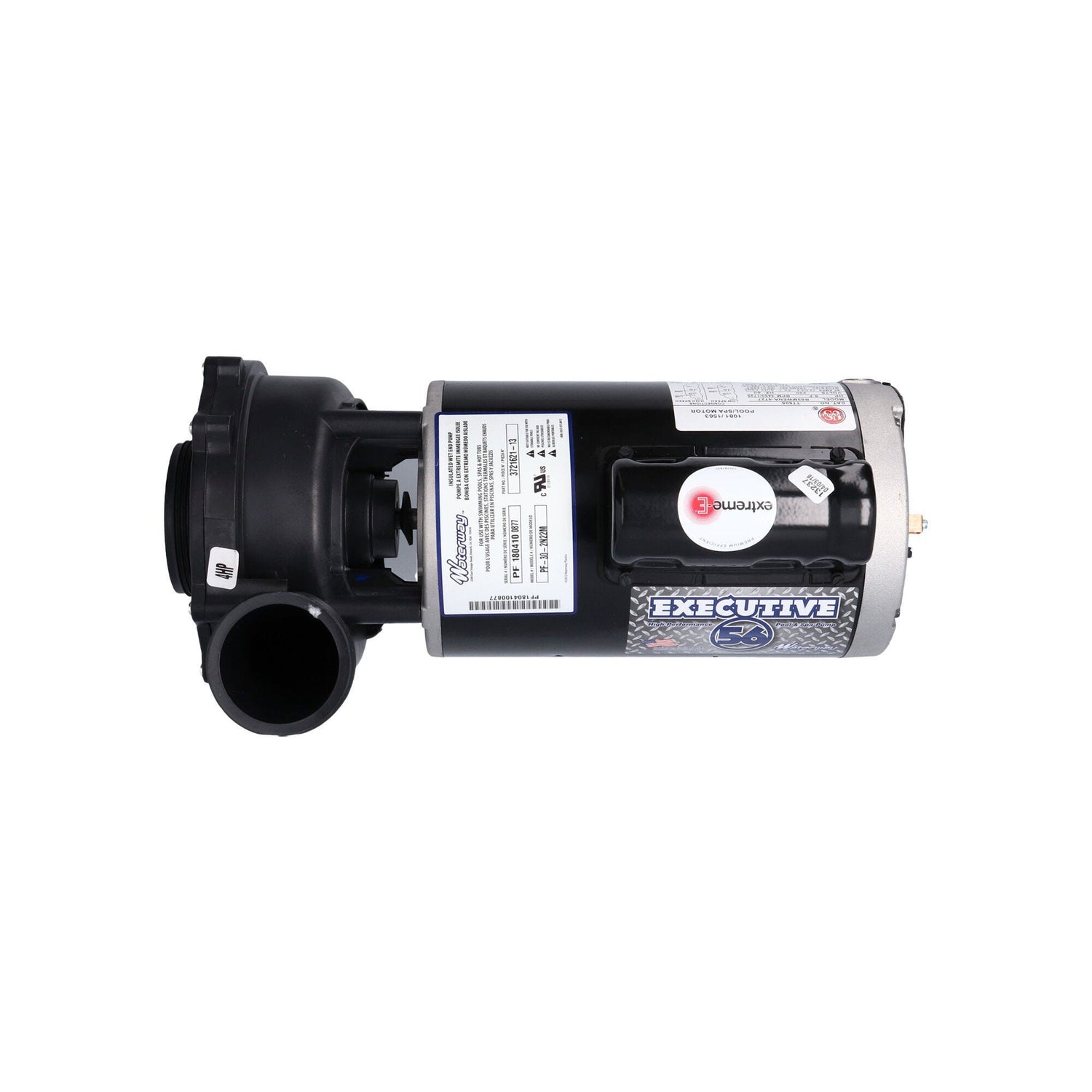

Pump, Waterway Executive 56, 4.0HP, 230V, 12.0/4.4A, 2-Speed, 2-1/2" x 2"MBT, SD, 56-Frame : 3721621-13

Product Details

The Waterway Executive 56 Pump is a high-performance, 4.0 HP, two-speed water pump engineered for durability and efficient operation. Designed with a large intake and advanced motor features, it delivers improved flow and quieter performance.

• Horsepower: 4.0 HP
• Voltage: 230 V
• Amperage: 12.0 / 4.4 A (two-speed)
• Frame Size: 56-frame motor for enhanced strength and cooler operation
• Intake & Discharge: 2½" x 2" Male Buttress Thread (MBT)
• Flow Rate: 240 GPM
• Wet End: Executive design fits 48 & 56-frame motors; large 2" & 2½" intake for improved flow and reduced noise
• Motor Features: Two-speed motor with four sets of insulated windings; split capacitor (start and run) for reduced energy consumption
• Bearings: Two double-shielded ball bearings with moisture-resistant grease for quieter operation and longer life
• Wet End Diameter: Large 6½" diameter for higher head pressure
• Seals & Materials: Silicone carbide seals, Viton bellows, 316 stainless steel casing
• Thermal Protection: Motor is thermally protected to extend life expectancy
• Wet End Orientation: Highly versatile; can be rotated in 90° increments
• Note: Does not include unions or pump cord

Product change notice: Waterway has removed two of the three drain plugs on the front of the wet end to meet growing demand. The side ports can be drilled and tapped if needed. Motor styles may vary without notice; functionality remains consistent.
