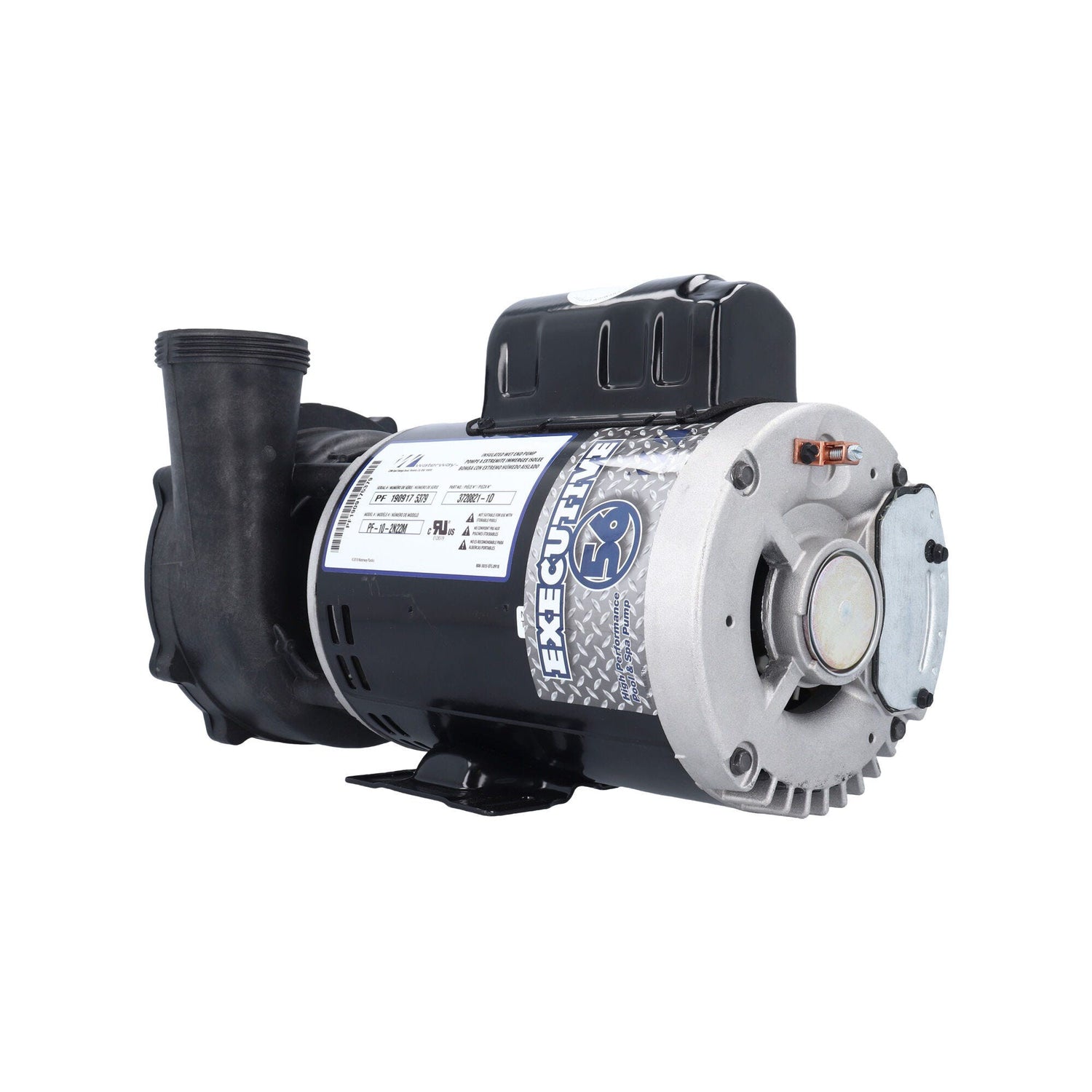

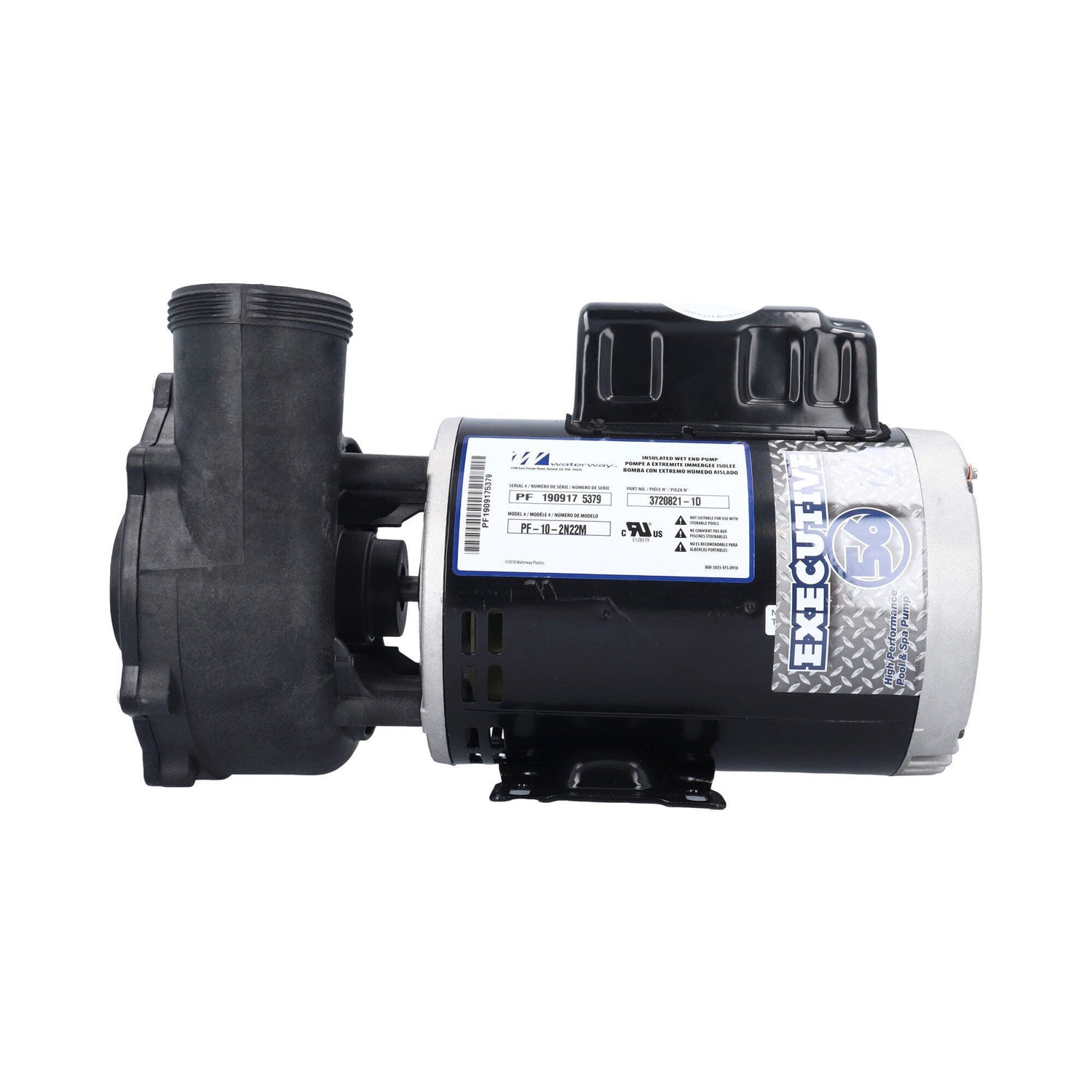

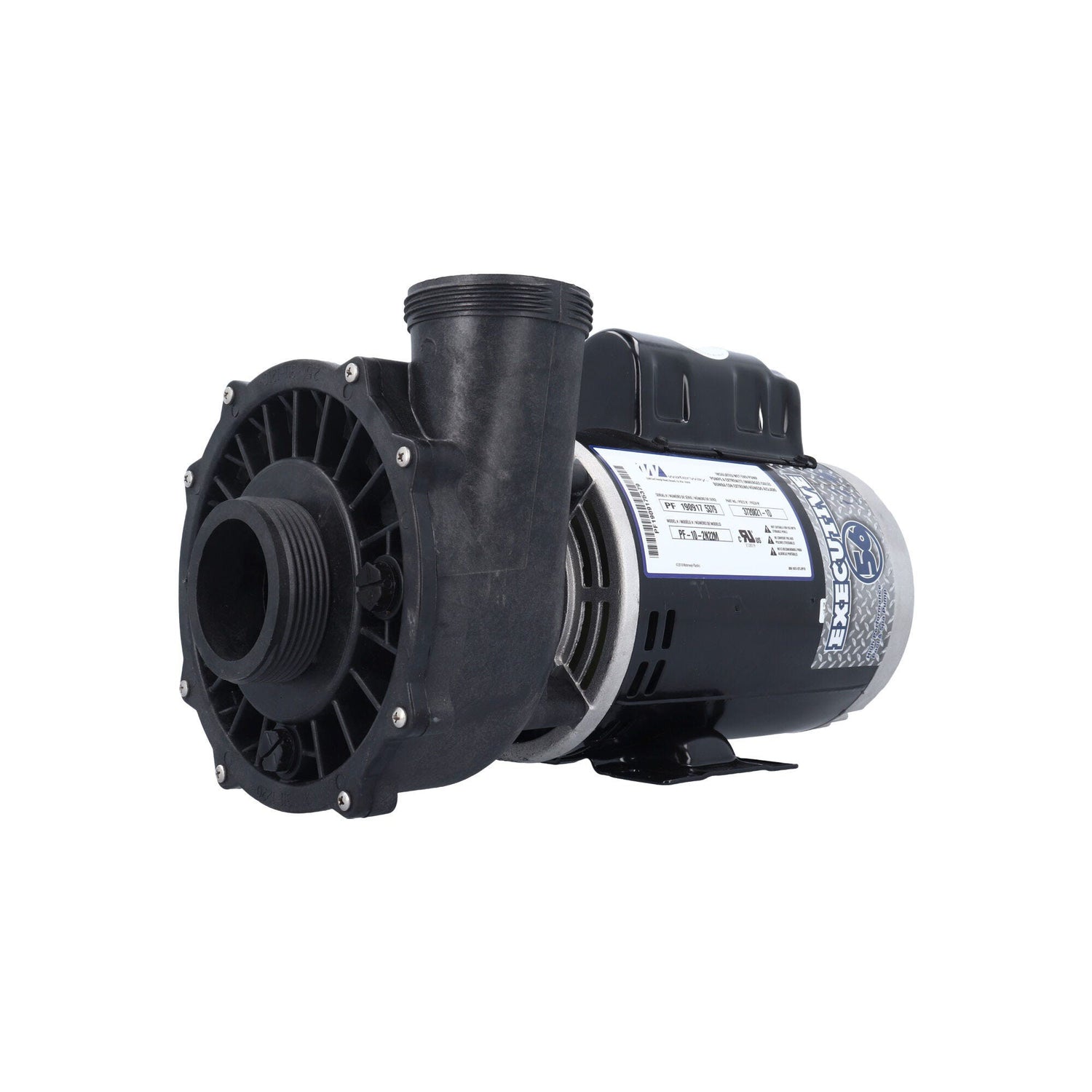

Pump, Waterway Executive 56, 2.0HP, 230V, 8.0/3.0A, 2-Speed, 2"MBT, SD, 56-Frame : 3720821-1D

Product Details

The Waterway Executive 56 Jet Pump combines robust 2-speed motor performance with a specially designed wet end for improved flow and reduced noise. Engineered for durability and efficiency, this pump is thermally protected and built to extend motor life.

• Horsepower: 2.0 HP
• Voltage: 230 V
• Amperage: 8.0 / 3.0 A (two-speed)
• Frame Size: 56-frame motor for added strength and cooler operation
• Intake & Discharge: 2" Male Buttress Thread (MBT)
• Flow Rate: 180 GPM

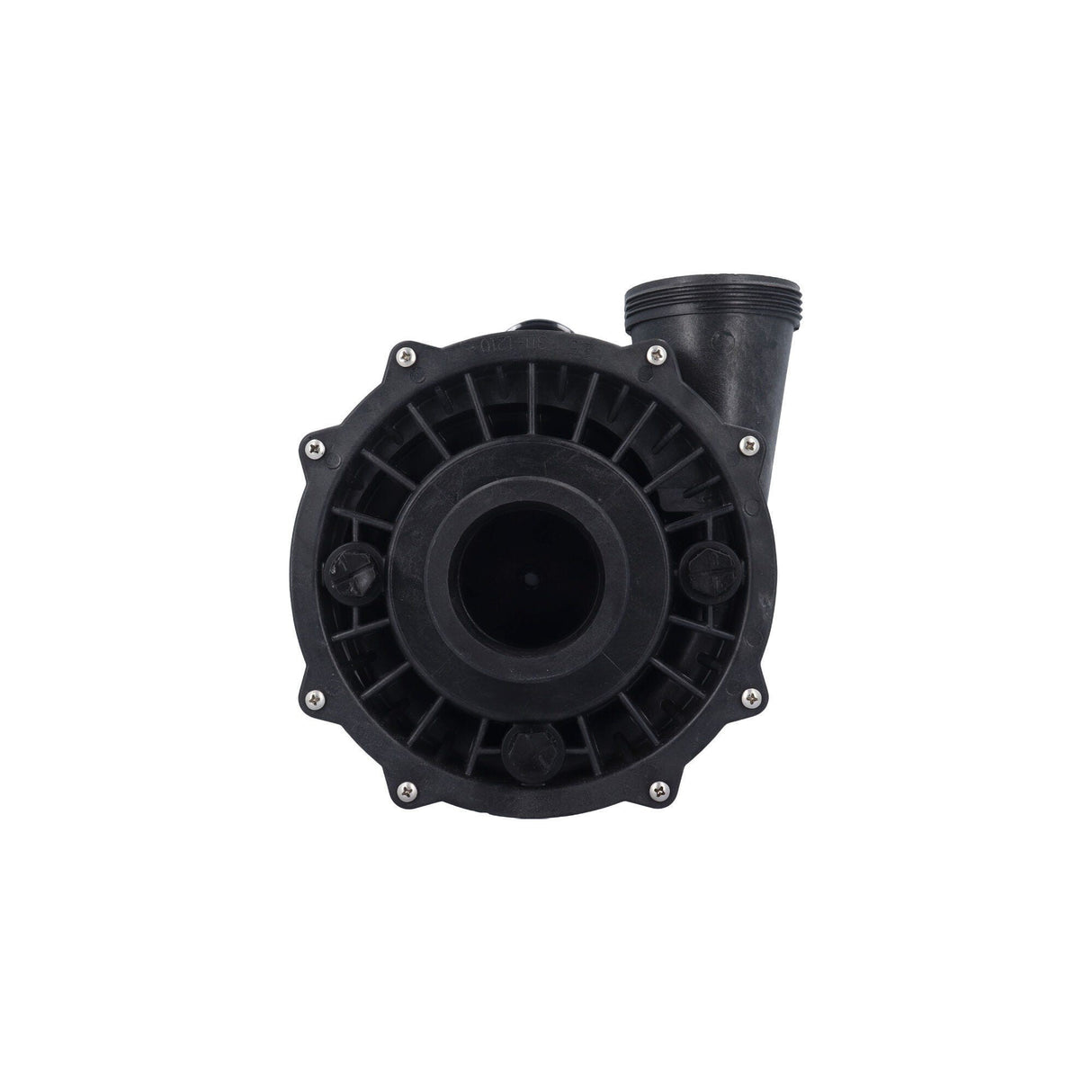

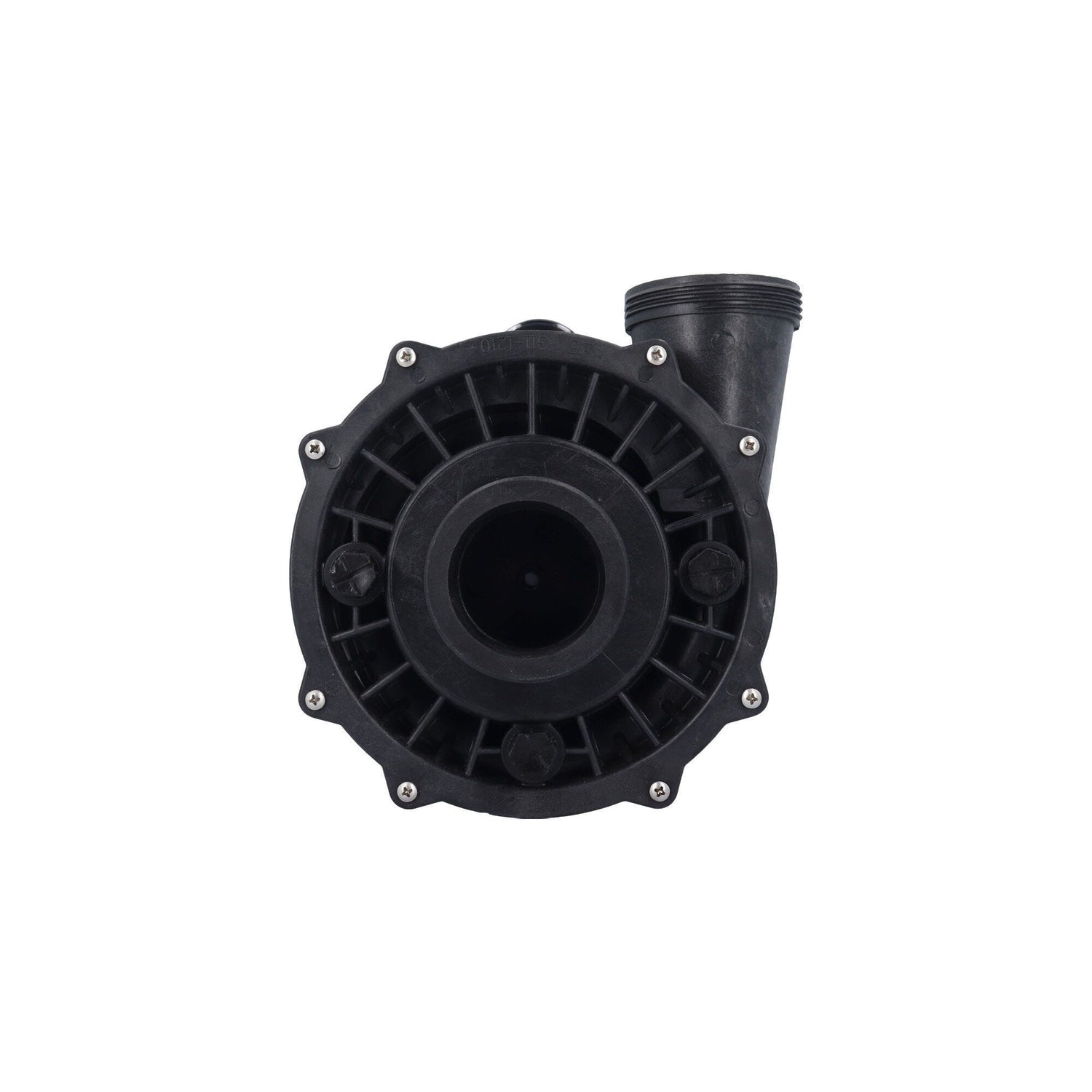

• Wet End Design: Fits 48 & 56-frame motors; large 2" and 2½" intake for improved flow and reduced noise
• Wet End Diameter: 6½" for higher head pressure
• Bearings: Two double-shielded ball bearings with moisture-resistant grease for quieter operation and longer life
• Motor Windings: Four sets of insulated windings for high performance on two-speed motors
• Energy Efficiency: Split capacitor (start and run) design reduces energy consumption
• Thermal Protection: Motor is thermally protected to extend life expectancy
• Wet End Versatility: Can be rotated every 90°
• Seals & Materials: Silicone carbide seals, Viton bellows, 316 stainless steel casing

Note: This product does not include unions or pump cord. Waterway has updated the wet end design by removing two of the three front drain plugs to better meet demand; side ports can be drilled and tapped if needed. Motor styles may vary without notice, but functionality remains consistent.
