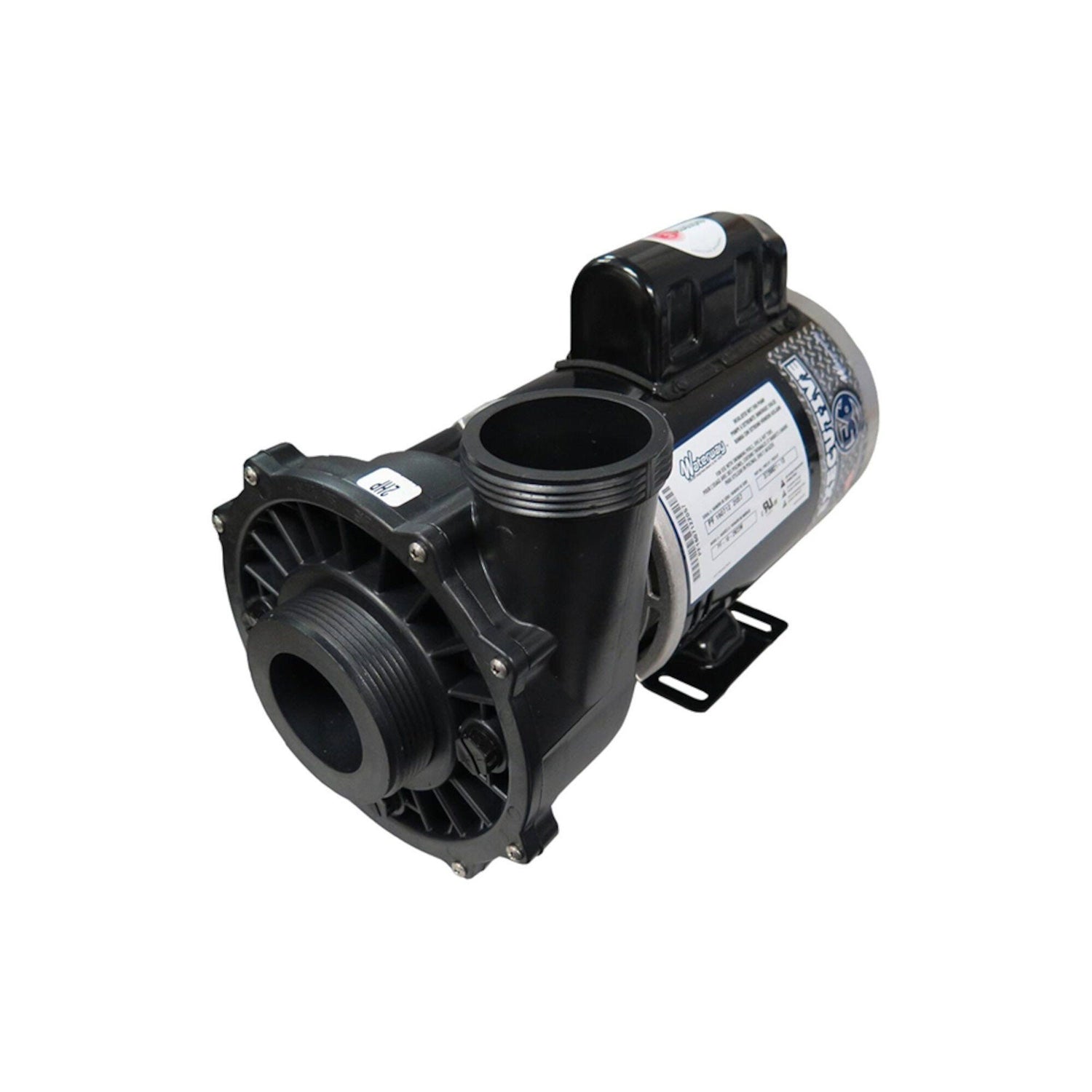

Pump, Waterway Executive 56, 2.0HP, 230V, 8.0/3.0A, 2-Speed, 2-1/2" x 2"MBT, SD, 56-Frame : 3720821-13

Product Details

The Waterway Executive 56 Pump is a robust 2-speed jet pump designed for high performance and durability. Featuring a 2.0 HP motor and a large intake for improved flow and quieter operation, it is engineered to fit 48 & 56-frame motors and offers thermal protection to extend motor life.

• Horsepower: 2.0 HP
• Voltage: 230 V
• Amperage: 8.0 / 3.0 A (two-speed)
• Frame Size: 56-frame motor, designed for added strength and cooler operation
• Intake & Discharge: 2-1/2" x 2" Male Buttress Thread (MBT)
• Flow Rate: 180 GPM
• Wet End: Executive design fits 48 & 56-frame motors with large 2" and 2-1/2" intakes for improved flow and reduced noise
• Wet End Diameter: Large 6-1/2" diameter for higher head pressure
• Bearings: Two double-shielded ball bearings with moisture-resistant grease for quieter operation and longer life
• Motor Windings: Four sets of insulated windings for high performance in two-speed motors
• Energy Efficiency: Split capacitor (start and run) design for reduced energy consumption
• Thermal Protection: Motor is thermally protected to extend life expectancy
• Wet End Versatility: Can be rotated every 90° for installation flexibility
• Seals & Materials: Silicone carbide seals, Viton bellows, and 316 stainless steel casing
• Note: Does not include unions or pump cord

Product Change Notification: Waterway is removing two of the three drain plugs on the front of the wet end to meet growing demand. The two side ports are rarely used but can be drilled and tapped if needed. This change is effective immediately. For questions, please contact customer service or a technician.

Note: Pump and motor manufacturers reserve the right to change motor styles without notice. Motor appearance may vary but functionality remains consistent.
