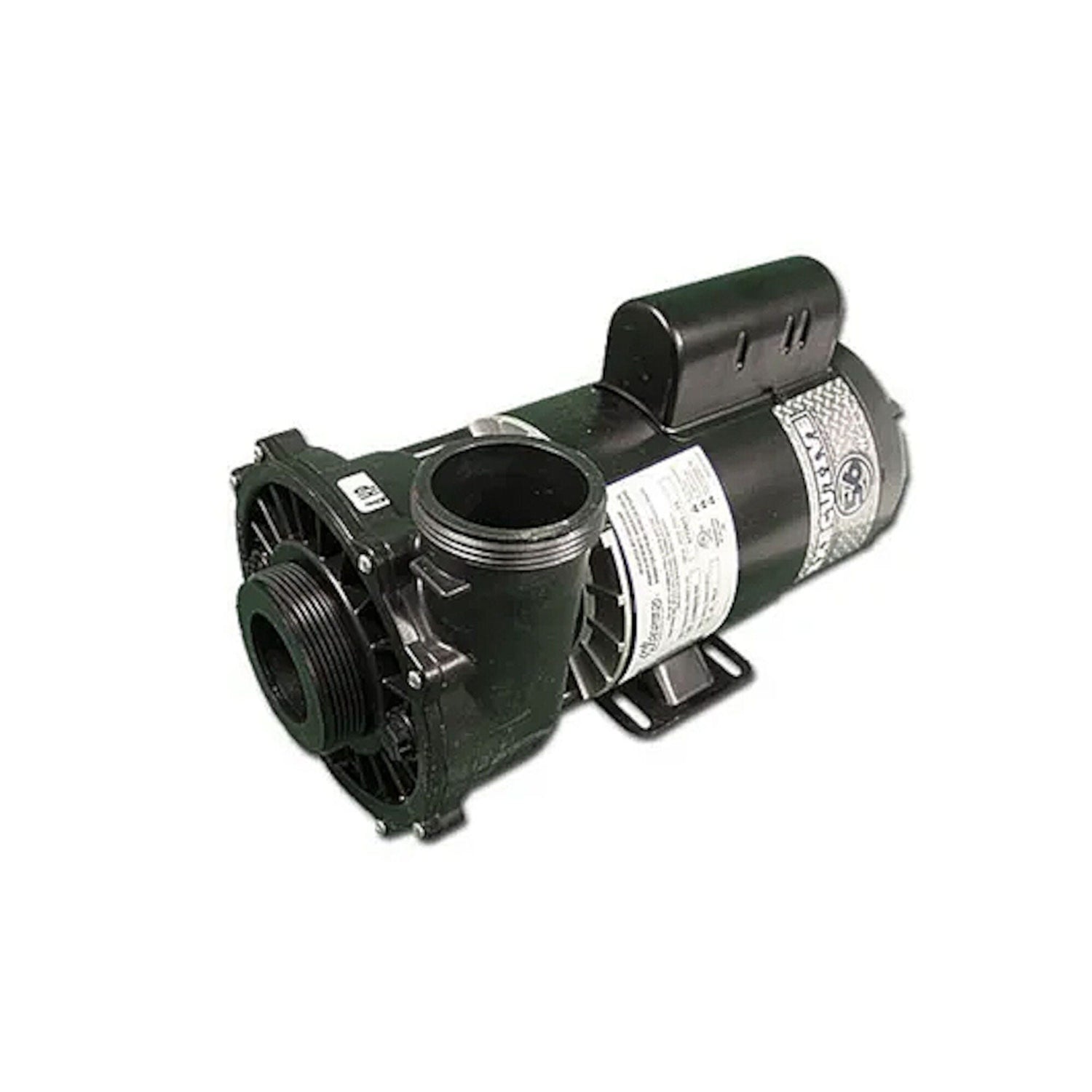

Pump, Waterway, Executive 56, 5.0HP, 230V, 1-Speed, 56-Frame, 2" In/Out, Side Discharge : 3712021-1D
Pump, Waterway, Executive 56, 5.0HP, 230V, 1-Speed, 56-Frame, 2" In/Out, Side Discharge : 3712021-1D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Ships Same Day (M-F) if ordered before 12pm EST otherwise will ship next business day. Shipping Policy
30 Day Returns
30 Day Returns
30 Day Returns / 10% Restocking Fee
Full Return Policy
Pump, Waterway, Executive 56, 5.0HP, 230V, 1-Speed, 56-Frame, 2&quo...
Pump, Waterway, Executive 56, 5.0HP, 230V, 1-Speed, 56-Frame, 2" In/Out, Side Discharge : 3712021-1D is backordered and will ship as soon as it is back in stock.
Description
Description
Product Details
The Waterway Executive 56 Jet Pump is a robust, thermally protected 5.0 HP pump designed for efficient water flow with reduced noise. Featuring a 56-frame motor and versatile wet end, it delivers high performance and durability for demanding applications.
Pump, Waterway, Executive 56, 5.0HP, 230V, 1-Speed, 56-Frame, 2" In/Out, Side Discharge : 3712021-1D
- Horsepower: 5.0 HP
- Voltage: 230 V
- Amps: 16.4
- Speed: 1-Speed
- Frame Size: 56
- Intake & Discharge Size: 2" Male Buttress Thread (MBT)
- Flow Rate: 260 GPM
- Wet End Design: Fits 48 & 56-frame motors with large 2" and 2½" intake for improved flow and reduced noise
- Wet End Diameter: 6½" for higher head pressure
- Motor Protection: Thermally protected to extend motor life
- Bearings: Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
- Motor Windings: Four sets of insulated windings (for two-speed motors)
- Energy Efficiency: Split capacitor (start and run) design for less energy consumption
- Wet End Versatility: Can be rotated every 90°
- Seals & Materials: Silicone carbide seals, Viton bellows, 316 stainless steel casing
- Discharge Location: Side discharge
- Note: Does not include unions or pump cord
Product Change Notification: Waterway is removing two of the three drain plugs on the front of the wet end to meet growing demand. The side ports are rarely used but can be drilled and tapped if needed. This change is effective immediately.
Note: Pump and motor manufacturers reserve the right to change motors or motor styles without notice. Functionality remains consistent despite possible visual differences.
