Spaside Control, Dimension One Gecko M-Drive, 11-Button, LCD, JST Plug : 8000-D19

Product Details

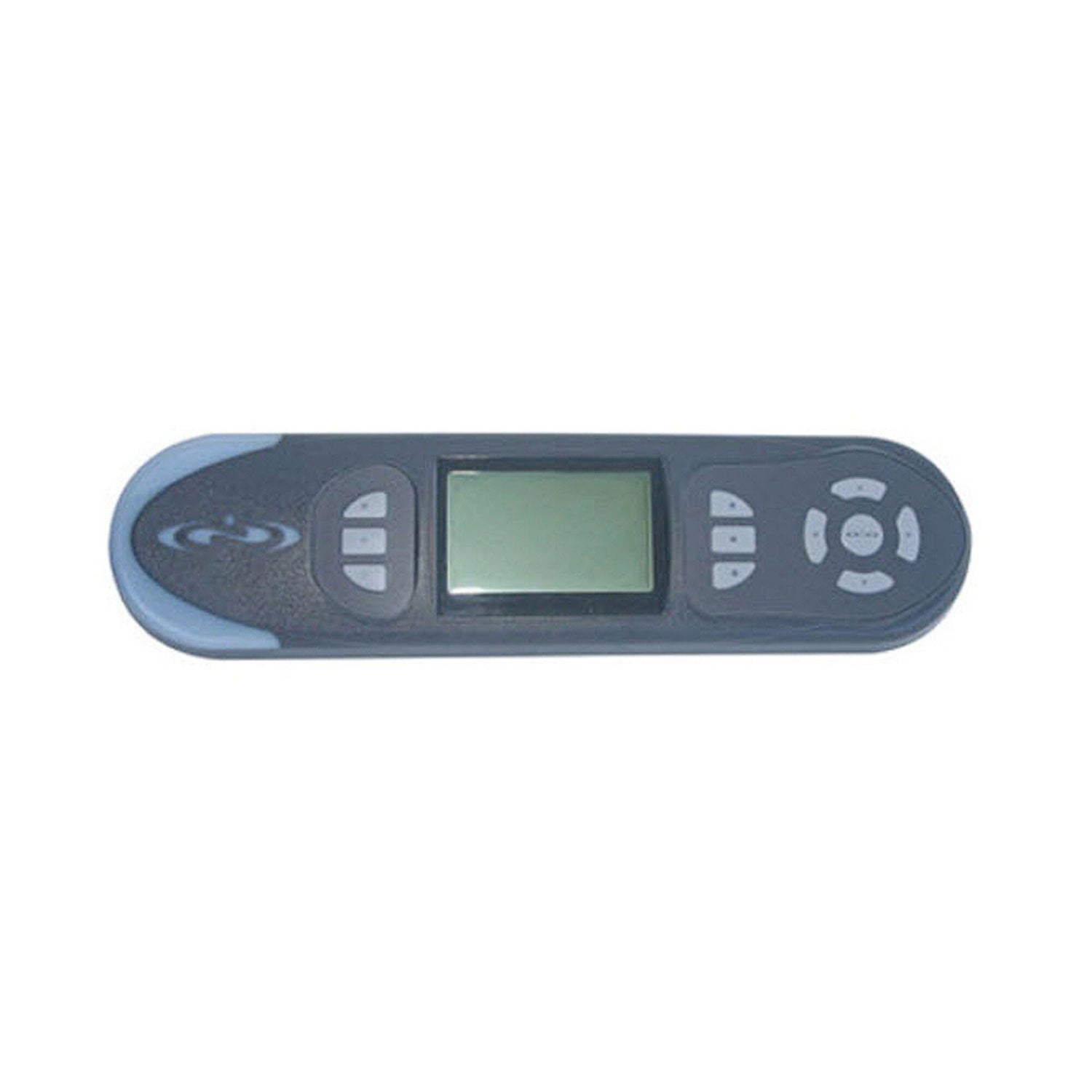

The Spaside Control Dimension One Gecko M-Drive 11-Button LCD keypad is a factory replacement control panel designed for various Dimension One spas from 2007 to 2014. Featuring a large LCD display and menu-driven navigation, it supports multiple pump systems and connects via JST plugs.

• Type: Electronic Keypad, Factory Replacement M-Drive Control Panel
• Compatibility: Most Bay and Reflections series spas (2007–2014), including Sarena Bay (from S/N 135622), Lotus Bay (from S/N 135295), Dupree Bay (from S/N 135200), Reflections (except Arena) after S/N 142595, and AFS spas from 2008 onward
• Display: Large, easy-to-read LCD screen
• Buttons: 11 menu-driven buttons
• Dimensions: Rectangle with rounded sides, 12.5" x 3.25"
• Connectors: 8-pin JST and 6-pin JST plugs with 10' cord
• System: Dimension One Proprietary by Gecko
• Installation: No overlay required
• Functionality: Supports multiple pump systems
• Alternate Part Numbers: 3-70-0834, 0607-007057, DG-AD-MP-60K-019, IN.K961-LG, 1710-1026 (Dimension One), KWH-AD-MP-60K-D18

This control panel replaced the earlier 01580-0001 Dimension One Spas Upper Control Panel and was introduced to the Reflections Series of D1 Spas in 2008 for improved usability and functionality.
