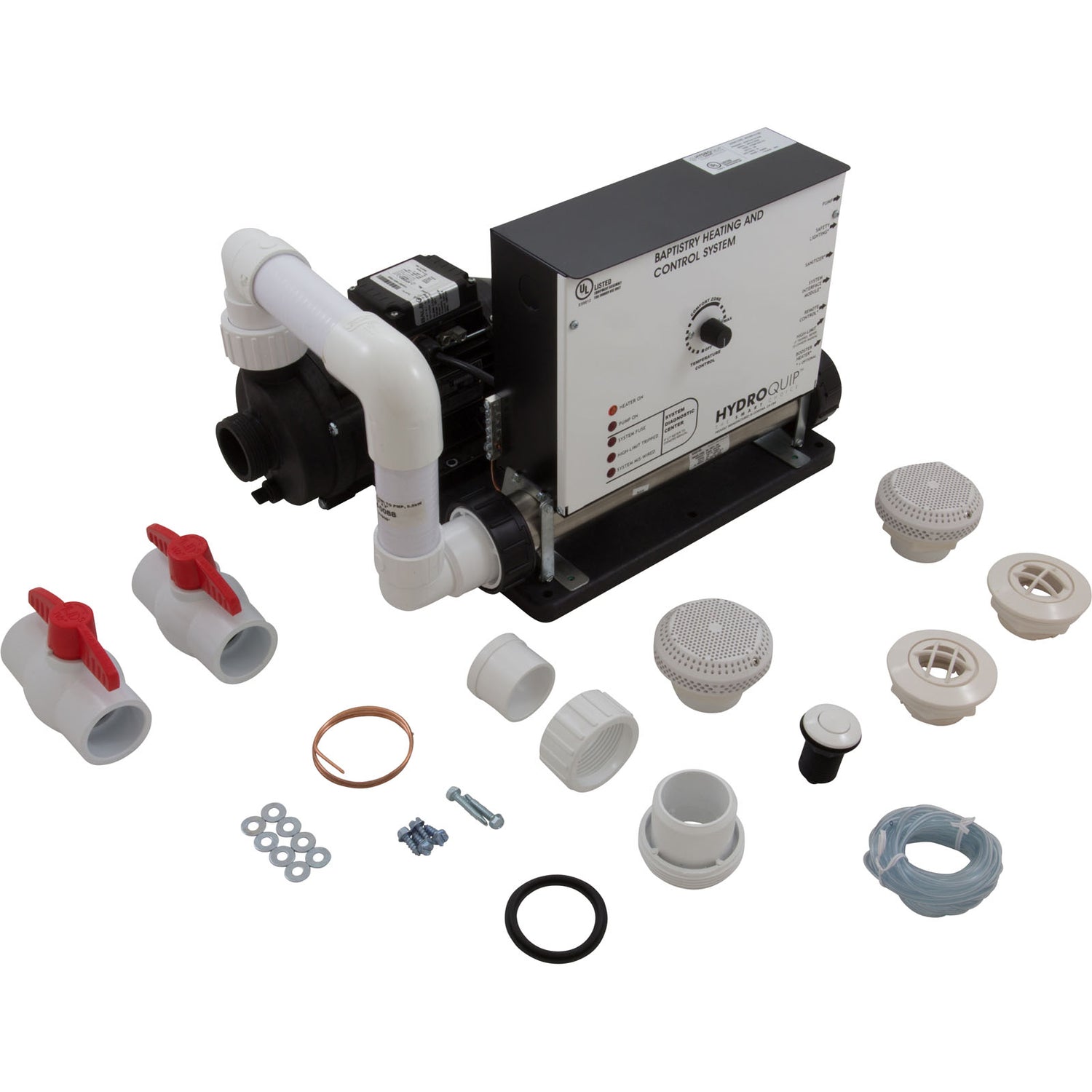

Baptismal System, H-Q BES-6000, 5.5kW 230v, 0.75hp, w/o Timer : BES-6000

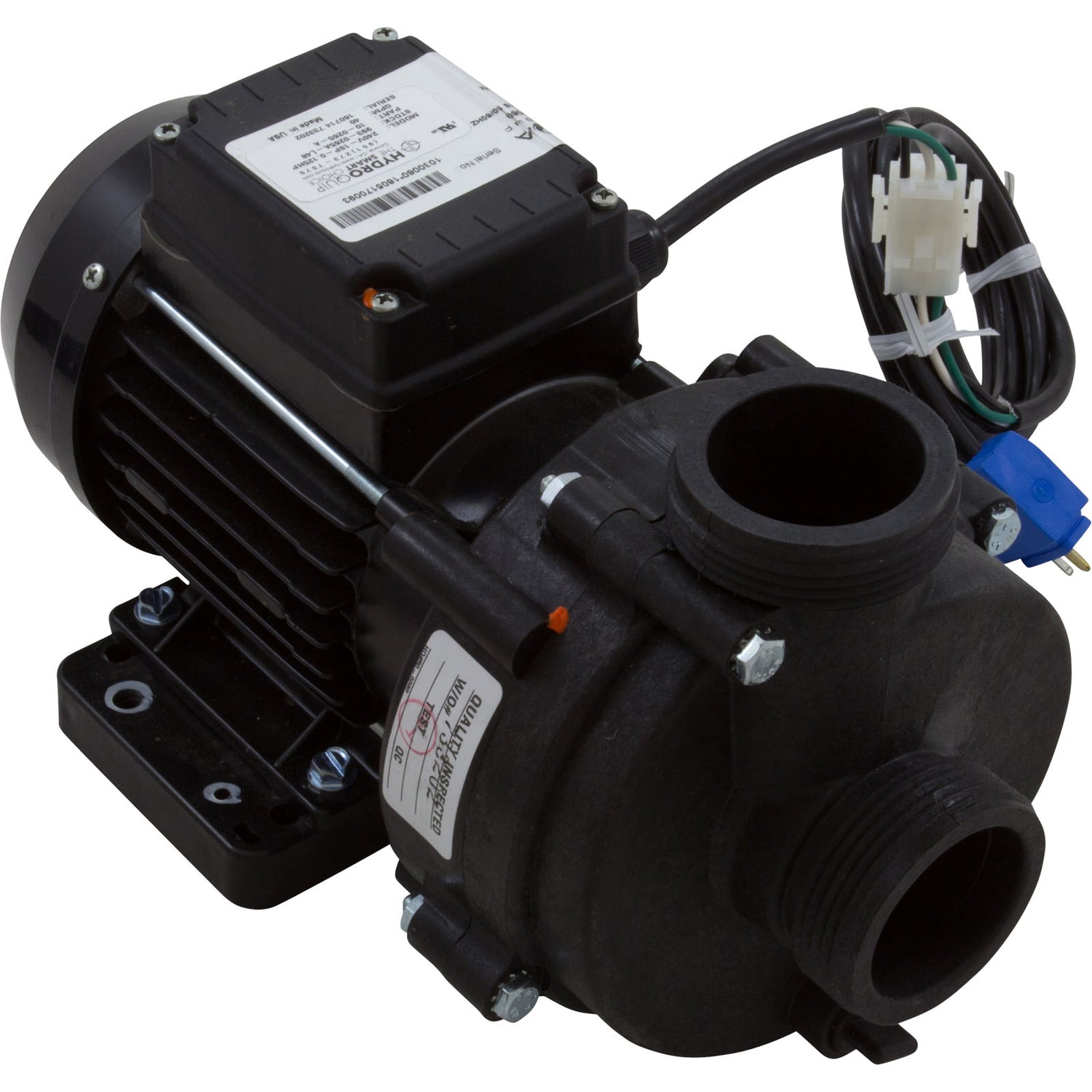

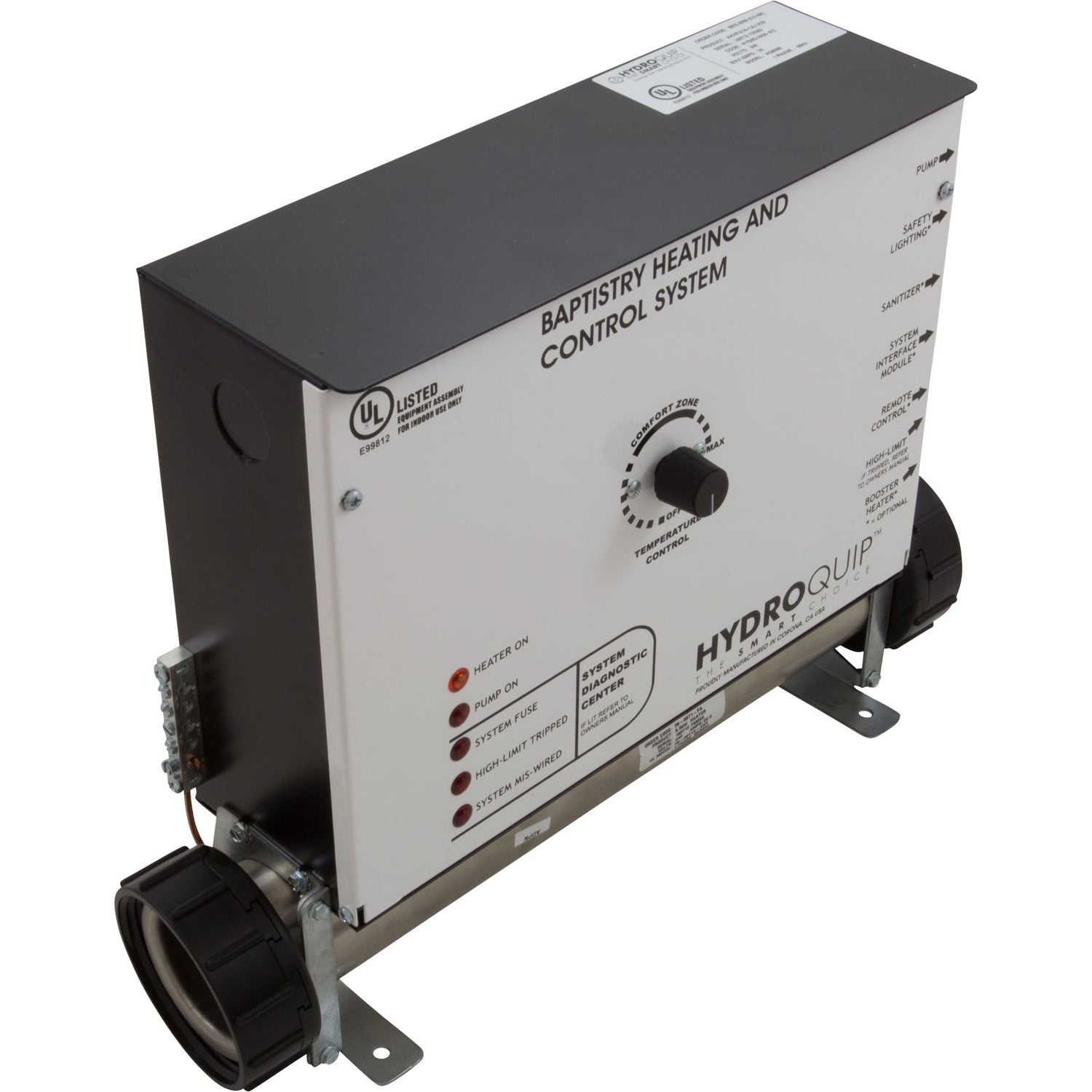

Baptismal System, H-Q BES-6000, 5.5kW 230v, 0.75hp, w/o Timer Baptismal Equipment System Standard Features: 5.5 or 11KW Heater in 304SS Housing 3/4HP, 115V Pump Full Range Thermostat 50A High Current GFCI High Limit Protected Pressure Switch Activated Base Mounted Exclusive Features: “” Visual Diagnostics Heater “” Indicator Light Detailed Installation Manual Detailed Owners Manual Detailed Wiring Diagram STANDARD OPTIONS BY MODEL MODEL BES6000T BES6005T Voltage 230* 230* Pump Voltage 115V 115V Pump HP 3/4 3/4 Pump Speed 1 1 Heater Wattage 5.5kW 11kW Timer YES YES Sanitizer 115V 115V Light Optional Optional APPROVAL LISTINGS: UL LISTED, INDOOR ONLY, UL1563 ELECTRICAL SPECIFICATIONS: SINGLE PHASE, *4-WIRE SERVICE, 60HZ MINIMUM SPACE REQUIRED: 15” X 33” X 17” TOTAL AMP DRAW: BES6000T 30A, CIRCUIT BREAKER SIZE 40 TOTAL AMP DRAW: BES6005T 53A, CIRCUIT BREAKER SIZE 70 SHIPPING DIMENSIONS: 23” X 21” X 8” (All Systems) SHIPPING WEIGHT: BES6000T 32.21lbs., BES6005T 36.5lbs. WARRANTY: 1 YEAR LIMITED WARRANTY Baptismal Complete: Complete Baptismal Manufacturer: Hydro-Quip Model: BES-6000 Heater Wattage: 5.5kW Voltage: 230v Total Amperage: 30A Timer: No TimerPump Size: 3/4 hpGFCI: No Replaces 900111,9284-500,9284-502,BES6000,
