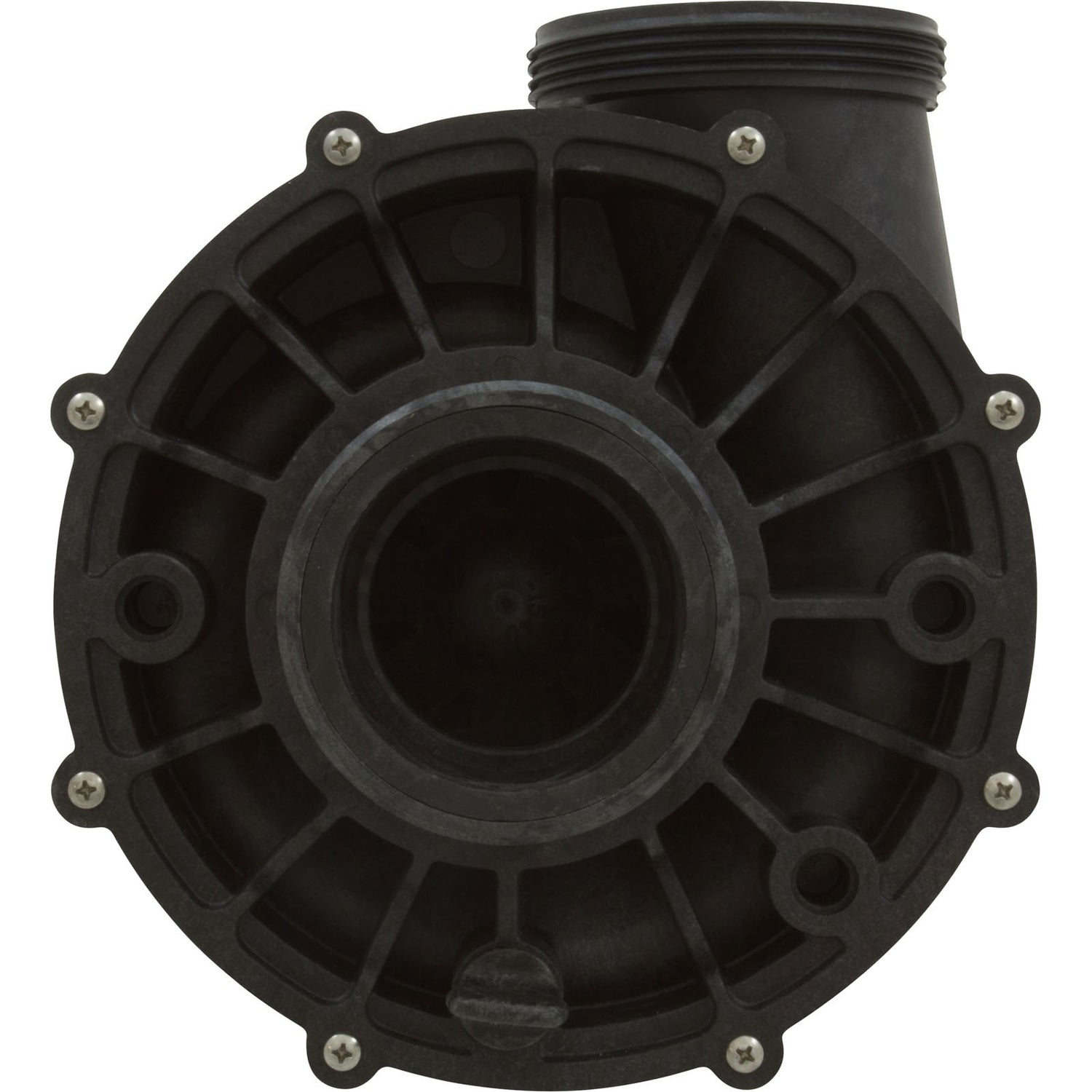

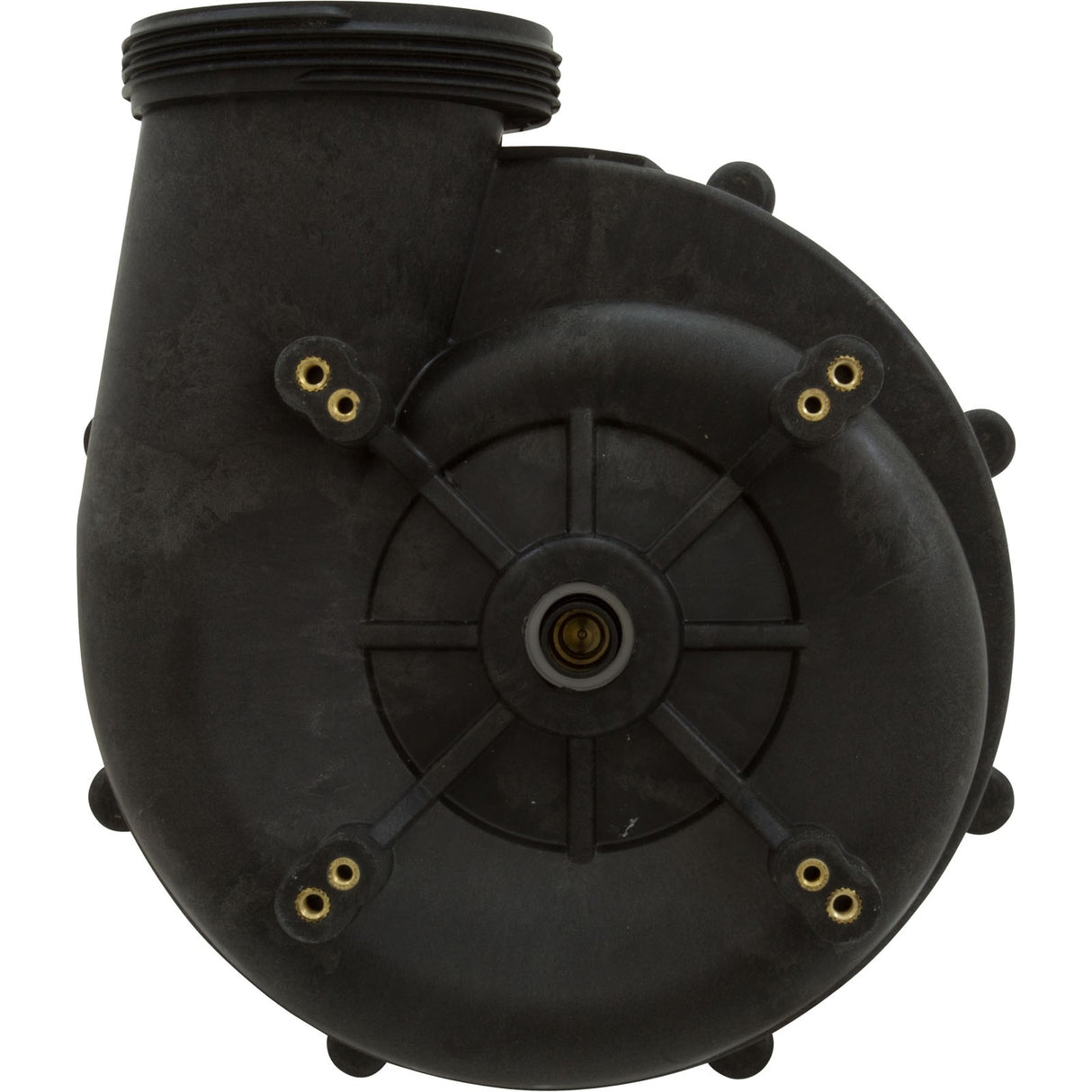

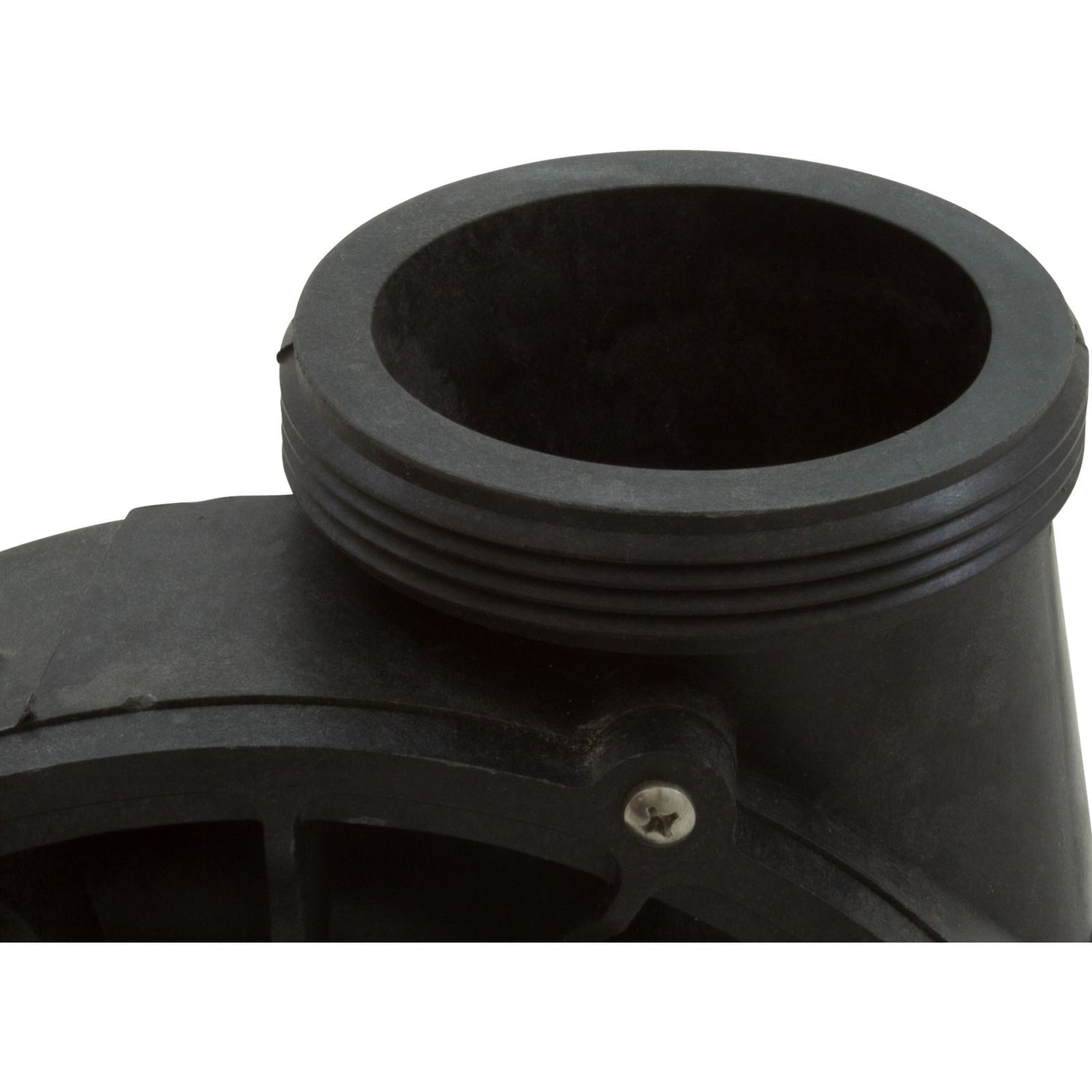

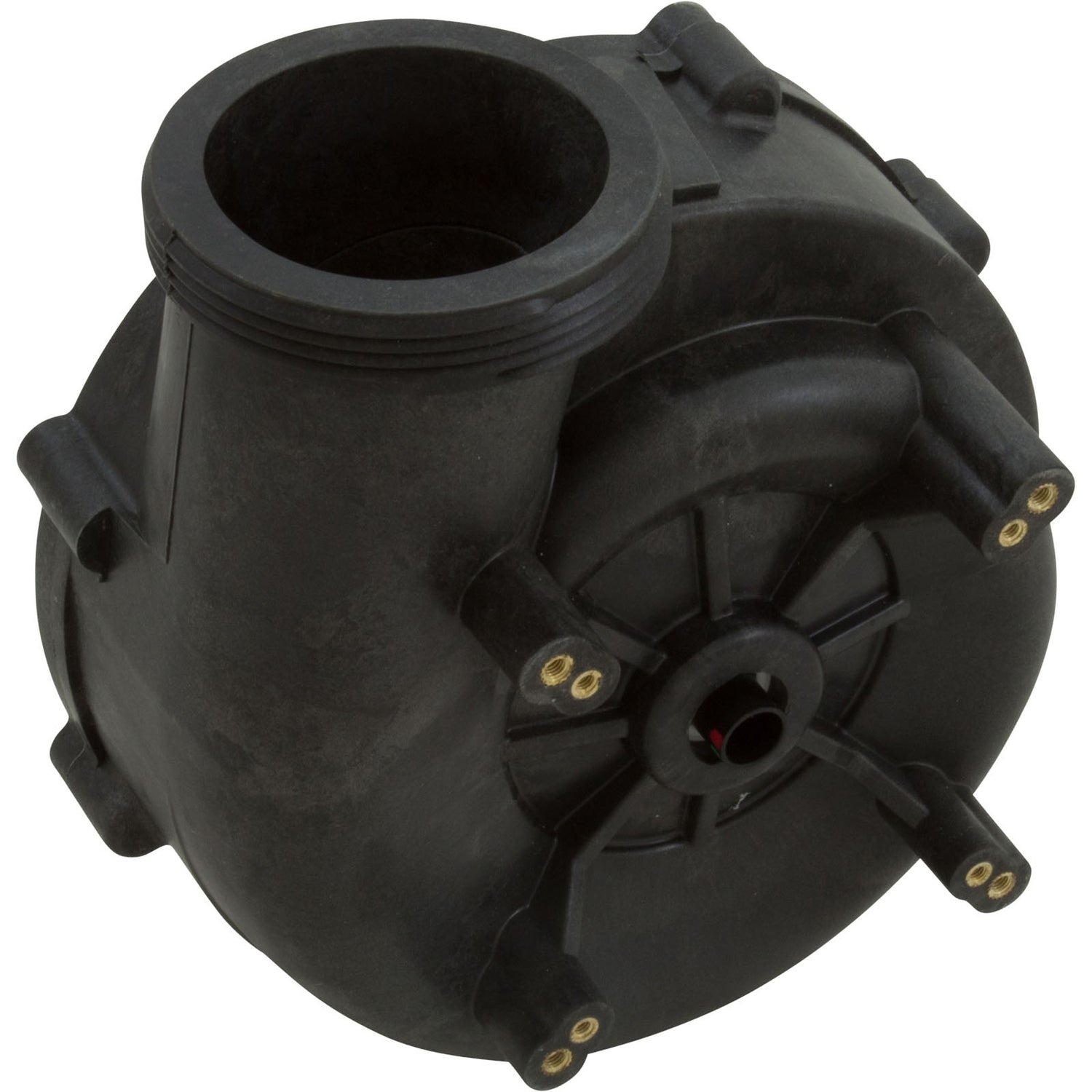

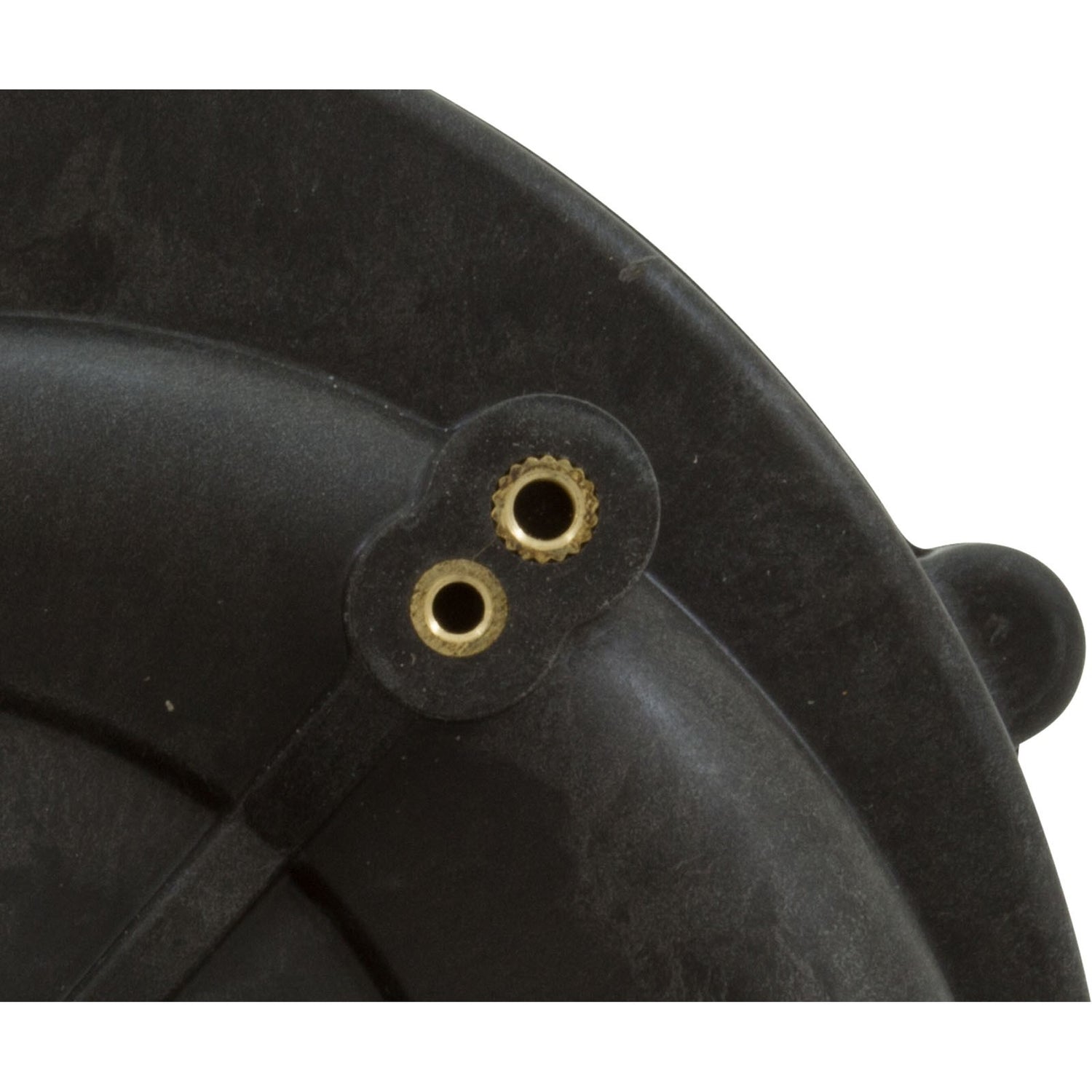

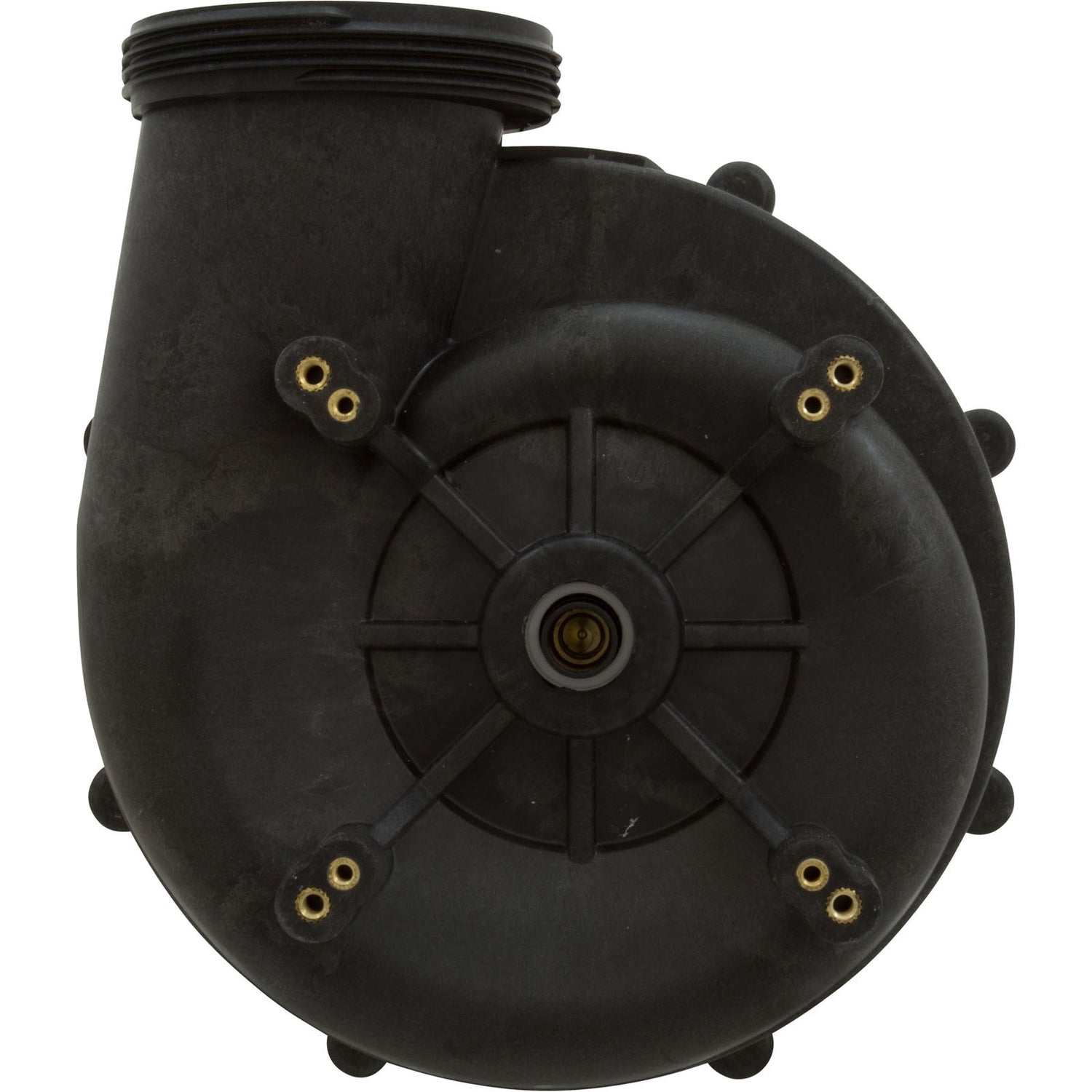

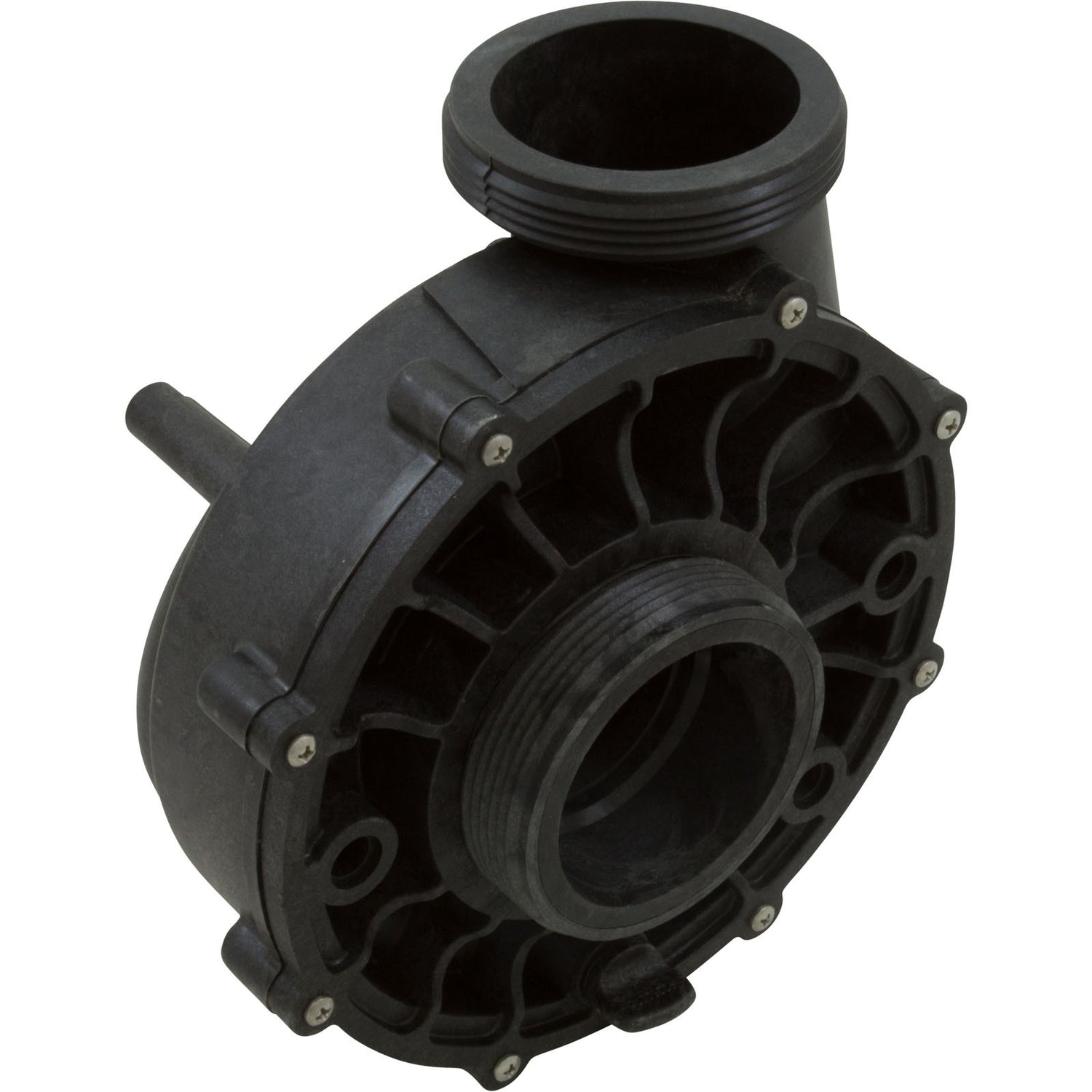

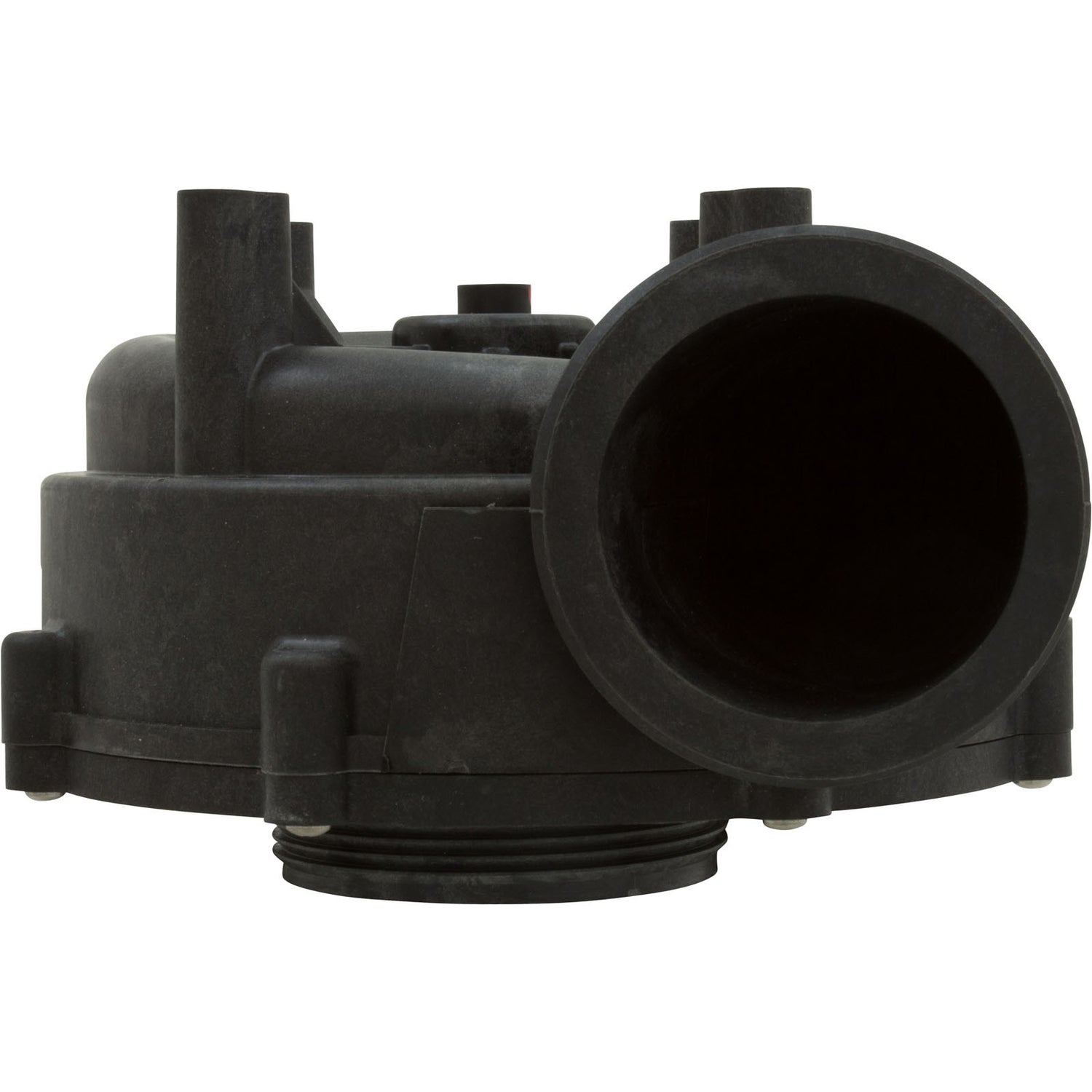

Wet End, WW Viper 5.0hp 2-1/2"mbt 56fr : 310-0180

Wet End, WW Viper 5.0hp 2-1/2"mbt 56fr Waterway Viper Wet End Side discharge, 2-1/2"mbt suction/discharge, 56 frame wet end for the Waterway Viper pump. This wet end is used with a 4.0hp, 56 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90° to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately. Manufacturer: Waterway Pump Model: Viper Motor Frame: 56 Frame Thru-Bolt Drain Plug Location: 3,4,6,9 o`clock Suction Style: Center Suction Connection Type: Male Buttress Thread (mbt) Suction Pipe Size: 2-1/2"Discharge Style: SideDischarge Connection Type: Male Buttress Thread (mbt)Discharge Pipe Size: 2-1/2"Horsepower: 5.0hpVolute Fastening Type: 8 Screws Replaces 320597,5175-405,806105323965,WWP-101-5204,
