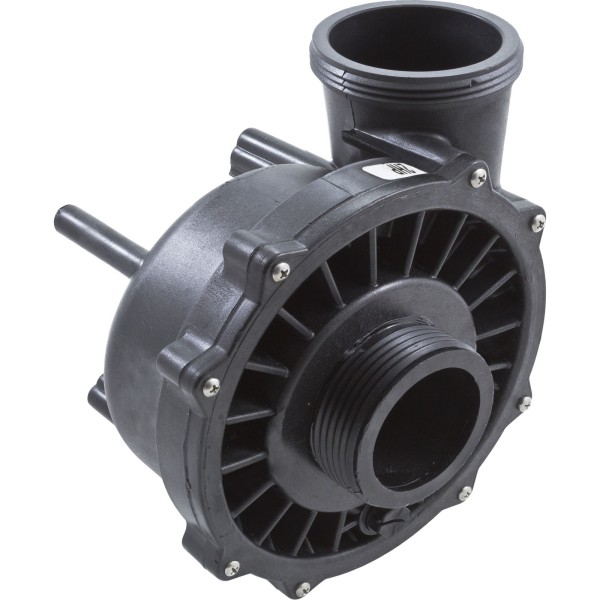

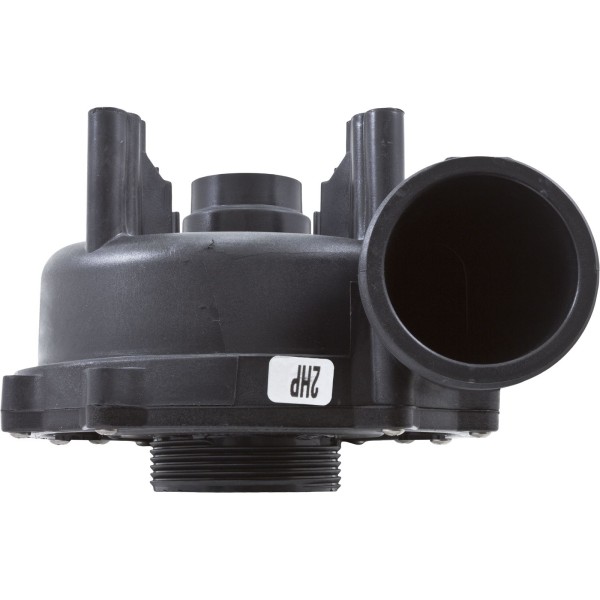

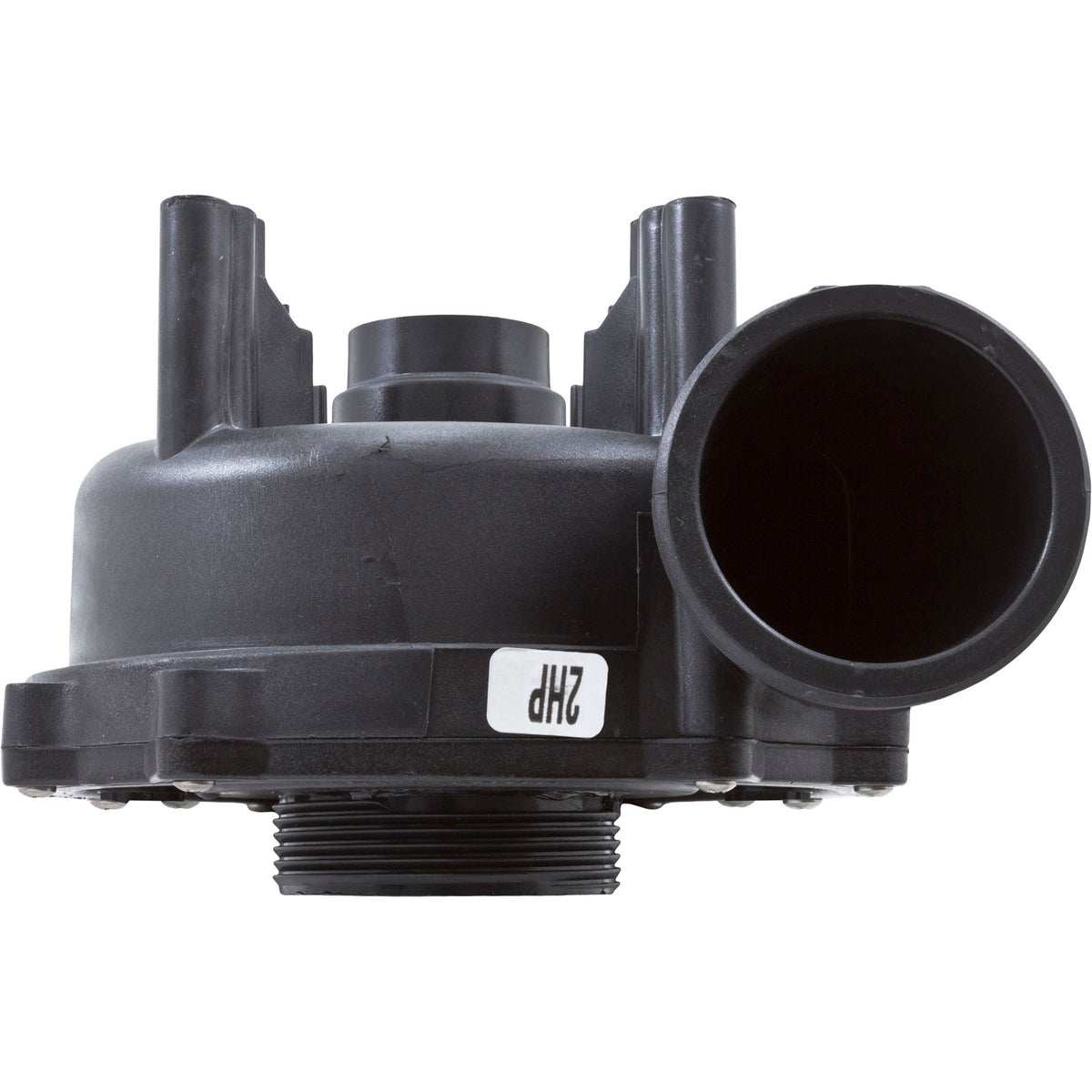

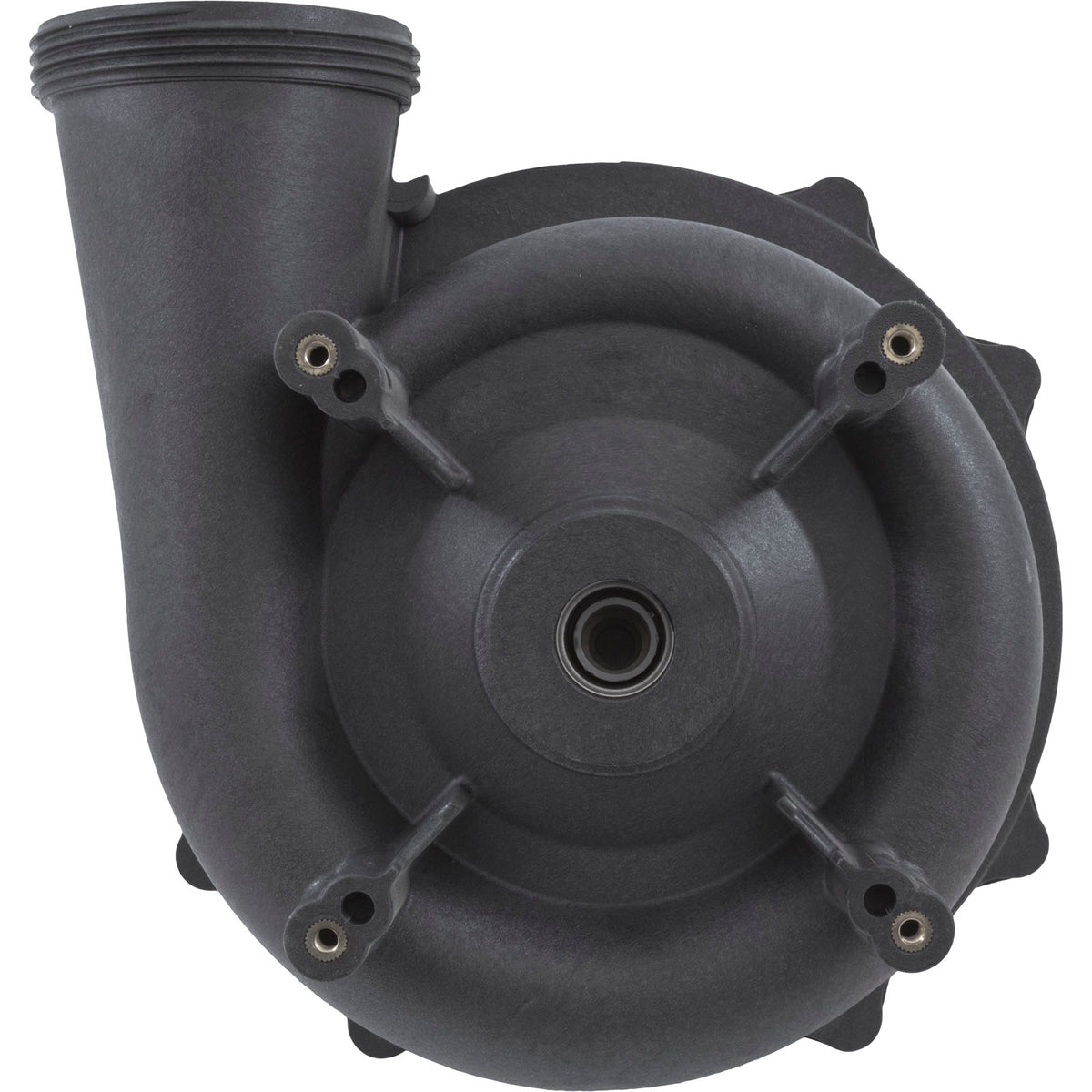

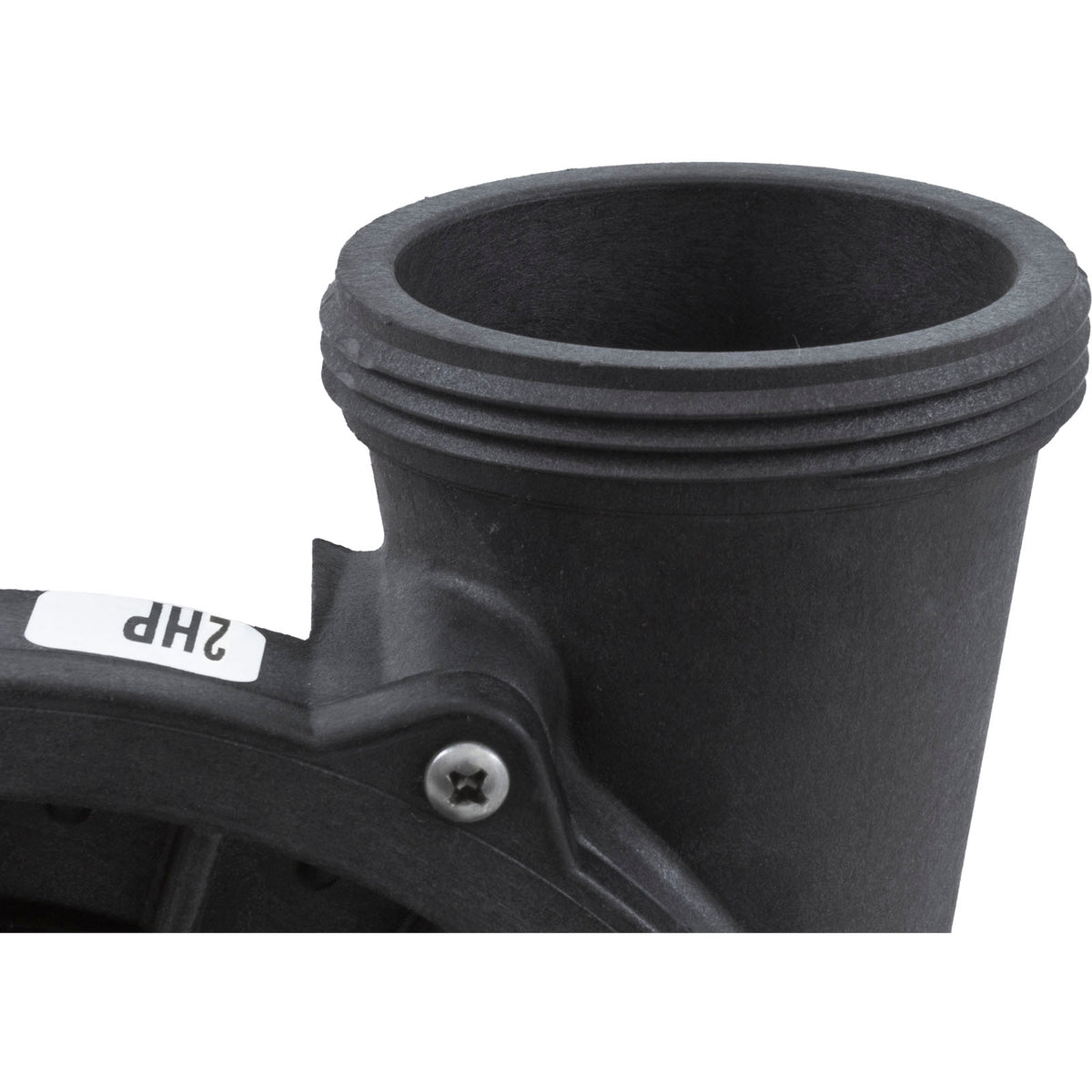

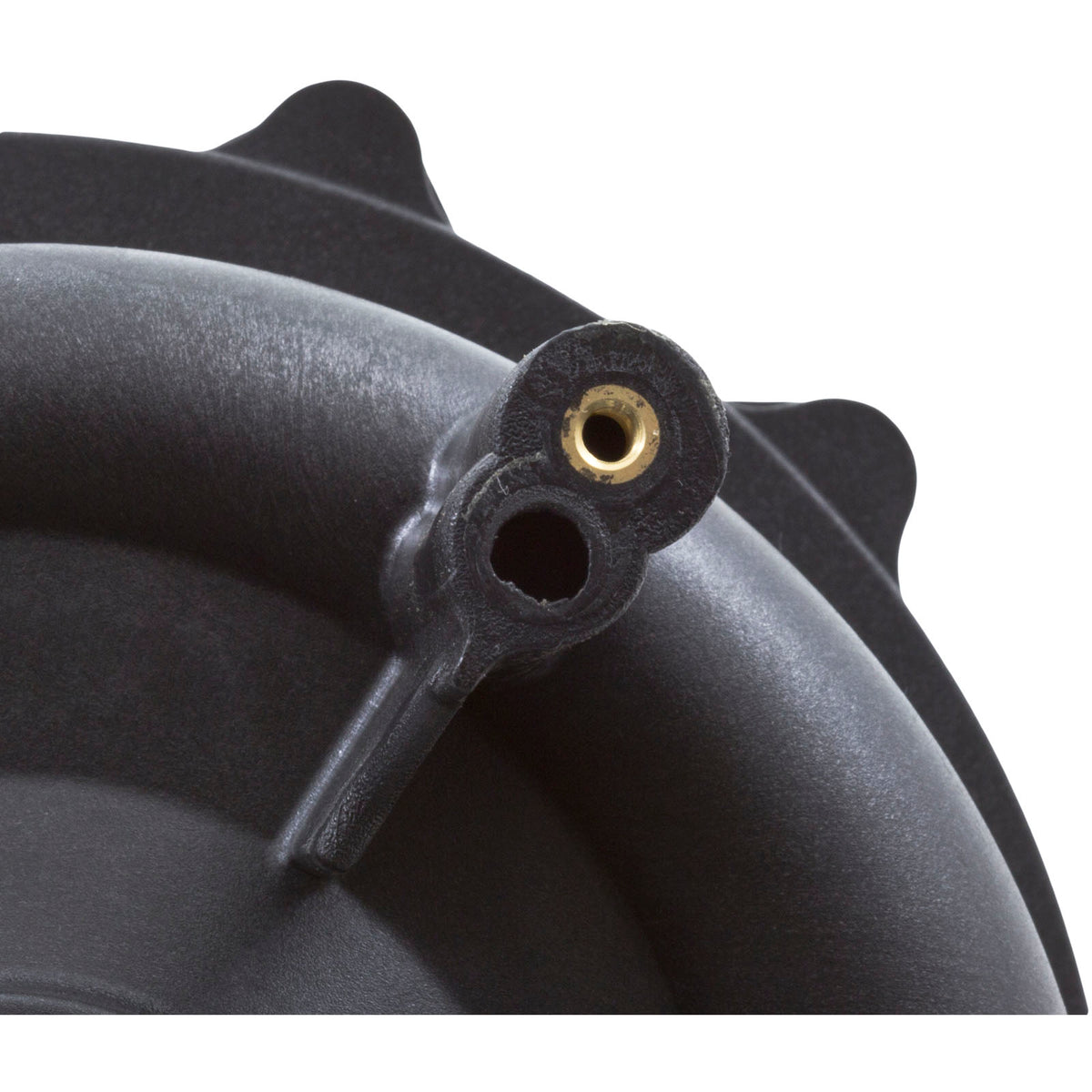

Wet End, WW Executive 2.0hp 2"mbt 56fr : 310-1720

Wet End, WW Executive 2.0hp 2"mbt 56fr Waterway Executive Wet End Side discharge, 2"mbt suction/discharge, 56 frame wet end for the Waterway Executive pump. This wet end is used with a 2.0hp, 56 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90° to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately. Manufacturer: Waterway Pump Model: Executive Motor Frame: 56 Frame Thru-Bolt Drain Plug Location: 3,6,9 o`clock Suction Style: Center Suction Connection Type: Male Buttress Thread (mbt) Suction Pipe Size: 2"Discharge Style: SideDischarge Connection Type: Male Buttress Thread (mbt)Discharge Pipe Size: 2"Horsepower: 2.0hpVolute Fastening Type: 8 Screws Replaces 310-1720-SL,310-1720B,310-2720,315-1220,315-1220B,5039-420,614311,625149,806105062536,806105064875,WW3101720
