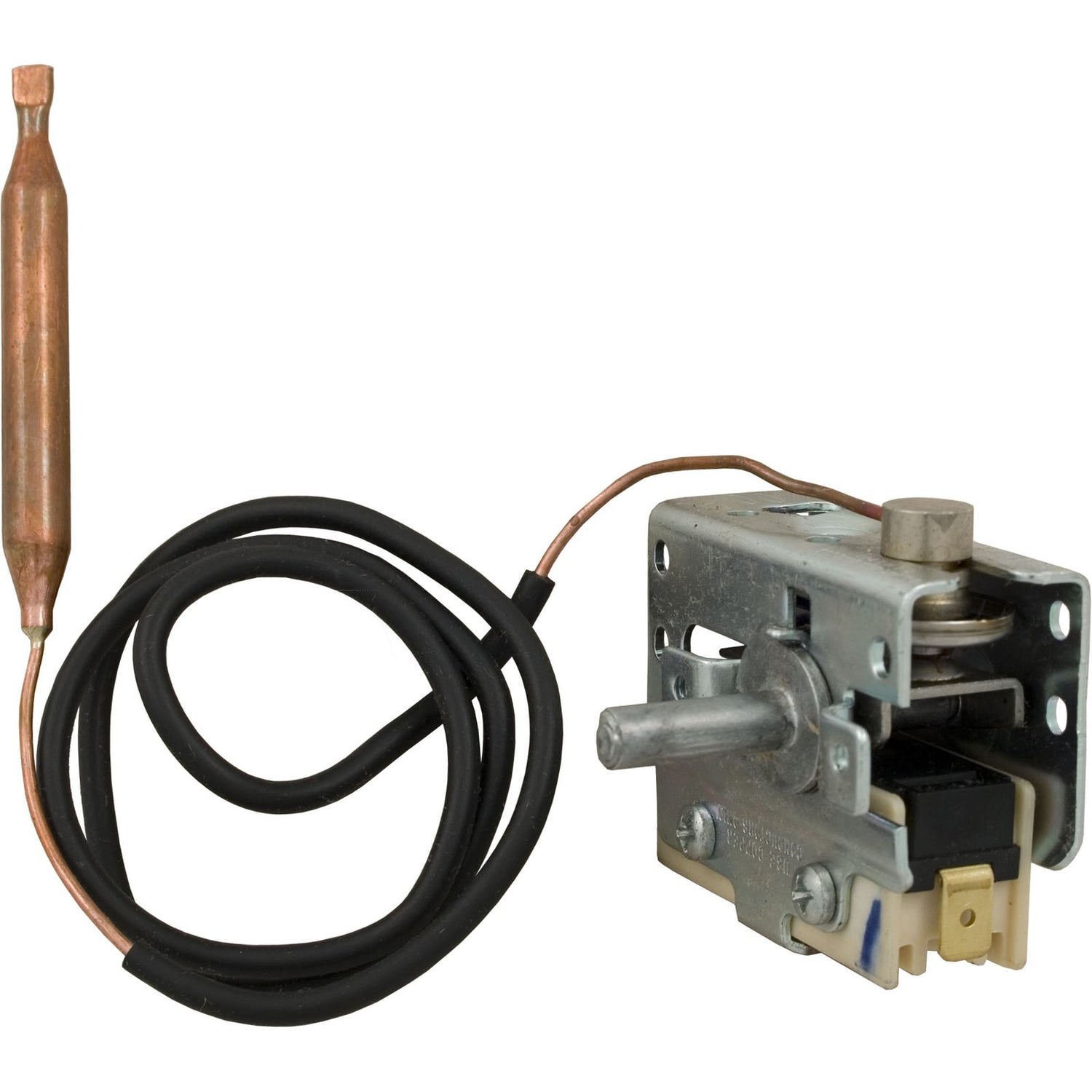

Thermostat, Invensys, Hydro-Quip, 5/16", 18", SPST, 25A : 275-3263-00

Thermostat, Invensys, Hydro-Quip, 5/16", 18", SPST, 25A Thermostats Single pole rated at 25 amps with max temp rating at 107°F. Best results are obtained when the bulb is installed in a dry well or groove tube at or immediately before the heater. This is a safety device! If it is found to be out of calibration, do not attempt to perform a field adjustment! Replace bad thermostat with a new one Capillary Length: 18" Bulb Thickness: 5/16" Thermostat Type: Mechanical Thermostat Application: HydroQuip Bulb Diameter: 5/16" Bulb Length: 2-7/8" Capillary Length: 18" Thermostat Amperage: 25A Electrical Connection: Slide Connector, 1/4" MalePole/Throw: Single Pole Single Throw (spst) Replaces 275-3148-00,605078,611003,72022,788379696306,9135-03AC,IAC275314800,
