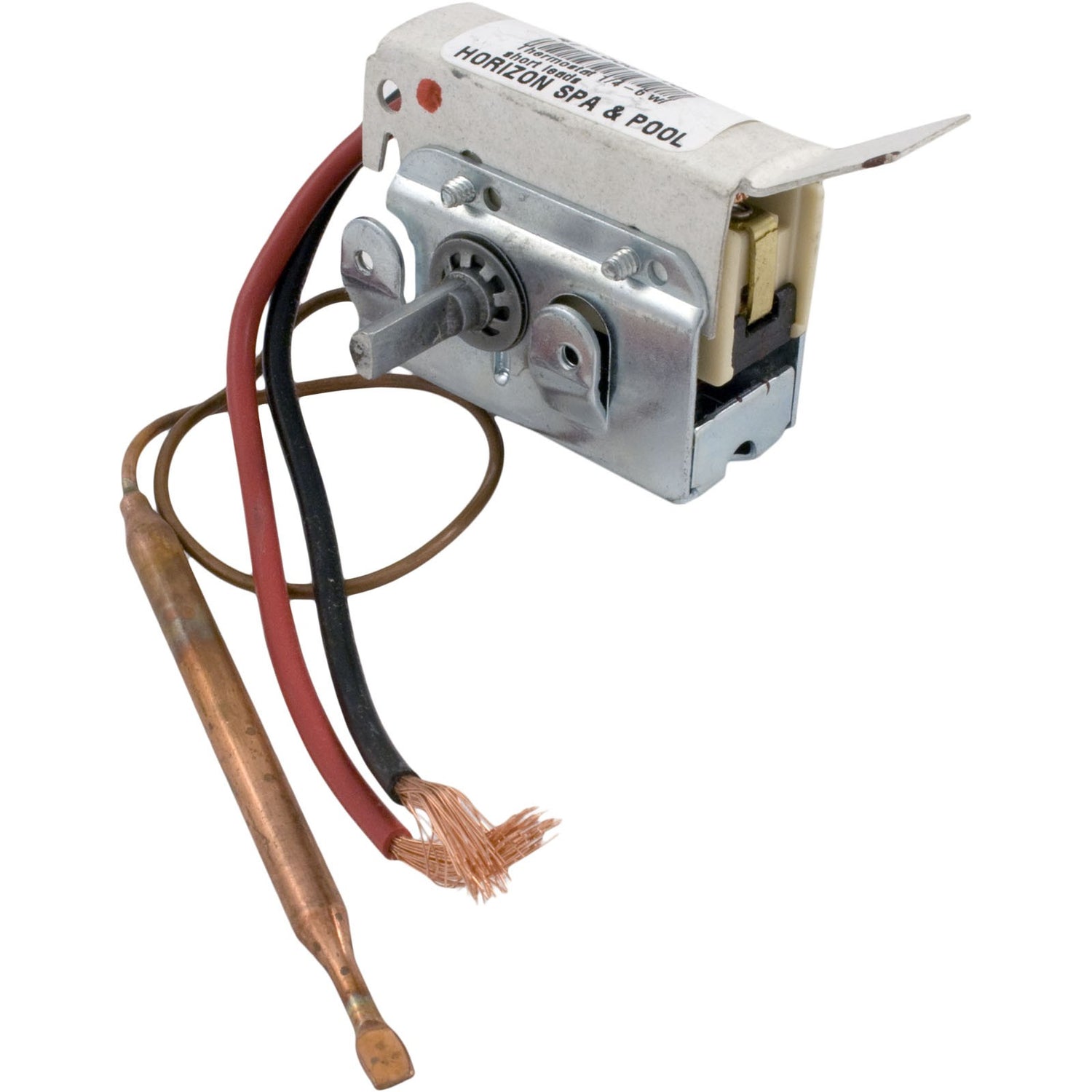

Thermostat, Invensys, 1/4", 6", SPST, 25A, Short Leads : 275-2568-00

Thermostat, Invensys, 1/4", 6", SPST, 25A, Short Leads Thermostats Single pole rated at 25 amps with max temp rating at 107°F. Best results are obtained when the bulb is installed in a dry well or groove tube at or immediately before the heater. This is a safety device! If it is found to be out of calibration, do not attempt to perform a field adjustment! Replace bad thermostat with a new one Capillary Length: 6" Bulb Thickness: 1/4" Thermostat Type: Mechanical Thermostat Application: Generic Bulb Diameter: 1/4" Bulb Length: 3-1/2" Capillary Length: 6" Thermostat Amperage: 25A Electrical Connection: Hard WiredPole/Throw: Single Pole Single Throw (spst) Replaces 275-3242-00,389768,T-STAT SPECIAL,
