Pump, Pentair WFK-4, 1.0hp, 208-230/460v, 3-Phase, Super Duty : 011641

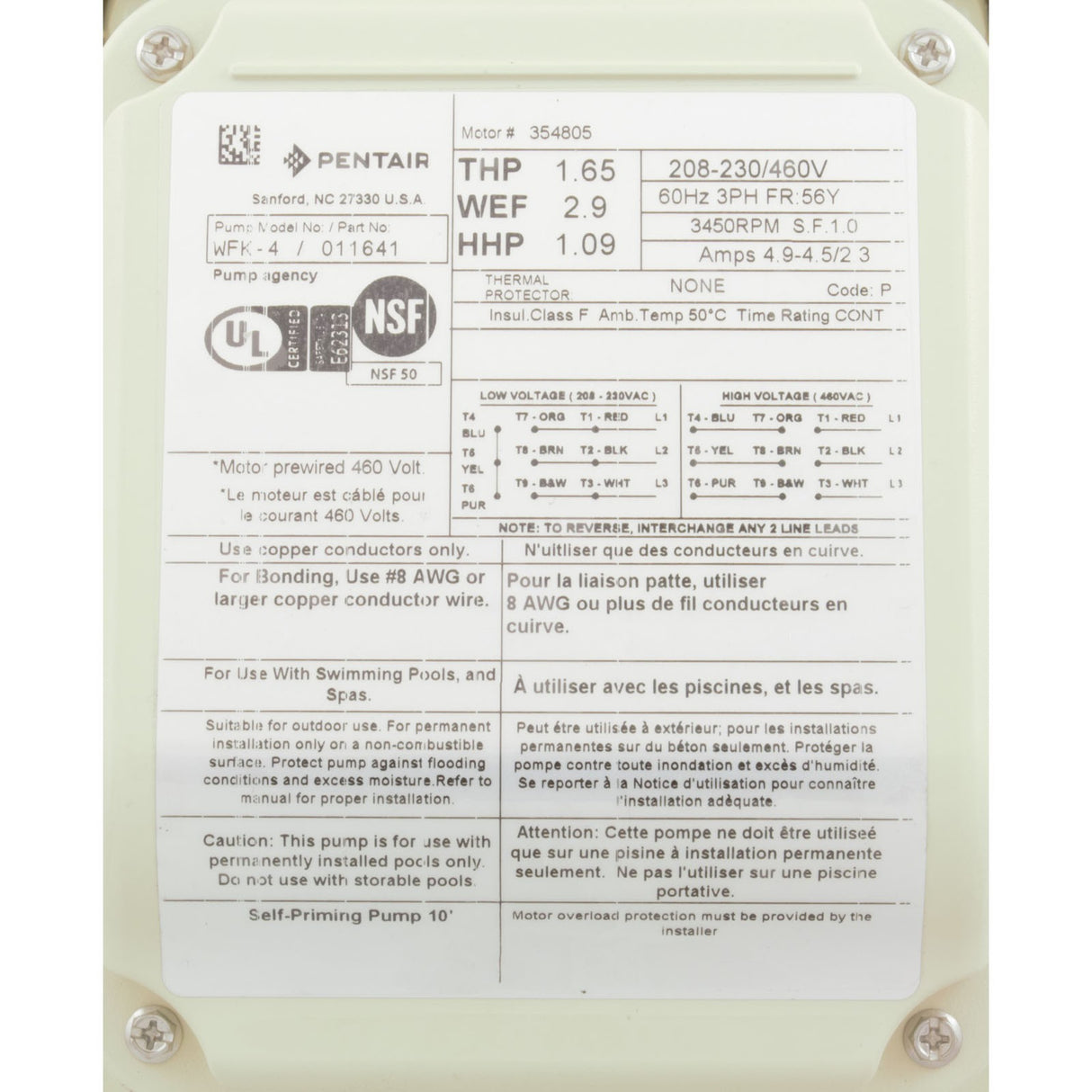

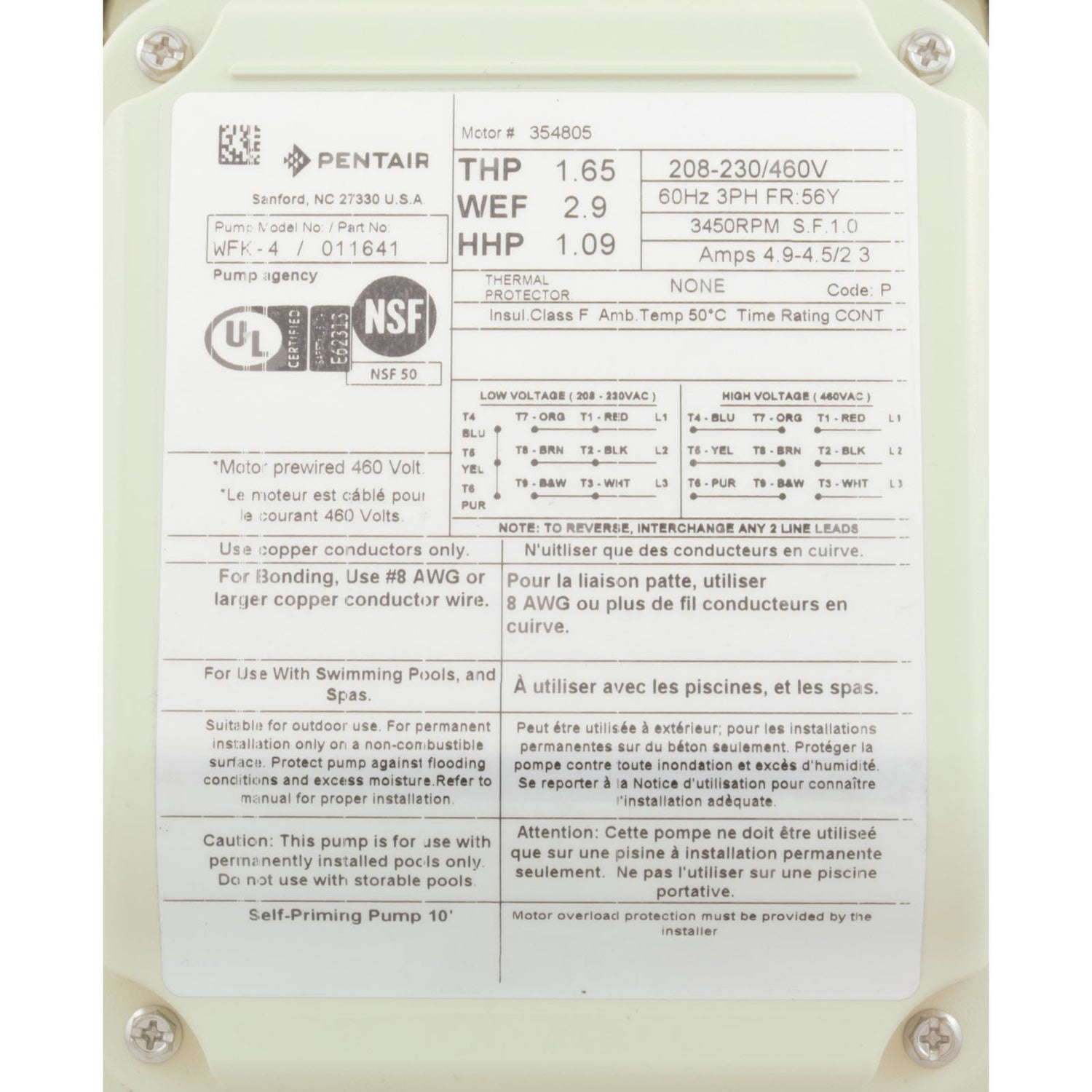

Motor is prewired for 3 Phase 460v. For 208v - 230v operation, see wiring diagram on the motor label.

Pentair WhisperFlo High Performance Pump

This inground pool pump’s hydraulic design offers high water flow while providing quiet performance. The WhisperFlo High Performance Pool Pump for inground pools is built to last, with an engineered thermoplastic housing and robust motor components. Unique design features make this pool pump easy to monitor and clean.

FEATURES:

• Oversized strainer basket and volute —industry standard in pool pumps
• TEFC Motors available
• Lower HP’s deliver higher performance than industry standard
• Compatible with all cleaning systems, various filters and jet action spas
• Heavy-duty/durable construction is designed for long life
• Designed for residential and commercial application




  Complete Pool Pump Type	In Ground
  Motor Voltage	208v-230v/460v
  WEF (Weighted Energy Factor)	2.9
  Speed	1 Speed (1-Spd)
  Motor Amperage/Wattage	4.9A-4.5A/2.3A
  Horsepower	1.0hp
  Manufacturer	Pentair
  Pump Model	WhisperFlo
  Suction Pipe Size	2"
  Suction Connection Type	Female Pipe Thread (fpt)
  Suction Style	Top
  Discharge Pipe Size	2"
  Discharge Connection Type	Female Pipe Thread (fpt)
  Discharge Style	Center
  Motor Frame	Square Flange
  Drain Plug Location	6 o`clock, R/Side Bottom
