Impeller, Carvin Magnum, 1.5ohp/2.0thp, pre-04 : 05-3819-00-R

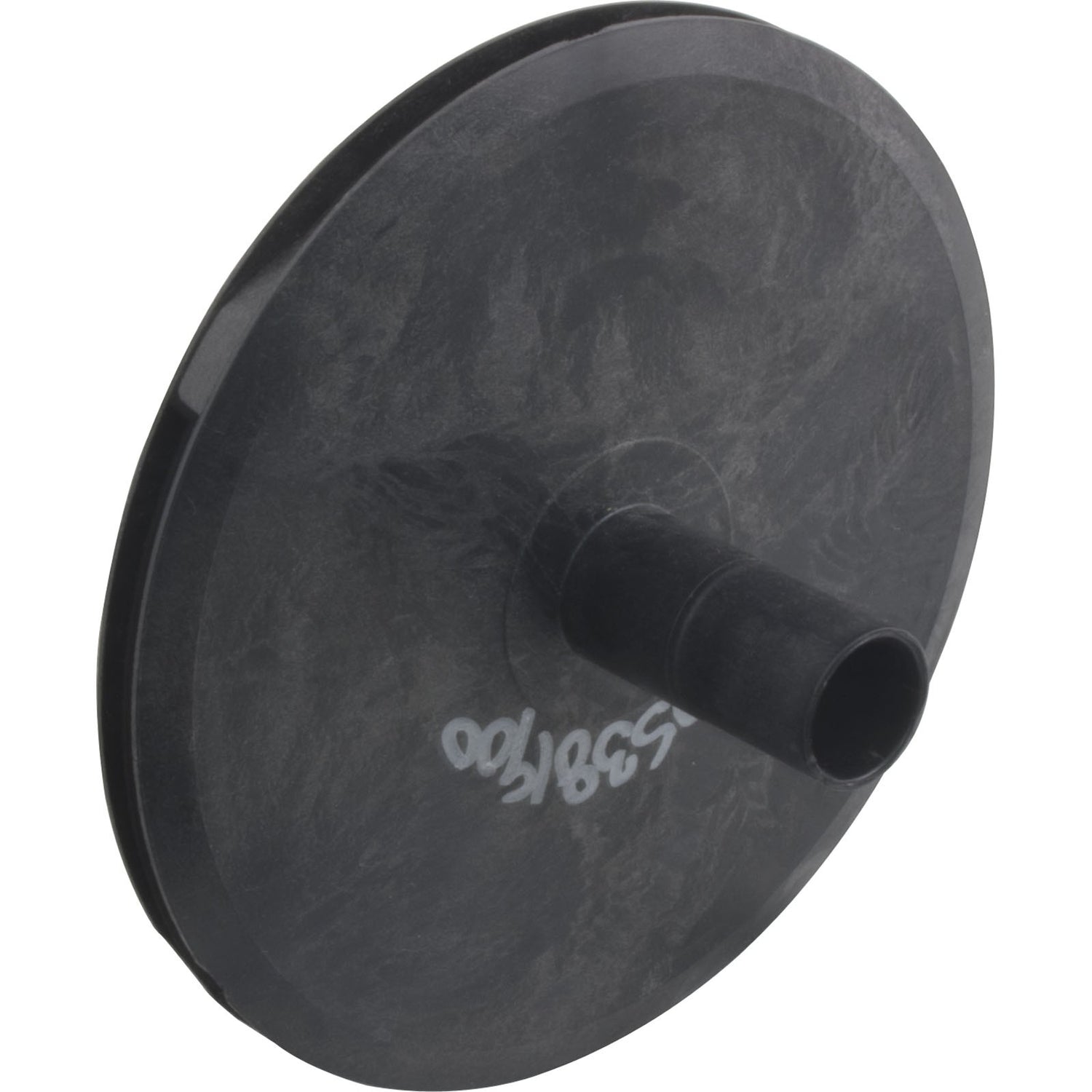

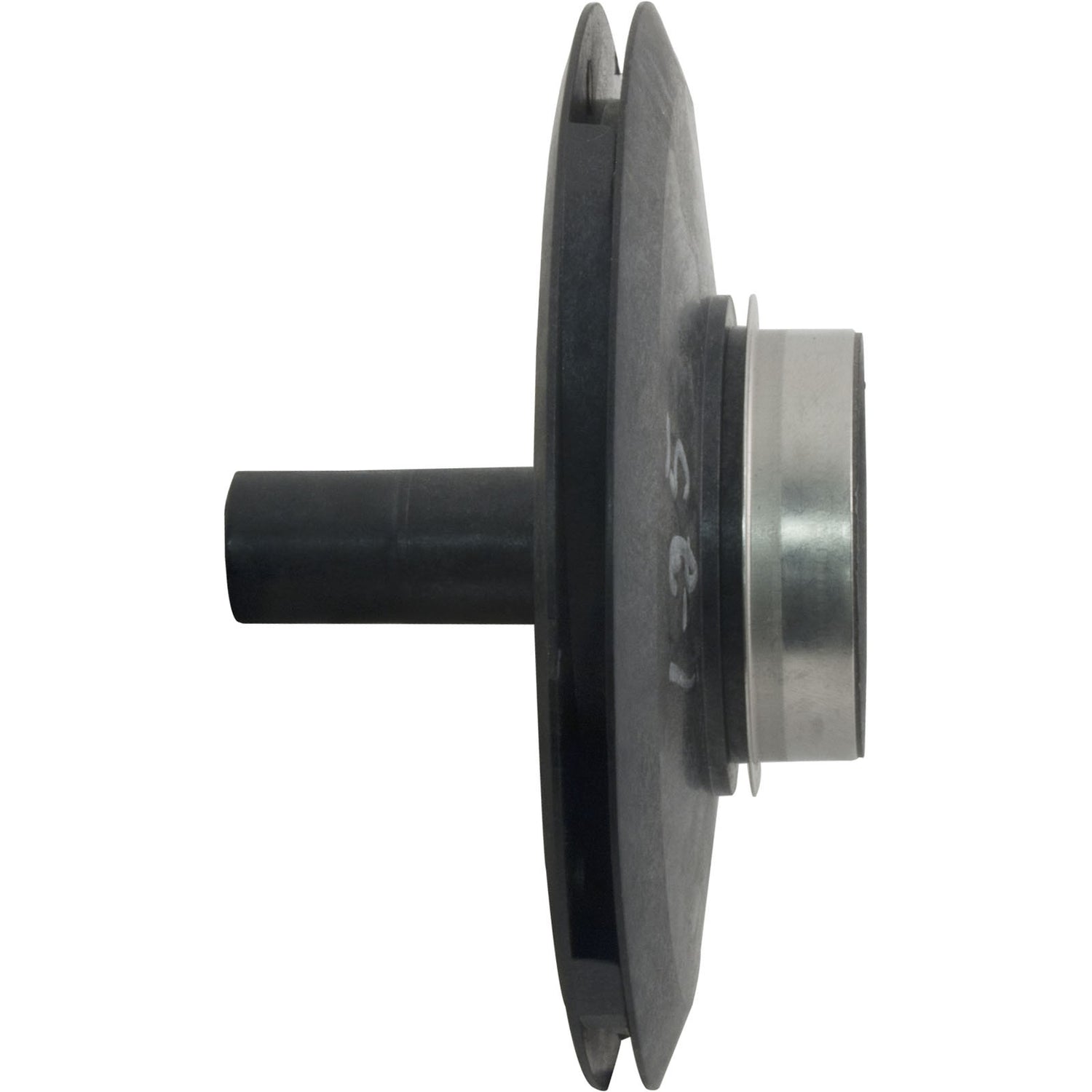

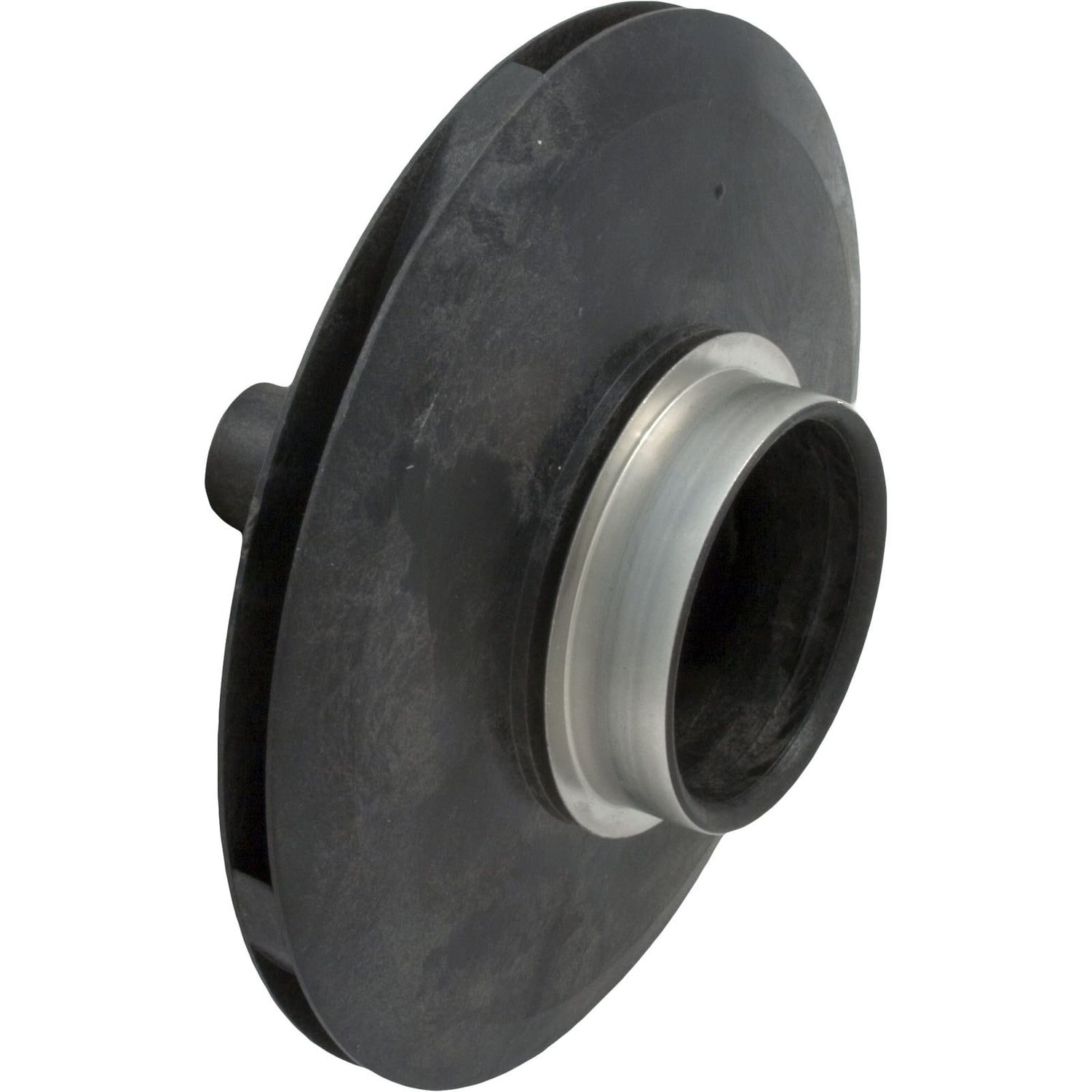

Impeller, Carvin Magnum, 1.5ohp/2.0thp, pre-04 Jacuzzi/Carvin Pump Impeller Closed face impeller made for the Magnum pool pump by Jacuzzi. Rated at 1.5hp, it is used in a Magnum pump body, and must be installed on a 1.5hp (or greater) C-face motor with a threaded shaft. Also fits Magnum Plus, Magnum Force and Magnum Force 3 pumps. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 5-1/8" Vane Width ID: 3/16" Eye Diameter OD: 2" Eye Length: 1/2" Impeller Width OD: 5/16" Seal Seat Depth: Shaft Length: 1-9/16"Shaft Diameter OD: 3/4"Seal Seat Diameter OD: Manufacturer: Jacuzzi/CarvinPump Application: Magnum, Magnum Force, Magnum Force 3, Magnum Plus Replaces 05-3819-00,05381900R,435888,5064-15B,
