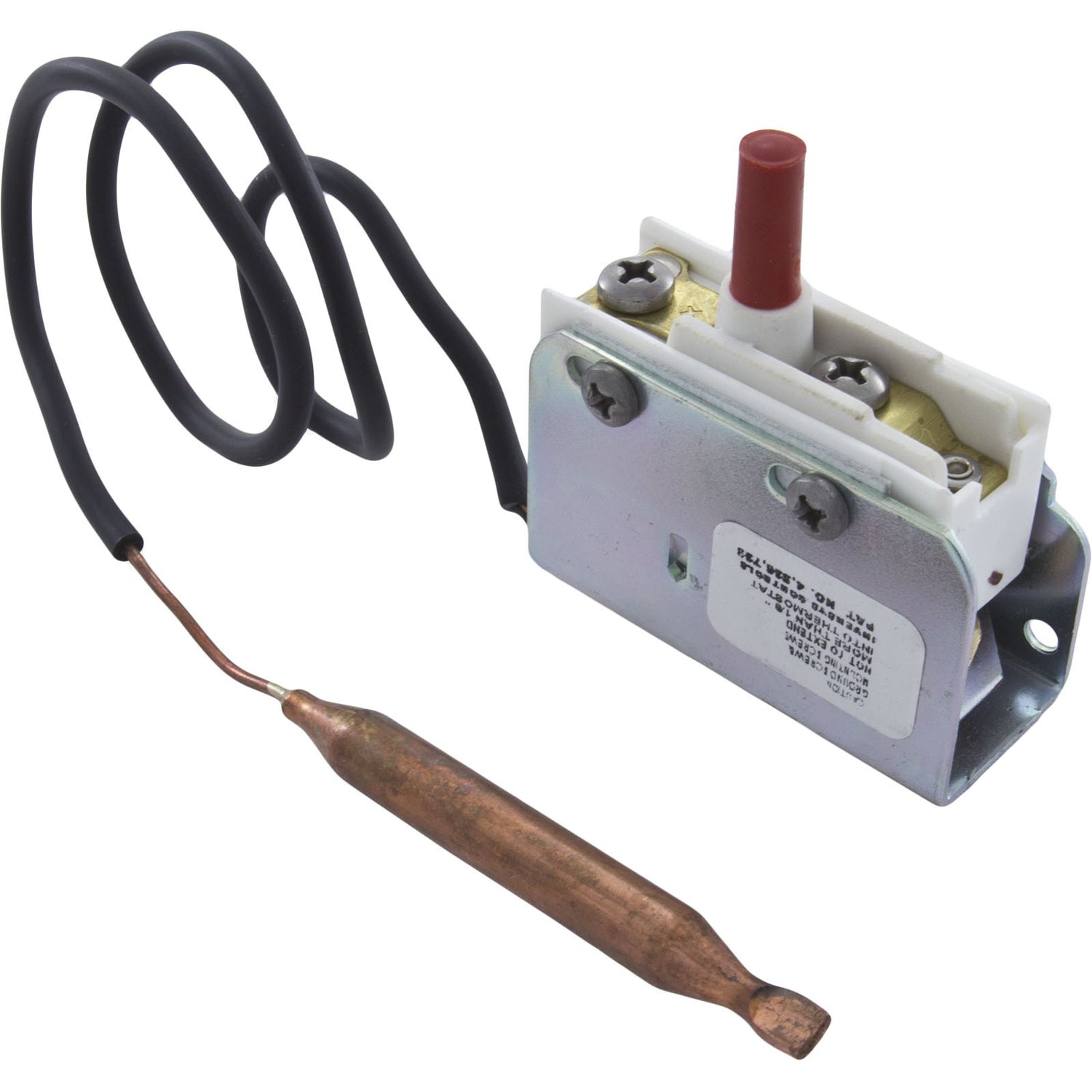

Hi-Limit, 5/16" dia, 12"Capillary, SPST, Screw Terminal, 25A : 275-3290-00

Hi-Limit, 5/16" dia, 12"Capillary, SPST, Screw Terminal, 25A Hi Limits Single pole rated at 25 amps with temperature rating set at 121°F. Best results are obtained when the bulb is installed in a dry well or groove tube at or immediately before the heater 12" capillary length, 5/16" bulb thickness This is a safety device! If it is found to be out of calibration, do not attempt to perform a field adjustment! Replace bad hi limit with a new one Hi-Limit Application: Generic Hi-Limit Style: Capillary Bulb Diameter: 5/16" Bulb Length: 2-3/4" Capillary Length: 12" Pole/Throw: Single Pole Single Throw (spst) Hi-Limit Amperage: 25AElectrical Connection: Screw Terminal Replaces 275-3148-00,389772,H-L5/16-12,IAC275329000,
